Dell S2230MX Manuel utilisateur
Dell™ S2230MX/S2330MX monitor
User's Guide
Setting the display resolution to 1920 x 1080 (Maximum)
Information in this document is subject to change without notice.
© 2011 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft and Windows are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.ENERGY STAR is a registered trademark of the U.S.
Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines
for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their
products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
Model S2230MXf/S2330MXc
June 2011 Rev. A00
Dell™ S2230MX/S2330MX Monitor User's Guide
About Your Monitor
Setting Up the Monitor
Operating the Monitor
Troubleshooting
Appendix
Notes, Cautions, Warnings
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Information in this document is subject to change without notice.
© 2011 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft and Windows are either trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries. ENERGY STAR is a registered trademark of the U.S.
Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines
for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their
products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
Model S2230MXf/S2330MXc
June 2011 Rev. A00
Back to Contents Page
Setting Up Your Monitor
Dell™ S2230MX/S2330MX monitor
Setting the display resolution to 1920 x 1080 (Maximum)
For optimal display performance while using the Microsoft Windows operating systems, set the display resolution to 1920
x 1080 pixels by performing the following steps:
In Windows XP:
1. Right-click on the desktop and click Properties.
2. Select the Settings tab.
3. Move the slider-bar to the right by pressing and holding the left-mouse button and adjust the screen resolution to
1920 x 1080.
4. Click OK.
In Windows Vista® or Windows® 7:
1. Right-click on the desktop and click Personalization.
2. Click Change Display Settings.
3. Move the slider-bar to the right by pressing and holding the left-mouse button and adjust the screen resolution to
1920 x 1080.
4. Click OK.
If you do not see 1920 x 1080 as an option, you may need to update your graphics driver. Please choose the scenario
below that best describes the computer system you are using, and follow the provided
1: If you have a Dell™ desktop or a Dell™ portable computer with internet access.
2: If you have a non Dell™ desktop, portable computer, or graphics card.
Back to Contents Page
Back to Contents Page
About Your Monitor
Dell™ S2230MX/S2330MX Monitor User's Guide
Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Plug and Play Capability
LCD Monitor Quality & Pixel Policy
Maintenance Guidelines

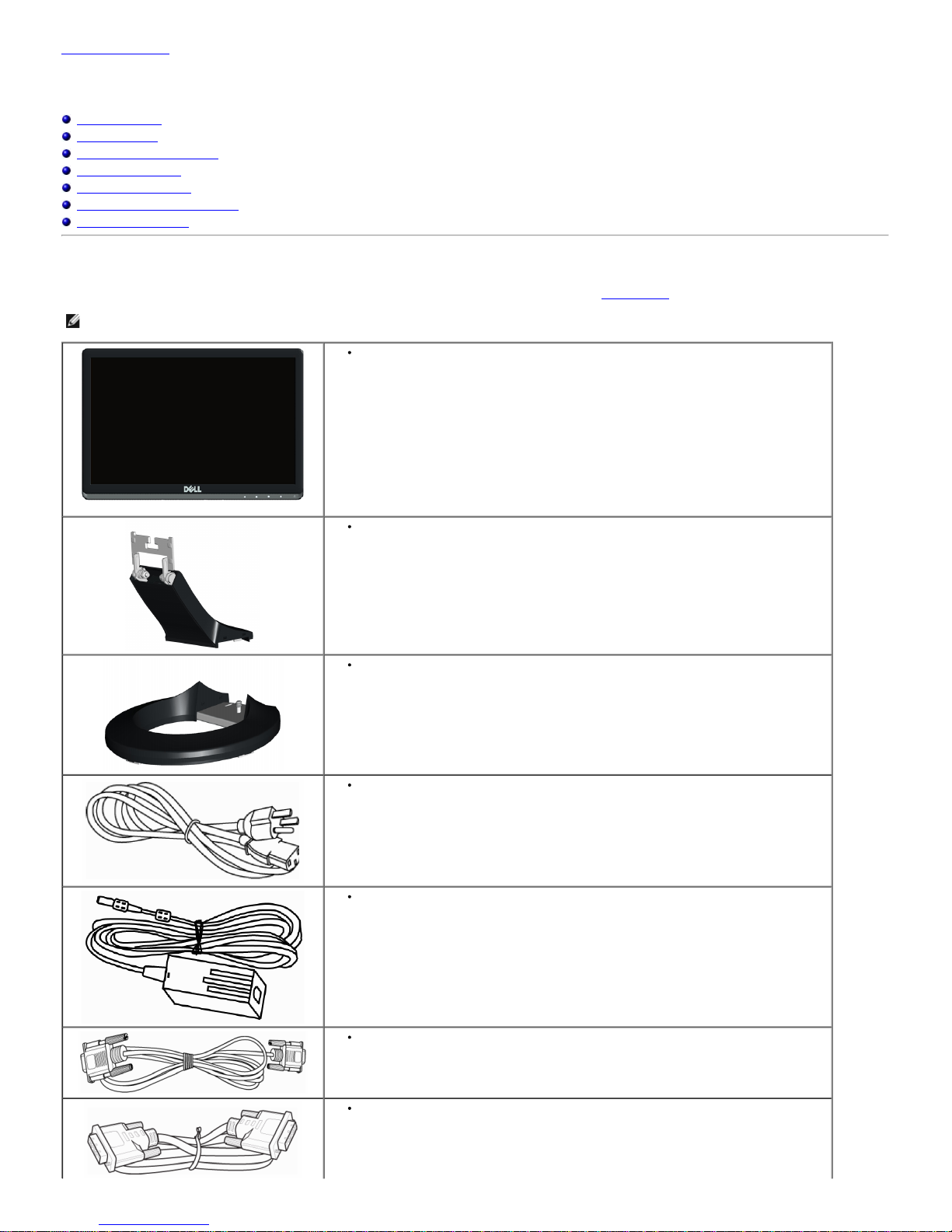

Package Contents
Your monitor ships with all the components shown below. Ensure that you have received all the components and Contact Dell™ if anything is missing.
NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.
Monitor
Stand Riser
Stand Base
Power Cable
Adapter Cable
VGA Cable
DVI Cable(optional purchase)
DVI-HDMI Dongle
Notes: The image is for illustration purpose only and appearance of the actual dongle included may vary.
Drivers and Documentation media
Quick Setup Guide
Product Information Guide
Product Features
The Dell™ S2230MX/S2330MX flat panel display has an active matrix, Thin-Film Transistor, Liquid Crystal Display. The monitor's features include:
■S2230MX: 54.61 cm (21.5 inches) viewable area display. 1920 x 1080 resolution, plus full-screen support for lower resolutions.
■S2330MX: 58.42 cm (23.0 inches) viewable area display. 1920 x 1080 resolution, plus full-screen support for lower resolutions.
■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.
■Removable pedestal.
■Plug and play capability if supported by your system.
■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■Software and documentation media which includes an information file (INF), Image Color Matching File (ICM), and product documentation.
■ENERGY STAR compliant.
■Security lock slot.
■EPEAT™ Silver compliant.
Identifying Parts and Controls
Front View
1. Function buttons (For more information, see
Operating the Monitor)
2. Power On/Off button (with LED indicator)
Back View
Label Description Use
1Security lock slot Use a security lock with the slot to help secure your monitor.
2Barcode serial number label Refer to this label if you need to contact Dell for technical support.
3 Adapter connector To connect the monitor power cable using a 12V DC adapter for
transition.
4DVI connector To connect your computer to the monitor using a DVI cable.
5VGA connector To connect your computer to the monitor using a VGA cable.
6Regulatory rating label Lists the regulatory approvals.
Side View
Right Side
Bottom View
Monitor Specifications
The following sections give you information about the various power management modes and pin assignments for the various connectors of your monitor.
Power Management Modes
If you have VESA's DPM compliance display card or software installed in your PC, the monitor automatically reduces its power consumption when not in use. This is referred
to as Power Save Mode. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table
shows the power consumption and signaling of this automatic power saving feature:
S22330MX:
VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption
Normal operation Active Active Active White 20 W (Maximum)
13 W (Typical)
Active-off mode Inactive Inactive Blank Amber Less than 0.5 W
Switch off - - - Off Less than 0.5 W
S2330MX:
VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption
Normal operation Active Active Active White 33 W (Maximum)
27 W (Typical)
Active-off mode Inactive Inactive Blank Amber Less than 0.5 W
Switch off - - - Off Less than 0.5 W
The OSD will only function in the normal operation mode. When any button except power button is pressed in Active-off mode, the following messages will be displayed:
Activate the computer and monitor to gain access to the OSD.
NOTE: Dell S2230MX/S2330MX monitor is ENERGY STAR® compliance.
* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
** Maximum power consumption with max luminance and contrast.
Pin Assignments
15-pin D-Sub connector
Pin Number Monitor Side of the 15-pin Side Signal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9DDC +5 V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock
DVI Connector
Pin
Number 24-pin Side of the Connected Signal
Cable
1TMDS RX2-
2TMDS RX2+
3TMDS Ground
4 Floating
5 Floating
6DDC Clock
7DDC Data
8 Floating
9TMDS RX1-
10 TMDS RX1+
11 TMDS Ground
12 Floating
13 Floating
14 +5 V power
15 Self test
16 Hot Plug Detect
17 TMDS RX0-
18 TMDS RX0+
19 TMDS Ground
20 Floating
21 Floating
22 TMDS Ground
23 TMDS Clock+
24 TMDS Clock-
DVI-HDMI Dongle
Pin
Number 19-pin Side of the Connected Signal
Cable
1TMDS Date2+
2TMDS Date2 GND
3TMDS Date2-
4TMDS Date1+
5TMDS Date1 GND
6TMDS Date1-
7TMDS Date0+
8TMDS Date0 GND
9TMDS Date0-
10 TMDS Clock+
11 TMDS Clock GND
12 TMDS Clock-
13 CEC
14 NC
15 SCL
16 SDA
Pin
Number 24-pin Side of the Connected Signal
Cable
1TX 2 -
2TX 2 +
3SHLD 2 / 4
4TX 4 -
5TX 4 +
6DDC Clk
7DDC Data
8 NC
9TX 1 -
10 TX 1 +
11 SHLD 1 / 3
12 TX 3 -
13 TX 3 +
14 +5V
15 GND
16 HPD
17 DDC/CEC GND
18 +5V
19 Hot Plug Detect
17 TX 0 -
18 TX 0 +
19 SHLD 0 / 5
20 TX 5 -
21 TX 5 +
22 TX CLK SHLD
23 TX CLK +
24 TX CLK -
Plug and Play Capability
You can install the monitor in any Plug and Play compatible system. The monitor automatically provides the computer with its Extended Display Identification Data (EDID)
using Display Data Channel (DDC) protocols so that the system can configure itself and optimize the monitor settings. Most monitor installations are automatic. You can
select different settings if required.
Flat Panel Specifications
Model number Dell S2230MX monitor Dell S2330MX monitor
Screen type Active matrix - TFT LCD Active matrix - TFT LCD
Panel Type TN TN
Screen dimensions 54.61 cm (21.5 inches) (21.5-inch diagonal
viewable image size) 58.42 cm (23 inches) (23-inch diagonal
viewable image size)
Preset display area:
Horizontal
Vertical
476.6 mm (18.76 inches)
268.1 mm (10.56 inches)
509.18 mm (20.05 inches)
286.42 mm (11.28 inches)
Pixel pitch 0.248 mm 0.265 mm
Viewing angle:
Horizontal
Vertical
170 ° typical
160 ° typical
170 ° typical
160 ° typical
Luminance output 250 cd/m² (typical) 250 cd/m² (typical)
Contrast ratio 1000 to 1 (typical) 1000 to 1 (typical)
Dynamic Contrast Ratio 8,000,000 to 1 (typical) * 8,000,000 to 1 (typical) *
Faceplate coating Antiglare with hard-coating 3H Antiglare with hard-coating 3H
Backlight LED light bar system LED light bar system
Response Time 5 ms typical ( black to white); 2 ms typical
with overdrive (grey to grey) 5 ms typical ( black to white); 2 ms typical
with overdrive (grey to grey)
Color Depth 16.7 mil colors 16.7 mil colors
Color Gamut 82 % (typical) ** 82 % (typical) **
* Based on estimation.
** [S2230MX/S2330MX] color gamut (typical) is based on CIE1976 (82 %) and CIE1931 (72 %) test standards.
Resolution Specifications
Model number Dell S2230MX monitor Dell S2330MX monitor
Scan range
Horizontal
Vertical
30 kHz to 83 kHz (automatic)
56 Hz to 75 Hz (automatic)
30 kHz to 83 kHz (automatic)
56 Hz to 75 Hz (automatic)
Maximum preset resolution 1920 x 1080 at 60 Hz 1920 x 1080 at 60 Hz
Electrical Specifications
Model number Dell S2230MX monitor Dell S2330MX monitor
Video input signals Analog RGB: 0.7 Volts +/- 5 %, 75 ohm input
impedance Analog RGB: 0.7 Volts +/- 5 %, 75 ohm input
impedance
Synchronization input signals Separate horizontal and vertical
synchronizations, polarity-free TTL level, SOG
(Composite SYNC on green)
Separate horizontal and vertical
synchronizations, polarity-free TTL level, SOG
(Composite SYNC on green)
Delta adapter ADP-40DD B: 100 VAC to 240 Delta adapter ADP-40DD B: 100 VAC to 240
AC/DC Adapter*
input voltage /
frequency / current
VAC / 50 Hz to 60 Hz +3 Hz / 1.5 A (Max.),
Lite-On adapter PA-1041-0: 100 VAC to 240
VAC / 50 Hz or 60 Hz +3 Hz / 1.2 A (Max.)
VAC / 50 Hz to 60 Hz +3 Hz / 1.5 A (Max.),
Lite-On adapter PA-1041-0: 100 VAC to 240
VAC / 50 Hz or 60 Hz +3 Hz / 1.2 A (Max.)
output voltage / current OUTPUT: 12 VDC / 3.33 A OUTPUT: 12 VDC / 3.33 A
Inrush current 120 V: 30 A (Max.)
240 V: 60 A (Max.) 120 V: 30 A (Max.)
240 V: 60 A (Max.)
* Qualified Compatible AC/DC adapters:
CAUTION: To avoid damage to the monitor, use only the adapter designed for this particular Dell monitor.
Manufacturer Model Polarity
Delta ADP-40DD BA
Lite-On PA-1041-0
This monitor comes equipped with a failsafe mechanism to shut down the monitor when a non-compliant power adapter is plugged in the DC socket.
The following messages will be displayed when the monitor has detected that a wrong power adapter is used.
To avoid damage to the unit, user is strongly advised to use the original power adapter that comes packaged together with the monitor.
Preset Display Modes
The following table lists the preset modes for which Dell guarantees image size and centering:
S2230MX:
Display Mode Horizontal Frequency
(kHz) Vertical Frequency
(Hz) Pixel Clock (MHz) Sync Polarity
(Horizontal/Vertical)
VESA, 720 x 400 31.5 70.0 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.0 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 108.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
VESA, 1920 x 1080 67.5 60.0 148.5 +/+
S2330MX:
Display Mode Horizontal Frequency
(kHz) Vertical Frequency
(Hz) Pixel Clock (MHz) Sync Polarity
(Horizontal/Vertical)
VESA, 720 x 400 31.5 70.0 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.0 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 108.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
VESA, 1920 x 1080 67.5 60.0 148.5 +/+
Autres manuels pour S2230MX
3
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Dell Moniteur
Dell
Dell P1911 Instructions d'utilisation
Dell
Dell UltraSharp 25 Series Manuel utilisateur
Dell
Dell ST2320L Manuel utilisateur
Dell
Dell UltraSharp 27 UP2715K Manuel utilisateur
Dell
Dell SE3223Q Manuel utilisateur
Dell
Dell PowerEdge Rack Console 17FP Manuel utilisateur
Dell
Dell Crystal Manuel utilisateur
Dell
Dell UltraSharp 1908FP-BLK Manuel utilisateur
Dell
Dell ST2010B Manuel utilisateur
Dell
Dell D1901N Manuel utilisateur
Dell
Dell UltraScan P780 Manuel utilisateur
Dell
Dell SE2417HGX Instructions d'utilisation
Dell
Dell E207WFP Manuel utilisateur
Dell
Dell IN1930 Manuel utilisateur
Dell
Dell S199WFP - 19" LCD Monitor Mode d’emploi
Dell
Dell UltraSharp 1704FPV Instructions d'utilisation
Dell
Dell UltraSharp U2711 Manuel utilisateur
Dell
Dell E2211H Fiche technique
Dell
Dell S2240L Manuel utilisateur
Dell
Dell 3007WFP-HC - UltraSharp - 30" LCD Monitor Manuel utilisateur
