Dell UltraSharp U2717DA Manuel utilisateur

Model: U2717DA

Regulatory model: U2717Dt

Dell UltraSharp U2717DA

User’s Guide

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions.

All other marks and names mentioned herein may be trademarks of their respective companies.

2016 – 01 Rev. A00

Contents

About Your Monitor ..................................... 5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Identifying Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Monitor Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Plug-and-Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

LCD Monitor Quality and Pixel Policy. . . . . . . . . . . . . . . . . . . . . . .21

Setting Up the Monitor.................................. 22

Installing the Arm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Organizing Your Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Using the Tilt, Swivel, Pivot, Vertical and Horizontal Extension . . . . . .31

Adjusting the Rotation Display Settings of Your System . . . . . . . . . . 33

Connecting Your Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Removing the Monitor Arm. . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Operating the Monitor .................................. 39

Turning on the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Using the Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . 39

Using the On-Screen Display (OSD) Menu . . . . . . . . . . . . . . . . . . . 42

Troubleshooting ....................................... 55

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Contents | 3

4| Contents

Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Common Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Product Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Mobile High-Definition Link (MHL) Specific Problems. . . . . . . . . . . . 59

Appendix ..............................................60

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

FCC Notices (U.S. only) and Other Regulatory Information . . . . . . . . 60

Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Setting Up Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

About Your Monitor | 5

About Your Monitor

Package Contents

Your monitor ships with the components shown below. Make sure that you have

received all the components and contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your monitor.

Somefeatures or media may not be available in certain countries.

Monitor

Arm Riser

Arm Base

Allen key

6| About Your Monitor

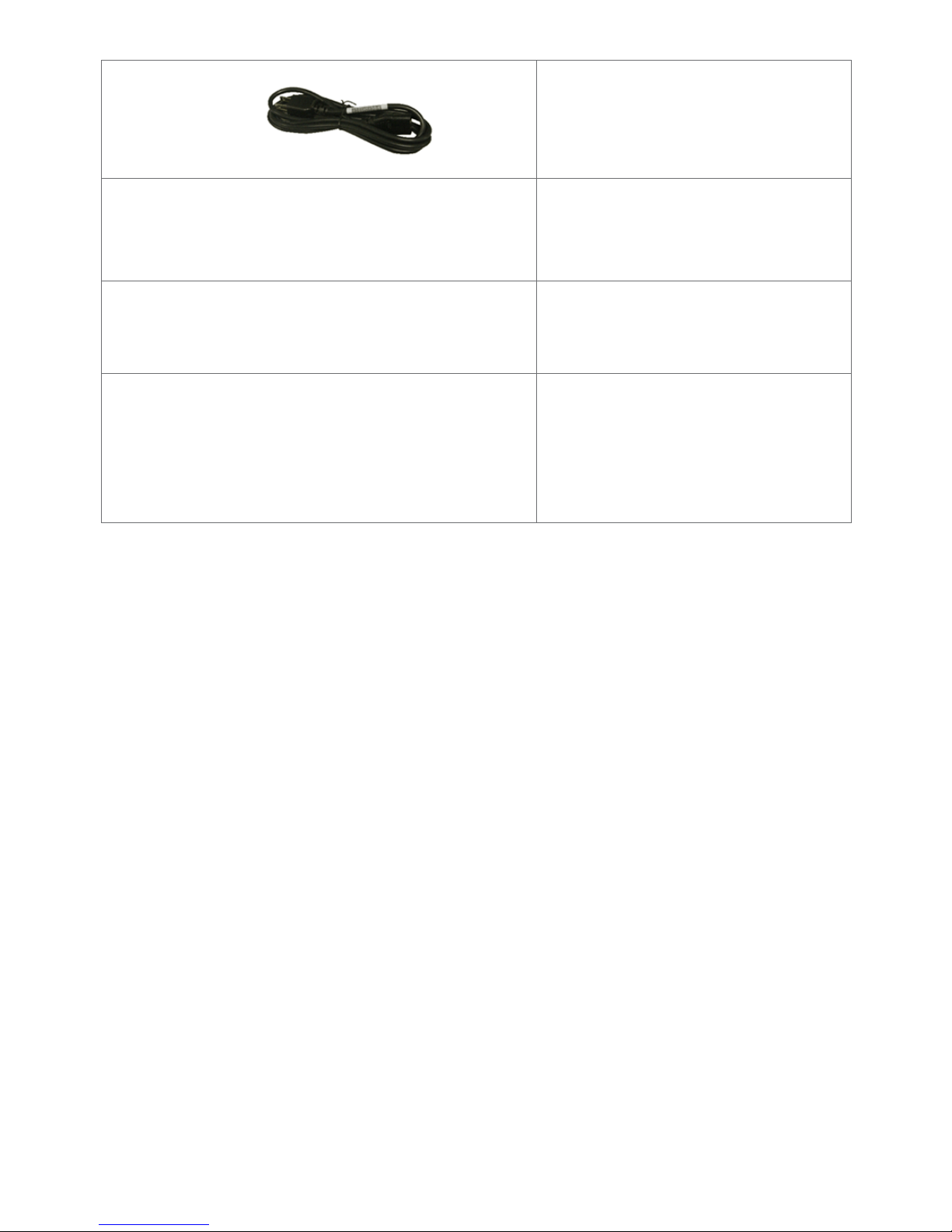

Power cable (varies by country)

USB 3.0 upstream cable (enables

the USB ports on the monitor)

DP cable (mDP to DP)

•Drivers and documentation media

•Quick Setup Guide

•Safety and Regulatory Information

•Factory Calibration Report

Product Features

The Dell UltraSharp U2717DA monitor has an active matrix, thinfilm transistor (TFT),

liquid crystal display (LCD), and LED backlight. The monitor features include:

• 68.47 cm (27-inch) active area display (Measured diagonally) 2560 x 1440

resolution, plus full-screen support for lower resolutions.

• Wide viewing angles with 99% sRGB color.

• Tilt, swivel, pivot, vertical and horizontal extension adjustment capabilities.

• Removable pedestal and Video Electronics Standards Association (VESA™) 100 mm

mounting holes for flexible mounting solutions.

• Ultra-thin bezel minimizes the bezel gap in multi-monitor usage, enabling easier

set up with an elegant viewing experience.

• Extensive digital connectivity with DP, mDP, HDMI (MHL), and USB 3.0 helps future-

proof your monitor.

• Plug and play capability if supported by your system.

• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

• Software and documentation media includes an information file (INF), Image

color Matching File (ICM), Dell Display Manager software application and product

documentation. Dell Display Manager included (comes in the CD attached with the

monitor).

• Security lock slot.

• Asset Management Capability.

• Energy Star Compliant.

• EPEAT Gold Compliant.

About Your Monitor | 7

• RoHS compliant.

• BFR/PVC Free monitor (excluding cables).

• Arsenic-Free glass and Mercury Free for Panel only.

• Energy Gauge shows the energy level being consumed by the monitor in real time.

• 0.5 W standby power when in the sleep mode.

• TCO Certified Displays.

Identifying Parts and Controls

Front view

Label Description

1Function buttons (For more information, see Operating the Monitor)

2Power on/off button (with LED indicator)

8| About Your Monitor

Back View

Label Description Use

1VESA mountiong holes (100 mm

x 100 mm-behind attached VESA

cover)

Wall mount monitor using VESA-

compatible wall mount kit (100 mm x 100

mm).

2Regulatory label Lists the regulatory approvals.

3Arm release button Release arm from monitor.

4Security lock slot Secures monitor with security cable lock

(sold separately).

5Barcode, serial number, and Service

Tag label

Refer to this label if you need to contact

Dell for technical support.

6Arm cover Remove the cover to access the cable

management compartment.

7Cable management compartment Use to organize cables by routing them

through the compartment. See Organizing

Your Cables.

Side View

USB downstream port

Port with battery icon is for BC 1.2

About Your Monitor | 9

Bottom View

Label Description Use

1AC power connector To connect the monitor power cable.

2HDMI (MHL) connector Connect your computer with HDMI cable or MHL

devices with MHL cable (optional).

3DP connector (in) Connect your computer with DP cable.

4mDP connector (in) Connect your computer with mDP to DP cable.

5DP connector (out) DP output for MST (multi-stream transport) capable

monitor. DP 1.1 monitor can only be connected as

the last monitor in the MST chain. To enable MST,

refer to instruction on section “Connecting the

Monitor for DP MST Function”.

NOTE: Remove the rubber plug when use DP out

connector.

6Audio line-out port Connect speakers to playback audio coming

through HDMI or DP audio channels.

Only supports 2-channel audio.

NOTE: The audio line-out port does not support

headphones.

WARNING: Excessive sound pressure from

earphones or headphones can cause hearing

damage or loss.

7USB upstream port Connect the USB cable that comes with your

monitor to the computer. Once this cable is

connected, you can use the USB downstream

connectors on the monitor.

8USB downstream ports (2) Connect your USB device. You can only use this

connector after you have connected the USB cable

to the computer and USB upstream connector on

the monitor.

9Arm lock Lock the arm to the monitor using a M3 x 6 mm

screw (screw not included).

10 | About Your Monitor

Monitor Specifications

Flat Panel Specifications

Screen type Active matrix - TFT LCD

Panel type In-plane switching (IPS)

Viewable image

Diagonal 68.47 cm (27 inches)

Active Area

Horizontal 569.736 mm (22.43 inches)

Vertical 335.664 mm (13.21 inches)

Area 191239.86 mm2(296.30 inches2)

Pixel pitch 0.2331 mm x 0.2331 mm

Viewing angle

Horizontal 178° (typical)

Vertical 178° (typical)

Luminance output 350 cd/m² (typical)

Contrast ratio 1000 to 1 (typical)

Faceplate coating Anti-glare treatment of the front polarizer (3H)

Backlight LED

Response Time 8 ms (typical), 6 ms (fast mode)

Color depth 16.7 million colors

Color gamut 99% sRGB

Resolution Specifications

Horizontal scan range 30 kHz to 88 kHz (DP/HDMI)

27 kHz to 70 kHz (MHL)

Vertical scan range 50 Hz to 75 Hz (DP/HDMI)

24 Hz to 60 Hz (MHL)

Maximum preset resolution 2560 x 1440 at 60 Hz

Video display capabilities

(DP & HDMI & MHL playback)

480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1440p
