Dell D3217H Manuel utilisateur

Regulatory model: D3217Ho

Dell D3217H

User’s Guide

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

This product is protected by U.S. and international copyright and intellectual property laws.

Dell™and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions.

All other marks and names mentioned herein may be trademarks of their respective companies.

2016–06 Rev. A00

Contents 3

Contents

Safety instructions....................................... 4

About your monitor ..................................... 5

Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setting up the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Attaching the stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Removing the stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Connecting Your Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Parts and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Back view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Using On Screen Display (OSD) Functions ................. 9

The main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Technical specifications................................. 13

Monitor specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Supported resolutions and refresh rates. . . . . . . . . . . . . . . . . . 13

Maintenance guidelines................................. 15

Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Appendix .............................................. 16

Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4 Safety instructions

Safety instructions

This monitor is manufactured and tested on a ground principle that a user’s

safety comes first. However, improper use or installation may result in danger

to the user, damage to the monitor, or both. Use the following safety guidelines

to protect your monitor from potential damage and ensure your personal

safety.

WARNING: This monitor should be operated only with a correct power

source as indicated at the label on the rear of the monitor. For more

information on the power source you are using, contact your power service

provider.

WARNING: You should only perform troubleshooting and repairs as

authorized or directed by the Dell technical assistance team. Damage due

to servicing that is not authorized by Dell is not covered by your warranty.

WARNING: To avoid electric shock, do not attempt to remove any cover or

touch the inside of the monitor. Only a qualified service technician should

open the monitor cover.

WARNING: Stop using the monitor if the cover is damaged. Have it checked

by a service technician.

WARNING: Place the monitor on a flat, soft, and clean surface. If there is a

liquid spill on the monitor, unplug the monitor from the power source and

contact Dell for assistance.

WARNING: Before you clean your monitor, disconnect it from the electrical

outlet. Clean your monitor with a soft cloth dampened with water or non-

ammonia based cleaner.

WARNING: Keep the monitor away from magnetic objects, motors, TV sets,

and electrical transformers.

WARNING: Do not place heavy objects on the cables.

WARNING: For monitors with reflective screens, position the monitor such

that glares caused by other light sources are avoided.

WARNING: When you purchase a VESA wall mount, ensure it is UL-listed

and that only a qualified service technician installs it.

About your monitor 5

About your monitor

Package contents

Your monitor ships with the components shown below. Make sure that you

have received all the components and contact Dell if something is missing.

Monitor

Stand base

Screws

Power cable (varies by country)

DVI cable

• Drivers and documentation media

• Quick Setup Guide

• Safety and Regulatory Information

6 About your monitor

Setting up the monitor

Attaching the stand

1. Place the monitor face down on a flat and clean surface.

2. Align the screw holes on the monitor with the screw holes on the stand.

3. Replace the four screws that secure the monitor to the base. Tighten the

screws firmly.

Removing the stand

1. Place the monitor face down on a flat and clean surface.

2. Remove the four screws that secure the monitor to the stand.

3. Remove the stand.

About your monitor 7

Connecting Your Monitor

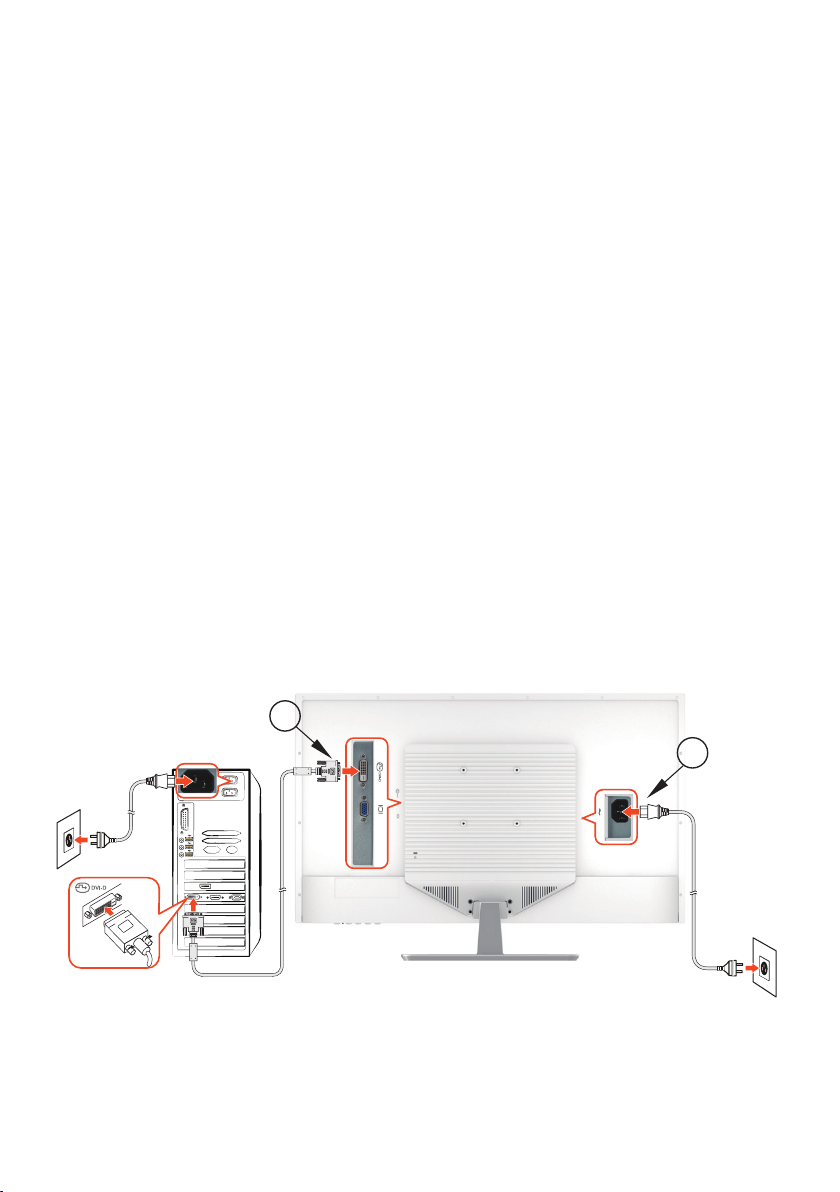

1. Connect the video cable

Ensure both monitor and computer are turned off. Connect one end of the

DVI or VGA cable (optional) to the computer, and then connect the other

end to the respective port on the monitor.

2. Connect the power cord

Connect the power cord to a properly-grounded AC outlet, and then to the

monitor.

3. Turn on the monitor

Press the power button to turn on the monitor.

4. Set the resolution and refresh rate in Microsoft Windows

•Windows 7

i) Right-click on the desktop, and then click

Screen resolution

Resolution

ii) Set the appropriate resolution.

•Windows 8 or Windows 8.1

i) Select the desktop tile to switch to classic desktop mode.

ii) Right-click on the desktop, and then click

Screen resolution

Resolution

iii) Set the appropriate resolution.

•Windows 10

i) Right-click on the desktop, and then click Display settings > Advanced

display settings > Resolution.

ii) Set the appropriate resolution.

8 About your monitor

Parts and controls

Front view

123456

Back view

78 9

1OSD Menu On/O 6Power ON/OFF

2Scroll Down/ Decrease/

Video Mode Adjustment 7DVI input (DVI 24 pin)

3Scroll Up/ Increase/

Picture Mode select 8VGA input (D-Sub 15 pin)

4Conﬁrm Select/ Input

Select 9Power input

5LED Indicator

Using On Screen Display (OSD) Functions 9

Using On Screen Display (OSD) Functions

Your monitor’s settings are adjusted with the following buttons:

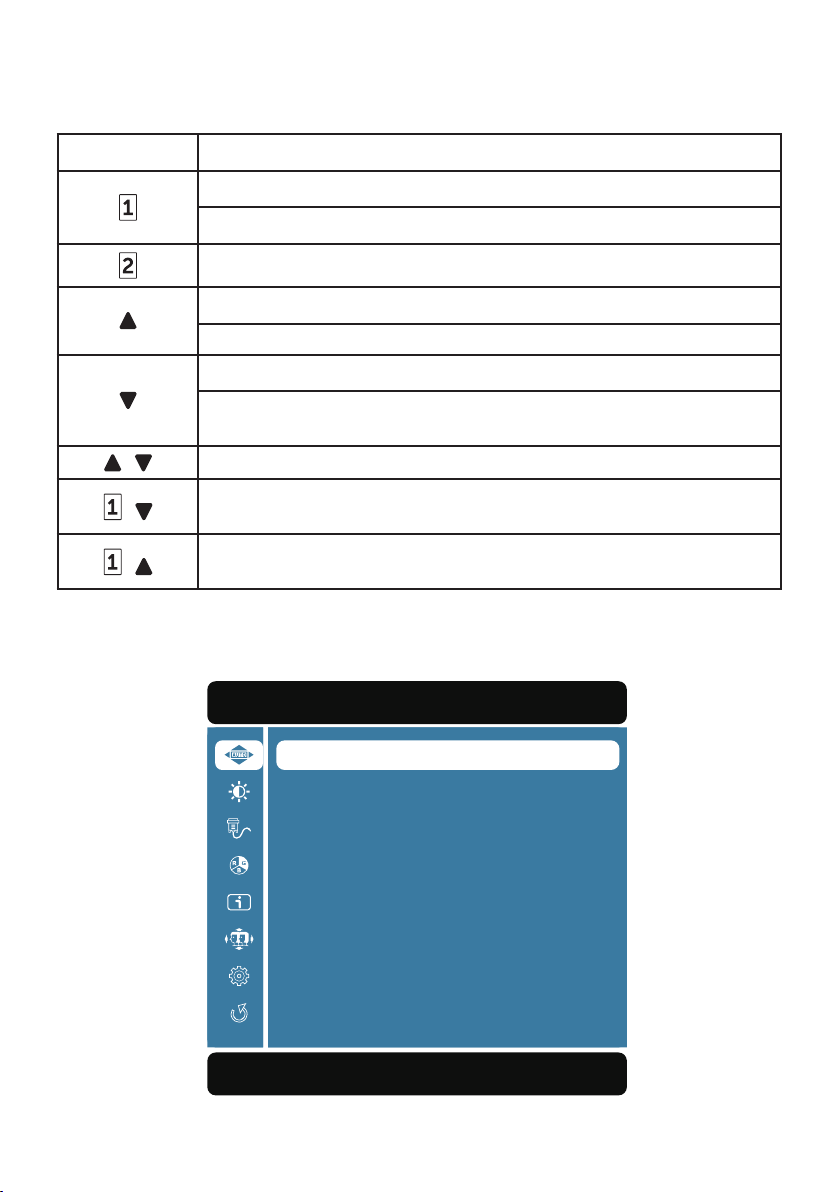

Button Function

Display main menu

Exit from main menu

Manual adjust mode select for D-SUB, DVI mode

Select the desired item when in OSD menu

When not in OSD menu, directly enters Picture Mode

Select the desired item when in OSD menu

When not in OSD menu, directly enters Video Mode

Adjustment

+Recall both Contrast and Brightness (when not in OSD menu)

+Power Lock, press 10 seconds to lock, repeat press 10

seconds to unlock(when not in OSD menu)

+OSD Lock, press 10 seconds to lock, repeat press 10 seconds

to unlock(when not in OSD menu)

The main menu

Use the monitor’s menu to make adjustments:

Dell D3217H

AUTOMATIC ADJUSTMENT

CONTRAST/BRIGHTNESS

INPUT SOURCE

COLOR SETTING

INFORMATION

MANUAL IMAGE ADJUSTMENT

MENU SETTING

MEMORY RECALL

1:EXIT SELECT:2

10 Using On Screen Display (OSD) Functions

Menu item Description

AUTOMATIC

ADJUSTMENT

Adjust the Horizontal Position, Vertical

Position, Phase (Fine Tune) and Clock (H. Size)

of the screen.

NOTE: Only available for D-SUB input.

CONTRAST/

BRIGHTNESS

Adjust the Contrast and Brightness of screen

image.

• CONTRAST Adjust the foreground white level of screen

image.

• BRIGHTNESS Adjust the luminance of the video.

INPUT SOURCE Press INPUT SOURCE to change the input signal

to D-SUB or DVI.

COLOR SETTING Toggle between preset color settings such as

COOL, NORMAL, WARM and USER COLOR.

• COOL Adds blue to screen image for cooler white.

• NORMAL Adds red to screen image for warmer white and

richer red.

• WARM Adds green to screen image for a darker color.

• USER COLOR

Manually adjust settings for RED (R), GREEN (G),

BLUE (B).

1. Press button to select the desired color.

2. Press ▼or ▲button to adjust selected

color.

INFORMATION

Displays information about the input signal

coming from the graphics card in your

computer.

MANUAL IMAGE

ADJUSTMENT

Manually adjust H. / V. POSITION, HORIZONTAL

SIZE, FINE TUNE, SHARPNESS, DCR, OD, VIDEO

MODE ADJUSTMENT, ECO and PICTURE MODE.

• H. / V. POSITION

Adjust the horizontal and vertical position of the

video.

• H. POSITION: ▲: move screen to the right, ▼:

move screen to the left.

• V. POSITION: ▲: move screen up, ▼: move

screen down.

NOTE: Only available for D-SUB input.
