Dell E1916HV Manuel utilisateur

Regulatory Model: E1916HVf / E2016HVf / E2216HVf

User‘s Guide

Dell E1916HV

Dell E1916HL

Dell E1916HM

Dell E2016HV

Dell E2016HL

Dell E2016HM

Dell E2216HV

Dell E2216HVM

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

Information in this document is subject to change without notice. Reproduction of these materials

in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™ and the DELL logo are trademarks of Dell Inc.; Microsoft®,

Windows®, and the Windows start button logo are either trademarks or registered trademarks of

Microsoft Corporation in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities

claiming the marks and names or their products. DellInc. disclaims any proprietary interest in

trademarks and trade names other than its own.

2020 – 12 Rev. A10

Contents

About Your Monitor ...................................... 5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Identifying Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . .7

Monitor Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Plug and Play Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

LCD Monitor Quality & Pixel Policy . . . . . . . . . . . . . . . . . . . . . . 18

Maintenance Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Setting Up the Monitor................................... 19

Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Connecting Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Organizing Your Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Removing the Monitor Stand . . . . . . . . . . . . . . . . . . . . . . . . . 21

Wall Mounting (Optional). . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Operating the Monitor ................................... 23

Power On the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the Front-Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the On-Screen Display (OSD) Menu. . . . . . . . . . . . . . . . . .24

Setting the Maximum Resolution . . . . . . . . . . . . . . . . . . . . . . . 50

Using the Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Troubleshooting ........................................ 53

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Product-Specific Problems. . . . . . . . . . . . . . . . . . . . . . . . . . .58

Dell Soundbar Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Appendix ...............................................62

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

FCC Notices (U.S. Only) and Other Regulatory Information . . . . . . . 62

Contact Dell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

EU product database for energy label and product information sheet 62

About Your Monitor 5

About Your Monitor

Package Contents

Your monitor ships with all the components shown below. Ensure that you have

received all the components and Contact Dell if anything is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some

features or media may not be available in certain countries.

• Display

• Stand Riser

• Stand Base

• VESA™ Screw Cover

• Power Cable (varies with countries)

• VGA Cable

• Quick Start Guide

• Safety and Regulatory Information

6About Your Monitor

Product Features

The Dell E1916HV / E1916HL / E1916HM / E2016HV / E2016HL / E2016HM / E2216HV

/ E2216HVM flat-panel display has an active matrix, Thin-Film Transistor, Liquid Crystal

Display and LED backlight.

The monitor’s features include:

• E1916HV / E1916HL / E1916HM: 47.01 cm (18.51 in.) diagonal viewable image size,

1366 x 768 resolution, plus full-screen support for lower resolutions.

• E2016HV / E2016HL / E2016HM: 49.41 cm (19.5 in.) diagonal viewable image size,

1600 x 900 resolution, plus full-screen support for lower resolutions.

• E2216HV / E2216HVM: 54.69 cm (21.53 in.) diagonal viewable image size,

1920 x 1080 resolution, plus full-screen support for lower resolutions.

• Tilt adjustment capability.

• Removable pedestal and Video Electronics Standards Association (VESA) 100 mm

mounting holes for flexible mounting solutions.

• Plug and play capability if supported by your system.

• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

• Security lock slot.

• Asset Management Capability.

• CECP (for China).

• RoHS compliant.

• Energy Gauge shows the energy level being consumed by the monitor in real time.

• Analog backlight dimming control for flicker free display.

About Your Monitor 7

Identifying Parts and Controls

Front View

1 Function buttons To access the OSD menu and change the settings if required.

For more information, see Operating the Monitor.

2 Power On/Off

button (with LED

indicator)

To turn the monitor On or Off.

Solid white light indicates that the monitor is turned on and

functioning normally. Blinking white light indicates that the

monitor is in Standby Mode.

Back View

E1916HV / E1916HL / E1916HM / E2016HV / E2016HL / E2016HM:

Back View with Monitor Stand

8About Your Monitor

E2216HV / E2216HVM:

Back View with Monitor Stand

Label Description Use

1 VESA mounting holes (100 mm) To mount the monitor.

2 Regulatory rating label Lists of regulatory approvals.

3 Security lock slot Secures monitor with security lock

(security lock not included).

4 Barcode serial number label Refer to this label if you need to contact

Dell for technical support.

5 Cable management slot Use to organize cables by placing them

through the slot.

Side View

Right Side

About Your Monitor 9

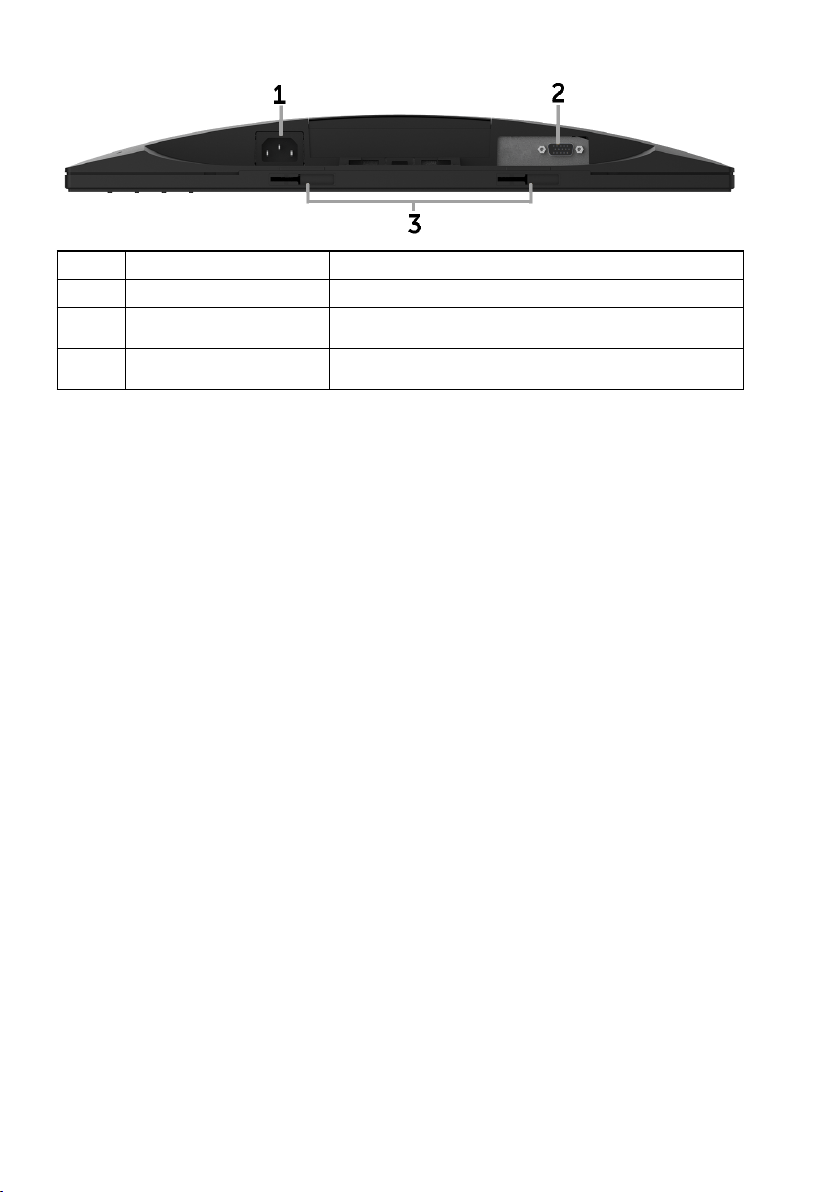

Bottom View

Label Description Use

1 AC power connector To connect the monitor power cable.

2 VGA connector To connect your computer to the monitor using

a VGA cable.

3 Dell soundbar

mounting slots

To attach the optional Dell Soundbar.

Monitor Specifications

The following section give you information about pin assignments for the various

connectors of your monitor.

10 About Your Monitor

Pin Assignments

15-pin D-Sub connector

Pin Number Monitor Side of the 15-pin Side Signal Cable

1 Video-Red

2 Video-Green

3 Video-Blue

4 GND

5 Self-test

6 GND-R

7 GND-G

8 GND-B

9 DDC +5 V

10 GND-sync

11 GND

12 DDC data

13 H-sync

14 V-sync

15 DDC clock
