Dell™SX2210TFlatPanelMonitorUser'sGuide

Notes, Notices, and Cautions

Information in this document is subject to change without notice.

©2009DellInc.Allrightsreserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: DELL and the DELLlogoaretrademarksofDellInc;Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries; ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner,

Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model SX2210Tb

August2009Rev.A00



About Your Monitor

Setting Up the Monitor

Operating the Monitor

Troubleshooting

Appendix

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.



Back to Contents Page

About Your Monitor

Dell™SX2210T Flat Panel Monitor User's Guide

Package Contents

Your monitor comes with all the items shown below. Ensure that you have all the items. If something is missing, contact Dell.



Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Universal Serial Bus (USB) Interface

Plug and Play Capability

Camera -MIC Specifications

Maintenance Guidelines

NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain

countries.



lMonitor with stand

lPower cable

lPower adapter

lVGA cable



Product Features

The SX2210T flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:

■21.5 inches (546.8 mm) diagonal.

■1920X1080resolution,plusfull-screen support for lower resolutions.

■Touch sensitive—detects your finger or any other pointing device close to the screen.

■Tilt adjustment capability.

■Plug and play capability if supported by your system.

■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■Software and documentation media which includes an information file (INF), Image Color Matching File (ICM), Touch Screen Tools software, Webcam

Software, Facial Recognition Software, and product documentation.

■Energy Saver feature for Energy Star compliance.

■Security lock slot.

■2.0 Mega pixel internal webcam with integrated microphone.

Identifying Parts and Controls

Front View

lDVI cable

lUSB up stream cable (enables USB ports, Webcam and

touch function on the monitor)

lDocumentation (Safety Information, Quick Start Guide,

and CD)

lCleaning cloth

Back View

Side View

Front View

Label

Description

1-2

Shortcut keys (for more information, see Operating the Monitor)

*The default settings are Preset Modes select and Brightness/Contrast select.

Preset Modes select

Brightness/Contrast select

OSD menu select

EXIT

Power button (with light indicator)

Webcam

Microphone

Back view

Back View with monitor stand

Label

Description

Use

Barcode serial number label

To contact Dell for technical support.

Security lock slot

To help secure your monitor.

Dell soundbar mounting brackets

To attach the optional Dell Soundbar.

USB downstream port

To connect the USB cable.

Regulatory rating label

Lists the regulatory approvals.

Cable management slot

To organize cables by placing them through the slot.

Bottom View

Monitor Specifications

The following sections give you information about the various power management modes and pin assignments for various connectors of your monitor.

Power Management Modes

If you have VESA's compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This

is referred to as Power Save Mode. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes functioning.

The following table shows the power consumption and signaling of this automatic power saving feature:

Leftview

Right view

Bottom view

Label

Description

DC power cord connector

Audio Line-in

Audio Line-out

HDMI connector

DVI connector

VGA connector

USB upstream connector

USB downstream connector

VESA Modes

Horizontal Sync

Vertical Sync

Video

Power Indicator

Power Consumption

Normal operation and

USB active

Active

White

42 W (maximum)

Normal operation

Active

White

28 W (typical)

Active-off mode

Inactive

Blanked

Amber

0.84 W

Switch off

-

-

-

Off

0.74 W

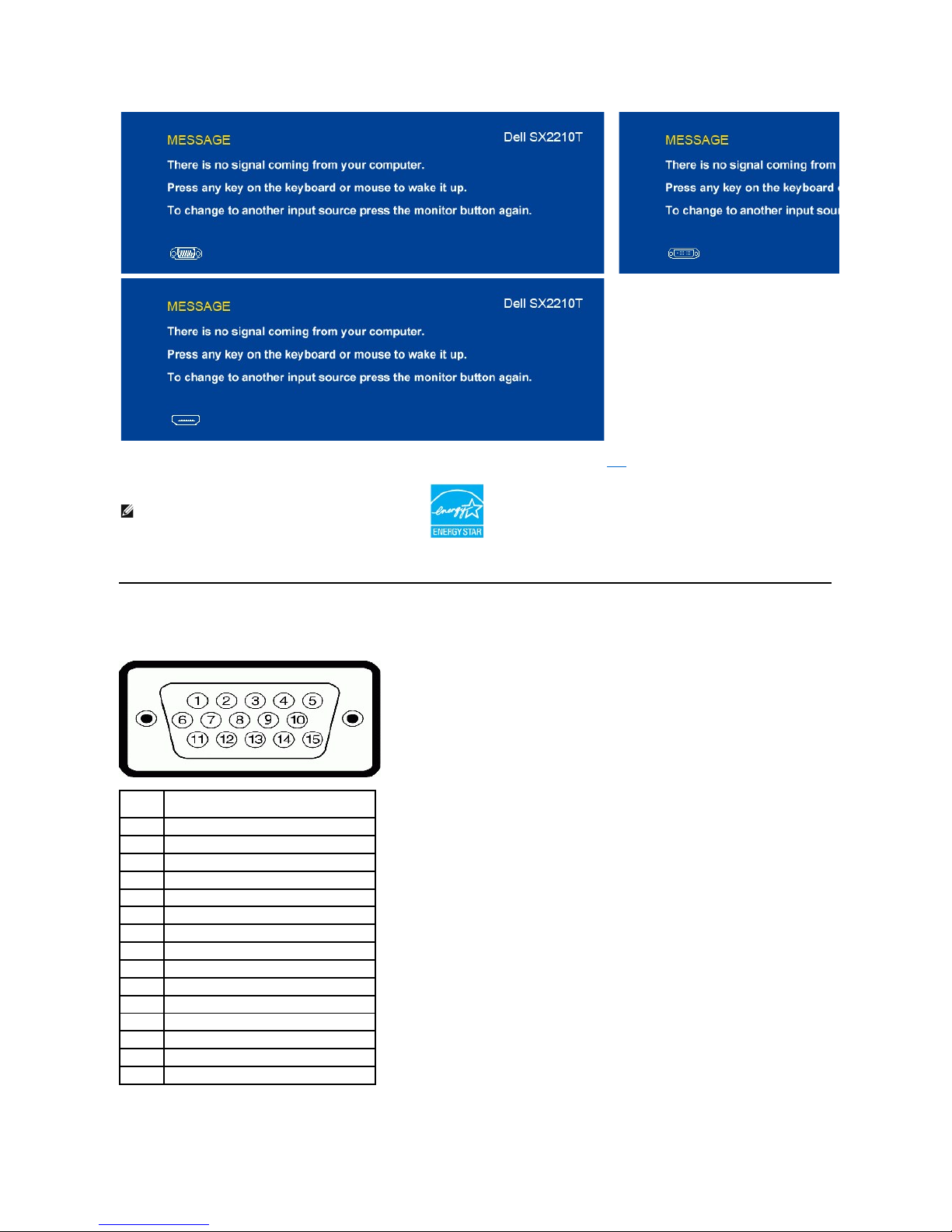

NOTE: The OSD functions in the 'Normal operation' mode. One of the following messages appears when the menu key is touched in Active-off mode.

Activate the computer and 'wake up' the monitor to gain access to the OSD.

ZeropowerconsumptioninOFFmodecanonlybeachievedbydisconnectingthemaincablefromthepoweradapter.

Pin Assignments

VGA Connector

DVIConnector





NOTE: This monitor is ENERGY STAR®-compliant.

Number

15-pin Side of the Connected Signal Cable

Video-Red

Video-Green

Video-Blue

GND

Self-test

GND-R

GND-G

GND-B

Computer 5V

GND-sync

GND

DDC data

H-sync

V-sync

DDC clock

HDMIConnector

Number

24-pin Side of the Connected Signal

Cable

TMDS RX2-

TMDS RX2+

TMDS Ground

Floating

DDC Clock

DDC Data

Floating

TMDS RX1-

TMDS RX1+

TMDS Ground

Floating

+5V power

Selftest

Hot Plug Detect

TMDS RX0-

TMDS RX0+

TMDS Ground

Floating

TMDS Ground

TMDS Clock+

TMDS Clock-

Number

19-pin Side of the Connected Signal

Cable

T.M.D.S. Data 2-

T.M.D.S. Data 2 Shield

T.M.D.S. Data 2+

T.M.D.S. Data 1+

T.M.D.S. Data 1 Shield

T.M.D.S. Data 1-

T.M.D.S. Data 0+

T.M.D.S. Data 0 Shield

T.M.D.S. Data 0-

T.M.D.S. Clock +

T.M.D.S. Clock Shield

T.M.D.S. Clock -

Universal Serial Bus (USB) Interface

This section gives you information about the USB ports that are available on the left side of your monitor.

USB Upstream Connector

USB Downstream Connector

USB Ports

l1 upstream at bottom

l2 downstream at back & 1 downstream at bottom

Camera -MIC Specifications

Overview

The integrated USB camera and analog microphones allow you to take pictures, videos, and communicate with other computer users. The camera is located at

the top of the monitor and is fixed. When the camera is on, the white light next to the camera turns on.

CEC

Reserved (N.C. on device)

SCL

SDA

DDC/CEC Ground

+5V Power

Hot Plug Detect

NOTE: This monitor supports High-Speed Certified USB 2.0 interface

Transfer speed

Data Rate

Power Consumption

High speed

480 Mbps

2.5W(Max.,eachport)

Full speed

12 Mbps

2.5W(Max.,eachport)

Low speed

1.5 Mbps

2.5W(Max.,eachport)

Pin Number

4-pin Side of the connector

DMU

VCC

DPU

GND

Pin Number

4-Pin Side of the Signal Cable

VCC

DMD

DPD

GND

NOTE:USB2.0functionalityrequiresaUSB2.0-

capablecomputer

NOTE:

The monitor's USB interface works only when the monitor is on or in power save mode. If you turn off the monitor and then turn it on, the attached peripherals may take a few seconds

to resume normal functionality.

System Requirements

The following are the minimum system requirements for the Dell Webcam Software Suite:

lIntel®Pentium®D 3.0 or AMD®Athlon 64 3200+ or higher

lMicrosoft®Windows®XP Service Pack 2 or Windows Vista®or Windows 7

l512 MB RAM (1 GB RAM or higher recommended)

l1 GB free hard disk space

lGraphic card Intel 945 at least (Independent graphics card recommended)

lAvailable USB 2.0 port or a USB 2.0 hub with external power supply

Dell Webcam Software Suite

The Dell Webcam Software Suite includes the following applications:

DellTouchCam

Dell TouchCam enables convenient access to all exciting applications to enhance your Dell webcam experience. See Using the Camera for details

Facial Recognition Software (FastAccess)

Face recognition technology greatly reduces the need to manually log in with passwords, while providing superior security and functionality

compared to passwords and other biometrics (for Windows Vista®or Windows 7 only). See Installing and Using the Facial Recognition Software

(FastAccess) for details.

Plug and Play Capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display

Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor

installations are automatic; you can select different settings if desired. For more information about changing the monitor settings, see Operating the Monitor.

Flat Panel Specifications

*SX2210T color gamut (typical) is based on CIE1976 (83%) and CIE1931 (72%) test standards.

Lens

Field of view

66.2 degree +/-5 %

Focus mode

Fixed Focus

Focus area

37 cm~Infinity

Focusingdistance(normalmode)

1.100 mm

Image Sensor

Active array size

2.0 mega-pixel

Video specification



Video frame rate

1600 x 1200 (UXGA) -up to 10 frames per second

640 x 480 (VGA) and below -up to 30 frames per second

Image flip

Horizontally

Audio Specification

Microphone type

Dual Microphone

Interface



USB 2.0 high Speed

Screen type

Active matrix -TFT LCD

Panel Type

Screen dimensions

21.5 inches (21.5-inch measured diagonally viewable image

size)

Preset display area:

Horizontal:

Vertical:



476.64 mm (18.76 inches)

268.11 mm (10.56 inches)

Pixel pitch

0.248 mm

Viewing angle

160°(vertical)typical,160°(horizontal)typical

Luminance output

220 CD/m²(typical)

Contrast ratio

1000:1 (typical)

Dynamic contrast

ratio

50,000:1 (max)

Faceplate coating

Anti-glare with hard-coating (3H)

Backlight

CCFL edgelight system

Response Time

2 ms typical (Grey to Grey)

Color Depth

16.7 mil colors

Color Gamut

83%*

Touch Screen Specifications



Resolution Specifications



Video Supported Modes



Preset Display Modes



Touch Technology

Optical touch

Touch Method

Finger, stylus or any pointer.

Stylus Diameter

Minimum 7 mm

Capabilities

Mouse functionality—click, drag, double-click and right-click

Resolution

1073 Mpixel

Accuracy

+/-2.5 mm over 95% of touchable area (Microsoft Windows 7

compliant)

Touch Activation Force

No pressure required

Touch Durability

Unlimited

Touch Response Time

Typical response time 15 ms

Glass

2.5 mm chemically toughened glass

Horizontal scan range

30 kHz to 83 kHz (automatic)

Vertical scan range

50Hzto76Hz(automatic)

Optimal preset resolution

1920 x 1080 at 60 Hz

Highest preset resolution

1920 x 1080 at 60 Hz

Video display capabilities (DVI

playback)

480i/480p/576i/576p/720p/1080i/1080p

(Supports HDCP)

Display Mode

Horizontal

Frequency

(kHz)

Vertical

Frequency (Hz)

Pixel Clock

(MHz)

Sync Polarity

(Horizontal/Vertical)

640 x 350

31.47

70.09

25.18

+/-

640 x 400

31.47

70.09

25.18

-/+

640 x 480

31.47

59.94

25.17

-/-

640 x 480

31.50

75.00

31.5

-/-

720 x 400

31.47

70.08

28.32

-/+

800 x 600

37.88

60.32

40.00

+/+

800 x 600

46.880

75.00

49.50

+/+

1024 x 768

48.36

60.00

65.00

-/-

1024 x 768

60.02

75.03

78.75

+/+

1152 x 864

67.50

75.00

108.00

+/+

1280 x 1024

63.98

60.02

108.00

+/+

1280 x 1024

79.98

75.02

135.00

+/+

1920 x 1080-R

66.587

59.934

138.50

+/-

1920 x 1080

55.62

49.92

141.50

-/+

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dell Moniteur

Dell

Dell AW2521Hb Instructions d'utilisation

Dell

Dell P2721Q Manuel utilisateur

Dell

Dell S1909WFP Manuel utilisateur

Dell

Dell S2421HSX Manuel utilisateur

Dell

Dell UltraSharp 1909W AIO Manuel utilisateur

Dell

Dell SE2717H Manuel utilisateur

Dell

Dell E156FP Manuel utilisateur

Dell

Dell UltraSharp U2412M Manuel utilisateur

Dell

Dell 1707FP - UltraSharp - 17" LCD Monitor Manuel utilisateur

Dell

Dell ST2420L Instructions d'utilisation

Dell

Dell E2222HS Manuel utilisateur

Dell

Dell S2421HN Manuel utilisateur

Dell

Dell UltraSharp 2001FP Manuel utilisateur

Dell

Dell S2715H Manuel utilisateur

Dell

Dell P1914S Manuel utilisateur

Dell

Dell 1908WFP - UltraSharp - 19" LCD Monitor Manuel utilisateur

Dell

Dell ST2421LB Manuel utilisateur

Dell

Dell D3216H Manuel utilisateur

Dell

Dell 2405FPW - UltraSharp - 24" LCD Monitor Instructions d'utilisation

Dell

Dell 1907FPc Manuel utilisateur

Dell

Dell P2423DE Manuel utilisateur

Dell

Dell UltraSharp U2713HM Manuel utilisateur

Dell

Dell SE2717HR Manuel utilisateur

Dell

Dell P793 Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Philips

Philips 107C64 Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation

LG M1950D-PZ Manuel utilisateur

Sceptre

Sceptre D40 Manuel utilisateur

Hunt Electronic

Hunt Electronic HCD-15AH Manuel utilisateur
