Dell Latitude 2120 Manuel du propriétaire
Setup and Features Information

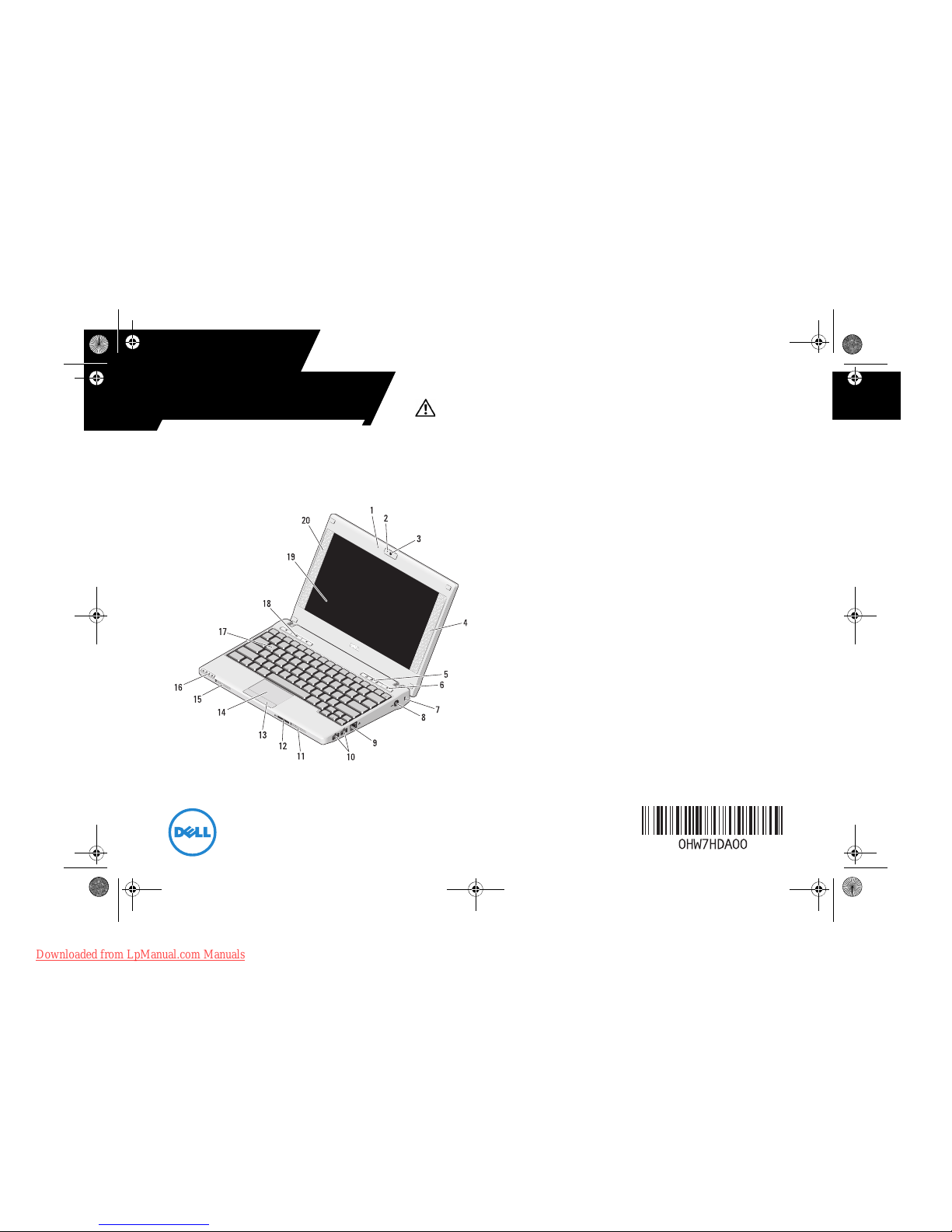

Front View
1microphone
2camera status light (optional)
3camera (optional)
4right speaker
5keyboard status lights (3)
6power button
7security cable slot
8power connector
9network connector
10 USB 2.0 connectors (2)
11 cooling vents
12 Secure Digital (SD) memory-card reader
13 touchpad buttons (2)
14 touchpad
15 cooling vents
16 device status lights (4)
17 keyboard
18 volume control buttons (3)
19 display (multi touch-screen feature is optional)
20 left speaker
Regulatory Model: P02T Regulatory Type: P02T002
Dell Latitude 2120
About Warnings
WARNING: A WARNING indicates a potential
for property damage, personal injury, or death.
September 2010
HW7HDam0.fm Page 1 Thursday, September 23, 2010 1:44 PM
Downloaded from LpManual.com Manuals

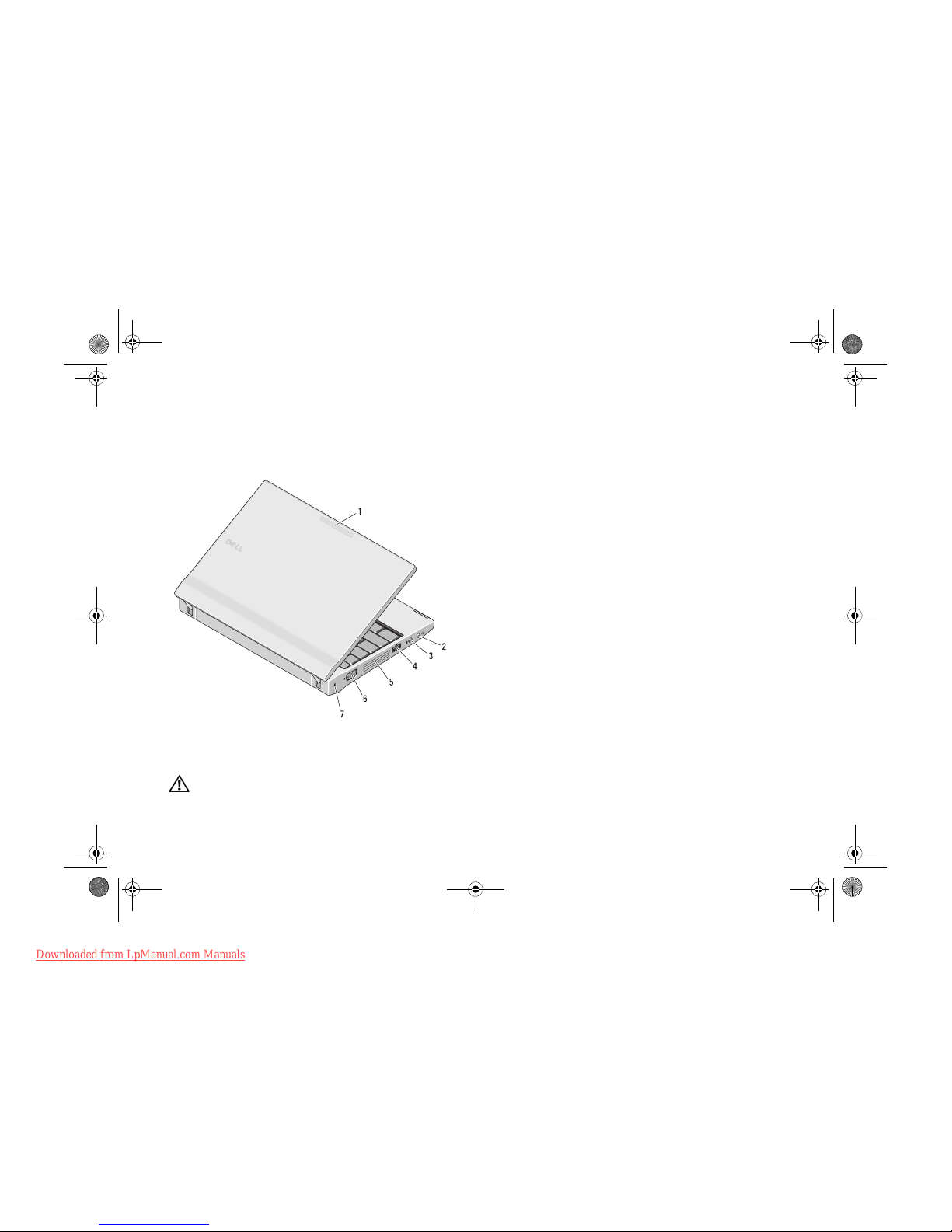

Back View
WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow
environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire. The computer
turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer.
1network activity indicator (optional)
2line-out connector (headphone connector)
3line-in connector (microphone connector)
4USB 2.0 connector
5cooling vents
6video connector (VGA)
7security cable slot
HW7HDam0.fm Page 2 Thursday, September 23, 2010 1:44 PM
Downloaded from LpManual.com Manuals

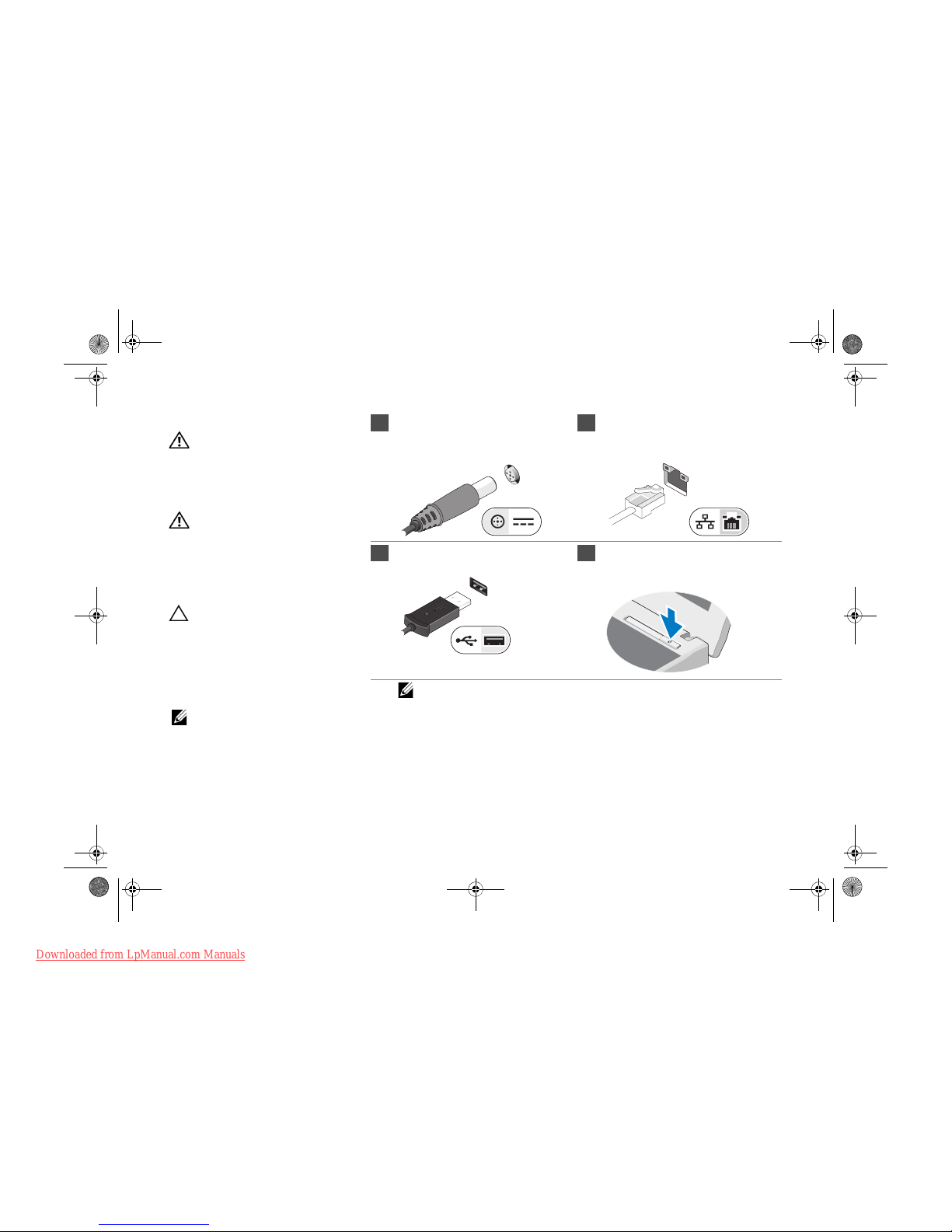

1Connect the AC adapter to the
AC adapter connector on the portable
computer and to the electrical outlet.
2Connect the network cable
(optional).
3Connect USB devices, such as a
mouse or a keyboard (optional).
4Open the computer display and
press the power button to turn on
the computer.
NOTE: It is recommended that you turn on
and shut down your computer at least once
before you install any cards or connect the
computer to a docking device or other external
device, such as a printer.
Quick Setup
WARNING: Before you begin any of
the procedures in this section, read the
safety information that shipped with
your computer. For additional best
practices information, see
www.dell.com/regulatory_compliance.
WARNING: The AC adapter works with
electrical outlets worldwide. However,
power connectors and power strips vary
among countries. Using an incompatible
cable or improperly connecting the cable
to the power strip or electrical outlet may
cause fire or equipment damage.
CAUTION: When you disconnect the
AC adapter cable from the computer,
grasp the connector, not the cable
itself, and pull firmly but gently to avoid
damaging the cable. When you wrap the
AC adapter cable, ensure that you
follow the angle of the connector on the
AC adapter to avoid damaging the cable.
NOTE: Some devices may not be
included if you did not order them.
HW7HDam0.fm Page 3 Thursday, September 23, 2010 1:44 PM
Downloaded from LpManual.com Manuals
Specifications
NOTE: Offerings may vary by region. For more information regarding
the configuration of your computer, click StartHelp and Support
and select the option to view information about your computer.
System Information
Processor type Intel Atom N455
Intel Atom N550
Chipset Intel NM10 Express Chipset
Video
Video type: Intel UMA graphics
Data bus
integrated video
Video controller
Intel Graphics Media Accelerator
Broadcom Crystal HD media accelerator
(optional)
Memory
Memory module connector 1 SODIMM slot
Memory module capacity 1 GB and 2 GB
Memory type 667 MHz DDR3
Minimum memory 1 GB
Maximum memory 2 GB
Battery
Type 6-cell "smart" lithium ion (56 WHr)
6-cell long-lifecycle lithium ion (54 WHr)
3-cell "smart" lithium ion (28 WHr)
Dimensions:
6-cell
Depth
48.13 mm (1.90 inches)
Height
42.46 mm (1.67 inches)
Width
204 mm (8.03 inches)
3-cell
Depth
40.50 mm (1.60 inches)
Height
23.24 mm (0.91 inch)
Width
204 mm (8.03 inches)
Weight:
6-cell
minimum weight — 340 g (0.74 lb)
maximum weight — 350 g (0.77 lb)
3-cell
minimum weight — 185 g (0.41 lb)
maximum weight — 190 g (0.42 lb)
Voltage 11.1 VDC (6-cell and 3-cell)
Temperature range:
Operating
0 °C to 35 °C (32 °F to 95 °F)
Non-operating
–40 °C to 65 °C (–40 °F to 149 °F)
Coin-cell battery 3 V CR2032 lithium coin cell
HW7HDam0.fm Page 4 Thursday, September 23, 2010 1:44 PM
Downloaded from LpManual.com Manuals
AC Adapter
Input voltage 100 VAC to 240 VAC
Input current (maximum) 1.5A/1.6 A/1.7 A
Input frequency 50 Hz to 60 Hz
Output power 65 W/90W
Output current:
65 W
4.34 A (maximum at 4-second pulse)
3.34 A (continuous)
90 W
5.62 A (maximum at 4-second pulse)
4.62 A (continuous)
Rated output voltage 19.5 +/– 1.0 VDC
Dimensions:
Height
27.20 mm (1.07 inches)
Width
137.20 mm (5.40 inches)
Depth
57.80 mm (2.28 inches)
Temperature range:
Operating
0 °C to 35 °C (32 °F to 95 °F)
Non-operating
–40 °C to 65 °C (–40 °F to 149 °F)
Physical
Height:
without touchscreen
22.5 mm to 39.9 mm
(0.89 inch to 1.57 inches)
with touchscreen
24.1 mm to 41.5 mm
(0.95
inch
to 1.63 inches)
Width:
with/without touchscreen
265 mm (10.43 inches)
Depth:
with/without touchscreen
187 mm (7.36 inches)
Weight:
(3-cell battery
without touchscreen)
1.31 kg (2.88 lb)
(6-cell battery
without touchscreen)
1.48 kg (3.26 lb)
Environmental
Temperature range:
Operating
0 °Cto 35 °C (32 °F to 95°F)
Non-operating
–40 °Cto 65 °C (–40 °F to 149°F)
Relative humidity (maximum):
Operating
10 % to 90 % (noncondensing)
Non-operating
5 % to 95 % (noncondensing)
Altitude (maximum):
Operating
–15.2 m to 3048 m (–50 ft to 10,000 ft)
Non-operating
–15.2 m to 10,668 m (–50 ft to 35,000 ft)
Airborne contaminant level G2 or lower as defined by
ISA-S71.04–1985
Physical
(continued)
HW7HDam0.fm Page 5 Thursday, September 23, 2010 1:44 PM
Downloaded from LpManual.com Manuals
Finding More Information and Resources
See the safety and regulatory publications that shipped with your computer
and the regulatory compliance website at
www.dell.com/regulatory_compliance for more information on:
• Safety best practices
• Warranty
•TermsandConditions
• Regulatory certification
• Ergonomics
• End User License Agreement
________________
Information in this publication is subject to change without notice.
© 2010 Dell Inc. All rights reserved. Printed in the U.S.A.
Reproduction of these materials in any manner whatsoever without the written
permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell
™
, the DELL logo, and Latitude
™
,
are trademarks of Dell Inc. Intel
®
is a registered trademark and Atom
™
is
a trademark of Intel Corporation in the U.S. and other countries.
Other trademarks and trade names may be used in this publication to refer to
either the entities claiming the marks and names or their products. Dell Inc.
disclaims any proprietary interest in trademarks and trade names other than
its own.
HW7HDam0.fm Page 6 Thursday, September 23, 2010 1:44 PM
Downloaded from LpManual.com Manuals
