Dell PowerVault NX200
Systems
Getting Started
With Your System
Guide de mise en route du système
Introdução ao Uso do Sistema
Procedimientos iniciales con el sistema
Dell PowerVault NX200
Systems
Getting Started
With Your System
Regulatory Model E09S
Regulatory Type E09S001
Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if
instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
____________________
Information in this publication is subject to change without notice.
© 2010 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, and PowerVault™ are trademarks of Dell Inc.
Intel®and Celeron®are registered trademarks of Intel Corporation in the U. S. and other countries.
Microsoft®and Windows®are either trademarks or registered trademarks of Microsoft Corporation
in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Regulatory Model E09S
Regulatory Type E09S001
July 2010 P/N RHMF6 Rev. A00
Getting Started With Your System 3
Installation and Configuration
WARNING: Before performing the following procedure, review the safety
instructions that came with the system.

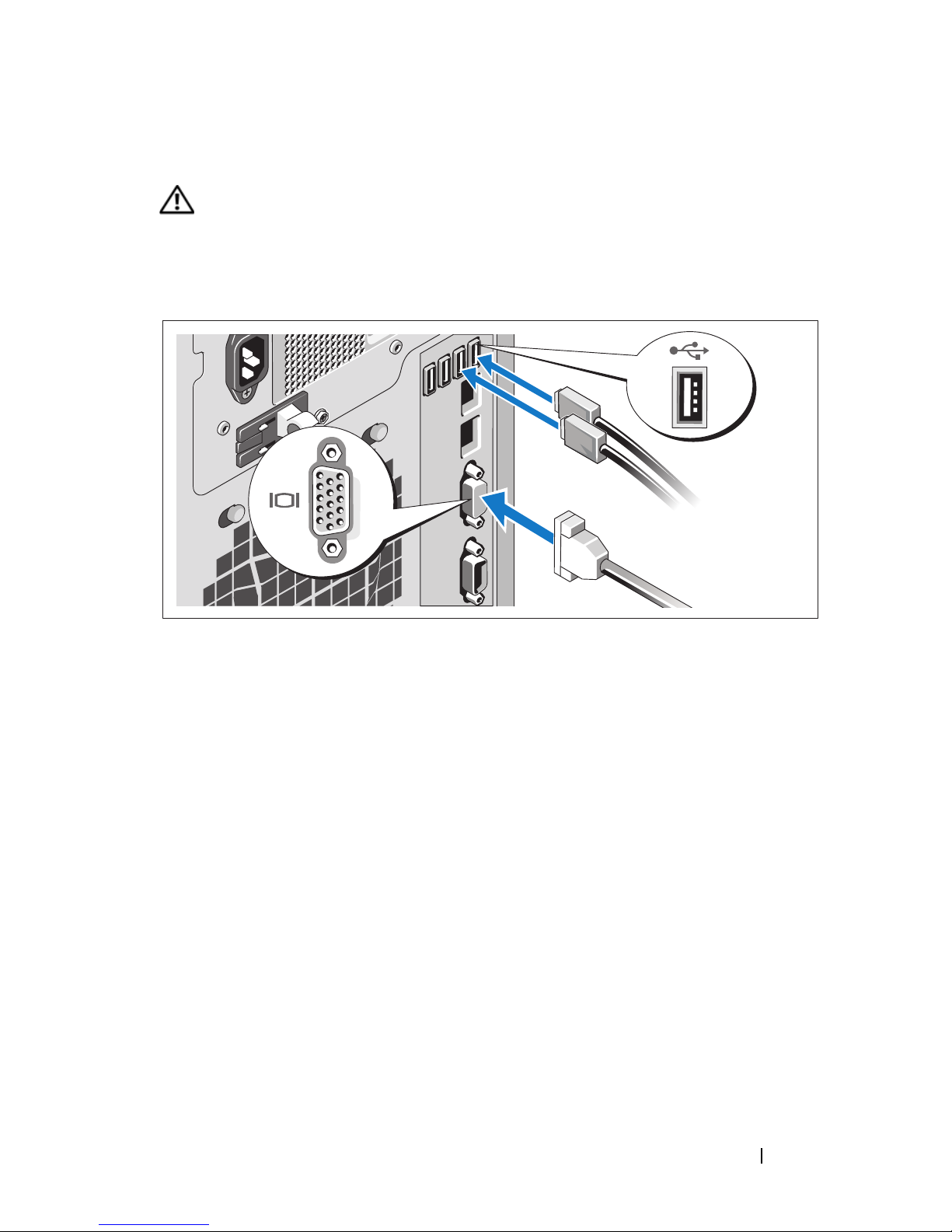

Optional—Connecting the Keyboard, Mouse, and Monitor
Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which cable
to plug into each connector. Ensure to tighten the screws (if any) on the
monitor's cable connector.
4Getting Started With Your System

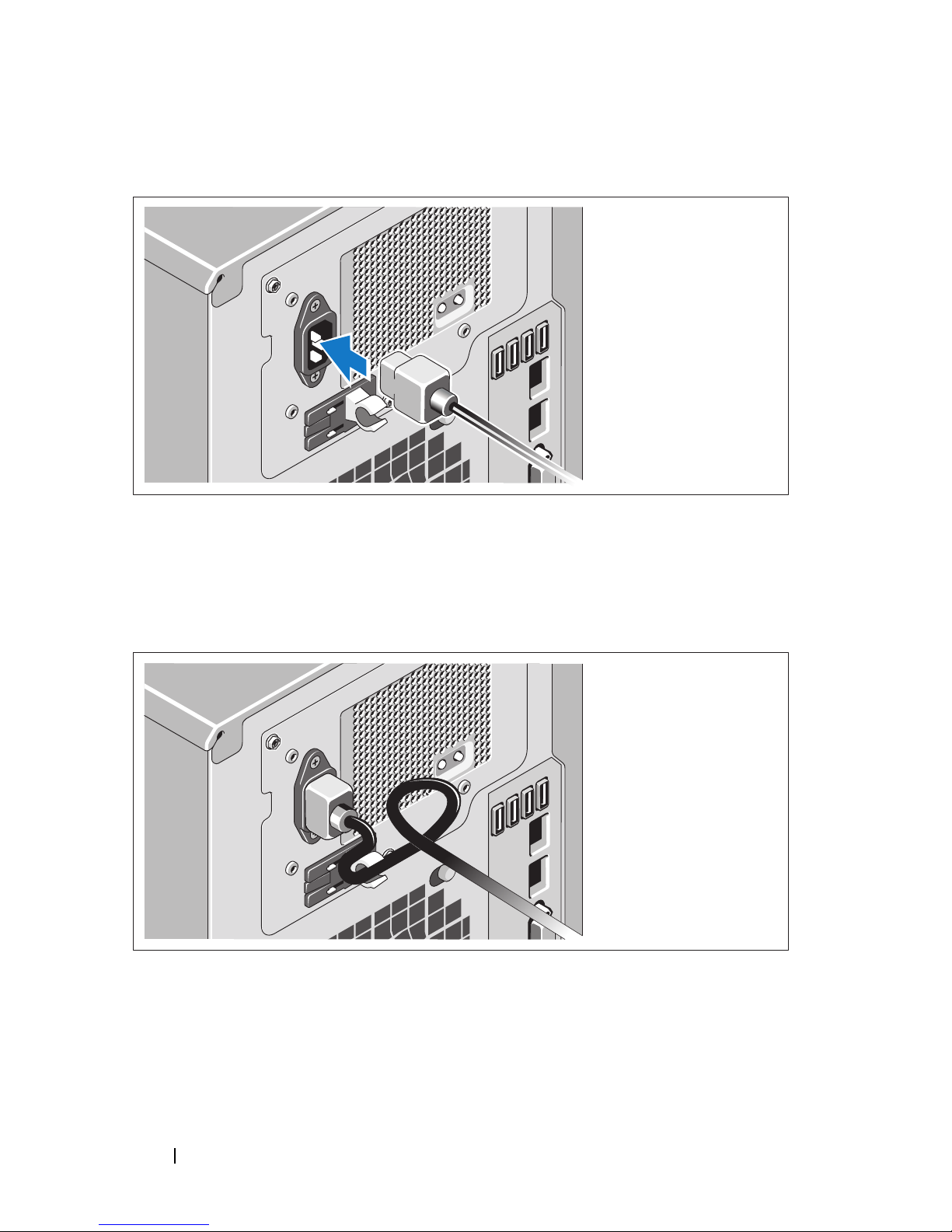

Connecting the Power Cable
Connect the system’s power cable to the system and, if a monitor is used,
connect the monitor’s power cable to the monitor.
Securing the Power Cable
Bend the system power cable into a loop as shown in the illustration and
secure the cable with the provided strap.
Plug the other end of the power cable into a grounded electrical outlet or a
separate power source such as an uninterrupted power supply (UPS) or a
power distribution unit (PDU).
Getting Started With Your System 5

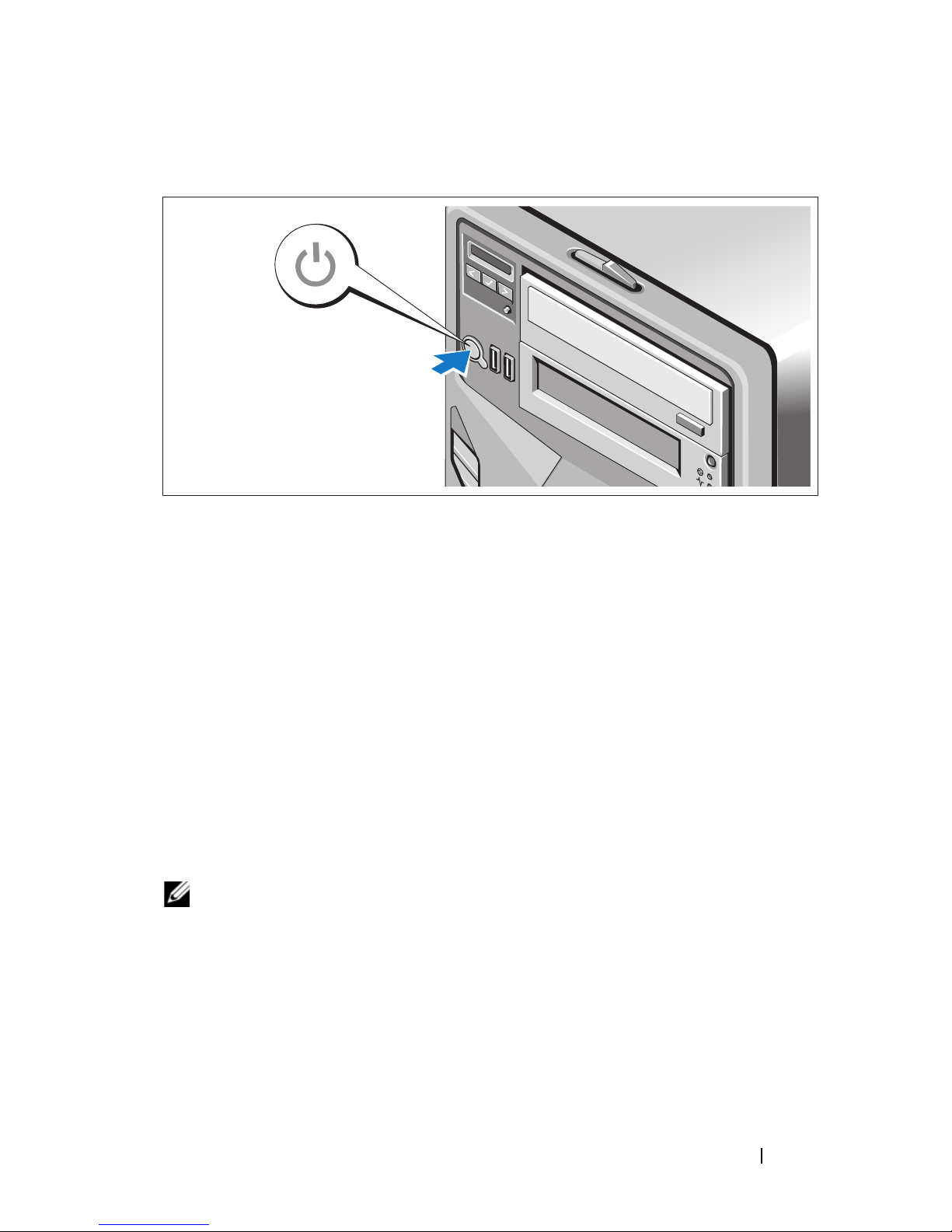

Turning On the System
Press the power button on the system and the optional monitor, if used.
The power indicators should light.
Complete the Operating System Setup
If you purchased a preinstalled operating system, see the operating system
documentation that ships with your system. To install an operating system for
the first time, see the installation and configuration documentation for your
operating system. Ensure that the operating system is installed before
installing hardware or software not purchased with the system.
Supported Operating System
Microsoft Windows Storage Server 2008 Basic (x64) Edition
NOTE: For the latest information on supported operating systems,
see support.dell.com.
6Getting Started With Your System
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with
your system. Warranty information may be included within this document or
as a separate document.
•The
Hardware Owner’s Manual
provides information about system
features and describes how to troubleshoot the system and install or
replace system components. This document is available at
support.dell.com/manuals
.
• Any media that ships with your system that provides documentation and
tools for configuring and managing your system, including those
pertaining to the operating system, system management software, system
updates, and system components that you purchased with your system.
NOTE: Always check for updates on support.dell.com and read the updates
first because they often supersede information in other documents.
Obtaining Technical Assistance
If you do not understand a procedure in this document or if the system does
not perform as expected, see your Hardware Owner’s Manual. Dell offers
comprehensive hardware training and certification. See dell.com/training for
more information. This service may not be offered in all locations.
NOM Information (Mexico Only)
The following information is provided on the device described in this
document in compliance with the requirements of the official Mexican
standards (NOM):
Importer:
Model number: E09S
Supply voltage: 100–240 VAC
Frequency: 50/60 Hz
Current consumption: 5.8–2.9 A
Getting Started With Your System 7
Technical Specifications
Processor
Processor type One Intel Celeron G1101
Expansion Bus
Bus type PCI Express Generation 2
Expansion slots Slot1: PCIe x8 (x8 routing) half-length
Slot2: PCIe x16 (x8 routing) full-length
Slot3: PCIe x8 (x4 routing) half-length
Slot4: PCIe x1 (x1 routing) half-length
Slot5: PCIe x1 (x1 routing) half-length
Memory
Architecture 1333 MHz DDR3 unbuffered Error
Correcting Code (ECC) DIMMs.
Memory module sockets Six 240-pin
Memory module capacities 1 GB, 2 GB, or 4 GB
Minimum RAM 2 GB
Maximum RAM 16 GB
Drives
Hard drives Four 3.5 inch hot-swap SATA internal drives
Optical drive Internal SATA DVD-ROM or DVD+/-RW
NOTE: DVD devices are data only.
8Getting Started With Your System
Connectors
Back
NIC
Two RJ-45 (for integrated 1-GB NICs)
Serial
9-pin, DTE, 16550-compatible
USB
Four 4-pin, USB 2.0-compliant
Video
15-pin VGA
Front
USB
Two 4-pin, USB 2.0-compliant
Internal
USB
Two 4-pin, USB 2.0-compliant
Video
Video type Matrox G200, integrated in iDRAC
Video memory 8 MB
Power
AC power supply
Wattage
375 W
Voltage
100–240 VAC, 50/60 Hz, 5.8–2.9 A
Heat dissipation
1683 BTU/hr maximum
Maximum inrush current
Under typical line conditions and over the
entire system ambient operating range,
the inrush current may reach 35 A for 10 ms
or less.
Batteries
System battery
CR 2032 3.0 V lithium ion coin cell
