Dear Customer,

Thank you for buying a DE DIETRICH hob.

Our research teams have designed a new generation of kitchen appliances. As a result of

our unique expertise, we have produced a range of goods whose quality, design and techni-

cal advance are unsurpassed.

You will find that the clean lines and modern look of your De Dietrich hob blends in per-

fectly with your kitchen décor. It is easy to use and performs to a high standard.

De Dietrich also makes a range of products that will enhance your kitchen such as hobs, ex-

tractor hoods, built-in dishwashers and refrigerators. There are models to complement your

new De Dietrich hob.

Of course, we make every effort to ensure that our products meet all your requirements,

and our Customer Service department is at your disposal, to answer all your questions and

to listen to all your suggestions (see back cover of manual).

De Dietrich is certain that by setting new standards of excellence by which comparisons can

be made, customers will find that De Dietrich appliances offer a better and more exciting

way of living.

DE DIETRICH.

www.dedietrich.co.uk

We are constantly improving our products; for this reason we reserve the right to make all modifications to

their technical, functional or aesthetic characteristics, originating from technical developments.

WARNING

This product is not for use in the USA.

Before installing and using this appliance please read the installation guide section of this booklet

fully. This guide will help you to quickly familiarise you with all the features of the appliance.

This appliance is not intended for use by persons (including children) with reduced physical sen-

sory or mental capabilities, or lack of experience and knowledge, unless they have been given su-

pervision or instruction concerning use by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance

Contents EN

1/ Description of your appliance

2/ Overview / working principle

3/ Quick start guide

4/ Product / Safety features explained

7/ Cleaning and maintaining your appliance

8/ Installation guide

11/ Help Guide

Description EN

DTi1053

Total dimensions (L x l)

DTI1053X : 65cm x 52cm

DTI1053XE : 65cm x 52cm

Cutout Recess (L’ x l’)

DTI1053X : 56cm X 49cm

DTI1053XE : 56cm X 49cm

Power :

DTI1053X :9200W

DTI1053XE : 7200W

As shown in this logo, the materials used to package this appliance are not recyclable. Please dispose of

them by depositing them in municipal containers provided for this purpose and play a role in protecting

the environment.

Recycling of the appliances organised by your manufacturer will thus be undertaken in optimum condi-

tions, in accordance with European directive 2002/96/CE relating to electrical and electronic equipment

waste. Contact your local authority or retailer for how to have used appliances collected or collection

points.

Working Principle EN

The induction principle

The principle of induction is based on a magnetic effect. When you place your cookware on a cooking zone

and you turn it on, the electronic circuits in your cooking hob produce “induced” currents in the bottom of

the cookware which instantly raise its temperature. This heat is then transmitted to the food.

In order for an induction hob to operate the cookware must have a ferrous base (containing Iron). A simple

rule is if a magnet sticks to the base of your pan then it should be suitable for use on induction hobs.

When you buy your cookware, make sure that one

of these logos are on the package; it assures you

that it is compatible with induction cooking.

Cookware

To verify that your cookware is suitable, place it on a heating area on power 4. - If the display remains on,

your cookware is compatible.

- If the display flashes, your cookware cannot be used with induction cooking.

You can also use a magnet to test the cookware. If a magnet “sticks” to the bottom of the cookware, it is

compatible with induction. Glass, terra cotta, aluminium without a special finish on the bottom, copper

and some non-magnetic stainless steels do not work with induction cooking.

We recommend that you select cookware with a thick, flat bottom.

A Inducon coils

B Glass insulang hob top

C Ferrous pan base

Quick Start Guide EN

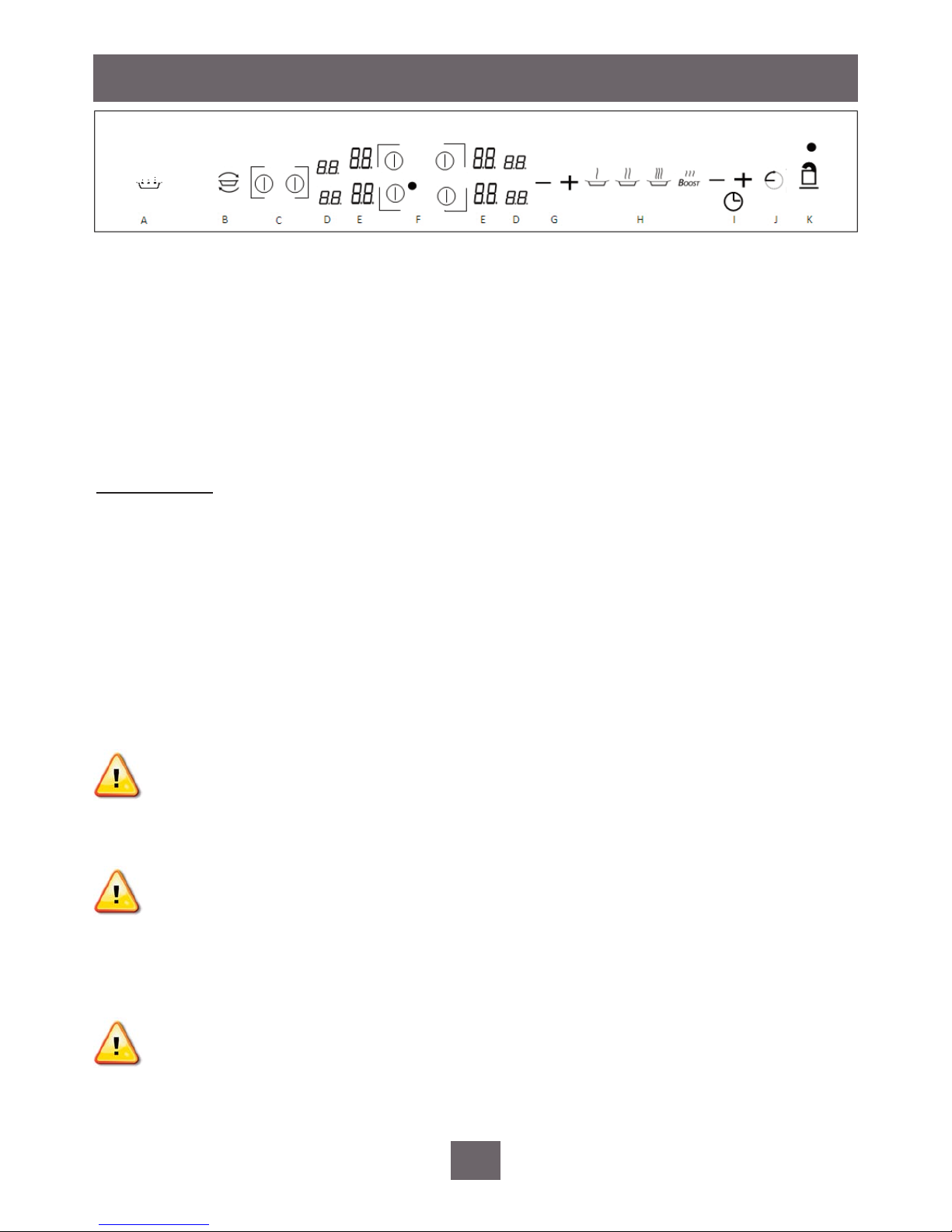

Controls Table

A Boil function

B Tracker function

C Continuum Cooking Zone Selectors

D Timer displays

E Power level display

F individual zone selectors

G Power “+” and “-” controls

H Power pre-set controls

I Timer “+” and “-” controls

J Elapsed time function

K Lock Control

Quick Start Guide

Prior to using you appliance you need to ensure the appliance has been installed in accordance with the installation

instructions within this guide. Particular attention should be paid to the ventilation requirements as this could affect

the performance of the appliance as well as the long term reliability.

Operation

Care should be taken to ensure that the pan / pans being used cover a minimum of 80% of the cooking zone.

Place the pan on the zone you wish to use and select the zone on the control panel using the selector controls “F”

or, if the entire zone is required “C”.

Select either a pre-set power level “H” or use the “+” or “-” controls to determine the desired power level. If you

wish to control more than one pan these should be selected in turn, noting the controls apply the power settings to

the last zone selected. This is shown by an indicator light adjacent to the zone selector “F”.

Noise

You may notice a clicking noise when either using multiple zones or a single zone on low power settings

(below level 7). This is normal and should not be considered a fault; it is the electronics of the appliance reg-

ulating the power delivery to the zones. You may notice a corresponding reduction of the bubbles in the

base of the pans on the hob, again this is normal.

Power sharing

The machine is manufactured with shared electronics controlling the cooking zones. The power delivered by

the independent electronics is split between the two zones. If “boost” is selected on one zone the power is

reduced on the other to ensure the maximum connected load is not breached. This is not a fault with the

appliance.

You may wish to select “Boost” on the Continuum setting, it is worth noting that you may notice a clicking and alter-

nating bubble pattern in the base of the cookware, this is normal.

Suitable cookware

If the display on the appliance flashes when set, this is an indication that either there is no pan on the zone

or, an unsuitable pan is being used. Please refer to the pan guide in the description section of this guide for

further details.

Protection against overflows. In case of overflow, or of a metallic object or wet

cloth placed on the control areas, the hob turns itself off, the displays light up and a

beep sounds. Clean the hob or remove the object, then begin cooking again.

“Small Items” safety. By placing a small object on the area (a ring, a fork, etc),

the hob will detect it and not deliver any power. The power display flashes.

Note: However, several small objects at the same time on a zone could be identi-

fied as cookware. In that case, power will be delivered by the hob. Do not place

any utensils (spoons, forks, covers, etc) on the cooking zone being used. They will

heat up in the same way as cookware: Risk of combustion.

Temperature limiter. Each cooking zone is equipped with a safety sensor that con-

stantly monitors the temperature of the bottom of the cookware. If you leave

empty cookware on a zone which is turned on, it will automatically limit the power

in order to prevent damage to the cookware or hob.

Automatic Pan Detection: detects when a suitable pan is placed on the cooking

zone and so eliminates the possibility of the hob being activated accidentally by a

non-suitable object.

Residual heat. After a long cooking period, the zone used can remain hot for sev-

eral minutes. An ‘’H’’ flashes during this period. Do not put your hand on the zone.

Auto-Stop system. If you forget cooking is in progress, after a predefined time,

this safety function will automatically turn off your hob (from 1 to 10 hours de-

pending on the power setting). “AS” displays and a beep sounds after about 2 min-

utes. Press on the main selector to delete this information. A beep will confirm

your setting.

Additional functions and safety Features EN

Control Lock: can be activated to lock the control panel during the cooking

process. This will lock the controls set on the cooking zones but will allow the stop

key to function. This is activated in / deactivated in the same way as the child lock.

Additional Functions and Safety Features EN

Electronic Power Monitor: prevents power surge and de-surge in the event of

electrical interference without loss of performance to the hob.

Clean lock

This function allows you to temporarily lock your hob while cleaning. To activate

Clean lock your cooking hob must be turned off.

- Briefly press touchpad “I”. A beep sounds and an indicator appears.

- After a predefined time, the lock will automatically disengage. A beep sounds and

the indicator goes out.

Child Lock: for added peace of mind, the child lock can be manually activated to

prevent accidental start-up.

To activate the lock pres the “I” key and hold until a beep is sounded and an indica-

tor appears.

To de-activate hold the “I” key until the indicator goes out and a beep sounds.

•Independent timer.

This function allows you to time an event, without cooking.

- Select a cooking zone you are not using.

- Set the time with touchpad “G”. A “t” flashes in the display.

- At the end of your adjustment “t” becomes fixed and the count begins.

Note:

You can stop a count in progress by keeping your finger on the touchpad of the selection on

the display.

Timer Function

Each zone of the appliance can be controlled by using the timer function to turn off the zone

after a set period of time.

Select the zone required and adjust the power as required. press the timer controls “G” and

using the “+” or “-”keys select the cooking time required. The appliance will now count down

the time and turn off as required. When the time remaining is less than 1 minute the display

will indicate seconds remaining. At the end of the time a beep will indicate the end of cook-

ing.

Additional Functions and Safety Features EN

Pre Heat /

Heat up

Pre-heat / Heat upThis Function will preheat the contents of the pan to boiling tempera-

ture before reducing to your selected power.

To select the function turn on the required zone then press the “-“on the power selection

keys, “HU” is shown on the display, Select the power level to be maintained after the initial

heat up ( this must be level 7 or above ). During the pre-heat phase the display will alter-

nate between the selected power level and “HU”, once the preheating is complete the dis-

play will revert to the power level only. This feature can be used in conjunction with the

timer functions. For example you can set the appliance to preheat a pan of pasta to a boil

reduce the pan to a simmer then time the entire cooking phase to ensure perfect results

every time.

Boil Function

The boil function allows the user to heat to boiling point a quantity of water prior to

adding food such as Pasta or vegetables and then maintaining the boiling for a period

of time set by the user.

To operate the boil function touch the “boil” icon on the touch pad, the display will

then show the volume of water to be boiled in litres. The volume can then be adjusted

using the “+” or “-” keys (0.5l, 1l, 1.5l,2l, 2.5l, 3l, 4l, 5l or 6l) confirm by pressing the

“boil” key. A short beep and “boiL” appears on the display. When a consistent boil is

achieved the hob will emit a pulsed beeping noise and “boil” will then scroll across

the display, at this point add the food and confirm by pressing the “boil” key, the dis-

play then changes to a pre-selected power, press the time required using the “+” “-”

keys and confirm by a further press on the “boil” key. At the end of the selected cook-

ing time the display will turn off (displaying “H”) and the hob will beep to indicate the

end of the cooking.

The boil function can be used on all zones at the same time.

Power tracker

The power tracker function allows you to move a pan from one cooking zone to another and

automatically transfer the power setting.

Press the power tracker key on the display, wait for a short beep to sound. Lift the pan from

the hob and replace onto the required zone, then press the tracker key again. “[ ]” will ap-

pear in the display followed by the display power indication moving to the correct pan posi-

tion on the display.

Cleaning and Maintaining your Appliance EN

Preserve your appliance

The vitroceramic glass surface is highly resistant, but not unbreakable. Here are some recommendations for

increasing its lifetime:

- Avoid banging or clattering the cookware.

- Avoid putting heating covers on the hob. A suction effect may damage the vitroceramic surface.

- Do not use cookware with bottoms that are rough or dented.

- Do not use your cooking hob as a work surface.

- Never use aluminium foil or paper or aluminium scrubber to clean it. The aluminium melts and damages

the top.

- Never use a steam cleaner to clean your hob.

- Never directly reheat a tin can. It will have a risk of exploding.

For the safety of your kitchen, do not place cleaning items or inflammable objects or cleaning products in

the kitchen furniture underneath your cooking hob.

TYPES OF STAINS/SPOTS

Light accumulation of baked-on stains/dirt.

Sugar spills, melted plastics.

Rings and hard water residue.

Shiny metal

Aesthetic damage to the hob top which does not entail a lack of function, are not covered by our guarantee

for example chips and scratches. Full terms of the guarantee are available at www.dedietrich.co.uk.

Maintaining your appliance

Type of stain / spots Use What to do

Light Cleaning sponges Thoroughly moisten the zone to be

cleaned with hot water, then wipe off.

Accumulation of baked-

on stains/ dirt

Sugar spills, melted

plastics etc

Cleaning sponges

Scraper for glass

Thoroughly moisten the zone to be

cleaned with hot water. Use a scraper

for glass to remove the large bits, fol-

low with rough side of a disinfectant

sponge then wipe off.

Ring marks and rard

water residue

White vinegar Apply warm white vinegar to the stain,

let stand, then wipe with a soft cloth

Shiny metal colourings

Weekly maintenence

Special vitro-creamhob

cleaner product with

conditioner.

Apply a cleaning agent for vitro-ce-

ramic glass(preferably containing sili-

con for protection)to the surface as

per product instructions

Autres manuels DeDietrich Plaque

DeDietrich

DeDietrich G30 Manuel utilisateur

DeDietrich

DeDietrich DTE1111X Guide de démarrage rapide

DeDietrich

DeDietrich Cooking hob Guide de démarrage rapide

DeDietrich

DeDietrich DPG3301B Guide de démarrage rapide

DeDietrich

DeDietrich DTI1137X Manuel d'utilisation

DeDietrich

DeDietrich 7897 Manuel utilisateur

DeDietrich

DeDietrich DHD491XE1 Manuel utilisateur

DeDietrich

DeDietrich Cooking hob Guide de démarrage rapide

DeDietrich

DeDietrich DTG1008 Series Guide de démarrage rapide

DeDietrich

DeDietrich G30 Manuel utilisateur

DeDietrich

DeDietrich DTG308XCI Instructions de fonctionnement

DeDietrich

DeDietrich DTI1041X Guide de démarrage rapide

DeDietrich

DeDietrich DTG 1138 Series Guide de démarrage rapide

DeDietrich

DeDietrich Cooking hob Fiche technique

DeDietrich

DeDietrich DTG 701 Series Guide de démarrage rapide

DeDietrich

DeDietrich DTI1008X Guide de démarrage rapide

DeDietrich

DeDietrich DPG7340 Series Guide de démarrage rapide

DeDietrich

DeDietrich G30 Manuel utilisateur

DeDietrich

DeDietrich DTI1102V Guide de démarrage rapide

DeDietrich

DeDietrich DPI7766XP Manuel utilisateur

DeDietrich

DeDietrich DTG1164X Guide de démarrage rapide

DeDietrich

DeDietrich DPI7684XS Manuel utilisateur

DeDietrich

DeDietrich DTE710 Series Guide de démarrage rapide

DeDietrich

DeDietrich DTV701 Guide de démarrage rapide

Manuels Plaque populaires d'autres marques

Siemens

Siemens EX875KYV1E Fiche technique

AEG

AEG CERAMIC HOB 6010 K Manuel utilisateur

VALERA

VALERA CT 70A Manuel utilisateur

Zanussi

Zanussi ZGF 6420 Manuel utilisateur

Gaggenau

Gaggenau CI 273 Manuel utilisateur

G3 Ferrari

G3 Ferrari Energy Manuel utilisateur

Pkm

Pkm IN4B Manuel utilisateur

Award

Award H903BG Manuel utilisateur

Zanussi

Zanussi VCH 5005 RZ Manuel utilisateur

Miele

Miele KM 523 Manuel utilisateur

Hotpoint

Hotpoint IS67V8CCXT/E Manuel utilisateur

AEG

AEG HK854870XB Manuel utilisateur

Cookology

Cookology SEP600BK Manuel utilisateur

Bauknecht

Bauknecht Hob Manuel utilisateur

Zanussi

Zanussi ZGM 782 Manuel utilisateur

dipo INDUCTION

dipo INDUCTION DIBK218S Manuel utilisateur

Miele

Miele KM 5987 Manuel utilisateur

Miele

Miele KM 360 G Manuel utilisateur
