Data Video NVD-20 Manuel utilisateur

Network Video Decoder

NVD-20

Contents

Warnings and Precautions ...................................................... 4

Warranty .................................................................................... 5

Standard Warranty ................................................................ 5

Two Year Warranty ................................................................ 5

Disclaimer of Product & Services.......................................... 6

Disposal................................................................................. 6

Packing List ........................................................................... 6

Product Overview ..................................................................... 7

Features ................................................................................ 7

Front Panel................................................................................ 8

Rear Panel ................................................................................. 9

Workflow options ................................................................... 10

How to find the NVD-20 on an IP network............................ 11

How to use the NVD-20 IP Finder utility software ............... 11

NVD-20 Login using a web browser ..................................... 12

Default Login details............................................................ 12

NVD-20 web browser Home page ......................................... 13

Settings option..................................................................... 13

Settings > Audio Setup .......................................................... 13

Settings > Display Setup ....................................................... 14

Settings > Network Setup ...................................................... 15

Settings > Live Stream Setup................................................ 16

Settings > Account Setup...................................................... 17

Decoding video from the NVS-20 encoder .......................... 18

Decoding other stream types................................................ 19

Automatic Firmware Updates................................................ 20

Network Video Decoder

NVD-20

Port Forwarding on your firewall / router ............................ 20

Setup Diagrams ...................................................................... 21

Specifications ......................................................................... 23

Service & Support .................................................................. 24

Network Video Decoder

NVD-20

Warnings and Precautions

1. Read all of these warnings and save them for later reference.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol

cleaners. Use a damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit may fall,

causing serious damage.

6. Slots and openings on the cabinet top, back, and bottom are provided for

ventilation. To ensure safe and reliable operation of this unit, and to protect it from

overheating, do not block or cover these openings. Do not place this unit on a bed,

sofa, rug, or similar surface, as the ventilation openings on the bottom of the

cabinet will be blocked. This unit should never be placed near or over a heat

proper ventilation is provided.

7. This product should only be operated from the type of power source indicated on

the marking label of the AC adapter. If you are not sure of the type of power

available, consult your Datavideo dealer or your local power company.

8. Do not allow anything to rest on the power cord. Do not locate this unit where the

power cord will be walked on, rolled over, or otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the total of the

ampere ratings on the products plugged into the extension cord do not exceed the

extension cord’s rating.

10. Make sure that the total amperes of all the units that are plugged into a single wall

outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet ventilation slots,

as they may touch dangerous voltage points or short out parts that could result in

risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.

12. Except as specifically explained elsewhere in this manual, do not attempt to

service this product yourself. Opening or removing covers that are marked “Do Not

Remove” may expose you to dangerous voltage points or other risks, and will void

your warranty. Refer all service issues to qualified service personnel.

13. Unplug this product from the wall outlet and refer to qualified service personnel

under the following conditions:

a. When the power cord is damaged or frayed;

b. When liquid has spilled into the unit;

c. When the product has been exposed to rain or water;

d. When the product does not operate normally under normal operating

conditions. Adjust only those controls that are covered by the operating

instructions in this manual; improper adjustment of other controls may result in

damage to the unit and may often require extensive work by a qualified

technician to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been damaged;

f. When the product exhibits a distinct change in performance, indicating a need

for service.

Network Video Decoder

NVD-20

Warranty

Standard Warranty

•Datavideo equipment is guaranteed against any manufacturing defects for

one year from the date of purchase.

•The original purchase invoice or other documentary evidence should be

supplied at the time of any request for repair under warranty.

•Damage caused by accident, misuse, unauthorized repairs, sand, grit or

water is not covered by this warranty.

•All mail or transportation costs including insurance are at the expense of

the owner.

•All other claims of any nature are not covered.

•Cables & batteries are not covered under warranty.

•Warranty only valid within the country or region of purchase.

•Your statutory rights are not affected.

Two Year Warranty

•All Datavideo products purchased after 01-Oct.-2008 qualify for a free one

year extension to the standard Warranty, providing the product is

registered with Datavideo within 30 days of purchase. For information on

how to register please visit www.datavideo.com or contact your local

Datavideo office or authorized Distributors

•Certain parts with limited lifetime expectancy such as LCD Panels, DVD

Drives, Hard Drives are only covered for the first 10,000 hours, or 1 year

(whichever comes first).

Any second year warranty claims must be made to your local Datavideo office

or one of its authorized Distributors before the extended warranty expires.

Network Video Decoder

NVD-20

Disclaimer of Product & Services

The information offered in this instruction manual is intended as a guide only.

At all times, Datavideo Technologies will try to give correct, complete and

suitable information. However, Datavideo Technologies cannot exclude that

some information in this manual, from time to time, may not be correct or may

be incomplete. This manual may contain typing errors, omissions or incorrect

information. Datavideo Technologies always recommend that you double

check the information in this document for accuracy before making any

purchase decision or using the product. Datavideo Technologies is not

responsible for any omissions or errors, or for any subsequent loss or damage

caused by using the information contained within this manual. Further advice

on the content of this manual or on the product can be obtained by contacting

your local Datavideo Office or dealer.

Disposal

For EU Customers only - WEEE Marking

This symbol on the product indicates that it will not be

treated as household waste. It must be handed over to the

applicable take back scheme for the recycling of Waste

Electrical and Electronic Equipment. For more detailed

information about the recycling of this product, please

contact your local Datavideo office.

Packing List

The following items should be in the box. If any items are missing please

contact your supplier.

Item No.

Description

Quantity

NVD-20 Unit

Mains Power Supply

Instruction Manual

CD Containing IP Finder Software

Network Video Decoder

NVD-20

Product Overview

The Datavideo NVD-20 is a wired IP video decoder with HDMI, Composite

and analogue audio outputs.

The NVD-20 decodes all common protocols including R T P / R T S P, R T M P, U D P,

TCP, HTTP, HLS and MPEG-TS and can output SD/HD video at resolutions

up to 1080p60.

The NVD-20 is the perfect partner to the Datavideo NVS-20 IP encoder

allowing full HD point to point video links over Ethernet, WiFi or the Internet.

That’s Datavideo, sharing the value!

Features

•Operates on standard 10/100Mb Ethernet networks

•Excellent image quality with very low delay

•Unicast and multicast support

•Supports RTP/RTSP (Unicast/Multicast), RTMP, UDP

(Unicast/Multicast), TCP, HTTP, HLS and MPEG-TS

•Feature-rich WebUI for configuration and control

•Built in video scaler

•Supports Full HD video and audio

•Supports simultaneous digital embedded and analogue audio output

•Small form factor, rack mountable using RMK-1

•12V DC input

Video Outputs – Choose from:

•HDMI

•Composite [CVBS via BNC socket]

Audio Outputs:

•Unbalanced RCA Phono sockets

•Embedded HDMI audio

Network Video Decoder

NVD-20

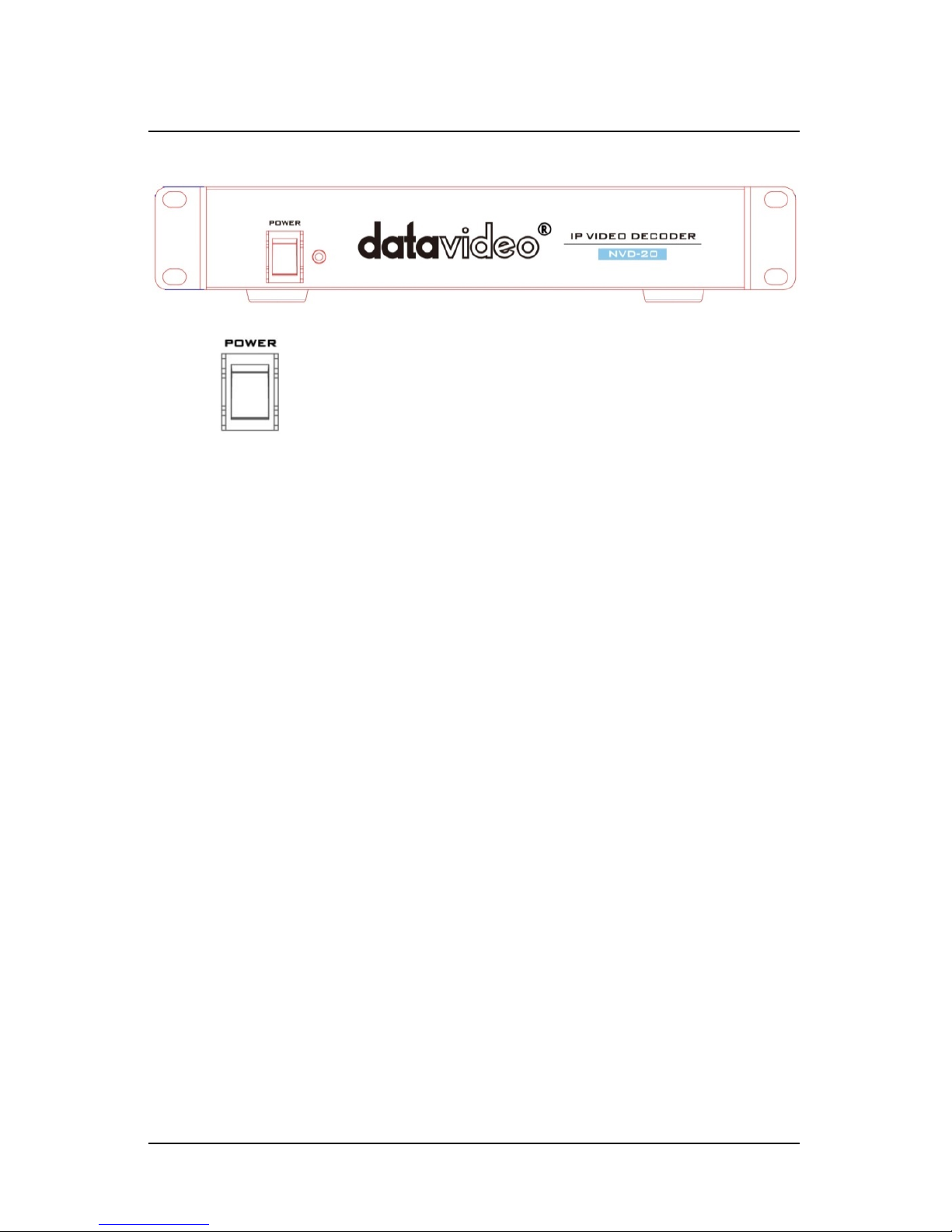

Front Panel

Power On/Off Switch

Switches the power On / Off

Network Video Decoder

NVD-20

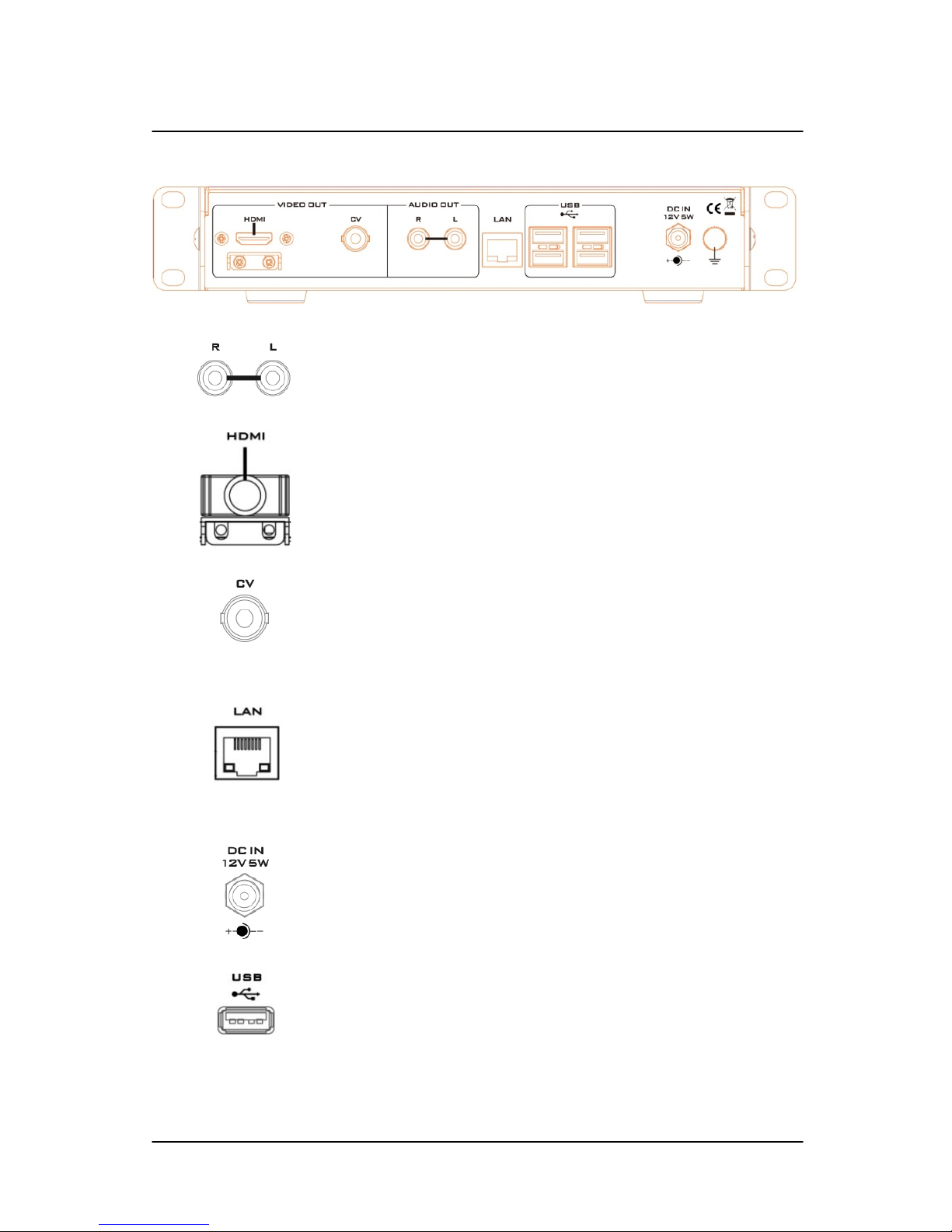

Rear Panel

AUDIO OUT (RCA)

RCA stereo for a line level analogue audio.

HDMI OUT

HDMI digital signal output connector.

CVBS OUT (BNC)

Composite video output

Ethernet Port (RJ-45)

10/100M base Ethernet Network interface

DC In Socket

Connect the

supplied 12V PSU to this socket. The

connection can be secured by screwing the outer

fastening ring of the DC In plug to the socket.

USB

Used for connecting a USB mouse, required to install

the automatic updates.

Network Video Decoder

NVD-20

Workflow options
