AD-10

AUDIO DELAY BOX

Table of Contents

TABLE OF CONTENTS .................................................................................................2

FCC COMPLIANCE STATEMENT..................................................................................4

WARNINGS AND PRECAUTIONS ................................................................................ 4

WARRANTY ............................................................................................................... 5

STANDARD WARRANTY.....................................................................................................5

THREE YEAR WARRANTY ...................................................................................................6

DISPOSAL ..................................................................................................................7

1. PRODUCT OVERVIEW ............................................................................................8

1.1 FEATURES ................................................................................................................8

2. FRONT PANEL....................................................................................................9

3. RIGHT PANEL .............................................................................................. 10

4. LEFT PANEL ..................................................................................................... 12

5. DIMENSIONS ....................................................................................................... 13

APPENDIX FIRMWARE UPDATE ............................................................................... 16

1. INTRODUCTION ............................................................................................ 16

2. PREPARATION ..................................................................................................... 16

2.1 SYSTEM REQUIREMENTS...........................................................................................16

2.2 FIRMWARE UPDATE PREPARATION ............................................................................17

2.3 SYSTEM CONNECTION DIAGRAM................................................................................17

2.4 PREPARING THE FIRMWARE ......................................................................................18

2.5 INSTALL THE EPCONSOLE SOFTWARE..........................................................................18

3. UPDATE............................................................................................................ 19

3.1 UPDATING THE FIRMWARE........................................................................................19

SERVICE AND SUPPORT ........................................................................................... 24

Disclaimer of Product and Services

The information offered in this instruction manual is intended as a guide only. At all

times, Datavideo Technologies will try to give correct, complete and suitable

information. However, Datavideo Technologies cannot exclude that some information

in this manual, from time to time, may not be correct or may be incomplete. This

manual may contain typing errors, omissions or incorrect information. Datavideo

Technologies always recommend that you double check the information in this

document for accuracy before making any purchase decision or using the product.

Datavideo Technologies is not responsible for any omissions or errors, or for any

subsequent loss or damage caused by using the information contained within this

manual. Further advice on the content of this manual or on the product can be

obtained by contacting your local Datavideo Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following

two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may

cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol

cleaners. Use a damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing

serious damage.

6. Slots and openings on the cabinet top, back, and bottom are provided for

ventilation. To ensure safe and reliable operation of this unit, and to protect it from

overheating, do not block or cover these openings. Do not place this unit on a bed,

sofa, rug, or similar surface, as the ventilation openings on the bottom of the

cabinet will be blocked. This unit should never be placed near or over a heat

proper ventilation is provided.

7. This product should only be operated from the type of power source indicated on

the marking label of the AC adapter. If you are not sure of the type of power

available, consult your Datavideo dealer or your local power company.

8. Do not allow anything to rest on the power cord. Do not locate this unit where the

power cord will be walked on, rolled over, or otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the total of the

ampere ratings on the products plugged into the extension cord do not exceed the

extension cord’s rating.

10. Make sure that the total amperes of all the units that are plugged into a single wall

outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet ventilation slots,

as they may touch dangerous voltage points or short out parts that could result in

risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.

12. Except as specifically explained elsewhere in this manual, do not attempt to service

this product yourself. Opening or removing covers that are marked “Do Not

Remove” may expose you to dangerous voltage points or other risks, and will void

your warranty. Refer all service issues to qualified service personnel.

13. Unplug this product from the wall outlet and refer to qualified service personnel

under the following conditions:

a. When the power cord is damaged or frayed;

b. When liquid has spilled into the unit;

c. When the product has been exposed to rain or water;

d. When the product does not operate normally under normal operating

conditions. Adjust only those controls that are covered by the operating

instructions in this manual; improper adjustment of other controls may result

in damage to the unit and may often require extensive work by a qualified

technician to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been damaged;

f. When the product exhibits a distinct change in performance, indicating a need

for service.

Warranty

Standard Warranty

Datavideo equipment are guaranteed against any manufacturing defects for one

year from the date of purchase.

The original purchase invoice or other documentary evidence should be supplied

at the time of any request for repair under warranty.

The product warranty period begins on the purchase date. If the purchase date is

unknown, the product warranty period begins on the thirtieth day after shipment

from a Datavideo office.

All non-Datavideo manufactured products (product without Datavideo logo) have

only one year warranty from the date of purchase.

Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is

not covered under warranty.

Viruses and malware infections on the computer systems are not covered under

warranty.

Any errors that are caused by unauthorized third-party software installations,

which are not required by our computer systems, are not covered under

warranty.

All mail or transportation costs including insurance are at the expense of the

owner.

All other claims of any nature are not covered.

All accessories including headphones, cables, and batteries are not covered under

warranty.

Warranty only valid in the country or region of purchase.

Your statutory rights are not affected.

Three Year Warranty

All Datavideo products purchased after July 1st, 2017

are qualified for a free two years extension to the

standard warranty, providing the product is registered

with Datavideo within 30 days of purchase.

Certain parts with limited lifetime expectancy such as LCD panels, DVD drives,

Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera

module, PCIe Card are covered for 1 year.

The three-year warranty must be registered on Datavideo's official website or

with your local Datavideo office or one of its authorized distributors within 30

days of purchase.

Disposal

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging indicates that this

product must not be disposed of with your other household waste.

Instead, it is your responsibility to dispose of your waste equipment

by handing it over to a designated collection point for the recycling of

waste electrical and electronic equipment. The separate collection and recycling of

your waste equipment at the time of disposal will help to conserve natural resources

and ensure that it is recycled in a manner that protects human health and the

environment. For more information about where you can drop off your waste

equipment for recycling, please contact your local city office, your household waste

disposal service or the shop where you purchased the product.

1. Product Overview

The Datavideo AD-10 is a low cost and easy-to-use audio delay box which is

designed for achieving audio and video synchronization. The AD-10 provides a

3.5mm audio input interface which is suitable for the output of the popular

MP3 format music which is used by smartphones.

The Datavideo AD-10 provides great compatibilities including switchable

+40dB/-20dB selection for switching between the condenser microphone and

dynamic microphone and the audio gain control function.

AD-10’s ruggedized design allows you to install it easily. Moreover, it can be

1.1 Features

Supports Audio and Video Synchronization.

Supports maximum delay time up to 400ms.

Can be powered by an external USB interface power bank

Supports audio level control function.

Switchable for Microphone input or Audio Line input

Switchable Condenser / Dynamic Microphone

Supports Stereo RCA output connectors for wide compatibility

Supports Simple Controls and LED Indicators

Compact and lightweight design

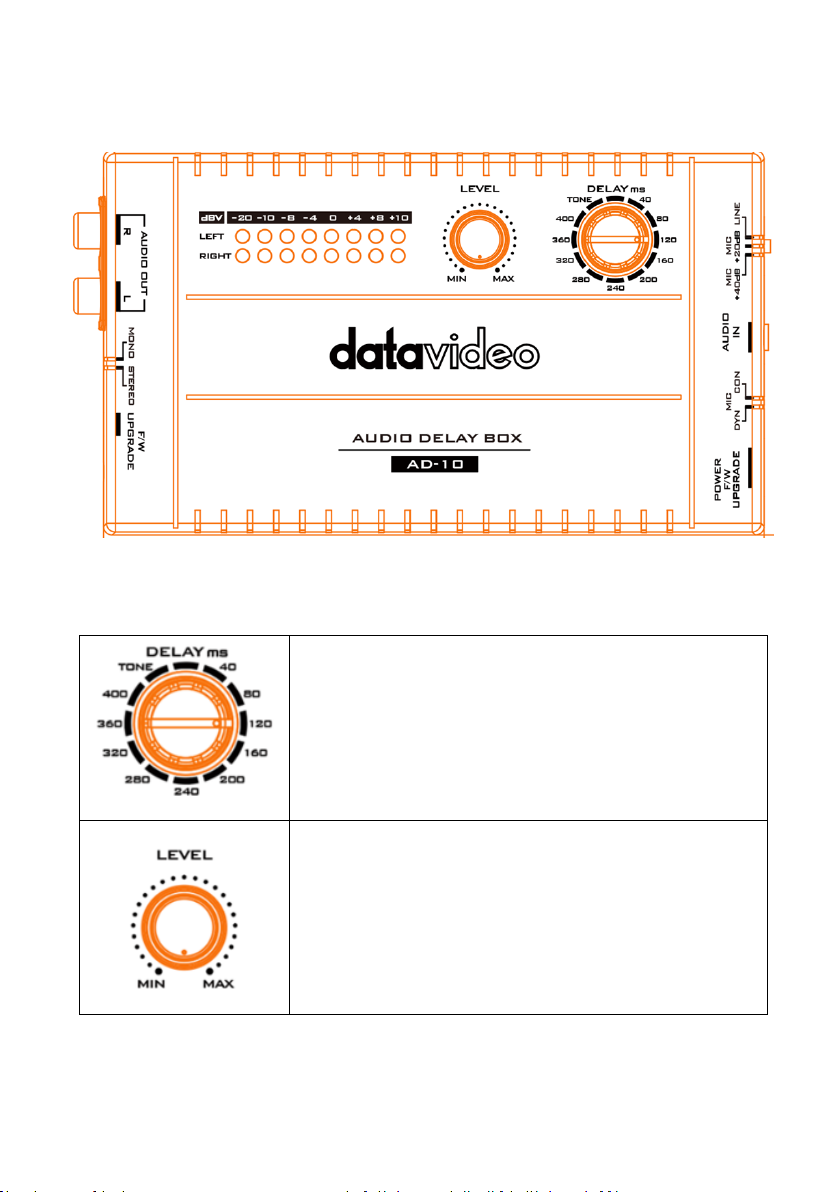

2. Front Panel

Audio Delay Time Adjustment Knob

This knob provides you 10 segments for adjusting the

audio delay time from 40ms to 400ms.

Moreover, it also provides TONE function for you to

output a 1K TONE signal to be the test signal.

Audio Level Adjustment Knob

This knob allows you to adjust the volume level of the

input audio.

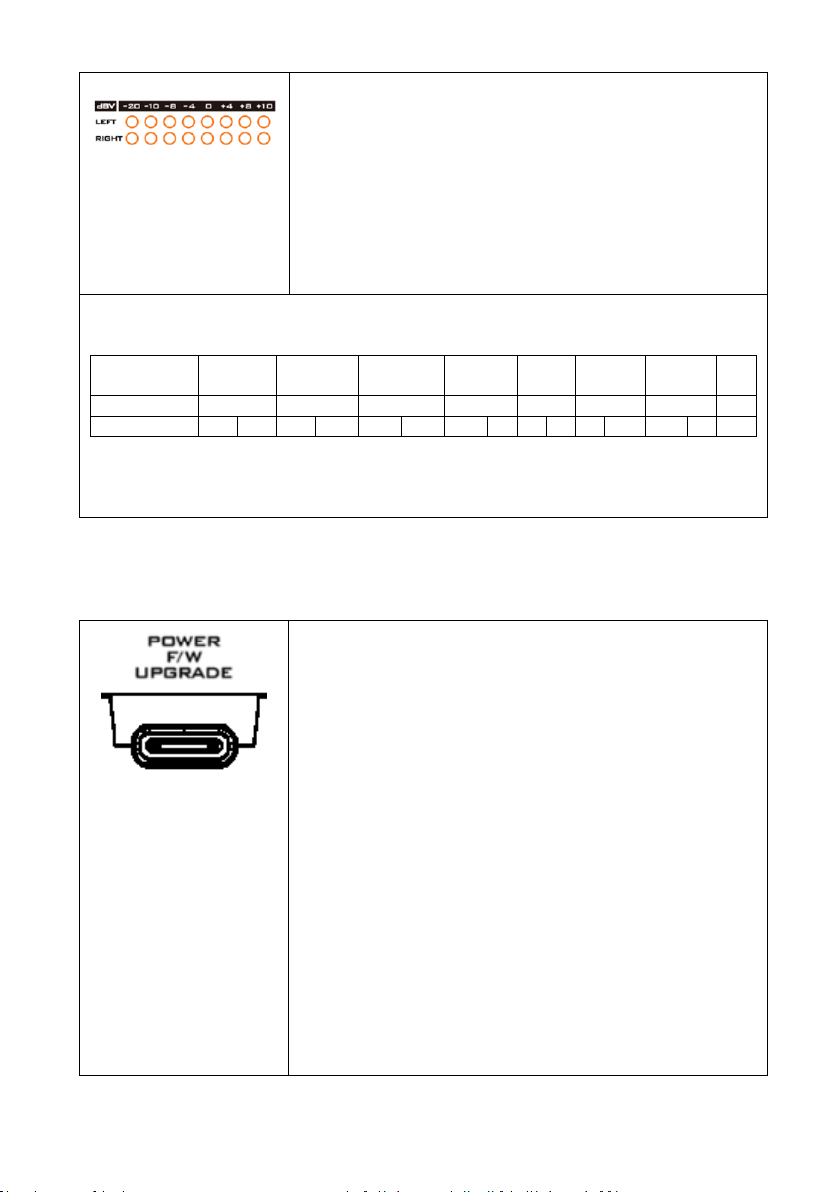

Audio Meters

LED style meters measure the audio volume at the

Main Program Audio Output.

Audio

Volume(dBV)

-20

-10

-8

-4

LED Color

Range (dBV)

-20

-12

-11

-9.5

-8.5

-6.5

-5.5

-3

-2

5.5

6.5

G: Green Y: Yellow R:Red

3. Right Panel

POWER F/W UPGRADE (POWER/F/W UPGRADE)

POWER

This USB Type-C interface allows you to connect to a 5V

USB external power bank for powering the AD-10. Once

the external power bank is connected, the power of the

AD-10 is turned on.

F/W UPGRADE

According to the difference of the USB interface for

your laptop, please use a USB Type A to USB Type C

adapter cable or a USB Type C to USB Type C cable to

connect from your laptop to your AD-10. After that, you

can use a special firmware update tool for updating the

firmware of the AD-10.

Table des matières

Autres manuels Data Video Équipement d'enregistrement

Data Video

Data Video RMC-140 Manuel utilisateur

Data Video

Data Video TVS-1000 Manuel utilisateur

Data Video

Data Video 4K ShowCast STUDIO Manuel utilisateur

Data Video

Data Video DN-200 Manuel utilisateur

Data Video

Data Video DN-100 Manuel utilisateur

Data Video

Data Video MS-3000 Manuel utilisateur

Data Video

Data Video HS-600 Manuel utilisateur

Data Video

Data Video HS-550 Manuel utilisateur

Data Video

Data Video HDR-1 Manuel utilisateur

Data Video

Data Video HS-2000 Hand Carried Studio Manuel utilisateur

Data Video

Data Video AD-100M Manuel utilisateur

Data Video

Data Video EZ-10 Manuel utilisateur

Data Video

Data Video TLM-433 Manuel utilisateur

Data Video

Data Video DN-600 Manuel utilisateur

Data Video

Data Video HS-2200 Manuel utilisateur

Data Video

Data Video HS-2200 Manuel utilisateur

Data Video

Data Video GO 500 REPLAY Manuel utilisateur

Data Video

Data Video SE-700 Manuel utilisateur

Data Video

Data Video TVS-1200A Manuel utilisateur

Data Video

Data Video TBC-7000 Manuel utilisateur

Data Video

Data Video OBV-2800 Manuel utilisateur

Data Video

Data Video HS-1300 Manuel utilisateur

Data Video

Data Video DVK-100 Mk II Manuel utilisateur

Data Video

Data Video HDR-45 Manuel utilisateur

Manuels Équipement d'enregistrement populaires d'autres marques

KV2 Audio

KV2 Audio 500 Series Manuel utilisateur

Robotics Technologies

Robotics Technologies microBus-Cam II Manuel utilisateur

Seca

Seca 460 Manuel utilisateur

Cognex

Cognex MVS-8000 Series Manuel utilisateur

Mect

Mect MPNC006 Series Manuel utilisateur

Bad Caf

Bad Caf THE LEASH Manuel utilisateur

Strymon

Strymon NIGHTSKY Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuel utilisateur

Tews Technologies

Tews Technologies TPMC465 Manuel utilisateur

Honeywell

Honeywell Excel 50 Manuel utilisateur

SeaLevel

SeaLevel COMM+8.LPCI Manuel utilisateur

Arturia

Arturia AUDIOFUSE STUDIO Manuel utilisateur

Rukra

Rukra RK-1240 Manuel utilisateur

Samson

Samson SCOM Manuel utilisateur

Dynacord

Dynacord DPS260 Manuel utilisateur

Nice

Nice Core Manuel utilisateur

Pyle Pro

Pyle Pro PSS8 Manuel utilisateur

RF-System

RF-System TinyGate Manuel d'utilisation et d'entretien
