Dascom Tally DP-230L Manuel utilisateur

Printer features

FRONT VIEW REAR VIEW

Media Battery

DP-230L

Quick Start Guide

This guide provides information on the daily use of the DP-230L printer.

For additional information, please refer to the DP-230L User Guide.

Please visit www.dascom.com to download latest printer drivers and manuals.

Battery levels on

OLED display:

Empty <5%

Level 1 15-40%

Level 2 40-70%

Level 3 70-100%

Battery Disposal

Please dispose the batteries separately and free of cost at your sales

agency or the designated local collecting points. Therefore please

consider the national recycling standards! Disassembly and removal of

the batteries are described in the User Guide.

Battery

Paper door

open button

Control panel

USB port/Charge Port

Display

Slide paper door release button in direction of arrows

to open the paper compartment door. Pull small

leader of paper out and close paper door.

“Clicks” when properly closed.

The DP-230L is equipped to process receipt and label

media!

To remove battery

for replacement,

depress battery

door clip and pull

out battery.

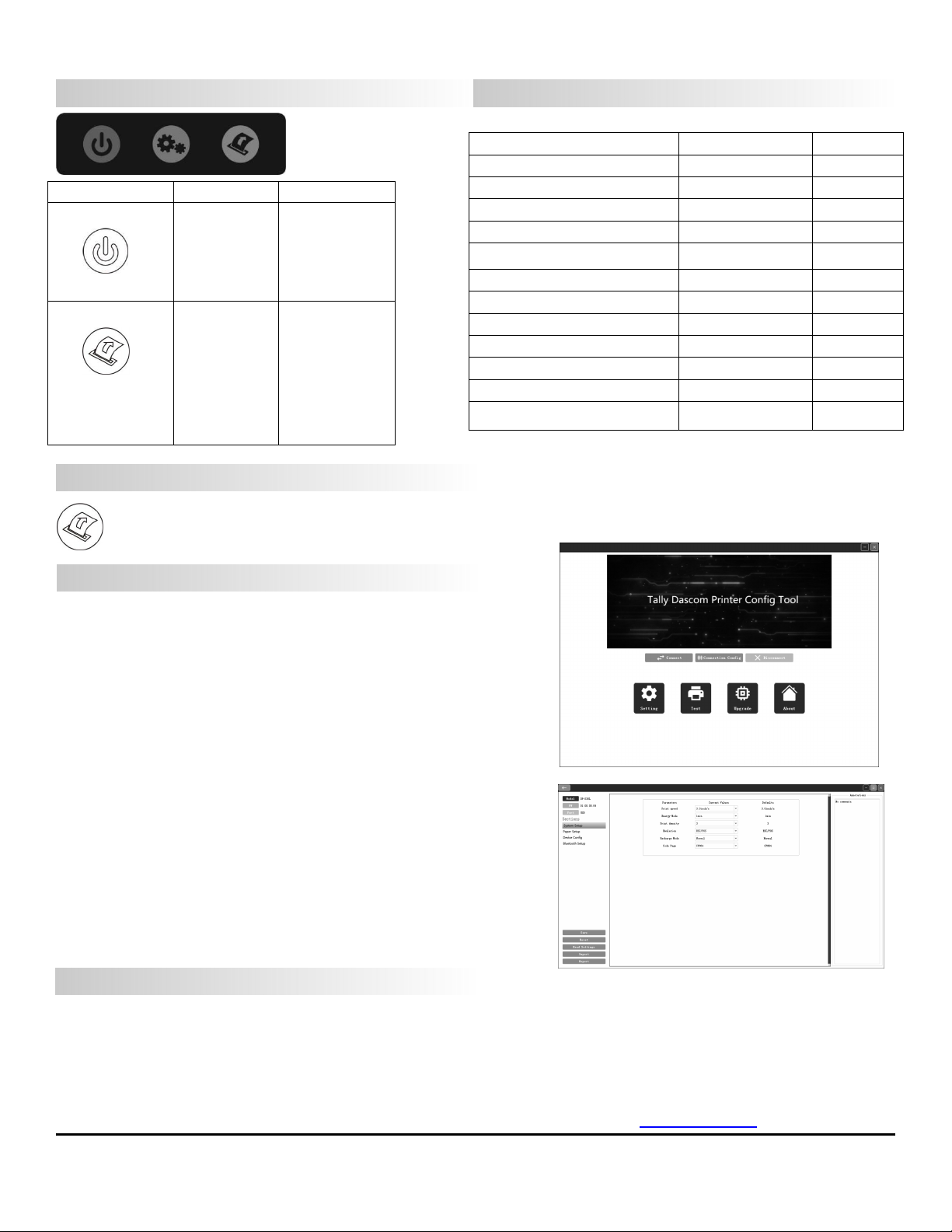

Control Panel indicators OLED Display

Function:

How to:

Power Button

Power up

Power down

Press & Release

Press & Hold

Paper feed button

Advance paper

Print setup

report

Press

Press and hold

for 3 seconds

Self-Test / Configuration printout

With the power on, press and hold the PAPER FEED button for 3 seconds.

Printer Configuration

The Dascom Configuration Tool is a Windows based software program that can

be downloaded from our web site. This program can be used to configure the

printer’s settings. You can also use the display and Settings, Power and Paper

Feed buttons to configure the printer.

To access the Control Panel Menu:

Push the Printer Settings button to enter the Configuration Menu.

Push the paper Feed button to select the menu section.

Push the Printer Settings button to enter the section.

Push the Printer Settings button to select parameter under the menu section.

Push the Paper Feed button to change the setting.

Push the Power button to go back one menu selection.

Menu Parameters:

System Setup – Print Speed, Energy Mode, Print Density, Emulation, Recharge

mode, Code Page

Paper Setup – Print Type, Top, Left Margin

Device Config – Sensor Type

Bluetooth Setup – BT Name, PIN Code

Dascom Representatives

Americas Dascom Americas Corp 34 Lakeview Court Verona, VA 24482, USA Phone: +1 (877) 434 1377

UK DASCOM GB Ltd Hart House, Priestley Road Basingstoke, Hampshire, RG24 9PU Phone: +44 (0) 1256 481481

Germany DASCOM Europe GmbH Heuweg 3 D-89079 Ulm Phone: +49 (0) 731 2075 0

France DASCOM Europe GmbH 117 Avenue Victor Hugo 92100 Boulogne-Billancourt Phone: +33 (1)73 02 51 98

Singapore (AP) DASCOM AP Pte Ltd 2 Jurong East Street 21 #05-42, IMM Building, Singapore 609601 Phone: +65 6760 8833

Status

Display

Buzzer

Buffer has data.

Working

N/A

Buffer is empty.

Print Ready

N/A

Cover opens

Head Up

Buzz/2s

Paper run out

Paper Out

Buzz/2s

Abnormal label positioning

Calibrate Error

N/A

No label gap detected

Out Tear Error

N/A

Print head overheats

Head Hot

N/A

Energy saving mode

Zzz...

N/A

FW download mode

Upgrade mode

N/A

FW is being downloaded

Fw Upgrade…

N/A

Finish the FW downloading

Upgrade OK

Buzz once

Battery is low

BAT Low

N/A

21.511.856.0060R
