DAPAudio PS-115A Manuel utilisateur

PS-115A

ORDERCODE D3576

Congratulations!

You have bought a great, innovative product from DAP Audio.

The DAP Audio PS-115A brings excitement to any venue. Whether you want simple plug-&-play action or

a sophisticated show, this product provides the effect you need.

You can rely on DAP Audio, for more excellent audio products.

We design and manufacture professional audio equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@dap-audio.info

You can get some of the best quality, best priced products on the market from DAP Audio.

So next time, turn to DAP Audio for more great audio equipment.

Always get the best -- with DAP Audio !

Thank you!

DAP Audio

DAP Audio PS-115A Product Guide

Warning..…...................................................................................…………………………………………....................

Safety-instructions………………………………………………………………………………………….…..................

Operating Determinations……………………………………………………………………………………...............

Description..…..............................................................................……….…………………………………...................

Features………………………………………………………………………………….………………….…..................

Overview ..…………………………………………………………………………………....…….................................

ControlPanel..…………………………………………………………………………………….……............................

Installation..................................................................……………………………..…………………………...................

Set Up and Operation.....................................................................……..…………………………….…….................

Connection Cables..............................….......................................………..………….…….………….…...................

Maintenance………..............................….......................................………..………….…….………….…...................

Replacing the Fuse........................................................................…………………….…………………................

Troubleshooting………..............................…................................………..………….…….………….…......................

Product Specifications.................................................................……………….…….………………….....................

WARNING

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

• DAP PS-115A

• IEC cable

• User manual

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

WARNING

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this system has to:

-be qualified

-follow the instructions of this manual

Before you initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the system.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the system are not subject to

warranty.

This system contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the system.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never leave any cables lying around.

Do not insert objects into air vents.

Do not connect this system to a dimmerpack.

Do not switch the system on and off in short intervals, as this would reduce the system’s life.

Do not open the device and do not modify the device.

Do not drive the inputs with a signal level bigger, than required to drive the equipment to full

output.

Do not plug Mics into the console (or stagebox) while Phantom Power is on. Also mute the monitor

/ Pa system when turning Phantom Power on or off. Allow the system to adjust for a couple of

seconds, before setting the input gains.

Only use system indoor, avoid contact with water or other liquids.

Avoid flames and do not put close to flammable liquids or gases.

Always disconnect power from the mains, when system is not used. Only handle the power-cord

by the plug. Never pull out the plug by tugging the power-cord.

Always operate the unit with the AC ground wire connected to the electrical system ground.

Make sure you don’t use the wrong kind of cables or defective cables.

Make sure that the signals into the mixer are balanced, otherwise hum could be created.

Make sure you use DI boxes to balance unbalanced signals; All incoming signals should be clear.

CAUTION!

Keep this system away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the system and the power-

cord from time to time.

Please turn off the power switch, when changing the power cord or signal cable, or select the

input mode switch.

Extreme frequency boosts in connection with a high input signal level may lead to overdriving

your equipment. Should this occur, it is necessary to reduce the input signal level by using the

INPUT control.

To emphasize a frequency range, you don’t necessarily have to move its respective control

upward; try lowering surrounding frequency ranges instead. This way, you avoid causing the next

piece of equipment in your sound path to overdrive. You also preserve valuable dynamic reserve

(“headroom”)

Avoid ground loops! Always be sure to connect the power amps and the mixing console to the

same electrical circuit to ensure the same phase!

If system is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your system. Leave

the system switched off until it has reached room temperature.

If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit

securely (preferably in the original packing material), and return it to your Dap Audio dealer for

service.

Repairs, servicing and electric connection must be carried out by a qualified technician.

For replacement use fuses of same type and rating only.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This system is not designed for permanent operation. Consistent operation breaks will ensure that the

system will serve you for a long time without defects.

If this system is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU (including UK)

From April 2004

North America

Brown

Black

Phase

Blue

White

Neutral

Green/Yellow

Green

Protective Earth

Make sure that the device is always connected properly to earth!

Description of the device

Features

The PS-115A is an active 15" 2-way Fullrange speakersystem:

• Adjustable Line/Mic Input with Combo connector.

• Treble level control

• Bass level control

• Master volume control with Clip-LED

• Roadproof housing made of plastics

• Built-in stand flange

• Mountable on a ø 36mm pole

Overview

Fig. 1

Controlpanel

Fig. 2

1) Bass

Use to adjust the Bass frequencies to your preference.

2) Treble

Use to adjust the treble frequencies to your preference.

3) Volume

Use to adjust the volume level for each channel to your preference.

4) Combo Input

5) MIC/ LINE- Button

Allows you to set the input impedance/ sensitivity to either Line or Microphone level (Line =

on, microphone = off).

6) Link XLR Output

7) Power LED

Indicates that the unit is on.

8) AC Power Switch

This is the main Power switch. Press to turn the PS-115A on.

9) Overload LED

10) AC Inlet with integrated fuse holder

This connector is meant for the connection of the supplied main cord. Connect one end of the

power cord to the connector, the other end to the mains, then turn on the power switch (13) to

operate the unit.

Note: Please make sure that the supply voltage matches the operation voltage before connecting

the unit to mains.

Replace the fuse only with a fuse of same specification (F8A).

Operation

Installation

Remove all packing materials from the PS-115A. Check that all foam and plastic padding is removed.

Connect all cables.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 240V power, or vice versa.

Do not supply power before all components of the system are set up and connected properly.

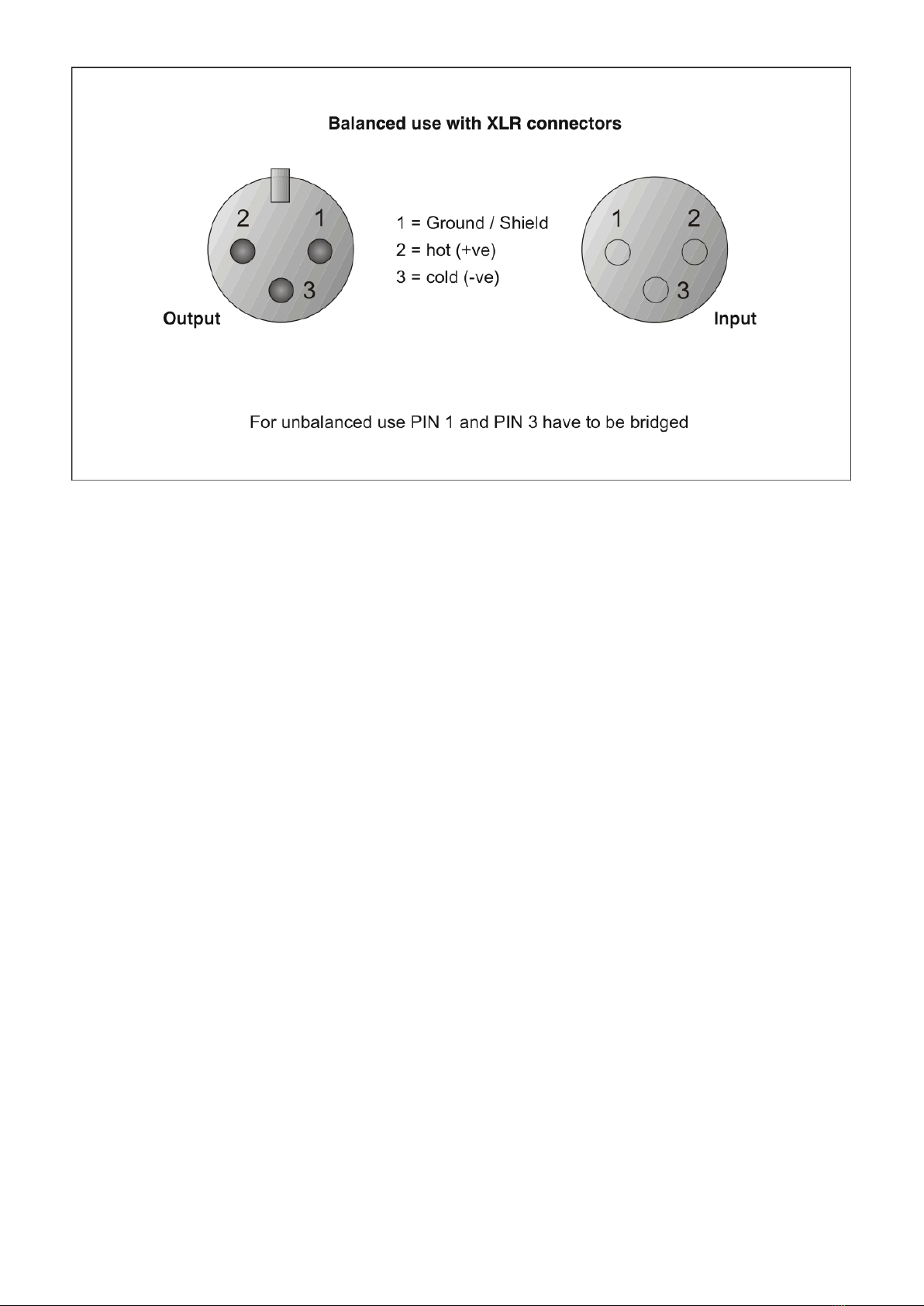

Connection Cables

Take care of your cables, always holding them by the connectors and avoiding knots and twists when

coiling them: This gives the advantage of increasing their life and reliability.

Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges,

etc.) are caused entirely by using unsuitable or faulty cables.

Headphones Unbalanced mono Balanced mono Insert

Compensation of interference with balanced connections

Maintenance

The PS-115A requires almost no maintenance. However, you should keep the unit clean. Disconnect the

mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid.

Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp

cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power.

Replacing a Fuse

Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the

fuse burns out, the product will not function whatsoever. If this happens, follow the directions below to do

so.

1. Unplug the unit from electric power source.

2. Insert a flat-head screwdriver into a slot in the fuse cover. Gently pry up the fuse cover.

3. Remove the used fuse. If brown or unclear, it is burned out.

4. Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to

use a fuse of the same type and specification. See the product specification label for details.

Troubleshooting

Dap Audio PS-115A

This troubleshooting guide is meant to help solve simple problems.

If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit

operates properly, do not carry out following steps.

1. If the device does not operate properly, unplug the device.

2. Check the power from the wall, the fuse, all cables etc.

3. If all of the above appears to be O.K., plug the unit in again.

4. If you are unable to determine the cause of the problem, do not open the device, as this may

Damage the unit and the warranty will become void.

5. Return the device to your Dap Audio dealer.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels DAPAudio Intervenants

DAPAudio

DAPAudio GS-630 Manuel utilisateur

DAPAudio

DAPAudio Pure-15A Manuel utilisateur

DAPAudio

DAPAudio DCS-626 Manuel utilisateur

DAPAudio

DAPAudio NRG-18S Manuel utilisateur

DAPAudio

DAPAudio WMS6-W Manuel utilisateur

DAPAudio

DAPAudio Pure-10A Manuel utilisateur

DAPAudio

DAPAudio WMS6T-W Manuel utilisateur

DAPAudio

DAPAudio RX-15 Manuel utilisateur

DAPAudio

DAPAudio MHS-30S Manuel utilisateur

DAPAudio

DAPAudio WMS6-B Manuel utilisateur

DAPAudio

DAPAudio PS-112A Manuel utilisateur

DAPAudio

DAPAudio HS-15S Manuel utilisateur

DAPAudio

DAPAudio PR-52 Manuel utilisateur

DAPAudio

DAPAudio D3501 Manuel utilisateur

DAPAudio

DAPAudio Odin T-8 Line Array Satellite V1 Manuel utilisateur

DAPAudio

DAPAudio LT-15HL Manuel utilisateur

DAPAudio

DAPAudio DRX Series Manuel utilisateur

DAPAudio

DAPAudio PSU-510M Manuel utilisateur

DAPAudio

DAPAudio Soundmate Active 3 MK-II Manuel utilisateur

DAPAudio

DAPAudio D2608 Manuel utilisateur

DAPAudio

DAPAudio D-100 Manuel utilisateur

DAPAudio

DAPAudio CS-330 Manuel utilisateur

DAPAudio

DAPAudio D3207 Entertainer mobile set pro Manuel utilisateur

DAPAudio

DAPAudio NRG-12A Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
