Electronic 5/2 day programmable room thermostat

Certification Mark

Installatiehandleiding

Instrukcja montażu

Montavimo instrukcijos

Installation Instructions

Product Specication

Please Note:

This product should only be installed by a qualied electrician

or competent heating installer and should be in accordance

with the current edition of the IEEE wiring regulations.

Thermostat features TP5001M TP5001M 24

Power supply 230V, ±10%, 50Hz 24V, ±10%, 50Hz

Memory back-up Retained for life of product

Temperature Range Sensing

5-30°C

Factory set calendar clock Automatic summer/winter time change

Switching action of

output relay

3(1)A, 10-230V

Type 1B

Remote sensor inputs

(A models only)

Can be set by installer for remote temperature

sensor, limit sensor, window contact or telephone

activated switch contacts

Dimensions (mm) 110 wide, 88 high, 28 deep

Design standard EN60730-2-9

Rated impulse voltage 2.5kV

Ball hardness test 75°C

Control pollution situation Degree 2

Temperature accuracy ±1°C

Time accuracy ±1 min. per month

Installation Instructions

Installation

• First, remove the wallplate from the back of the unit.

• From the top left hand corner of the wallplate, there must be

clearances of at least 15mm to the right, 15mm to the left, 30mm

above and 100mm below in order to mount the plug-in module.

• Thermostat and Remote Room Sensor:

Fix at a height of approximately 1.5m from the oor, away from

draughts or heat sources such as radiators, open res or direct

sunlight.

• Prior to mounting the unit the 2 DIL switches on the rear of the

unit have to be moved to the required position. The factory

presets are shown below.

Keyboard disabled

Reset disabled Reset enabled

Keyboard enabled

OFF ON

Sw. No.

Installation Instructions

GB Cable Access

Wiring

TP5001M 230V and 24V ac

Models with remote sensor inputs

The TP5001MA incorporates an input which can be used to connect

one of the following:

1) remote room temperature sensor (sold as accessory).

2) limit sensor, for example, oor temperature sensor (sold as

accessory).

3) window contacts, card reader contacts or teleswitch contacts.

See Installer Advanced Programming Options for set-up instructions.

123

NDE

ADE

24V

Output Connections,

all hard wired models

Power Supply Connections

M 230V Models

M 24V Models

Remote Sensor

(A version only)

Remote Sensor

(A version only)

Installation Instructions

Window or

teleswitch

contact

(NO or NC)

Teleswitch

contact (NC)

Window

contact (NC)

Congured for

remote room

sensor or limit

sensor

Congured for

window contact or

other contact such

as teleswitch

Congured for

window contact

and other contact

such as teleswitch

Installer advanced

programming options

TP5001M incorporates a number of advanced features which can be

set by the user. These are accessed via a User Advanced Programming

Mode, please refer to User Advanced Programming in the user

instructions for details.

Installer advanced programming options

TP5001M incorporates an additional number of advanced features

which can be set by the installer to improve the operating eciency of

the system and where required, to change the user functionality of the

product. These are accessed via an Installer Advanced Programming

Mode. These settings are optional and need only be made if there is a

demand for the enhanced functions.

Entering Installer Advanced Programming mode

To access the Installer Advanced Programming

Mode follow the steps below:

a) Press and hold Vand PROG for 3 seconds to

enter User Advanced Programming, the display

will change to gure opposite.

b) Press and hold V, Λand PROG for 5 seconds

to enter Installer Advanced Programming, the

display will change to gure opposite.

c) Use +and -keys to scroll backwards and forwards between options

then Vand Λkeys to change the option settings. The ashing digit

on the right hand of the display indicates the number of the selected

option. The large characters display the option value selected.

d) To return to RUN, press and hold PROG until colon in the display

blinks.

Installation Instructions

Option 30 - Set upper limit of temperature range

This allows the upper limit of the thermostat

setting range to be electronically limited. Press +

until Option 30 is displayed, use Vand Λto select

required setting.

Setting 40 - 5°C (Factory setting is 30°C)

Option 31 - Set lower limit of temperature range

This allows the lower limit of the thermostat

setting range to be electronically limited. Press +

until Option 31 is displayed, use Vand Λto select

required setting.

Setting 5 - 40°C (Factory setting is 5°C)

Option 32 - Enable O at lower limit

This enables an OFF function to be selected if a set

point below the lower limit is selected. Press +until

Option 32 is displayed, use Vand Λto select required

setting.

Setting 0 Disabled

Setting 1 Enabled (factory setting)

Installation Instructions

Option 33 - Enable On at upper limit

This enables an ON function to be selected if a set

point above the upper limit is selected. Press +until

Option 33 is displayed, use Vand Λto select required

setting.

Setting 0 Disabled (factory setting)

Setting 1 Enabled

Option 34 - Select on/o or chrono-proportional cycle rate

This allows the thermostat to be set to run in on/o

mode or for a chrono-proportional cycle rate to be

selected. Press +until Option 34 is displayed, use V

and Λto select required setting.

0On/O

33 cycles per hour

66 cycles per hour (factory setting)

99 cycles per hour

12 12 cycles per hour

Option 35 - Set integration time (seek advice prior to adjusting)

(Option 34 set to 3, 6, 9 or 12)

This adjusts the integration time of the PI

algorithm to increase control accuracy. It should

only be adjusted after seeking advice from the

manufacturer. Press +until Option 35 is displayed,

use Vand Λto select required setting.

2.5 Integration time set to 2.5% (factory setting)

5Integration time set to 5%

10 Integration time set to 10%

Option 36 - Set temperature override rule

This establishes the degree of temperature override

available to the user. Press +until Option 36 is

displayed, use Vand Λto select required setting.

Setting 0 No limit (factory setting)

Setting 1 Limited to ±2°C

Setting 2 No override allowed

Installation Instructions

GB Option 37 - Set time duration of override rule

(Option 36 set to 0 or 1)

This establishes the duration of a temperature

override available to the user. Press +until Option

37 is displayed, use Vand Λto select required

setting.

Setting 0 Next event (factory setting)

Setting 1 1 hour

Setting 2 2 hours

Setting 3 3 hours

Setting 4 4 hours

Option 70 - Keyboard disable rules

This establishes the degree of functionality of the

keyboard available to the user. It is only active if DIL

switch 6 is set to“Disabled”. Press +until Option 70 is

displayed, use Vand Λto select required setting.

Setting 0 Normal lock: Programming functions locked (factory setting)

Setting 1 Full lock: All keys are disabled

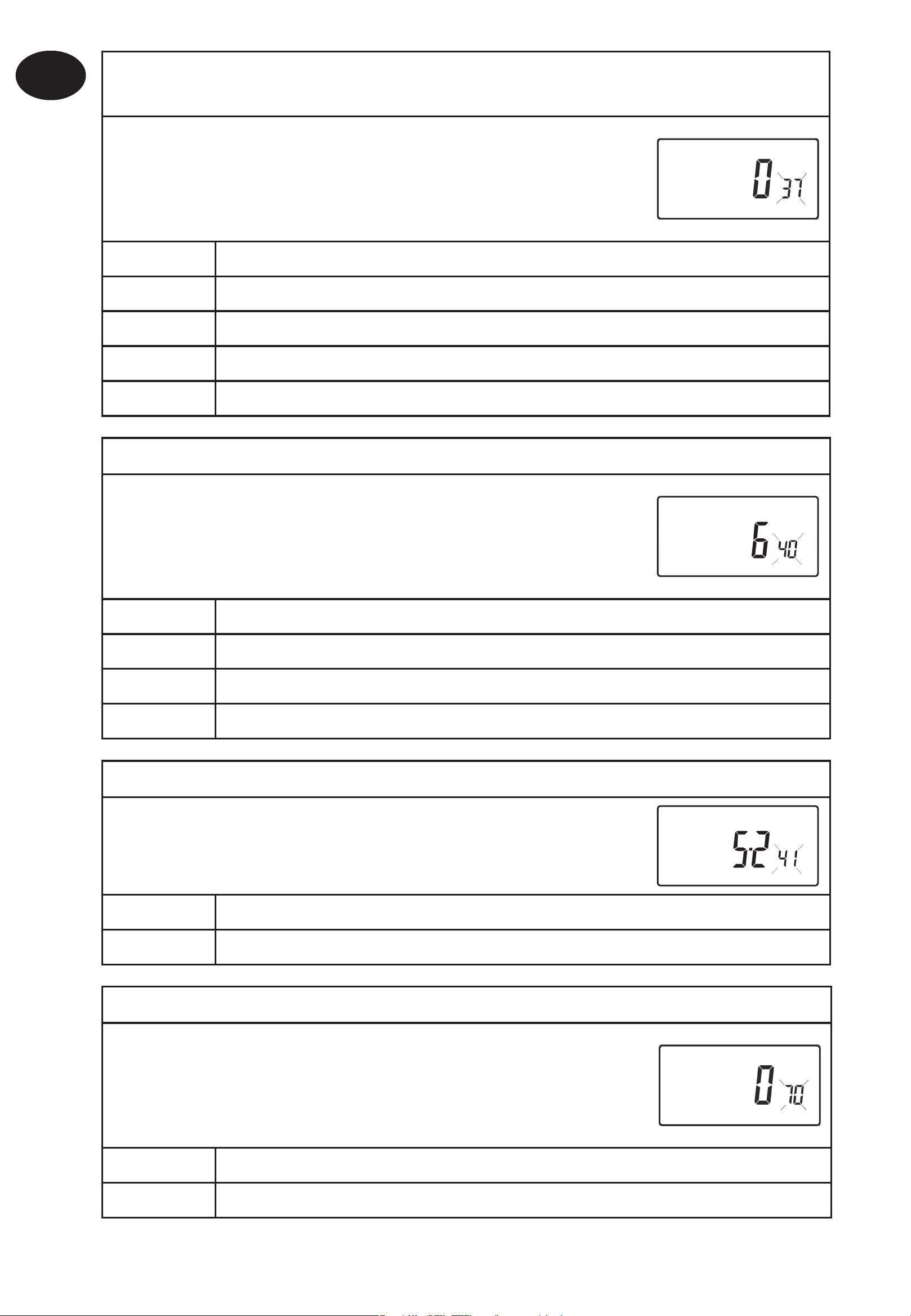

Option 40 - Number of Events

This sets the thermostat to operate with either 2,

4 or 6 switching events per day or to run it in stat

mode. Press +until option 40 is displayed, use Λ or

Vto select required setting.

1Stat Mode

2Two switching events per day

4Four switching events per day

6Six switching events per day (factory setting)

Option 41 - Operating Mode (5/2 day or 24 hour)

This sets the thermostat to operate using either

5/2 day or 24 hour mode. Press +until option 41 is

displayed, use Λ or Vto select required setting.

5-2 5/2 day (Factory setting)

24 24 hour

Installation Instructions

Option 71 - Random start rules (24V/230 Volt models only)

This enables a random start on power-up following a

power cut to reduce load on the electrical network.

Random delay is in the range of 2 - 90 seconds. Press

+until Option 71 is displayed, use Vand Λto select

required setting.

Setting 0 Disabled (factory setting)

Setting 1 Enabled

Option 72 - Owner site reference number

This enables multi-site owners to store a site

reference number in the thermostat. Press +

until Option 72 is displayed, use Vand Λto select

required setting.

Setting Any value between 00 and 99 can be set

Factory setting is 00

Option 73 - Owner thermostat reference number

This enables site owners to store a thermostat

reference number in the thermostat. Press +until

Option 73 is displayed, use Vand Λto select required

setting.

Setting Any value between 000 and 999 can be set

Factory setting is 000

Option 74 - Date format for calendar clock

This allows date format to be chosen. Press +

until Option 74 is displayed, use Vand Λto select

required setting.

Setting 0 European rules (dd/mm/yy), (Factory setting)

Setting 1 North American rules (mm/dd/yy)

Option 81 - Thermostat calibration bias

This allows the thermostat calibration to be biased by

up to ±1.5°K. Press +until Option 81 is displayed, use

Vand Λto select required setting.

Setting Any value between ±1.5 (Factory setting is 0°C)

Installation Instructions

GB Option 90 - Dene remote sensor type,“A”models only

This allows type of remote sensor input type to be

dened. Press +until Option 90 is displayed, use V

and Λto select required setting.

Setting 0 No remote sensor tted

Setting 1 Remote room or duct sensor tted, internal sensor disabled,

(Factory setting)

Setting 2 Remote limit sensor tted, refer to option 93 to dene set-point

Setting 3 Congured as digital input for window, card reader or

teleswitch, refer to option 94 to dene o/c or s/c.

Option 93 - Set limit sensor set-point,“A” models only,

(option 90 set to 2)

This allows the thermostat limit sensor to be set,

typical application is oor heating. Press +until

Option 93 is displayed, use Vand Λto select

required setting. If the temperature sensed by the

limit sensor exceeds the limit setting the output will

be turned o until the temperature has dropped by

2°C. “F10” will ash in the display while the output

is disabled.

Setting Any value between 20 - 50°C (Factory setting is 27°C)

Option 94 - Congure digital input switch type, “A” models only,

(option 90 set to 3)

This allows switch type of digital input to be

congured. Press +until Option 94 is displayed, use

Vand Λto select required setting.

Setting 0 Contacts NC, open circuit contact to force unit into

thermostat mode, short circuit contacts to return to

normal operation

Setting 1 Contacts NO, short circuit contacts to force unit into

thermostat mode, open circuit contacts to return to normal

operation (Factory setting)

Table des matières

Langues :

Autres manuels Danfoss Thermostat

Danfoss

Danfoss FH-CWP Manuel utilisateur

Danfoss

Danfoss FP715Si Manuel utilisateur

Danfoss

Danfoss LX 420 Manuel utilisateur

Danfoss

Danfoss RET2000 B Manuel utilisateur

Danfoss

Danfoss SET3M Instructions de montage

Danfoss

Danfoss TP5000 si range Mode d’emploi

Danfoss

Danfoss living connect Manuel utilisateur

Danfoss

Danfoss MTD Instructions de montage

Danfoss

Danfoss ECL Comfort 310, P318 Manuel utilisateur

Danfoss

Danfoss DEVIreg 532 Manuel utilisateur

Danfoss

Danfoss EFIT 550 Manuel utilisateur

Danfoss

Danfoss HCS6101-3 Instructions d'utilisation

Danfoss

Danfoss ECtemp Next Plus HW Manuel utilisateur

Danfoss

Danfoss Link FT Manuel utilisateur

Danfoss

Danfoss ECtemp Smart Manuel utilisateur

Danfoss

Danfoss RET 230 HCW-1 Manuel utilisateur

Danfoss

Danfoss TP7000-RF Schéma de câblage

Danfoss

Danfoss Icon Master Manuel utilisateur

Danfoss

Danfoss ECL Comfort 310, A302 Manuel utilisateur

Danfoss

Danfoss HC75-1 Manuel d'utilisation

Danfoss

Danfoss ECtemp 330 Manuel utilisateur

Danfoss

Danfoss FMT230D Mode d'emploi

Danfoss

Danfoss BasicPlus2 Manuel utilisateur

Danfoss

Danfoss TP4000 Range Manuel utilisateur

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur
