Danfoss TP5000 RF Si Mode d’emploi

TP5000 + RF

Installation Instructions

User Instructions

Instructions d’installation

Instructions d’utilisateur

Installationsanweisungen

Inbetriebnahme-Instruktion

Instrucciones de instalación

Instrucciones del usuario

Instruktions vejledning

Brugervejleding

5/2 day programmable electronic room thermostat

Installatie handleiding

Instructiesevoor Gebruik

Ïäçãßåò åãêáôÜóôáóçò

Ïäçãßåò ÷ñÞóçò

Instrukcja instalacji

Instrukcja Użytkownika

Montavimo instrukcijos

Informacija Vartotojui

Istruzioni per l’uso

Istruzioni per l’utente

INDEX

Installation Instructions 3-6

User Instructions 7-12

Instructions d’installation 13-16

Instructions d’utilisateur 17-22

Installationsanweisungen 23-26

Inbetriebnahme-Instruktion 27-32

Instrucciones de instalación 33-36

Instrucciones del usuario 37-42

Instruktions vejledning 43-46

Brugervejleding 47-52

Installatie handleiding 53-56

Instructiesevoor Gebruik 57-62

Ïäçãßåò åãêáôÜóôáóçò 63-66

Ïäçãßåò ÷ñÞóçò 67-72

Instrukcja instalacji 73-76

Instrukcja Użytkownika 77-82

Montavimo instrukcijos 83-86

Informacija Vartotojui 87-92

Istruzioni per l’uso 93-96

Istruzioni per l’utente 97-102

Installation

Instructions GB

Important note RF products: Ensure that there are no large metal objects, such

as boiler cases or other large appliances, in line of sight between the transmitter

and receiver as these will prevent communication between thermostat and receiver.

Product Speciﬁcation

GB - Installation Instructions

Please Note:

This product should only be installed by a

qualiﬁed electrician or competent heating

installer and should be in accordance with the

current edition of the IEEE wiring regulations.

Thermostat features TP5000 TP5000-RF

Power supply 2 x AA/MN1500/LR alkaline cells

Memory back-up 1 min for battery change

Switching action of output relay

1 x SPDT, Type 1B

N/A

Switch rating of relay contact 6(2)A, 10-230Vac N/A

Transmission frequency (RF model) N/A 433.92MHz

Transmitter range (RF model) N/A 30m max

Temperature range 5-30°C

Dimensions, mm 110 wide, 88 high, 28 deep

Design standard EN60730-2-9 (EN300220 for RF)

Rated impulse voltage 2.5Kv

Ball hardness test 75°C

Control pollution situation Degree 2

Temperature accuracy ±1°C

Time accuracy ±1 min.

GB - Installation Instructions

Installation

 First, remove the wallplate from the back of the unit.

 From the top left hand corner of the wallplate, there must

be clearances of at least 140mm to the right, 15mm to

the left, 30mm above and 100mm below in order to

mount the plug-in module.

 Fix at a height of approximately 1.5m from the ﬂoor,

away from draughts or heat sources such as radiators.

open ﬁres or direct sunlight.

 Prior to mounting the unit should be set in either ON/

OFF or chrono-proportional control mode (see below).

1) ON/OFF - boiler switches ON when below set temperature

and OFF when above..

1) ON/OFF 2) CHRONO

GB - Installation Instructions

2) Chrono-Proportional - energy saving feature which ﬁres

the boiler at regular intervals to maintain a set temperature,

achieving a constant ambient environment for the user.

For a full explanation of all advanced features please

visit our website www.danfoss-randall.co.uk or call 01234

364621 to obtain a copy of our Advanced Features Guide.

Thermostat Wiring (not RF models)

Some existing thermostats will have a Neutral and/or Earth wire connected.

These are not required by the TP5000 and must NOT be connected to any

TP5000 terminals. Instead they should be made electrically safe and coiled

in the recess at the back of the TP5000.

RX1 & RX2 RX3

RX1 & 2 (3055 12/01)

COM

RX3 (3056 12/01)

RX Receiver Wiring (RF models only)

NB. For mains voltage operated systems link terminal 2 to mains live supply

Commissioning (RF models only)

GB - Installation Instructions

To tune the RX receiver to the frequency of the thermostat signal,

follow steps 1-5 below.

Step 1 TP5000-RF

Reset the unit by pressing and holding

-, +, V and together until display goes blank.

Step 2 Press and hold V and +

buttons for 3 seconds

(TP5000 now transmits

unique signal continuously

for 5 minutes)

Step 3 RX1

Press and hold buttons

PROG and CH1 for

3 seconds until green light

ﬂashes once.

Step 4 RX2 (if applicable)

Stat 1 - perform steps 1-3

Stat 2 - wait 5 mins, perform steps 1-2 and then

press PROG and CH2 on RX2

RX3 (if applicable)

Stat 1 - perform steps 1-3

Stat 2 - wait 5 mins, perform steps 1-2 and then

press PROG and CH2 on RX3

Stat 3 - wait 5 mins, perform steps 1-2 and then

press PROG and CH3 on RX3

Step 5 TP5000-RF

Press V or to select temperature - the unit will

revert back to operating mode.

Your programmable room thermostat

The TP5000 allows you to programme up to 6 times and

temperatures at which your heating will come on and go

off each day. You can programme one set of times and

temperatures for weekdays and another set for weekends.

It features several user overrides including frost protection,

thermostat mode and time or temperature display.

Preset Programmes

Your TP5000 comes ready programmed with a set of operating

times and temperatures which often suit most people.

If you want to change any of these settings you can do so by

following the instructions on pages 9-10.

First, follow the steps on page 8 to set the correct time and date.

GB - User Instructions

Weekdays (Mon-Fri) Weekend (Sat-Sun)

Event Time Temp °C Event Time Temp °C

1 06:30 20 1 07:00 20

2 08:30 15 2 16:00 21

3 11:30 20 3 23:00 15

4 13:30 15 4 00:00 15

5 16:30 21 5 01:00 15

6 22:30 15 6 01:59 15

User Instructions

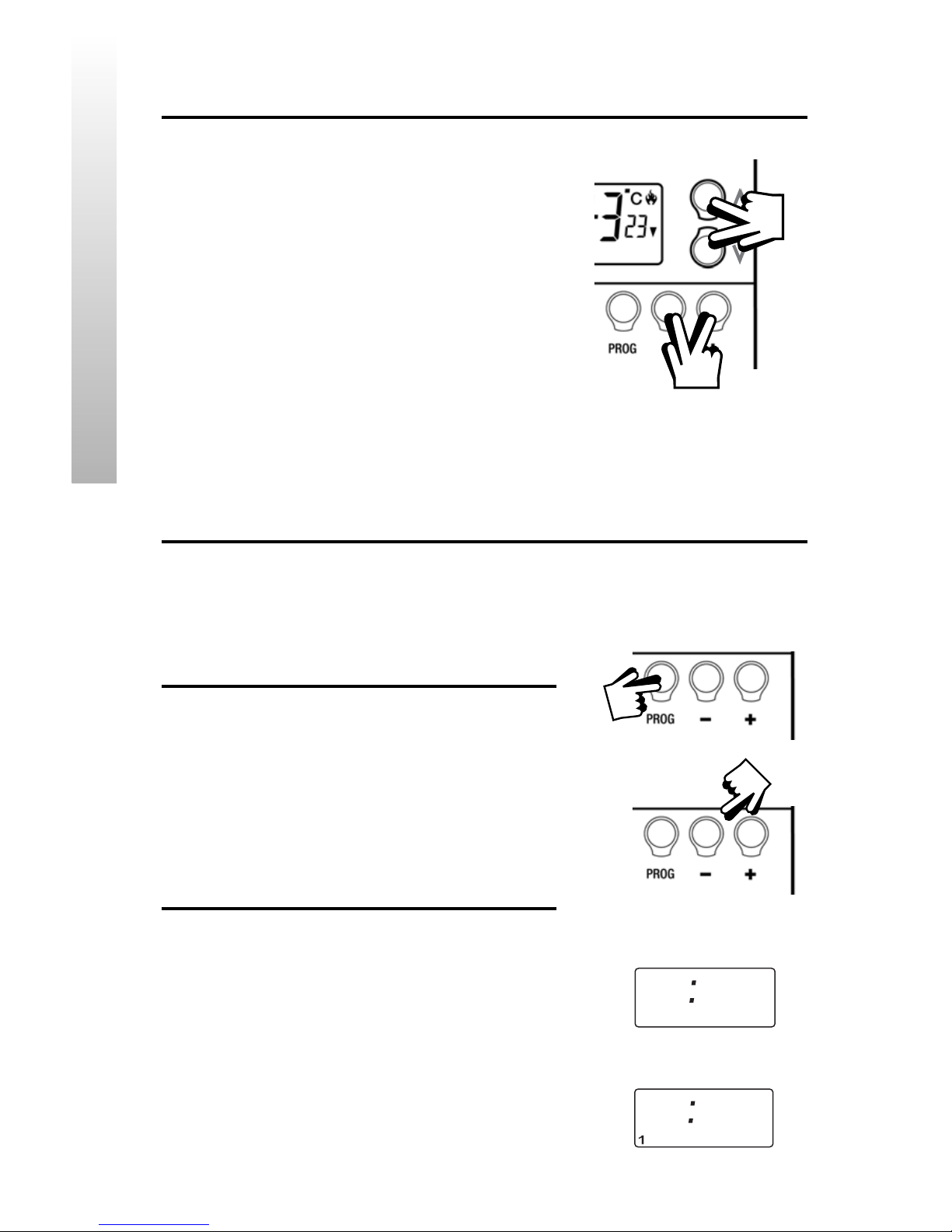

Before you start

Open the ﬂap on the front of the

programmer.

Press the + & – AND  & buttons

simultaneously to reset the unit.

This will reinstate the preset

programmes and will set the time to

12:00 on Day 1 and the temperature

to 20°C.

Setting the Clock & Day

Note: clock is displayed in 24 hour mode

CLOCK

Press PROG to begin programming.

Use + or - to adjust the TIME

(press and hold to change in 10 min

increments)

DAY

Press PROG again.

Use + or - buttons until correct DAY is

shown (1 = Monday, 2 = Tuesday, etc)

Remember - you will have to

reset the time when the clocks

change in Spring and Autumn.

i2 00

GB - User Instructions

Please Note

The unit must be programmed in sequence and ON/OFF

times cannot be programmed out of sequence.

If you want to leave a preset time as it is, simply press

PROG to move on to the next setting.

During programming, if no buttons are pressed for 2 to 3

minutes the unit will automatically return to RUN mode,

and the programme set up to that minute will be active.

If at any time you get confused and need to reset

the unit to the preset programmes press the

+ & – AND  &buttons simultaneously.

i2 24

Before you change the preset programmes

Running your programme

If you are happy to use the preset programmes on page 7,

you don’t need to do anything else.

To accept the presets close the front cover

and after 2 minutes the presettings will

automatically be accepted (& colon will blink).

Your unit is now in RUN mode.

For Days 1-5 (weekdays)

a) Press PROG until 1st pre-set time

and temperature (Event 1, Days

1,2,3,4,5) appears in display.

b) Use + or – buttons to adjust the

TIME (press and hold to change in

10 min increments)

c) Use or buttons to adjust the

TEMPERATURE.

d) Press PROG to move to next preset

time & temperature (Event 2)

e) Repeat steps b, c & d for

programming Events 3, 4, 5 & 6.

For Days 6-7 (weekends)

Press PROG until 1st pre-set time

and temperature (Event 1 Days

6-7) appears in display.

Repeat steps b, c and d above to

programme time and temperature

events for the weekend.

Changing the preset programmes

6 30

8 30

7 00

GB - User Instructions

If you require just 2 Events per day (1 ON / 1 OFF)

 Follow steps a, b & c above to programme

Event 1 (ON)

 Press and hold and - buttons together

for 3 seconds to skip events 2,3,4 & 5.

 Follow steps b & c to programme Event 6 (OFF)

To revert back to six events per day, reset the thermostat

(see page 8).
