ECtemp 610

Electronic Thermostat IP44

Installation Guide

electricheating.danfoss.com

ECtemp 610

3Installation Guide

1 Introduction

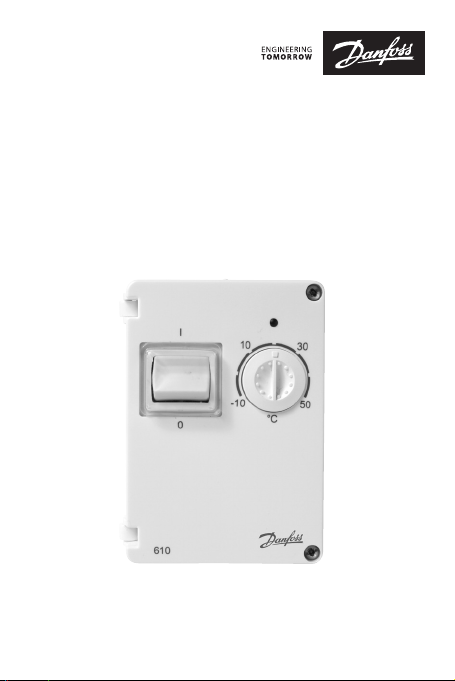

ECtemp 610 is an IP44 electronic thermostat to be installed

directly on the wall. It is provided with a 2-pole switch and a

wire sensor to control the desired temperature.

The thermostat has a button for adjusting the temperature

setting with a scale from -10 °C to +50 °C, and an LED indi-

cator that shows standby periods (green light) and heating

periods (red light).

More information on this product can also be found at:

ectemp.danfoss.com

Table of Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . 3

1.1 Technical Speciﬁcations . . . . . . . . . . . 4

1.2 Safety Instructions . . . . . . . . . . . . . . . 5

2 Mounting Instructions . . . . . . . . . . . . . . . 6

3 Warranty. . . . . . . . . . . . . . . . . . . . . . . 12

4 Disposal Instruction . . . . . . . . . . . . . . . 14

ECtemp 610

Installation Guide4

1.1 Technical Speciﬁcations

Operation voltage 220-240 V~, 50 Hz

Standby power consumption Max. 0,93 W

Relay:

Resistive load

Inductive load

Max 10 A / 2300 W @ 230V

cos φ= 0,3 max 1A

Sensing units NTC 15 kOhm at 25 °C

Sensing values:

0 °C

25 °C

50 °C

42 kOhm

15 kOhm

6 kOhm

Hysteresis ± 0,2 °C

Ambient temperature 10 °C to +50 °C

Temperature range -10 °C to +50 °C

Cable speciﬁcation max 1 x 4 mm² or 2 x 2,5 mm²

Ball pressure temperature 75 °C

Pollution degree 2 (domestic use)

Type 1C

Storage temperature 20 °C to +65 °C

IP class 44

Protection class Class II -

ECtemp 610

5Installation Guide

Dimensions 100 x 69,5 x 45 mm

Weight 165 g

The product complies with the EN/IEC Standard“Automatic

electrical controls for household and similar use”:

• EN/IEC 60730-1 (general)

• EN/IEC 60730-2-9 (thermostat)

1.2 Safety Instructions

Make sure the mains supply to the thermostat is turned oﬀ

before installation.

Please also note the following:

• The installation of the thermostat must be done by an

authorized and qualiﬁed installer according to local

regulations.

• The thermostat must be connected to a power supply

via an all-pole disconnection switch.

• The sensor is to be considered as live voltage. Have

this in mind if the sensor must be extended.

• Always connect the thermostat to continuous power

supply.

• Do not expose the thermostat to moisture, water,

dust, and excessive heat.

ECtemp 610

Installation Guide6

2 Mounting Instructions

Please observe the following placement guidelines:

• The thermostat can be placed both indoors and

outdoors.

• Place the thermostat on a wall, pole, steel/wooden

plate or pipe.

In wet rooms, place the thermostat ac-

cording to local regulation on IP classes.

ECtemp 610

7Installation Guide

Follow the steps below to mount the thermostat:

1. Open the thermostat:

• Set adjustment button to minimum temperature.

• Loosen the 2 screws and open the front cover.

ECtemp 610

Installation Guide8

2. Fasten the thermostat:

• Drive the screws through the holes in the bottom

corners of the thermostat.

• Seal the holes with the enclosed screw stopper to

maintain the density.

ECtemp 610

9Installation Guide

3. Connect the thermostat according to the connection

diagram.

• Heating: (L-main, N-main, L-load, NO (normally

open) - load).

• Cooling: (L-main, N-main, L-load, NC (normally

closed) - load).

The screen of the heating cable must be connected

to the earth conductor of the power supply cable by

using a separate connector.

4. Reinstall the front cover.

5. Ensure that the adjustment button can be adjusted

within full temperature range, i.e. from -10 °C to +50 °C.

ECtemp 610

Installation Guide10

6. Install sensor using the supplied sensor cable -

NTC 15 kΩ @ 25 °C.

• Press out the blanket located at the bottom of the

thermostat and insert the seal nipple.

• Connect sensor to terminals 6+7.

The sensor cable can be extended up to 50 m with

1,5 mm² installation cable without aﬀecting the ac-

curacy of the thermostat.

Do not place the cable parallel to other installation

cables as undesirable signals may be induced.

The installation must be permanent.

If the sensor is to be built in, used for pipe applica-

tions, or exposed to pressure, always install it in a

conduit.

7. Turn on the power supply.
