Data sheet ECL Comfort 110

230 V a.c. and 24 V a.c.

DH-SMT/DK VD.KT.C3.02 © Danfoss 09/2008 1

Description and application The controller is designed for easy installation:

one cable, one connector.

The ECL Comfort 110 controller has a custom-

designed display with backlight. For a quick

overview, the display readouts are based on

graphic symbols as well as text.

The controller has triac outputs for motorized

control valve and relay outputs for pump

control.

It is possible to connect up to 4 temperature

sensors (Pt 1000 types) and it has 1 input for

override. Room panel or remote control (ECA 60

/ 61) can be connected.

The ECL Comfort 110 controller can be used as

master or slave in controller systems.

It is prepared for mounting on a DIN rail, a wall

or in a panel.

The ECL Comfort 110 is a universal 1-circuit

controller for use in district heating substations

and district heating systems as well as boiler-

based systems.

The product is an electronic controller for

• weathercompensatedowtemperature

control (heating)

• constanttemperaturecontrol(domestichot

water e.g.)

and prepared for new applications by means of

chip card and communication interface.

Ordering Controllers

Type Designation Code no.

ECL Comfort 110 Universal hardware - 230 V a.c. 087B1261

ECL Comfort 110 Universal hardware - 24 V a.c. 087B1251

ECL Comfort 110 with timer

program Universal hardware - 230 V a.c. 087B1262

ECL Comfort 110 with timer

program Universal hardware - 24 V a.c. 087B1252

Panel mounting kit For ECL Comfort 110 087B1249

Instructions, appl. 116 User guide and quick guide (English) 087B8151

Instructions, appl. 130 User guide and quick guide (English) 087B8152

Pt 1000 temperature sensors

Type Designation Code No.

ESMT Outdoor temperature sensor 084N1012

ESM-10 Room temperature sensor 087B116 4

ESM -11 Surface sensor 087B1165

ESMB-12 Universal sensor 087B118 4

ESMC Surface sensor incl. 2 m cable 087N0 011

ESMU-100 Immersion sensor, 100 mm, copper 087B1180

ESMU-250 Immersion sensor, 250 mm, copper 0 87B1181

ESMU-100 Immersion sensor, 100 mm, stainless steel 087B1182

ESMU-250 Immersion sensor, 250 mm, stainless steel 087B1183

Data sheet

DH-SMT/DK

VD.KT.C3.02 © Danfoss 09/2008

Ordering, continued Accessories

Type Designation Code no.

ECA 60 Room panel with sensor 087B1140

ECA 61 Remote control with 1 zone clock and sensor 087B1141

ECA 110* Timer program for ECL Comfort 110 (chip card) 087B1248

The ECA 110 is a supplement to the ECL Comfort 110 versions without a timer program, e.g., the code nos. 087B1261 and

087B1251 (see page 1). With the ECA 110 it will be possible to set personal schedules in terms of start and stop times of

the system and thereby optimize the energy supply.

Domestic hot water (DHW)

(Application 116)

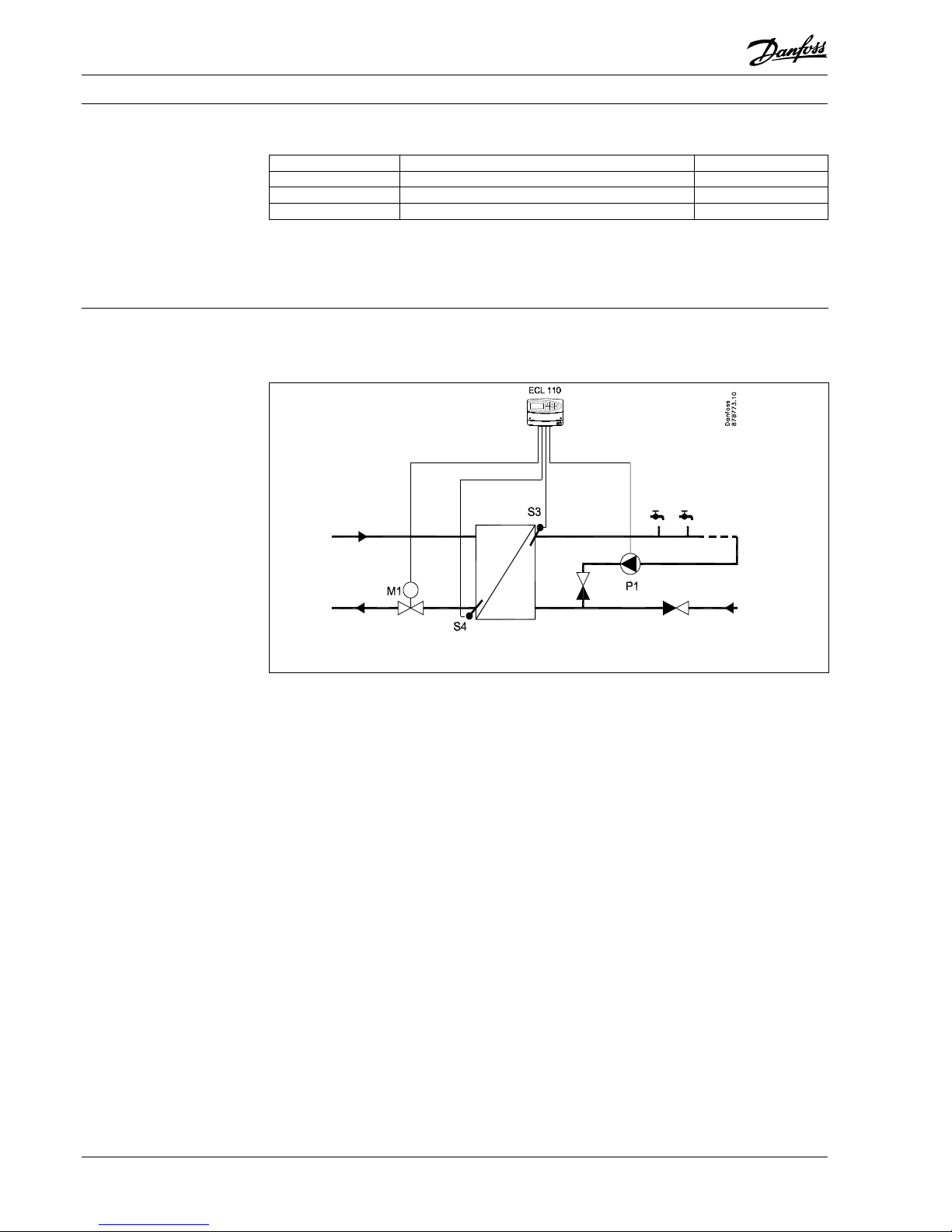

Application 116 example

Constant DHW temperature control with heat exchanger

Basic principles Constant DHW temperature control with heat

exchanger or storage tank

Typically,theowtemperatureisadjusted

accordingtothedesiredowtemperature.

• AdjustmentofDHWtemperature

 IfthemeasuredDHWtemperatureislower

than the desired temperature, the motorized

control valve is opened gradually and vice

versa.

• Returntemperaturelimitation

The return temperature to the district heating

supply should not be too high. If so, the

desiredowtemperaturecanbeadjusted

(typically to a lower value) thus resulting in a

gradual closing of the motorized control valve.

In boiler-based heating supply the return

temperature should not be too low (same

adjustmentprocedureasabove).

• Circulationpumpcontrol

The circulation pump is ON when the desired

DHWtemperatureishigherthanauser-

deﬁned value (factory setting: 20 °C).

ECL Comfort 110

Data sheet

DH-SMT/DK VD.KT.C3.02 © Danfoss 09/2008 3

ECL Comfort 110

Key functions Flow temperature control

• Returntemperaturelimitation

The controller automatically changes the

desiredowtemperaturetoobtainan

acceptable return temperature when the

return temperature falls below or gets higher

than the set value. The return temperature

inuencecanbelimitedbythemin./max.

owlimitation.

Optimization

• Autotuning

A function for automatically setting the

proportional band (Xp) and integration time

constant (Tn).

Safety functions

• Frostprotection

The controller automatically switches

thecirculationpumpONwhentheow

temperature is lower than a user-deﬁned

value (factory setting: 10 °C).

• Motorprotection

The controller prevents unstable temperature

control thus resulting in a longer life of the

actuator.

• Pumpexercise

Exercise of the pump to avoid blocking in

periods without heat demand.

Heating

(Application 130)

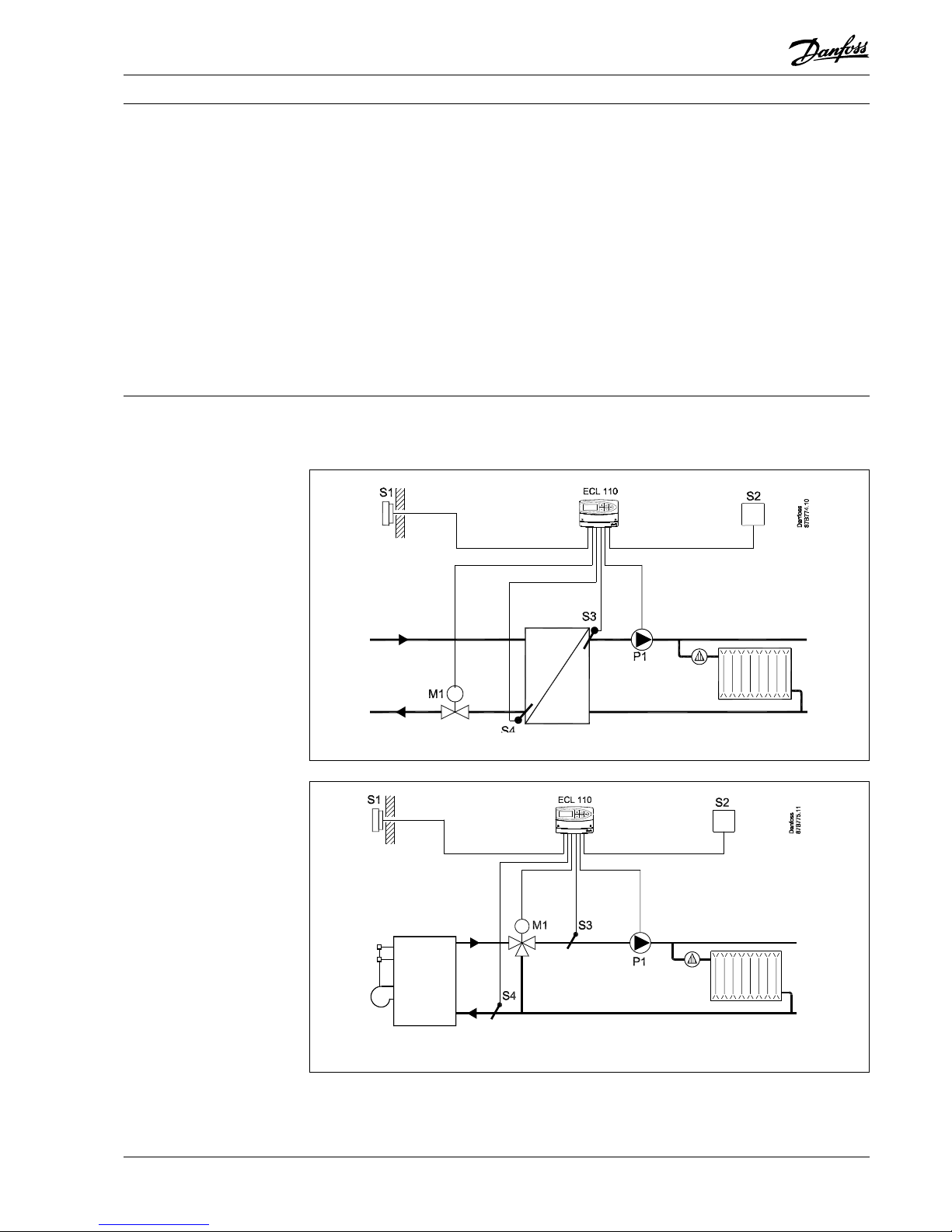

Application 130 examples

District heating circuit with heat exchanger

Boiler-based heating circuit

ECL Comfort 110Data sheet

DH-SMT/DK

VD.KT.C3.02 © Danfoss 09/2008

Basic principles Control of district heating circuits with or

without heat exchanger and for boiler-based

heating circuits

Typically,theowtemperatureisadjusted

accordingtothedesiredowtemperature.

• Adjustmentofowtemperature

 Thedesiredowtemperatureiscalculated

in the ECL Comfort controller, based on the

outdoor temperature. The lower the outdoor

temperature,thehigherthedesiredow

temperature.

The motorized control valve is opened

graduallywhentheowtemperatureislower

thanthedesiredowtemperatureandvice

versa.

• Returntemperaturelimitation

The return temperature to the district heating

supply should not be too high. If so, the

desiredowtemperaturecanbeadjusted

(typically to a lower value) thus resulting in a

gradual closing of the motorized control valve.

In boiler-based heating supply the return

temperature should not be too low (same

adjustmentprocedureasabove).

• Roomtemperaturelimitation

If the measured room temperature does not

equal the desired room temperature, the

desiredowtemperaturecanbeadjusted.

• Circulationpumpcontrol

The circulation pump is ON when the desired

owtemperatureishigherthanauser-dened

value (factory setting: 20 °C ) or the outdoor

temperature is lower than a user-deﬁned

value (factory setting: 2 °C).

Data sheet

DH-SMT/DK VD.KT.C3.02 © Danfoss 09/2008 5

ECL Comfort 110

General data Ambient temperature 0 - 55 °C

Storage temperature -40 - + 70 °C

Enclosure DIN rail, wall or panel

Sensor type Pt 1000 (1000 Ω  0 °C)

Grade of enclosure IP 41 DIN 40050

- marking

in accordance with the standards

EMC-Directive: 2004/108/EC

Immunity: 61000-6-1

Emission: 61000-6-3

LVD-Directive: 2006/95/EC

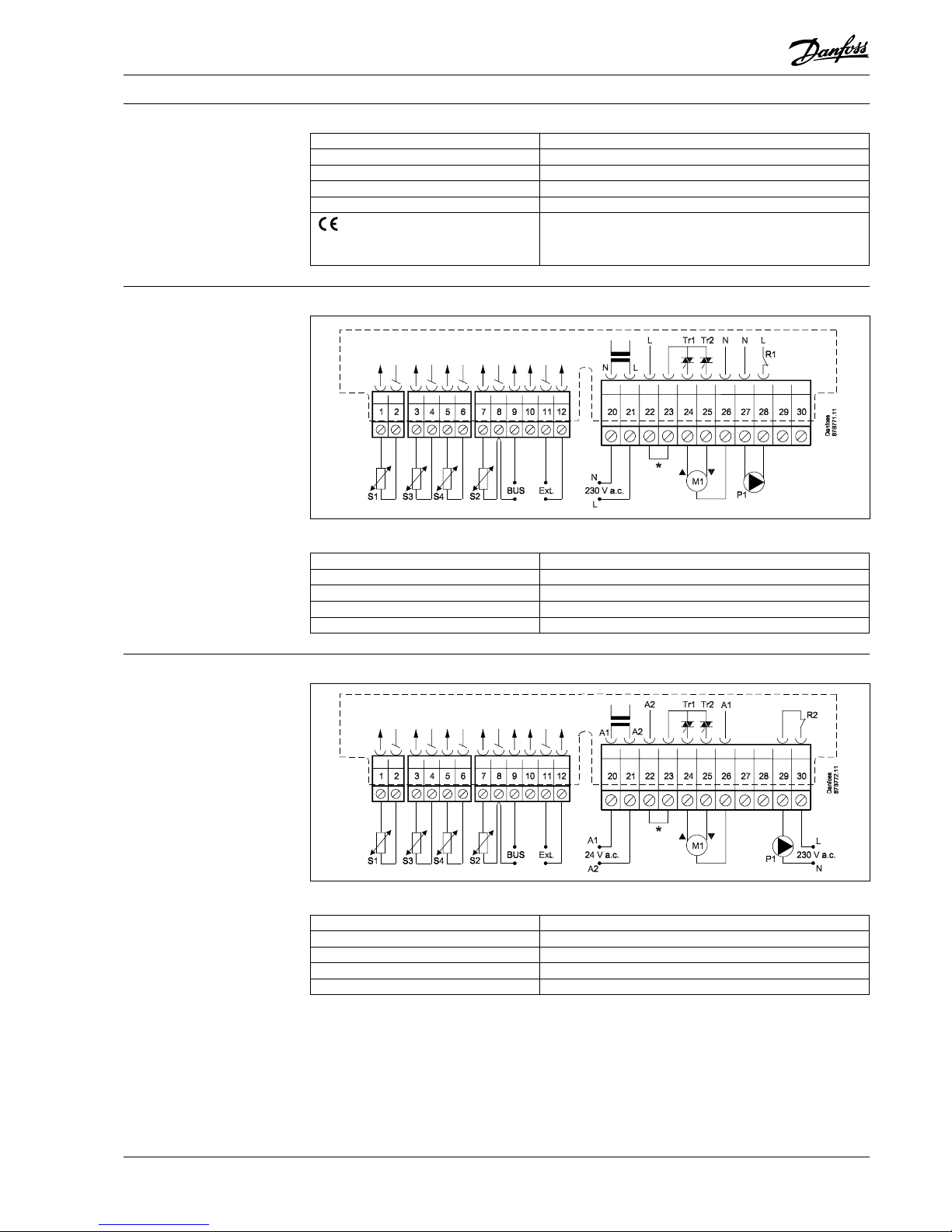

Wiring - 230 V a.c.

* Connections for safety thermostat

Supply voltage 230 V a.c. - 50 Hz

Voltage range 207 to 244 V a.c. (IEC 60038)

Power consumption 3 VA

Load on relay 1 outputs 4 (2) A - 230 V a.c.

Load on triac outputs 15 VA @ 230 V a.c.

Wiring - 24 V a.c.

* Connections for safety thermostat

Supply voltage 24 V a.c. - 50 Hz

Voltage range 21.6 to 26.4 V a.c. (IEC 60038)

Power consumption 3 VA

Load on relay 2 outputs 4 (2) A - 230 V a.c.

Load on triac outputs 15 VA @ 24 V a.c.

ECL Comfort 110Data sheet

DH-SMT/DK

VD.KT.C3.02 © Danfoss 09/2008

Operation

Adjust temperatures and values.

Switch between menu lines.

Select / return.

2 sec.

Return to daily user menu.

Menu navigation

5FNQ

A8FFLEBZ

'MPXUFNQ

3FUVSO5MJNJU

3PPN5MJNJU

0QUJNJ[F

"QQMJDBUJPO

$POUSPM

QBSBN

.PEF

4FSWJDF

TFD

%BUFUJNF

Data sheet

DH-SMT/DK VD.KT.C3.02 © Danfoss 09/2008 7

ECL Comfort 110

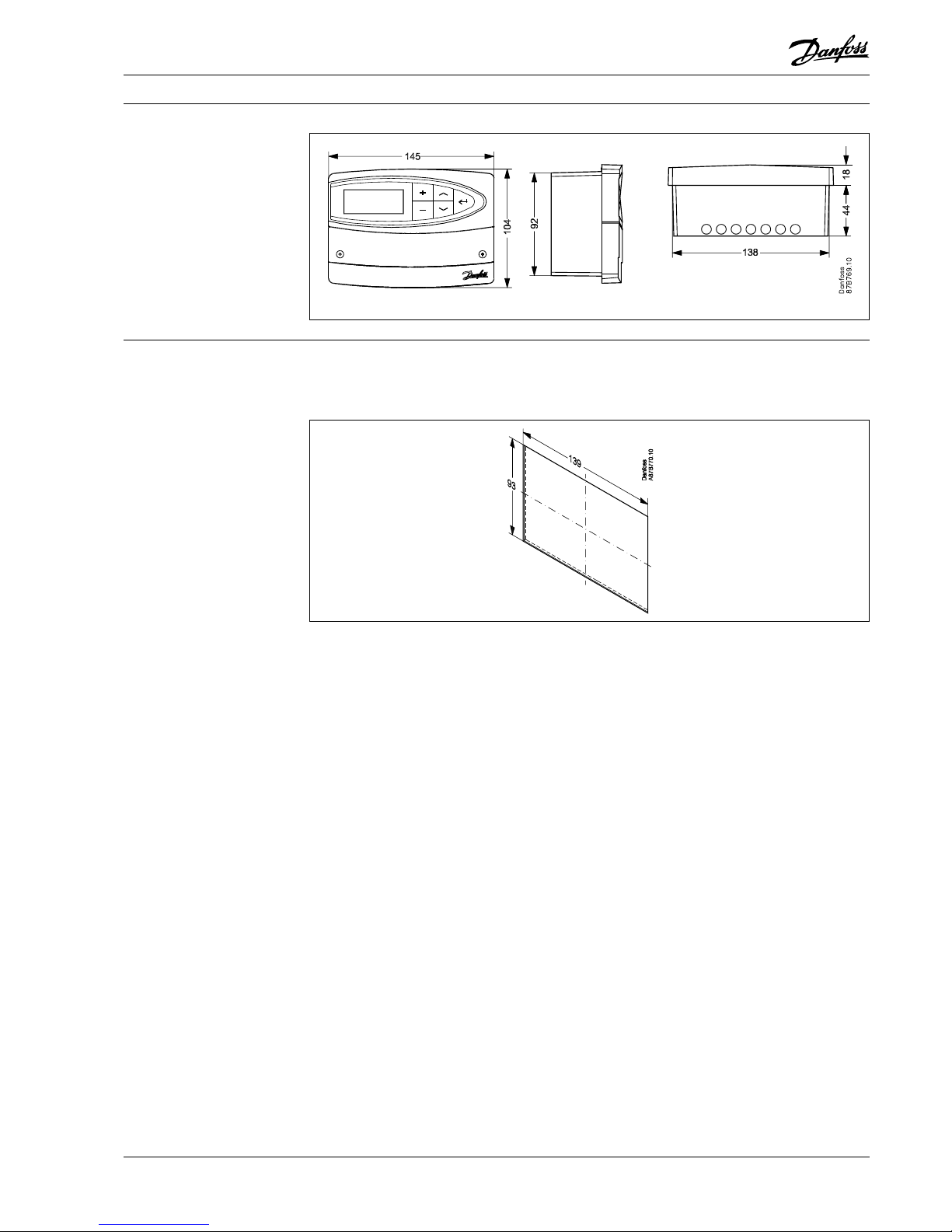

Dimensions

Cut-out for mounting Mounting in a panel (panel mounting kit,

code no.: 087B1249).

The panel thickness must not exceed 5 mm.

ECL Comfort 110Data sheet

VD.KT.C3.02 Produced by Danfoss A/S © 09/2008

Additional documentation for ECL Comfort 110 is available on http://heating.danfoss.com
