Danfoss Link™ RS

Installation Manual

MAKING MODERN LIVING POSSIBLE

Danfoss Heating

INT

Danfoss Link™ CC

Danfoss Link™ FT

Danfoss Link™ RS

Ambient temperature

Floor temperature

Communication/link test

Battery warning

Tamper proof. Locked by CC

The Danfoss Link™ RS (Room Sensor) has a built-in tem-

perature sensor which measures the ambient temperature.

It allows you to control the heating based on room tem-

perature, in the room where installed. With the Danfoss

Link™ RS you can also adjust the temperature.

Installation scenario:

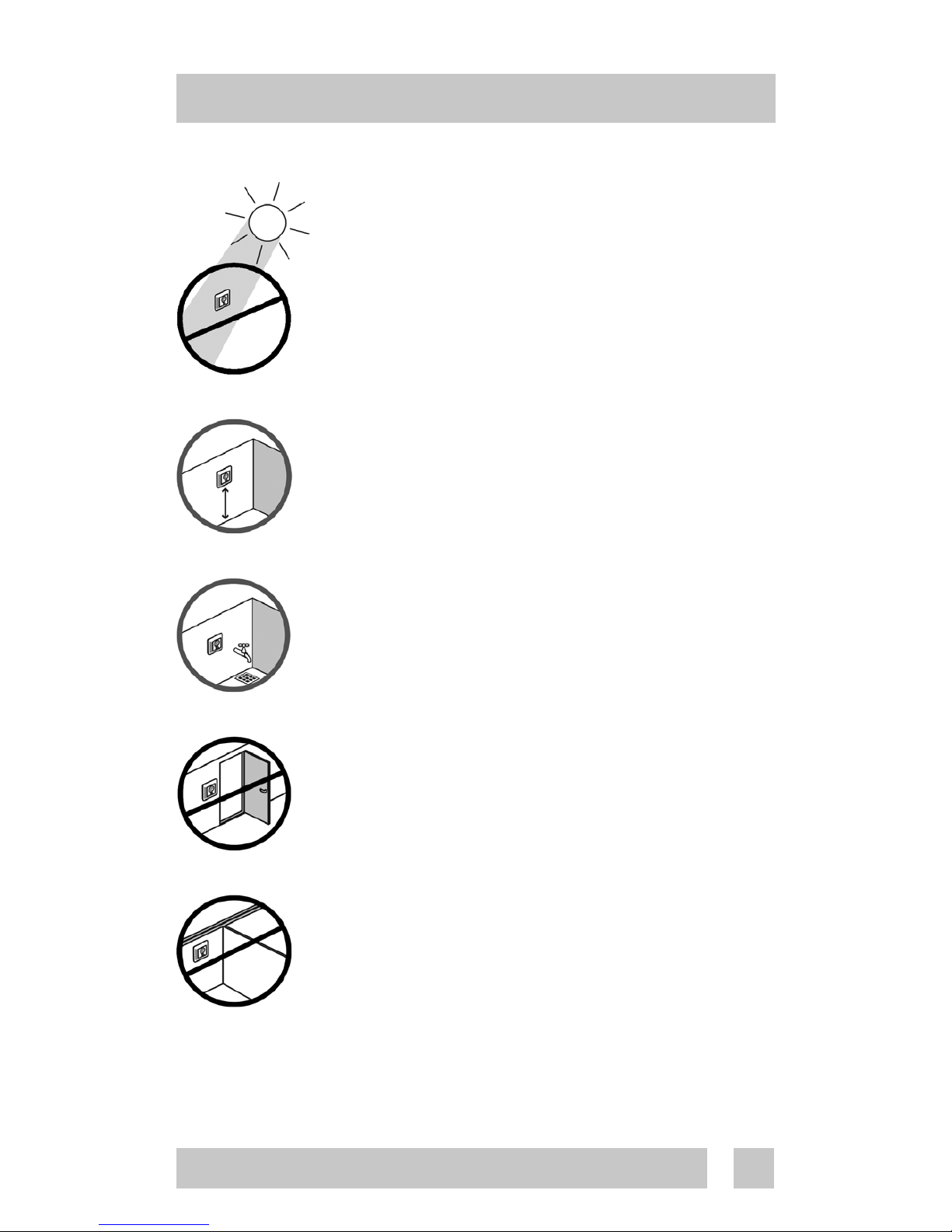

Placement of Danfoss Link™ RS

Not on a wall where it will be subjected to

direct sunlight.

Installation height should typically be between

80-150 cm.

In wet rooms it should be installed on an

even surface, according to local building

regulations.

At least 50 cm away from windows/doors that

will be left open occasionally.

Not on the inner side of a wall facing the

outside.

Installation of Danfoss Link™ RS

1. Remove the front cover by gently

pressing the release tab on the

bottom side of the sensor.

2. Mount the room sensor

a. Mark up drill holes

b. Drill holes

c. Place ﬁxing plugs in holes

d. Screw mount the RS

3. Mount batteries

4. Put front cover on by placing the

top of the cover in place ﬁrst and

then gently press the bottom end

in place.

Conﬁguration:

See Step-by-Step guide in Danfoss Link™ CC instruction

manual.

Trouble shooting

Short green ﬂash Not included in network

Green fast ﬂash Inclusion in progress

Red ﬂash +

for 5 sec. Inclusion failed

ON Link test in progress

Red ﬂash +

for 5 sec. Link test failed

ON + Red LED

ﬂash every 2½ min. Low battery level

ON + Red LED

ﬂash every 30 sec. Critical battery level

E5 Floor sensor short circuited

E6 Floor sensor lost

ON Tamper proof enabled by

Danfoss Link™CC

Flash Limited by Danfoss Link™CC

Factory reset a Danfoss Link™ RS:

Take the front cover oﬀ . Take out one battery and hold

the ON/OFF/Install button down while reinserting the

battery. Keep holding down the install button until it

ﬂashes (approx. 5 sec.)

Battery Alkaline 2xAA, 1.5V

Battery lifetime Up to 4-5 years

Backlight Green LED

Ambient tempera-

ture

0˚ to +40˚C

Battery monitoring The sensor has a built-in

monitoring circuit, which will

detect low or critical battery

level.

Transmission

frequency

868.42MHz

Transmission range

in normal buildings Up to 30m

Transmission power Max. 1 mW

IP class 21

Dimensions 81 mm x 66 mm x 21 mm

Disposal Instruction:

Equipment containing electrical components should not

be disposed together with domestic waste.

It must be collected separately with other electrical and

electronic waste according to local legislation.

Technical speciﬁcations

The 2 Year Danfoss Warranty

You have purchased a Danfoss heating system

which we are sure will serve to improve the com-

fort and economy of your application.

Danfoss provides superior electrical heating

solutions for total climate control in and around

homes and buildings. Danfoss oﬀers a complete

product program with Danfoss heating cables

or Danfoss heating mats, Danfoss thermostats,

Danfoss selﬂimiting heating cables combined

with additional products completing the product

program.

This 2 year warranty applies to all Danfoss prod-

ucts.

Should you, against all expectations, experience

a problem with your Danfoss product, you will

ﬁnd that Danfoss oﬀers a 2 year warranty from the

date of purchase on the following conditions:

During the warranty period Danfoss shall oﬀer a

new comparable product or repair the product in

case the product is found to be faulty by reason

of defective design, materials or workmanship.

Repair or replacement shall be carried out at Dan-

foss’ discretion. Danfoss shall not be liable for any

consequential or incidental damages including,

but not limited to, damages to property or extra

utility expenses.

This warranty shall only be valid on production of

proof of purchase and must be submitted to the

installer or seller without undue delay.

An extension of the warranty period following

repairs undertaken under warranty cannot be

granted.

The Danfoss Warranty shall not cover any damage

caused by incorrect conditions of use, incorrect

installation or if installation has been carried out

by non-authorised electricians. All work will be

invoiced in full if Danfoss is required to inspect

or repair faults that have arisen as a result of any

of the above.

The Danfoss Warranty shall not extend to equip-

ment which has not been paid in full.

Danfoss will, at all times, provide a rapid and ef-

fective response to all complaints and inquiries

from our customers.

The warranty explicitly excludes all claims exceed-

ing the above conditions.

Attention:

The Warranty Certiﬁcate must be completed correctly for the Warranty to be valid.

Please read the Warranty conditions above.

The Danfoss™ Warranty is granted to:

Name:

Telephone:

Warranty Certificate

Address:

City:

Type of thermostat:

Article number: Date:

Suppliers Stamp:

Country:

Electrical installation by:

Article No.: 088L8082

Version - 01.01

Danfoss A/S

DK • 7100 Vejle

Phone +45 7488 8500

Fax +45 7488 8501

Danfoss Heating Solutions VIFZA102 © Danfoss 09/2009
