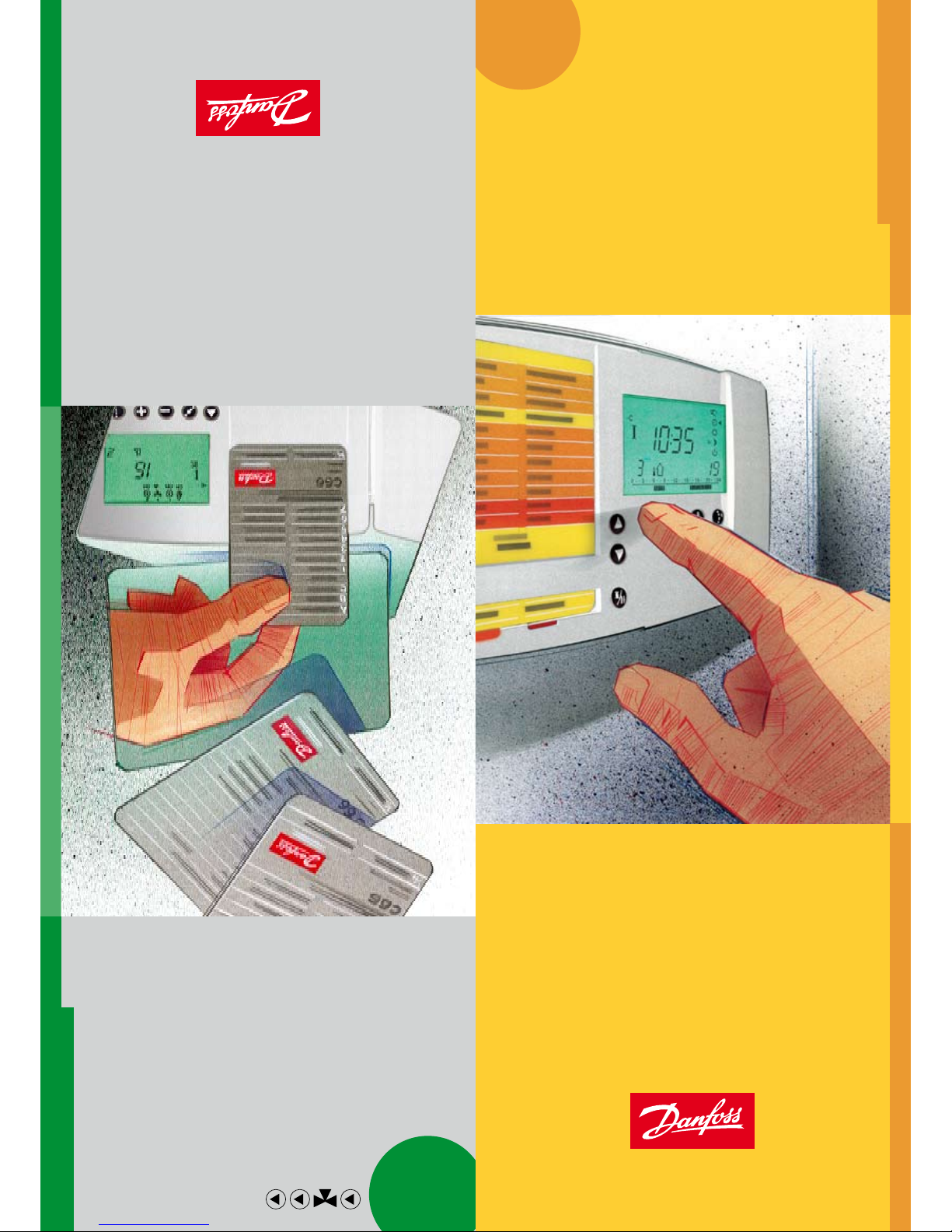

Danfoss C17 Instructions de montage
C17
C17
VI.KT.O1.02
2008.07
VI.KT.O1.02
2008.07
www.danfoss.com
User's Guide
Installer's Guide
www.danfoss.com
ECL Comfort
Installer's Guide
ECL Comfort
User's Guide
*087R8414*
*VIKTO102*
*087R8414*
*VIKTO102*
Domestic hot-water (DHW) controller
The shown diagram is a fundamental and simplied example and
does not contain all components that are necessary in a system.
If the system you are about to install diers from the shown
diagram of a standard system, feel free to sketch an outline for
comparison. Adaptation of systems, see section 10.
Circuit
indicator
Circuit
selector
Shift
button
Adjust-
ment
Controller
mode
This guide is associated with ECL Card 087B4730
Installer:
By:
Date:
Controller mode
Manual operation (used only at maintenance
and service)
Scheduled operation
Constant comfort temperature
Constant saving temperature
Standby mode
Arrow buttons. Switch between the lines of the ECL
Card.
Shift button. Switches between temperatures,
changeover points etc.
Adjust temperatures and values etc.
Circuit selector for switching between the circuits.
Safety Note
To avoid injury of persons and damages to the device, it is absolutely
necessary to read and observe these instructions carefully.
Necessary assembly, start-up, and maintenance work must be performed by
qualied and authorized personnel only.
Display indications, controlled units, C17
1
ON
1
A B C D
2
ON
3
ON
A: P1 Blank = OFF ON = ON
B: M1 = Opens = Closes
C: P2 Blank = OFF ON = ON
D: P3 Blank = OFF ON = ON
List of components:
ECL Comfort 300
S1 Supply temperature sensor
S2 DHW charging temperature sensor
S3 DHW temperature sensor
S4 Return temperature sensor
S5 Lower tank temperature sensor
S6 Upper tank temperature sensor
P1 Circulation pump, primary circuit
P2 DHW charging pump
P3 DHW circulation pump
M1 Motorized control valve
Table of Contents
Sections in the Installer’s Guide
The documentation for the ECL Comfort controller is
composed of numbered sections. Only sections relevant to
your ECL Comfort controller are included here.
Before you start
Installation
10 Identifying the system type
11 Mounting the ECL Comfort controller
12 Electrical connections 230 V a.c.
14 Connecting and placing the temperature sensors
15 Inserting the ECL Card
Basic Set-up
16 Adjusting the ECL Card settings
17 Setting the time and date - line A
18 Monitoring temperatures and system units - line B
19 Manual control - line B
20 Monitoring temperatures and system units - line B
26 Control parameters - lines 4-7
27 Cut-in and cut-out temperature at DHW charging
- lines 1-2
Control & Overviews
29 Check list
30 ECL Card settings
31 Service parameters
Extended Service
32 Adjusting the service parameters
Miscellaneous
34 Copying with the ECL Card
User's Guide (turn the guide over for sections 1-7)
1Choose your favorite display
2Select circuit mode
3Set your DHW charging temperature
4Set your personal schedule
5Advantages of the ECL Card
6Hot points
7Denitions
Disposal instruction:
This product should be dismantled and its
components sorted, if possible, in various
groups before recycling or disposal.
Always follow the local disposal regulations.
VI.KT.O1.02
Card C17
2008.07
Sketch your application
The ECL Comfort controller series is designed for a wide
range of heating, domestic hot-water (DHW) and cooling
systems with dierent congurations and capacities.
If your system diers from the diagrams shown in section
10, you may want to make a sketch of the system about to
be installed. This makes it easier to use the Installer’s Guide,
which will guide you step-by-step from installation to nal
adjustments before the end-user takes over.
The controller is pre-programmed with factory settings that are
shown in the relevant sections of this guide.
However, you might come across some settings that are not listed
in this instruction. These settings could be related either to recent
updates or the use of optional modules (which are described in
the instructions in question).
How to use this guide
This guide is divided into two parts:
• User’s Guide: Yellow sections 1-7
• Installer's Guide: Grey sections 10 and onwards
The application C17 is very exible. These are the basic principles:
Typically, the tank temperature (S6) is adjusted according to your
requirements. The charging temperature sensor (S2) is the most
important sensor. The desired charging temperature at S2 is set in
the ECL controller (line C, yellow side).
If the measured DHW temperature (S6) is lower than the desired
charging temperature minus the cut-in dierence, charging
starts. The charging pump, P2, is switched ON.
When the measured DHW temperature (S5) is higher than the
desired charging temperature minus the cut-out dierence,
charging stops.
The motorized control valve (M1) is opened gradually when the
charging temperature is lower than the desired charging
temperature and vice versa.
Typically, the return temperature (S4) to the district heating
supply should be as low as possible. If not so, the desired
charging temperature can be adjusted.
The S1 temperature can correct the proportional band (Xp).
Typically, the Xp must be increased at a rising S1 temperature.
The S3 temperature gives a feedback to the DHW charging
temperature (S2). If the S3 temperature is too low, the desired
temperature at S2 will be increased.
Before you start
Installation
Identifying the system type
10a
The ECL Comfort controller is a universal controller that can
be used for various systems. Based on the shown standard
systems, it is possible to congure additional systems.
In this section you nd the most frequently used systems. If
your system is not quite as shown below, nd the diagram
which has the best resemblance with your system and make
your own combinations.
The functions can only be realized with ECL Comfort 300 and as of
controller version 1.08.
10.1 Full installation, external DHW circulation
10.2 Full installation, internal DHW circulation
System diagrams in this instruction are principal drawings and do
not contain all components which are necessary in your systems.
Installation
10b
10.3 Minimum installation
10.4 Minimum installation, district heating
System diagrams in this instruction are principal drawings and do
not contain all components which are necessary in your systems.
Installation
For easy access, you should mount the ECL Comfort
controller near the system. Select one of the three
following methods:
• Mounting on a wall
• Mounting on a DIN rail
• Mounting in a panel
Screws and rawlplugs are not supplied.
Mounting on a wall
Socket for mounting on wall: Order code No. 087B1149.
Mount the terminal box on a wall with a smooth surface.
Establish the electrical connections and position the
controller in the box. Secure the controller with the xing
screw.
Mounting on a DIN rail
Mounting kit: Order code No. 087B1145.
A mounting kit is necessary to mount the box with the
controller on a DIN rail.
Mounting in a panel
Connector set: Order code No. 087B1148.
The panel plate thickness must not exceed 3 mm.
Prepare a cut-out with the dimensions 93 x 139 mm. Pull o
the right side of the lid by means of a screwdriver.
Insert the controller into the panel cut-out and x it with the
two locks which are placed diagonally in two corners of the
controller.
Mounting the ECL Comfort
controller
11a
Installation
11b
Installation
Electrical connections -
230 V a.c. - in general
12a
230 V a.c. connections
Optional
