Installation guide

SonoSelect and SonoSafe

Energy Meters

2 | © Danfoss | Energy Meters | 2019.03 VU.IG.B9.02

Installation guide SonoSelect and SonoSafe

Product category: Energy Meters Type designation(s): SonoSelect 10 and SonoSafe 10

Note: To ensure latest version of declaration, please visit danfoss.com.

VU.IG.B9.02 © Danfoss | Energy Meters | 2019.03 | 3

Installation guide SonoSelect and SonoSafe

Contents

1. General ................................................................................. 4

1.1 Inside the box ........................................................................4

2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 Preparation...........................................................................4

2.2 Identification of installation: Supply/Return pipe installation ...........................5

2.3 Flow sensor installation...............................................................5

2.4 Mounting orientation, calculator ......................................................5

2.5 Mounting of O-ring and temperature sensor ..........................................6

2.6 Bifunctional meters...................................................................7

2.7 Communication modules .............................................................7

2.8 Installation of module/cable ........................................................ 11

2.9 Battery ..............................................................................12

2.10 Mains supply ........................................................................13

3. Commissioning ......................................................................... 15

3.1 Bleeding ........................................................................... 15

3.2 Supply/return configuration ........................................................ 15

3.3 Meter sealing....................................................................... 15

3.4 IP class ............................................................................. 15

4. Function overview ...................................................................... 16

4.1 Menu structure ..................................................................... 16

4.2 Display explanation..................................................................17

4.3 Alarms ..............................................................................17

5. Device overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

6. Disposal................................................................................ 18

4 | © Danfoss | Energy Meters | 2019.03 VU.IG.B9.02

Installation guide SonoSelect and SonoSafe

1. General

Ambient operating temperature class A 5 - 55 °C (Indoor installation, non-condensing)

Ambient storage temperature -25 - 60 °C

Temperature media 5 - 95 °C

Power supply 3.6 V DC lithium battery (2 AA SonoSelect 1 AA SonoSafe), Mains supply

230V AC +10/-15 % 50/60 Hz, battery back up in case of power cuts: 1 hour

Mechanical environment class M2

Electromagnetic environment class E1

Pressure PN16

MID Accuracy Class 2

1.1 Inside the box

Description of components included in the box

107/2015 ©Danfoss VDIGH102

InstallationGuide

SonoSelect and SonoSafe

energy meters

1 x

Energy meter

2 x Gaskets &

1 temperature sensor O-ring

4 x

Wired seals

1 x Installation

& User Guide

Note:

• For cooling and combined meters a wall mounting kit is delivered with the product.

• For mains supply meters a M12 gland is delivered with the product.

2. Installation

2.1 Preparation

SonoSelect incorporates a tamper monitoring function. If the

calculator is opened the meter will set alarm E13 in display.

Don’t open unless for adding communication module,

replacing battery or installing cables.

Reset requires Bluetooth dongle 014U1963 and SonoApp

service tool.

SonoSelect is delivered with the option of reconfiguring

supply/return using the Bluetooth dongle 014U1963 and

SonoApp service tool.

Note:

• Product is approved for ambient temperature between 5-55 °C, non-condensing (indoor installation). It is recommended

to install Calculator at max. 45 °C to secure optimal conditions for battery lifetime. At media temperatures below

ambient temperature (cooling, bifunctional) the calculator must be mounted separately from the flow sensor to prevent

condensation.

• Avoid installation stress from pipes and fittings.

• Flush the system.

VU.IG.B9.02 © Danfoss | Energy Meters | 2019.03 | 5

Installation guide SonoSelect and SonoSafe

2.2 Identification of installation: Supply/Return pipe installation

Supply installation Return installation

Note: Heat meters and bifunctional meters have red temp sensor in supply pipe and all cooling meters have blue temp sensor

in supply pipe.

2.3 Flow sensor installation

Pipe position: No limitations but avoid positions where air

can be collected.

Rotation in pipe axis: Flow sensor should be angled in 45

to 315° to avoid air collection in flow sensor.

2.4 Mounting orientation, calculator

4 x 90°

Click!

1a.

1b.

6 | © Danfoss | Energy Meters | 2019.03 VU.IG.B9.02

Installation guide SonoSelect and SonoSafe

2.5 Mounting of O-ring and temperature sensor

One temperature sensor is factory mounted in the flow sensor. The other must be mounted in the

opposite pipe relative to the flow sensor installation. Mounting pin available as accessory.

Mount O-ring on

pin.

Insert pin with

O-ring.

Position O-ring.

Remove pin.

Moist and insert sensor

probe. Tighten at torque

12 ± 2 Nm.

To ensure accuracy and a tight seal the sensor installation should comply to EN1434-2 annex A:

Key

Threaded

connection size A

Tapping bore

size B

G½ 18.5 mm

G¾ 24 mm

G1 30.5 mm

G1¼ 39mm

Note:

• Tolerance on machined dimensions = ± 0.5 mm.

• Pipe fittings for use with probe type DS (Direct Short).

: Provision for security sealing.

VU.IG.B9.02 © Danfoss | Energy Meters | 2019.03 | 7

Installation guide SonoSelect and SonoSafe

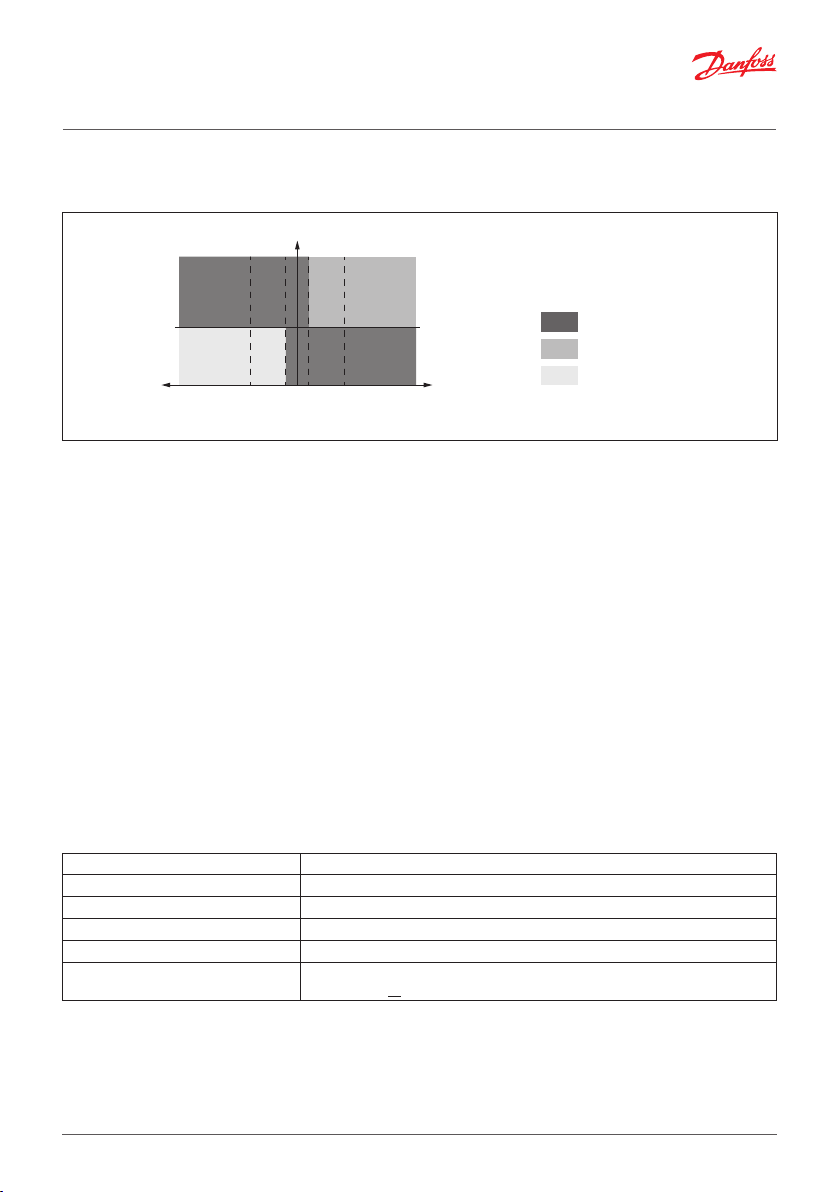

2.6 Bifunctional meters

Bifunctional meter are for combined heating and cooling applications. Θhc default value is 30°C it can be

configured with SonoApp.

-∆

∆Θmin

∆Θhc

∆Θmin

θhc θhc

Inlet

0+∆Θ

No energy accumulation

Key

Heating

Cooling

2.7 Communication modules

Modules in general

To adapt the meter for various applications SonoSelect 10 and SonoSafe 10 features a slot for mounting

communication modules.

Each module features its own µ-controller.

Modules have their own parameter set which is saved in the module µ-controller flash memory. A local

copy of the energy meter parameters used for communication is stored in the module.

Modules with pulse input have the inputs stored in legal backup every 10 minute.

Power: Lithium Thionyl Chloride battery (half of AA size) or mains power supply (230V). In case of power

cuts on mains power the module has no power back up.

2 pulse in/outputs have common ground.

Modules are galvanically isolated from main Energy Meter circuitry

Wired M-Bus module with 2 pulse inputs

Once installed the meter will display the icon for wired communication and pulse inputs in loop 2 of the

display. Wired M-Bus is galvanically isolated from µ-controller and pulse inputs.

The two pulse inputs can be programmed independently of each other (see specification for pulse input

module).

M-Bus (primary) Lithium Thionyl Chloride battery (half of AA size) or mains powered

M-Bus (secondary) M-Bus supply

Baud rate supported 300, 2400, 4800, 9600

Communication protocol According to EN1434-3 & EN13757-3

Battery life time 16+1 year

Addressing Serial number: sssssvvNNyyWW

ss: Primary address, yWWsssss: Secondary address

ΔΘhc = ΔΘcutoff = 0.25K

8 | © Danfoss | Energy Meters | 2019.03 VU.IG.B9.02

Installation guide SonoSelect and SonoSafe

Wireless OMS communication module, 868.95MHz with 2 pulse inputs

Once installed the meter will display the icon for wireless communication and pulse inputs in loop 2 of

the display. The two pulse inputs can be programmed independently of each other (see specification for

pulse input module).

Standard Open Metering System (OMS) issue 4.0.2

Frequency 868.95 MHz

Antenna Internal

Transmission power 10mW (Max. 25mW; 13,9 dBm)

Mode T1 mode

Encryption AES 128 bit encryption (mode 5), Parameterized Static key

Sending interval

Battery power: Fixed network 15 min

Walk by: 2 min

Mains power: 16 seconds

Telegram Standard telegram*

Battery life time 16+1 year (with pulse inputs off)

Addressing Serial number: sssssvvNNyyWW

yWWsssss: Secondary address

* See section with data telegram.

2 pulse input module

Once installed the meter will display the icon for pulse inputs in loop 2 of the display. Accumulated

volume is only readable by communication. The two pulse inputs can be programmed independently of

each other.

Pulse value 0.001 m³ to 1 m³ per pulse

Voltage supply ≤ 6.0 V

Source current ≤ 0.1 mA

High level input threshold ≥ 2 V

Low level input threshold ≤ 0.5 V

Pull-up resistor 100 kΩ

Pulse length ≥100 ms

Maximum frequency ≤ 5 Hz

Pulse inputs According to EN1434-2, section 7.1.5 (Classification of pulse input devices Class IB)

Battery life time 16+1 year

* Suitable for both electronic switch and Reed contact.

VU.IG.B9.02 © Danfoss | Energy Meters | 2019.03 | 9

Installation guide SonoSelect and SonoSafe

2 pulse output module

Once installed the meter will display the icon for wired communication in loop 2 of the display.

Pulse 1 (energy*) + terminal 16, - terminal 17

Pulse 2 (volume*) + terminal 18, - terminal 19

Pulse value* Unit follow the display. Scaling follow least significant digit of the display

(default setting can be changed via SonoApp)

Pulse timing Updates every 15 seconds

Polarity reversal: Not possible, but can withstand -30V, max 27 mA without damage

Pulse length ≥100 ms

Pulse Pause: ≥100 ms

Voltage supply 3-30 V

Source current ≤ 27 mA

“ON” condition U<2,0 @ 27mA

“OFF” condition R>=6 MΩ

Maximum frequency ≤ 5 Hz

Pulse outputs According to EN1434-2, section 8.2.3

(Classification of pulse output devices Class OB)

Battery life time 16+1 year

Cable length Max 25 m

Alarms

E32 activates in meter if:

1) Module battery is empty

2) When no. of delayed pulses exceeds 5000 (incorrect scaling)

* Default setting. Can be changed via SonoApp.

Data telegram

Wired M-bus

Standard telegram

(16 seconds if mains powered):

• Accumulated Energy (heat and

cooling for bifunctional)

• Accumulated Volume (heat and

cooling for bifunctional)

• Current flow

• Current power

• Supply temperature

• Return temperature

• Difference temperature

• Enclosure temperature

• Current time

• Hour counter factory

• Hour counter OK

Wireless M-bus (OMS)

Standard telegram fixed network

(15 minutes sending interval, 16

seconds if mains powered):

• Accumulated Energy (heat and

cooling for bifunctional)

• Accumulated Volume (heat and

cooling for bifunctional)

• Current power

• SupplyTemperature

• ReturnTemperature

• CurrentTime

Wireless M-Bus (Walk -by)

Standard telegram Walk by

(2 minutes sending interval, 16

seconds if mains powered):

• Accumulated Energy (heat and

cooling for bifunctional)

• Accumulated Volume (heat and

cooling for bifunctional)

• CurrentTime

• Hour counter factory

• Month log 1 (last month log)

* Can be changed via SonoApp

10 | © Danfoss | Energy Meters | 2019.03 VU.IG.B9.02

Installation guide SonoSelect and SonoSafe

Terminals and cables

Communication Name Terminal No.

M-Bus Meter bus (blue or orange) 24

Meter bus (blue or orange) 25

Pulse input

Pulse input 1 + (brown) 50

Pulse input 1 - (white) 51

Pulse input 2 + (brown) 52

Pulse input 2 - (white) 53

Pulse output

Pulse output 1+ (brown) 16

Pulse output 1- (white) 17

Pulse output 2+ (brown) 18

Pulse output 2 – (white) 19

Name Dimensions

Cable specification

Pulse input cables 22AWG <10m

Pulse output cables 22AWG <25m

To ensure IP protection class connecting cable

outerjackets must be Ø4.2 ± 0.1 mm

Communication cables delivered with energy meter.

Cable ends are stripped with crimped ferule. 1.0m

Mains power cable

Mains power meters are delivered with M12x1.5 cable gland suitable for outside cable

diameter Ø3-Ø6.5mm 2x0.75 mm2. In casestranded wire is used Ferrules are required.

Pre fuse of max 6A must be used

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Danfoss Instrument de mesure

Danfoss

Danfoss PR-SC4K Modbus Manuel utilisateur

Danfoss

Danfoss 40 Manuel d'utilisation et d'entretien

Danfoss

Danfoss ADAP-KOOL AK-LM 340 Manuel utilisateur

Danfoss

Danfoss SonoCollect 110 Manuel utilisateur

Danfoss

Danfoss MCH19AM1649 Manuel

Danfoss

Danfoss PR-SC4K Modbus Manuel utilisateur

Danfoss

Danfoss SonoSelect 10 Manuel d'utilisation

Danfoss

Danfoss PFM 5001 Manuel utilisateur

Danfoss

Danfoss VLT Manuel utilisateur

Danfoss

Danfoss Supercal 5 Manuel utilisateur

Danfoss

Danfoss AKS 4100 Manuel utilisateur

Danfoss

Danfoss SonoSensor 30 Manuel d'utilisation

Danfoss

Danfoss AKS 4100 Manuel utilisateur

Danfoss

Danfoss RAVK 10-30 Manuel utilisateur

Danfoss

Danfoss PR-SC4K Direct Manuel utilisateur

Danfoss

Danfoss SonoSafe Manuel d'utilisation

Danfoss

Danfoss AK-LM 350 Mode d’emploi

Danfoss

Danfoss Micromon Manuel utilisateur

Danfoss

Danfoss MES 1003 Manuel utilisateur

Danfoss

Danfoss AK-EM 100 Manuel utilisateur

Danfoss

Danfoss WS 403 Manuel

Danfoss

Danfoss AK-LM 330 Mode d’emploi

Danfoss

Danfoss MAGFLO MAG 1100 Manuel utilisateur

Danfoss

Danfoss SONO 3500 CT Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
