Installation & User Guide

SonoMeter 30

Ultrasonic energy meter

for heating and cooling applications

2 | © Danfoss | Energy Meters | 2016.09 VUIGJ202

Installation & User Guide SonoMeter 30

VUIGJ202 © Danfoss | Energy Meters | 2016.09 | 3

Installation & User Guide SonoMeter 30

1. Installation

1.1. Preparation

Only qualified personnel may install the equipment, following the requirements listed in this document.

More detailed instruction can be found on www.heating.danfoss.com.

Note! This product is approved for ambient temperature between 5-55° C, but to ensure optimal conditions for

battery it is recommended to install Calculator at max. 45° C. Avoid installation stress from pipes and fittings.

Flush the system.

1.2. Identification of installation: Return/Supply pipe installation and flow direction

Flow direction

Return pipe installation

Flow direction

Supply pipe installation

4 | © Danfoss | Energy Meters | 2016.09 VUIGJ202

Installation & User Guide SonoMeter 30

1.3. Mounting of flow sensor

Pipe position: No limitations but avoid positions

where air can be collected.

Rotation in pipe axis: Flow sensor should be angled

in 45 to 315° to avoid air collection in flow sensor.

1.4. Mounting and sealing of calculator

Direct mounting on ultrasonic flow sensor housing, turning every 90° (only when the temperature of the

flow does not exceed 90° C):

a) On the flow sensor with a thread connection b) On the flow sensor with flange connection

On the wall:

Panel mounting on standard DIN-rail:

VUIGJ202 © Danfoss | Energy Meters | 2016.09 | 5

Installation & User Guide SonoMeter 30

Calculator seals

1: Manufacturer adhesive seal-sticker on the access to the adjustment activation jumper -verification seal.

2: Manufacturer adhesive seal-sticker on the fixer of the cover protecting electronic module -manufacturer

security seal.

3: Mounting seal after installation.

1.5. Mounting and sealing of temperature sensors

Seal

Installation recommendations for

ball valve mounting and sealing

Installation recommendations for

direct short temperature sensors

Seal

Pocket

a) angled 45°

Seal

ocket

b) perpendicular

Installation recommendations for pocket temperature sensors with permanently connected signal leads.

6 | © Danfoss | Energy Meters | 2016.09 VUIGJ202

Installation & User Guide SonoMeter 30

1.6. Setting up the jumpers (J)

The connector J is on the calculator plate between the temperature sensors and pulse input / output con-

nection terminals (see 6.3). Joining or leaving open the connector contacts, you can choose the normal or

verification (test) mode, activate the pulse inputs or outputs:

Jumper is not set

(contacts are opened)

Jumper is set

(contacts are connected)

NORMAL MODE VERIFICATION (TEST) MODE

The first pulse output V1 is active

(terminals 52,53).

Energy as default.

The first pulse intput V1 is active

(terminals 52,53)

(Jumper must be removed when

operating in TEST mode)

The second pulse output V2 is active

(terminals 50,51).

Volume as default.

The second pulse intput V2 is active

(terminals 50,51)

(Jumper must be removed when

operating in TEST mode)

Note: On delivery the heat meter is configured with two outputs.

2. Electrical wiring

Wiring diagram 1

Jumper settings:

1: Additional pulse input V2 is on.

2: Additional pulse input V1 is on.

T1: flow temperature sensor.

T2: return temperature sensor.

V1: additional pulse input/output 1.

V2: additional pulse input/output 2.

VUIGJ202 © Danfoss | Energy Meters | 2016.09 | 7

Installation & User Guide SonoMeter 30

Wiring diagram 2

Connecting the meter to the mains

power supply, 24 V AC/DC.

230 V AC to 24 V AC transformer

must be used for connection to

230 V AC!

Calculator

Terminals Description

5 T1 supply temperature sensor

6 T1 supply temperature sensor

7 T2 return temperature sensor

8 T2 return temperature sensor

50 V2 additional pulse input/output GND

51 V2 additional pulse input/output (Volume output in TEST mode)

52 V1 additional pulse input/output GND

53 V1 additional pulse input/output (Energy output in TEST mode)

Communication modules

Terminals Description

24, 25 M-bus module (bipolar)

60, 61 12-24 V DC power supply voltage for Modbus and LON (bipolar)

90 RS-485 Modbus RTU module (+)

91 RS-485 Modbus RTU module (-)

96 LON module (line A)

97 LON module (line B)

8 | © Danfoss | Energy Meters | 2016.09 VUIGJ202

Installation & User Guide SonoMeter 30

External power supply module

Terminals Description

54 Mains supply 24 V AC/DC (bipolar)

55 Mains supply 24 V AC/DC (bipolar)

3. Commissioning

3.1. Bleeding

1. Bleed the system until the flow rate display is steady.

2. Make sure no error codes are displayed.

3. Check the display for a plausible indication of flow rate and temperatures.

3.2. IP class

Calculator IP65

Flow sensor IP65 for heat meter

IP67 for heat and cooling meter

4. Display function overview

4.1. Menu structure

1.1 1.2 1.3 1.4 1.51.6 1.7 1.8 1.9

2.1 2.2 2.3 2.4 2.52.6.1 2.7.12xx 2.15.1

3.1 3.2 3.3 3.4 3.5 3.6.13.7 3x 3.15

Integral parameters

Statistical data

Informative parameters

Long press

Short press

VUIGJ202 © Danfoss | Energy Meters | 2016.09 | 9

Installation & User Guide SonoMeter 30

4.2. Display symbols

Explanation of special symbols:

flow is flowing forward (right direction)

flow is flowing backwards (wrong direction)

no arrow no flow

Explanation of other symbols are described in detailed instruction on www.heating.danfoss.com.

4.3. Error codes

Error codes may consist of up to 4 symbols.

Each symbol may have values 0…8 Calculate errors

Temperature 2 errors

Temperature 1 errors

Flow errors

L1 L2 L3

Code Description

Status of calculator 0 - no error, normal operation

1 - warning – ending battery life

2 - temperature difference is greater than the permitted limits

4 - temperature difference is less than the permitted limits

8 - electronics failure

Status of temperature

sensor 2 (return pipe)

0 - no error, normal operation

4 - short circuit

8 - sensor failure (open circuit or short circuit)

Status of temperature

sensor 1 (flow pipe)

0 - no error, normal operation

4 - short circuit

8 - sensor failure (open circuit or short circuit)

Status of flow sensor 0 - no error, normal operation

1 - no signal, flow sensor is empty

2 - flow flows in an reverse direction

4 - flow rate greater than 1.2∙qs (are displayed q = 1,2qs)

8 - electronics failure

Active error codes are added and simultaneously displayed, if more than one error is detected:

• 3 - corresponds errors 2 + 1

• 5 - corresponds errors 4 + 1

• 7 - corresponds errors 4 + 2 + 1

• 9 - corresponds errors 8 + 1

• A - corresponds errors 8 + 2

• B - corresponds errors 8 + 2 + 1

• D - corresponds errors 8 + 4 + 1

• E - corresponds errors 8 + 4 + 2

• F - corresponds errors 8 + 4 + 2 +1

10 | © Danfoss | Energy Meters | 2016.09 VUIGJ202

Installation & User Guide SonoMeter 30

5. Disposal

This symbol on the product indicates that it will not be treated as household waste.

It must be handed over to the applicable take-back scheme for the recycling of elec-

trical and electronic equipment. For more detailed information about the recycling

of this product, please contact your local municipal office.

Item Material Disposal

Battery AA-cell lithium/thionyl chloride 700 mg

lithium

Approved deposit for lithium

batteries

PCBA with display Coppered epoxy laminate components

soldered on, PC, TPE Electronic waste

Cables Copper with PUR or PVC jackets Cable recovery

Flow sensor (incl. trans-

ducer and liner) Brass, stainless steel, PPS Metal recovery

Transducer PZT, stainless steel, PEI Approved deposit for PZT

Other plastic parts PC, PPS, PEI, TPE Plastic recovery

Autres manuels pour SonoMeter 30

Table des matières

Autres manuels Danfoss Instrument de mesure

Danfoss

Danfoss SonoMeter 30 Manuel utilisateur

Danfoss

Danfoss WS 403 Manuel

Danfoss

Danfoss 40 Manuel utilisateur

Danfoss

Danfoss Infocal 9 Manuel d'utilisation

Danfoss

Danfoss RAVK 10-30 Manuel utilisateur

Danfoss

Danfoss SonoSelect 10 Manuel d'utilisation

Danfoss

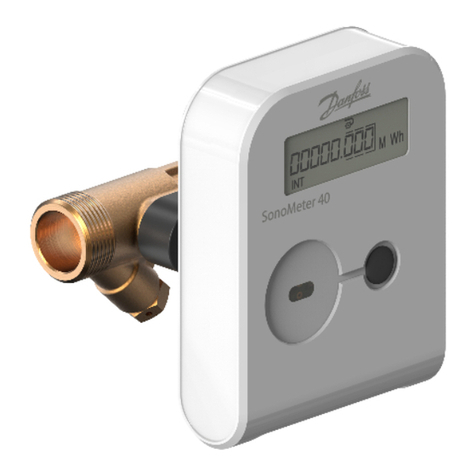

Danfoss 40 Manuel d'utilisation et d'entretien
