1. How to Programme

1.1. Local Control Panel

1.1.1. How to operate graphical LCP (GLCP)

The following instructions are valid for the GLCP (LCP 102).

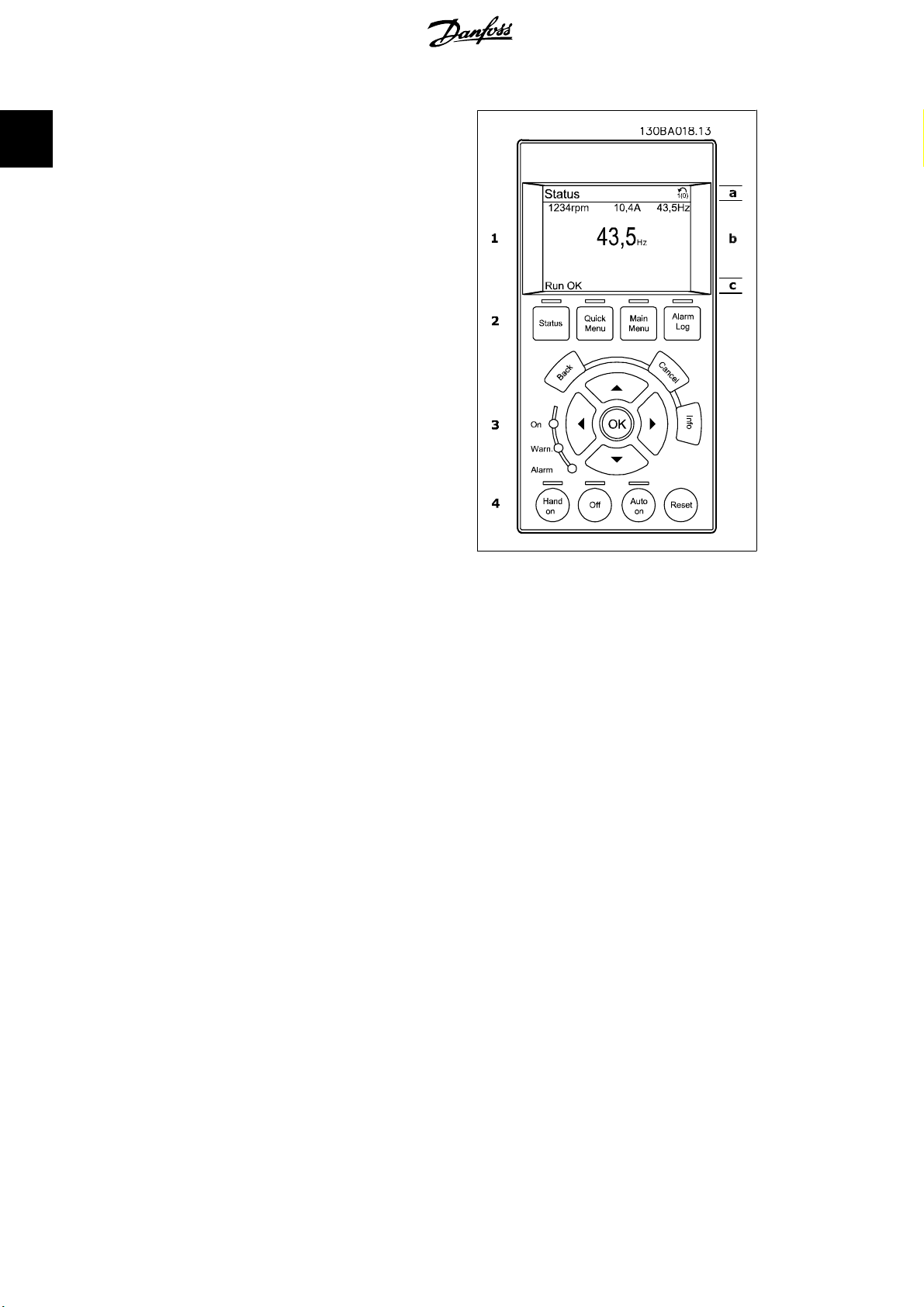

The GLCP is divided into four functional groups:

1. Graphical display with Status lines.

2. Menu keys and indicator lights (LED's) - selecting mode, changing parameters and

switching between display functions.

3. Navigation keys and indicator lights (LEDs).

4. Operation keys and indicator lights (LEDs).

Graphical display:

The LCD-display is back-lit with a total of 6 alpha-numeric lines. All data is displayed on the LCP

which can show up to five operating variables while in [Status] mode.

Display lines:

a. Status line: Status messages displaying icons and graphics.1

b. Line 1-2: Operator data lines displaying data and variables defined or chosen by the

user. By pressing the [Status] key, up to one extra line can be added.1

c. Status line: Status messages displaying text.1

VLT

AQUA Drive Programming Guide 1. How to Programme

MG.20.O2.02 - VLT ®is a registered Danfoss trademark

The display is divided into 3 sections:

Top section (a)

shows the status when in status mode or up

to 2 variables when not in status mode and in

the case of Alarm/Warning.

The number of the Active Set-up (selected as the Active Set-up in par. 0-10) is shown. When

programming in another Set-up than the Active Set-up, the number of the Set-up being program-

med appears to the right in brackets.

Middle section (b)

shows up to 5 variables with related unit, regardless of status. In case of alarm/warning, the

warning is shown instead of the variables.

It is possible to toggle between three status read-out displays by pressing the [Status] key.

Operating variables with different formatting are shown in each status screen - see below.

Several values or measurements can be linked to each of the displayed operating variables. The

values / measurements to be displayed can be defined via par. 0-20, 0-21, 0-22, 0-23, and 0-24,

which can be accessed via [QUICK MENU], "Q3 Function Setups", "Q3-1 General Settings", "Q3-11

Display Settings".

Each value / measurement readout parameter selected in par. 0-20 to par. 0-24 has its own scale

and number of digits after a possible decimal point. Larger numeric values are displayed with few

digits after the decimal point.

Ex.: Current readout

5.25 A; 15.2 A 105 A.

1. How to Programme VLT

AQUA Drive Programming Guide

MG.20.O2.02 - VLT ®is a registered Danfoss trademark

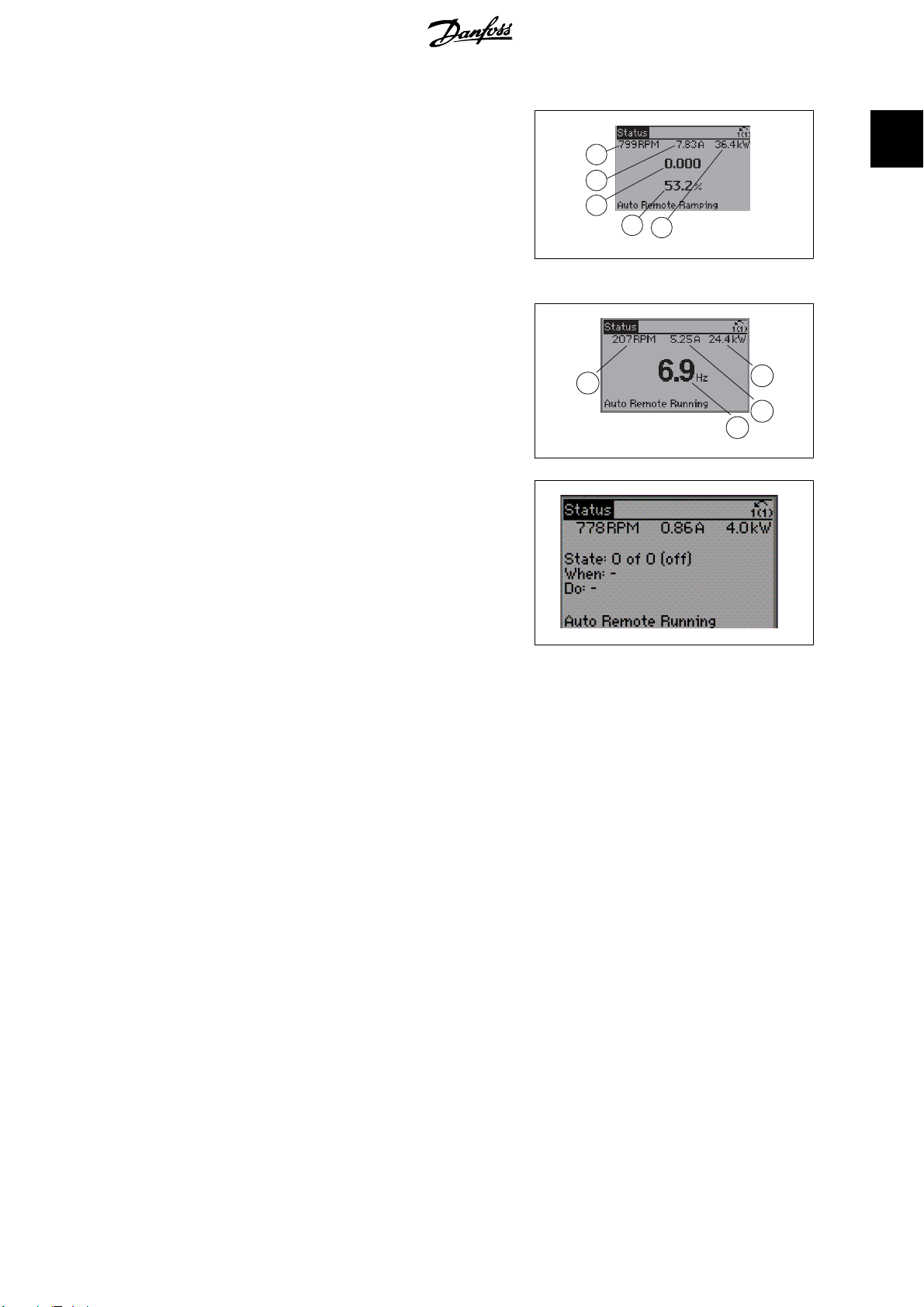

Status display I

This read-out state is standard after start-up

or initialization.

Use [INFO] to obtain information about the

value/measurement linked to the displayed

operating variables (1.1, 1.2, 1.3, 2, and 3).

See the operating variables shown in the dis-

play in this illustration. 1.1, 1.2 and 1.3 are

shown in small size. 2 and 3 are shown in me-

dium size.

130BP041.10

1.1

1.3

1.2

Status display II

See the operating variables (1.1, 1.2, 1.3, and

2) shown in the display in this illustration.

In the example, Speed, Motor current, Motor

power and Frequency are selected as varia-

bles in the first and second lines.

1.1, 1.2 and 1.3 are shown in small size. 2 is

shown in large size.

130BP062.10

1.2

1.3

1.1

Status display III:

This state displays the event and action of the

Smart Logic Control. For further information,

see section

Smart Logic Control

130BP063.10

VLT

AQUA Drive Programming Guide 1. How to Programme

MG.20.O2.02 - VLT ®is a registered Danfoss trademark

Bottom section

always shows the state of the frequency con-

verter in Status mode.

130BP074.10

Top section

Middle section

Bottom section

Display Contrast Adjustment

Press [status] and [ ] for darker display▲

Press [status] and [ ] for brighter display▼

Indicator lights (LEDs):

If certain threshold values are exceeded, the alarm and/or warning LED lights up. A status and

alarm text appear on the control panel.

The On LED is activated when the frequency converter receives power from mains voltage, a DC

bus terminal, or an external 24 V supply. At the same time, the back light is on.

• Green LED/On: Control section is

working.

•YellowLED/Warn.:Indicates a warn-

ing.

• Flashing Red LED/Alarm: Indicates

an alarm.

130BP040.10

GLCP keys

Menu keys

The menu keys are divided into functions. The

keys below the display and indicator lamps are

used for parameter set-up, including choice of

display indication during normal operation.

130BP045.1

[Status]

Indicates the status of the frequency converter and/or the motor. 3 different readouts can be

chosen by pressing the [Status] key:

5 line readouts, 4 line readouts or Smart Logic Control.

Use [Status] for selecting the mode of display or for changing back to Display mode from either

the Quick Menu mode, the Main Menu mode or Alarm mode. Also use the [Status] key to toggle

single or double read-out mode.

[Quick Menu]

Allows quick set-up of the frequency converter. The most common AQUA functions can be

programmed here.

The [Quick Menu] consists of:

- Q1: My Personal Menu

- Q2: Quick Setup

- Q3: Function Setups

-Q5:ChangesMade

- Q6: Loggings

The Function set-up provides quick and easy access to all parameters required for the majority of

water and wastewater applications including variable torque, constant torque, pumps, dossing

pumps, well pumps, booster pumps, mixer pumps, aeration blowers and other pump and fan

applications. Amongst other features it also includes parameters for selecting which variables to

1. How to Programme VLT

AQUA Drive Programming Guide

MG.20.O2.02 - VLT ®is a registered Danfoss trademark

display on the LCP, digital preset speeds, scaling of analog references, closed loop single zone

and multi-zone applications and specific functions related to water and wastewater applications.

The Quick Menu parameters can be accessed immediately unless a password has been created

via par. 0-60, 0-61, 0-65 or 0-66.

It is possible to switch directly between Quick Menu mode and Main Menu mode.

[Main Menu]

is used for programming all parameters.

The Main Menu parameters can be accessed immediately unless a password has been created via

par. 0-60, 0-61, 0-65 or 0-66. For the majority of water and wastewater applications it is not

necessary to access the Main Menu parameters but instead the Quick Menu, Quick Setup and

Function Setups provides the simplest and quickest access to the typical required parameters.

It is possible to switch directly between Main Menu mode and Quick Menu mode.

Parameter shortcut can be carried out by pressing down the [Main Menu] key for 3 seconds.

The parameter shortcut allows direct access to any parameter.

[Alarm Log]

displays an Alarm list of the five latest alarms (numbered A1-A5). To obtain additional details about

an alarm, use the arrow keys to manoeuvre to the alarm number and press [OK]. Information is

displayed about the condition of the frequency converter before it enters the alarm mode.

[Back]

reverts to the previous step or layer in the

navigation structure.

[Cancel]

last change or command will be cancelled as

long as the display has not been changed.

[Info]

displays information about a command, pa-

rameter, or function in any display window.

[Info] provides detailed information when

needed.

Exit Info mode by pressing either [Info],

[Back], or [Cancel].

VLT

AQUA Drive Programming Guide 1. How to Programme

MG.20.O2.02 - VLT ®is a registered Danfoss trademark

Navigation Keys

The four navigation arrows are used to navi-

gate between the different choices available

in [Quick Menu], [Main Menu] and

[Alarm Log]. Use the keys to move the cur-

sor.

[OK]

is used for choosing a parameter marked by

the cursor and for enabling the change of a

parameter.

130BT117.1

Operation Keys for local control are found

at the bottom of the control panel.

130BP046.10

[Hand On]

enables control of the frequency converter via the GLCP. [Hand on] also starts the motor, and it

is now possible to give the motor speed reference by means of the arrow keys. The key can be

Enabled

[1] or

Disabled

[0] via par.

0-40 [Hand on] Key on LCP.

The following control signals will still be active when [Hand on] is activated:

• [Hand on] - [Off] - [Auto on]

• Reset

• Coasting stop inverse (motor coasting to stop)

• Reversing

• Set-up select lsb - Set-up select msb

• Stop command from serial communication

•Quickstop

•DCbrake

NB!

External stop signals activated by means of control signals or a serial bus will over-

ride a “start” command via the LCP.

[Off]

stops the connected motor. The key can be

Enabled

[1] or

Disabled

[0] via par.

0-41 [Off] key on

LCP.

If no external stop function is selected and the [Off] key is inactive the motor can only be

stopped by disconnecting the mains supply.

[Auto On

enables the frequency converter to be controlled via the control terminals and/or serial commu-

nication. When a start signal is applied on the control terminals and/or the bus, the frequency

converter will start. The key can be

Enabled

[1] or

Disabled

[0] via par.

0-42 [Auto on] key on

LCP.

1. How to Programme VLT

AQUA Drive Programming Guide

MG.20.O2.02 - VLT ®is a registered Danfoss trademark

NB!

An active HAND-OFF-AUTO signal via the digital inputs has higher priority than the

control keys [Hand on] – [Auto on].

[Reset

is used for resetting the frequency converter after an alarm (trip). The key can be

Enabled

[1] or

Disabled

[0] via par. 0-43

Reset Keys on LCP

The parameter shortcut

can be carried out by holding down the [Main Menu] key for 3 seconds. The parameter shortcut

allows direct access to any parameter.

1.1.2. Quick Transfer of Parameter Settings between Multiple Fre-

quency Converters

Once the set-up of a frequency converter is

complete, we recommend that you store the

data in the LCP or on a PC via MCT 10 Set-up

Software Tool.

Data storage in LCP:

1. Go to par. 0-50

LCP Copy

2. Press the [OK] key

3. Select “All to LCP”

4. Press the [OK] key

All parameter settings are now stored in the LCP indicated by the progress bar. When 100% is

reached, press [OK].

You can now connect the LCP to another frequency converter and copy the parameter settings to

this frequency converter as well.

Data transfer from LCP to frequency converter:

1. Go to par. 0-50

LCP Copy

2. Press the [OK] key

3. Select “All from LCP”

4. Press the [OK] key

The parameter settings stored in the LCP are now transferred to the frequency converter indicated

by the progress bar. When 100% is reached, press [OK].

1.1.3. Display Mode

In normal operation, up to 5 different operating variables can be indicated continuously in the

middle section: 1.1, 1.2, and 1.3 as well as 2 and 3.

VLT

AQUA Drive Programming Guide 1. How to Programme

MG.20.O2.02 - VLT ®is a registered Danfoss trademark

1.1.4. Display Mode - Selection of Displayed Variables

It is possible to toggle between three status read-out screens by pressing the [Status] key.

Operating variables with different formatting are shown in each status screen - see below.

Several measurements can be linked to each of the operating variables. Define the links via par.

0-20, 0-21, 0-22, 0-23, and 0-24.

Each readout parameter selected in par. 0-20 to par. 0-24 has its own scale and digits after a

possible decimal point. By larger numeric value of a parameter fewer digits are displayed after the

decimal point.

Ex.: Current readout below: 5.25 A; 15.2 A 105 A.

Status screen I

This read-out state is standard after start-up

or initialization.

Use [INFO] to obtain information about the

measurement links to the displayed operating

variables /1.1, 1.2, 1.3, 2, and 3).

See the operating variables shown in the

screen in this illustration. 1.1, 1.2 and 1.3 are

shown in small size. 2 and 3 are shown in me-

dium size.

130BP041.10

1.1

1.3

1.2

Status screen II:

See the operating variables (1.1, 1.2, 1.3, and

2) shown in the screen in this illustration.

In the example, Speed, Motor current, Motor

power and Frequency are selected as varia-

bles in the first and second.

1.1, 1.2 and 1.3 are shown in small size. 2 is

shown in large size.

In both status screen I and II it is possible to

select other operating variables by pressing

▲or ▼ .

130BP062.10

1.2

1.3

1.1

Status screen III:

This state displays the event and action of the

Smart Logic Control. For further information,

see section

Smart Logic Control

130BP063.10

1.1.5. Parameter Set-Up

The frequency converter can be used for practically all assignments, thus offering a significant

number of parameters. The series offers a choice between two programming modes - a Quick

Menu mode and a Main Menu mode.

The latter provides access to all parameters. The former takes the user through a few parameters

making it possible to program the majority of water/ wastewater applications.

Regardless of the mode of programming, you can change a parameter both in the Quick Menu

mode and in the Main Menu mode.

1. How to Programme VLT

AQUA Drive Programming Guide

MG.20.O2.02 - VLT ®is a registered Danfoss trademark

Autres manuels pour vlt aqua

Table des matières

Autres manuels Danfoss Entraînement CC

Danfoss

Danfoss VLT FC 103 Mode d’emploi

Danfoss

Danfoss VLT CDS 803 Mode d'emploi

Danfoss

Danfoss VLT FC 103 Manuel utilisateur

Danfoss

Danfoss VLT Midi Drive FC 280 Manuel utilisateur

Danfoss

Danfoss VLT AutomationDrive FC 301 Mode d’emploi

Danfoss

Danfoss VLT series Manuel utilisateur

Danfoss

Danfoss VLT AQUA Drive FC 202 Manuel utilisateur

Danfoss

Danfoss VLT HVAC Drive FC 102 Manuel utilisateur

Danfoss

Danfoss VLT HVAC Basic Drive FC 101 Manuel utilisateur

Danfoss

Danfoss FC 300 Mode d’emploi

Danfoss

Danfoss VLT AutomationDrive FC 300 Series Mode d'emploi

Danfoss

Danfoss VLT AutomationDrive FC 300 Mode d’emploi

Danfoss

Danfoss VLT CDS 303 Manuel utilisateur

Danfoss

Danfoss Vacon NXS Series Manuel utilisateur

Danfoss

Danfoss vlt fcd 302 Mode d’emploi

Danfoss

Danfoss VLT HVACDrive Manuel utilisateur

Danfoss

Danfoss VLT HVAC Basic Drive FC 101 Manuel utilisateur

Danfoss

Danfoss FCM 300 Series Fiche technique

Danfoss

Danfoss FC 100 Series Mode d'emploi

Danfoss

Danfoss VLT CDS 302 Mode d'emploi

Danfoss

Danfoss VLT AutomationDrive FC 360 Mode d'emploi

Danfoss

Danfoss VLT HVAC Drive FC 102 Manuel utilisateur

Danfoss

Danfoss VLT AutomationDrive FC 301 Mode d'emploi

Danfoss

Danfoss VLT CANopen MCA 105 Mode d'emploi

Manuels Entraînement CC populaires d'autres marques

Vincent Associates

Vincent Associates UNIBLITZ ED12DSS Manuel utilisateur

EKSMA OPTICS

EKSMA OPTICS DQ-100-4 Manuel de la liste des pièces

Chamberlain Garog

Chamberlain Garog D Series Manuel utilisateur

Parker

Parker PDS Series Manuel utilisateur

Festo

Festo DGC G Series Guide de configuration

Binks

Binks QS-5012-1-CE Manuel utilisateur

ABB

ABB ACQ580-01 Series Manuel d'installation

YASKAWA

YASKAWA CANopen SI-S3 Manuel utilisateur

GE D20A6 Manuel utilisateur

Unex

Unex MC-D-250-1000-050W-TW Manuel utilisateur

Geckodrive

Geckodrive G213V Manuel utilisateur

ABB

ABB RSYC-01 Manuel utilisateur

Rockwell Automation

Rockwell Automation PowerFlex 700S Manuel du propriétaire

WEG

WEG DeviceNet CFW500 Manuel utilisateur

Siemens

Siemens SINAMICS G Fiche technique

Siemens

Siemens SINAMICS SM150 6SL3815-7NP41-0AA1 Mode d'emploi

SOMFY

SOMFY JR RU 30 Manuel utilisateur

Beckhoff

Beckhoff AX8911 Manuel de l'opérateur

Danfoss vlt aqua Mode d'emploi

Manuels Entraînement CC populaires d'autres marques
