2. How to Programme

2.1. Local Control Panel

2.1.1. How to operate graphical LCP (GLCP)

The following instructions are valid for the GLCP (LCP 102).

The GLCP is divided into four functional groups:

1. Graphical display with Status lines.

2. Menu keys and indicator lights (LED's) - selecting mode, changing parameters and switching between display functions.

3. Navigation keys and indicator lights (LEDs).

4. Operation keys and indicator lights (LEDs).

Graphical display:

The LCD-display is back-lit with a total of 6 alpha-numeric lines. All data is displayed on the LCP which can show up to five operating variables while in

[Status] mode.

Display lines:

a. Status line: Status messages displaying icons and graphics.1

b. Line 1-2: Operator data lines displaying data and variables de-

fined or chosen by the user. By pressing the [Status] key, up to

one extra line can be added.1

c. Status line: Status messages displaying text.1

VLT

HVAC Drive Programming Guide 2. How to Programme

MG.11.C5.02 - VLT®is a registered Danfoss trademark

The display is divided into 3 sections:

Top section (a) shows the status when in status mode or up to 2 variables when not in status mode and in the case of Alarm/Warning.

The number of the Active Set-up (selected as the Active Set-up in par. 0-10) is shown. When programming in another Set-up than the Active Set-up, the

number of the Set-up being programmed appears to the right in brackets.

The Middle section (b) shows up to 5 variables with related unit, regardless of status. In case of alarm/warning, the warning is shown instead of the

variables.

It is possible to toggle between three status read-out displays by pressing the [Status] key.

Operating variables with different formatting are shown in each status screen - see below.

Several values or measurements can be linked to each of the displayed operating variables. The values / measurements to be displayed can be defined

via par. 0-20, par. 0-21, par. 0-22, par. 0-23, and par. 0-24, which can be accessed via [QUICK MENU], "Q3 Function Setups", "Q3-1 General Settings",

"Q3-13 Display Settings".

Each value / measurement readout parameter selected in par. 0-20 to par. 0-24 has its own scale and number of digits after a possible decimal point.

Larger numeric values are displayed with few digits after the decimal point.

Ex.: Current readout

5.25 A; 15.2 A 105 A.

Status display I:

This read-out state is standard after start-up or initialization.

Use [INFO] to obtain information about the value/measurement linked to

the displayed operating variables (1.1, 1.2, 1.3, 2, and 3).

See the operating variables shown in the display in this illustration. 1.1,

1.2 and 1.3 are shown in small size. 2 and 3 are shown in medium size.

130BP041.10

1.1

1.3

1.2

Status display II:

See the operating variables (1.1, 1.2, 1.3, and 2) shown in the display in

this illustration.

In the example, Speed, Motor current, Motor power and Frequency are

selected as variables in the first and second lines.

1.1, 1.2 and 1.3 are shown in small size. 2 is shown in large size.

130BP062.10

1.2

1.3

1.1

2. How to Programme VLT

HVAC Drive Programming Guide

MG.11.C5.02 - VLT®is a registered Danfoss trademark

Status display III:

This state displays the event and action of the Smart Logic Control. For

further information, see section

Smart Logic Control

30BP063.10

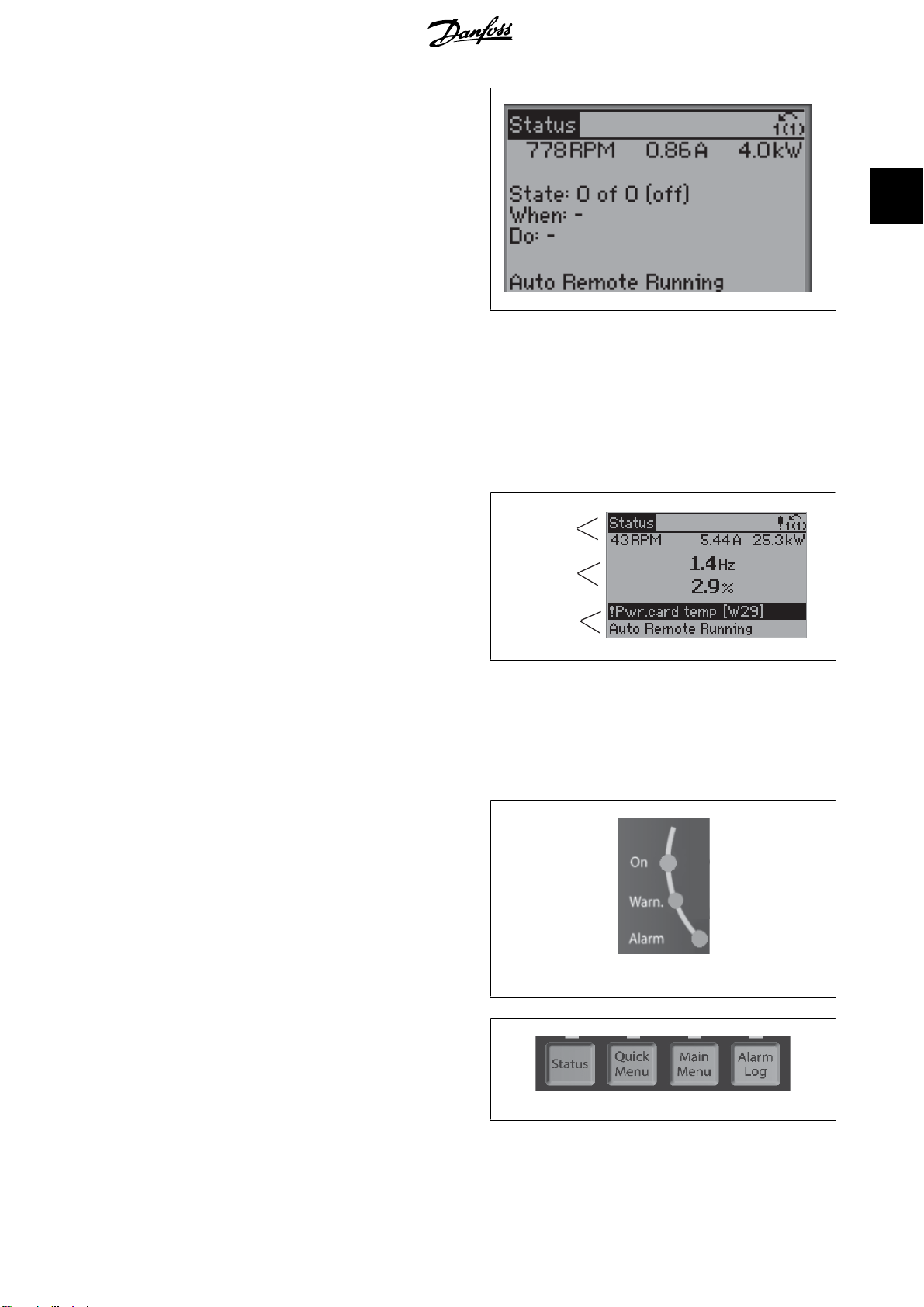

The Bottom section always shows the state of the frequency converter

in Status mode.

Display Contrast Adjustment

Press [status] and [ ] for darker display

▲

Press [status] and [ ] for brighter display▼

130BP074.10

Top section

Middle section

Bottom section

Indicator lights (LEDs):

If certain threshold values are exceeded, the alarm and/or warning LED lights up. A status and alarm text appear on the control panel.

The On LED is activated when the frequency converter receives power from mains voltage, a DC bus terminal, or an external 24 V supply. At the same

time, the back light is on.

• Green LED/On: Control section is working.

• Yellow LED/Warn.: Indicates a warning.

• Flashing Red LED/Alarm: Indicates an alarm.

130BP040.10

GLCP keys

Menu keys

The menu keys are divided into functions. The keys below the display and

indicator lamps are used for parameter set-up, including choice of display

indication during normal operation.

130BP045.10

VLT

HVAC Drive Programming Guide 2. How to Programme

MG.11.C5.02 - VLT®is a registered Danfoss trademark

[Status]

indicates the status of the frequency converter and/or the motor. 3 different readouts can be chosen by pressing the [Status] key:

5 line readouts, 4 line readouts or Smart Logic Control.

Use [Status] for selecting the mode of display or for changing back to Display mode from either the Quick Menu mode, the Main Menu mode or Alarm

mode. Also use the [Status] key to toggle single or double read-out mode.

[Quick Menu]

allows quick set-up of the frequency converter. The most common HVAC functions can be programmed here.

The [Quick Menu] consists of:

-MyPersonalMenu

- Quick Set-up

- Function set-up

-ChangesMade

- Loggings

The Function set-up provides quick and easy access to all parameters required for the majority of HVAC applications including most VAV and CAV supply

and return fans, cooling tower fans, Primary, Secondary and Condenser Water Pumps and other pump, fan and compressor applications. Amongst other

features it also includes parameters for selecting which variables to display on the LCP, digital preset speeds, scaling of analog references, closed loop

single zone and multi-zone applications and specific functions related to Fans, Pumps and Compressors.

The Quick Menu parameters can be accessed immediately unless a password has been created via par. 0-60, par. 0-61, par. 0-65 or par. 0-66.

It is possible to switch directly between Quick Menu mode and Main Menu mode.

[Main Menu]

is used for programming all parameters.The Main Menu parameters can be accessed immediately unless a password has been created via par. 0-60, par.

0-61, par. 0-65 or par. 0-66. For the majority of HVAC applications it is not necessary to access the Main Menu parameters but instead the Quick Menu,

Quick Set-up and Function Set-up provides the simplest and quickest access to the typical required parameters.

It is possible to switch directly between Main Menu mode and Quick Menu mode.

Parameter shortcut can be carried out by pressing down the [Main Menu] key for 3 seconds. The parameter shortcut allows direct access to any

parameter.

[Alarm Log]

displays an Alarm list of the five latest alarms (numbered A1-A5). To obtain additional details about an alarm, use the arrow keys to manoeuvre to the

alarm number and press [OK]. Information is displayed about the condition of the frequency converter before it enters the alarm mode.

The Alarm log button on the LCP allows access to both Alarm log and Maintenance log.

[Back]

reverts to the previous step or layer in the navigation structure.

[Cancel]

last change or command will be cancelled as long as the display has not been changed.

[Info]

displays information about a command, parameter, or function in any display window. [Info] provides detailed information when needed.

Exit Info mode by pressing either [Info], [Back], or [Cancel].

2. How to Programme VLT

HVAC Drive Programming Guide

MG.11.C5.02 - VLT®is a registered Danfoss trademark

Navigation Keys

The four navigation arrows are used to navigate between the different

choices available in [Quick Menu], [Main Menu] and [Alarm Log].

Use the keys to move the cursor.

[OK] is used for choosing a parameter marked by the cursor and for

enabling the change of a parameter.

Operation Keys for local control are found at the bottom of the control

panel.

130BP046.10

[Hand On]

enables control of the frequency converter via the GLCP. [Hand on] also starts the motor, and it is now possible to enter the motor speed data by means

of the arrow keys. The key can be selected as

Enable

[1] or

Disable

[0] via par. 0-40

[Hand on] key on LCP.

The following control signals will still be active when [Hand on] is activated:

• [Hand on] - [Off] - [Auto on]

• Reset

• Coasting stop inverse

•Reversing

• Set-up select lsb - Set-up select msb

• Stop command from serial communication

•Quickstop

•DCbrake

NB!

External stop signals activated by means of control signals or a serial bus will override a “start” command via the LCP.

[Off]

stops the connected motor. The key can be selected as Enable [1] or Disable [0] via par. 0-41

[Off] key on LCP.

If no external stop function is selected

and the [Off] key is inactive the motor can only be stopped by disconnecting the mains supply.

VLT

HVAC Drive Programming Guide 2. How to Programme

MG.11.C5.02 - VLT®is a registered Danfoss trademark

[Auto On]

enables the frequency converter to be controlled via the control terminals and/or serial communication. When a start signal is applied on the control

terminals and/or the bus, the frequency converter will start. The key can be selected as Enable [1] or Disable [0] via par. 0-42

[Auto on] key on LCP.

NB!

An active HAND-OFF-AUTO signal via the digital inputs has higher priority than the control keys [Hand on] – [Auto on].

[Reset]

is used for resetting the frequency converter after an alarm (trip). It can be selected as

Enable

[1] or

Disable

[0] via par. 0-43

Reset Keys on LCP

The parameter shortcut can be carried out by holding down the [Main Menu] key for 3 seconds. The parameter shortcut allows direct access to any

parameter.

2.1.2. How to operate numeric LCP (NLCP)

The following instructions are valid for the NLCP (LCP 101).

The control panel is divided into four functional groups:

1. Numeric display.

2. Menu key and indicator lights (LEDs) - changing parameters and

switching between display functions.

3. Navigation keys and indicator lights (LEDs).

4. Operation keys and indicator lights (LEDs).

NB!

Parameter copy is not possible with Numeric Local

Control Panel (LCP101).

Select one of the following modes:

Status Mode: Displays the status of the frequency converter or the mo-

tor.

If an alarm occurs, the NLCP automatically switches to status mode.

A number of alarms can be displayed.

Quick Set-up or Main Menu Mode: Display parameters and parameter

settings.

Illustration 2.1: Numerical LCP (NLCP)

130BP077.10

Illustration 2.2: Status display example

130BP078.10

Illustration 2.3: Alarm display example

Indicator lights (LEDs):

• Green LED/On: Indicates if control section is on.

• Yellow LED/Wrn.: Indicates a warning.

• Flashing red LED/Alarm: Indicates an alarm.

2. How to Programme VLT

HVAC Drive Programming Guide

MG.11.C5.02 - VLT®is a registered Danfoss trademark

Autres manuels pour FC 100 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Danfoss Entraînement CC

Danfoss

Danfoss VLT HVAC Drive FC 100 Series Mode d’emploi

Danfoss

Danfoss VLT AutomationDrive EZ FC 321 Manuel utilisateur

Danfoss

Danfoss VLT 4000 VT Manuel utilisateur

Danfoss

Danfoss 176F6636 Manuel utilisateur

Danfoss

Danfoss VLT FC 103 Mode d'emploi

Danfoss

Danfoss VLT AQUA Drive FC 202 Mode d’emploi

Danfoss

Danfoss VLT FC 103 Mode d’emploi

Danfoss

Danfoss VLT 6000 HVAC Series Mode d’emploi

Danfoss

Danfoss VLT PROFINET MCA 120 Manuel utilisateur

Danfoss

Danfoss VLT PROFIBUS DP MCA 101 Mode d'emploi

Danfoss

Danfoss vlt aqua Manuel utilisateur

Danfoss

Danfoss VLT HVAC Drive FC 102 Manuel utilisateur

Danfoss

Danfoss VLT AQUA Drive FC 202 Mode d'emploi

Danfoss

Danfoss AMV 410 Manuel utilisateur

Danfoss

Danfoss VLT AutomationDrive FC 301 Mode d'emploi

Danfoss

Danfoss VLT Automation Drive FC 360 Mode d'emploi

Danfoss

Danfoss VLT HVAC FC 100 Manuel utilisateur

Danfoss

Danfoss VLT FC 103 Mode d'emploi

Danfoss

Danfoss vlt aqua Manuel utilisateur

Danfoss

Danfoss VLT HVAC Drive FC 102 Manuel utilisateur

Danfoss

Danfoss VLT AutomationDrive FC 360 Mode d'emploi

Danfoss

Danfoss FC 301 Manuel utilisateur

Danfoss

Danfoss VLT AutomationDrive FC 301 Manuel utilisateur

Danfoss

Danfoss VLT Micro Drive FC 51 Series Manuel utilisateur

Manuels Entraînement CC populaires d'autres marques

Vincent Associates

Vincent Associates UNIBLITZ ED12DSS Manuel utilisateur

EKSMA OPTICS

EKSMA OPTICS DQ-100-4 Manuel de la liste des pièces

Chamberlain Garog

Chamberlain Garog D Series Manuel utilisateur

Parker

Parker PDS Series Manuel utilisateur

Festo

Festo DGC G Series Guide de configuration

Binks

Binks QS-5012-1-CE Manuel utilisateur

ABB

ABB ACQ580-01 Series Manuel d'installation

YASKAWA

YASKAWA CANopen SI-S3 Manuel utilisateur

GE D20A6 Manuel utilisateur

Unex

Unex MC-D-250-1000-050W-TW Manuel utilisateur

Geckodrive

Geckodrive G213V Manuel utilisateur

ABB

ABB RSYC-01 Manuel utilisateur

Rockwell Automation

Rockwell Automation PowerFlex 700S Manuel du propriétaire

WEG

WEG DeviceNet CFW500 Manuel utilisateur

Siemens

Siemens SINAMICS G Fiche technique

Siemens

Siemens SINAMICS SM150 6SL3815-7NP41-0AA1 Mode d'emploi

SOMFY

SOMFY JR RU 30 Manuel utilisateur

Beckhoff

Beckhoff AX8911 Manuel de l'opérateur
