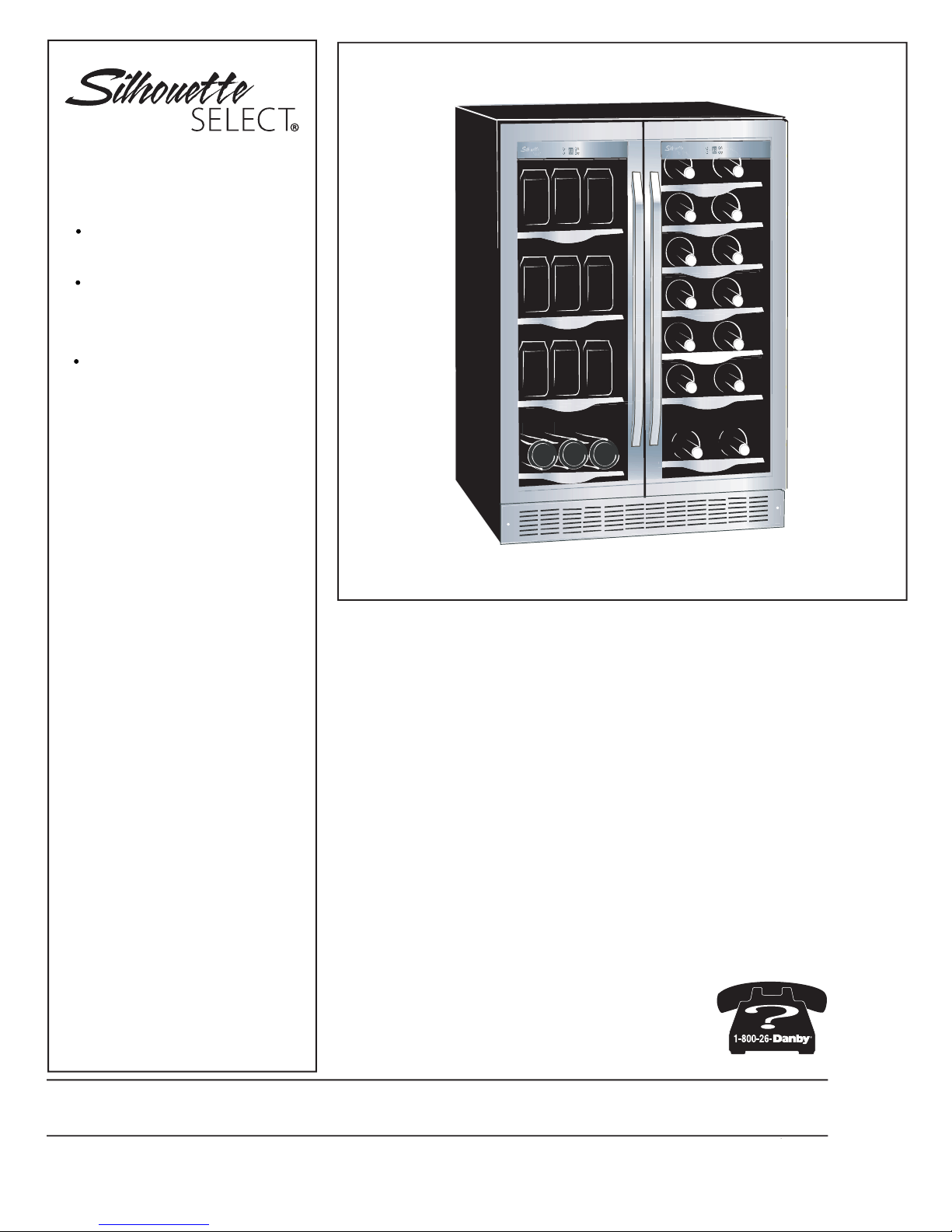

Danby Silhouette Select DBC7070BLSST Manuel utilisateur

OWNER’S MANUAL

LE MANUEL DU

PROPRIÉTAIRE

CAUTION

Read and follow all safety rules

and operating instructions

before first use of this product.

PRÉCAUTION

Veuillez lire attentivement les

consignes de sécurité et les

instructions d’utilisation avant

l’utilisation initiale de ce produit.

Danby Products Limited, Guelph, Ontario Canada N1H 6Z9

Danby Products Inc., Findlay, Ohio USA 45839-0669

DBC7070BLSST

Version 1.06.11

Important Safety Information

Safety Precautions 3

Grounding Instructions 4

Operating Instructions

Features of Your Beverage Center 5

The Controls of Your Beverage Center 6

Setting the Temperature 6

Wine Storage 7

Shelf Instructions 8

Installation Instructions

Tools You Will Need 9

Preparing the Enclosure 9

Care and Cleaning

Helpfull Hints 10

How to Clean the Inside 10

How to Clean the Outside 10

Trouble Shooting

Before You Call For Service 11

TABLE OF CONTENTS

Function Instructions 7

WELCOME

NEED HELP?

Welcome to the

Danby family. We’re

proud of our quality

products and we

believe in dependable

service.

You’ll see it in this

easy-to-use manual

and you’ll hear it in the

friendly voices of our

consumer service

department.

Tel:1-800-26-

Best of all, you’ll

experience these

values each time you

use your Beverage center.

That’s important,

because your new

appliance will be part

Before you call for service,

there are a few things you

can do to help us serve

you better...

Read this manual

It contains instructions to

help you use and maintain

If you received a

damaged appliance

Immediately contact the

dealer (or builder) that sold

Save time and money

Check the Trouble Shooting

section before calling. This

section helps you solve

common problems that may

occur.

If you do need service, you

can relax knowing help is

only a phone call away.

Tel: 1-800-26-

Write down the model and serial

numbers here. They are on a label

located on the back of the Beverage

Center.

Serial number ______________

Date purchased ____________

Staple your receipt to the inside

back cover of this manual. You will

need it to obtain service under

warranty.

Start Here!…Before using your Beverage Center

of your family for

many years to come.

your Beverage Center properly.

you the Beverage Center.

Model number DBC7070BLSST

READ ALL SAFETY INFORMATION BEFORE USING

IMPORTANT SAFETY INFORMATION

WARNING

SAFETY

PRECAUTIONS

•This appliance must be

grounded. Connect only to a

properly grounded outlet.

See “Grounding Instructions”

section on page 4.

•Do not operate this appliance

if it has a damaged power cord

or plug, if it is not working

properly, or if the appliance has

been damaged or dropped.

•Do not splice the power cord

that is equipped with this appli-

ance.

•Keep power cord away from

heated surfaces.

•Do not immerse power cord,

plug or the appliance itself in

water.

•Do not use this product near

water-for example, in a wet

basement, near a swimming

pool or near a sink.

•Do not use corrosive

chemicals or vapors in this

appliance.

•Use this appliance only for

it’s intended use, as described

in this manual.

•Do not store perishable food

items such as (but not limited

to) meats and dairy products

in your Beverage Center .

•See door surface cleaning

instructions in the Care and

Cleaning section(s) of this

manual.

•Do not cover or block any

openings on the appliance.

•This appliance is intended for

household use only. Do not

attempt to operate or store this

appliance outdoors.

•This appliance should be

serviced only by qualified serv-

ice personnel. Contact the

nearest authorized service

facility for examination, repair

or adjustment.

SAVE THESE INSTRUCTIONS

DANGER, RISK OF CHILD ENTRAPMENT!

An empty Beverage Center is a very dangerous attraction to children. Remove either the gasket,

latches, lids, lock and/or doors from unused or discarded appliances, or take some other action

to guarantee it harmless.

DON’T WAIT, DO IT NOW!

To reduce the risk of fire, burns, electric shock, or injury to persons when using your appliance,

follow basic precautions, including the following sections;

•Store beverages in sealed

bottles only.

This appliance must be

grounded. In the event of an

electrical short circuit, ground-

ing reduces the risk of electric

shock by providing an escape

wire for the electric current.

This appliance is equipped

with a power cord having a

grounding wire with a ground-

ing plug. The plug must be

plugged into an outlet that is

properly installed and ground-

ed.

Consult a qualified electrician

or service technician if the

grounding instructions are not

completely understood, or if

doubt exists as to whether the

appliance is properly ground-

ed.

If the outlet is a standard 2-

prong wall outlet, it is your per-

sonal responsibility and obliga-

tion to have it replaced with a

properly grounded 3-prong

wall outlet.

For best operation, plug this

appliance into its own electri-

cal outlet to prevent flickering

of lights, blowing of fuse or

tripping of circuit breaker.

Do not under any circum-

stances cut or remove the

third (ground) prong from the

power cord.

Do not use an adapter plug

with this appliance.

Do not use an extension

cord with this appliance. If the

power cord is too short, have

a qualified electrician or serv-

ice technician install an outlet

near the appliance.

GROUNDING

INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

WARNING

Improper use of the

grounding plug can result

in a risk of electric shock.

Operating Instructions

1. Twin Door Design: Divided compart-

ments allow for separate storage of different

types

2. Dual Electronic Controls: For indi-

vidually regulating the temperature for both

compartments

3. Magnetic Door Gaskets: Tight fitting

seals

4. Glass Shelves

5. Handles

6. Front Mounted Exhaust:

integrated (built-in) applications.

8. Leveling Legs

LED lighting illuminates the interior without the

heat of an incandescent bulb

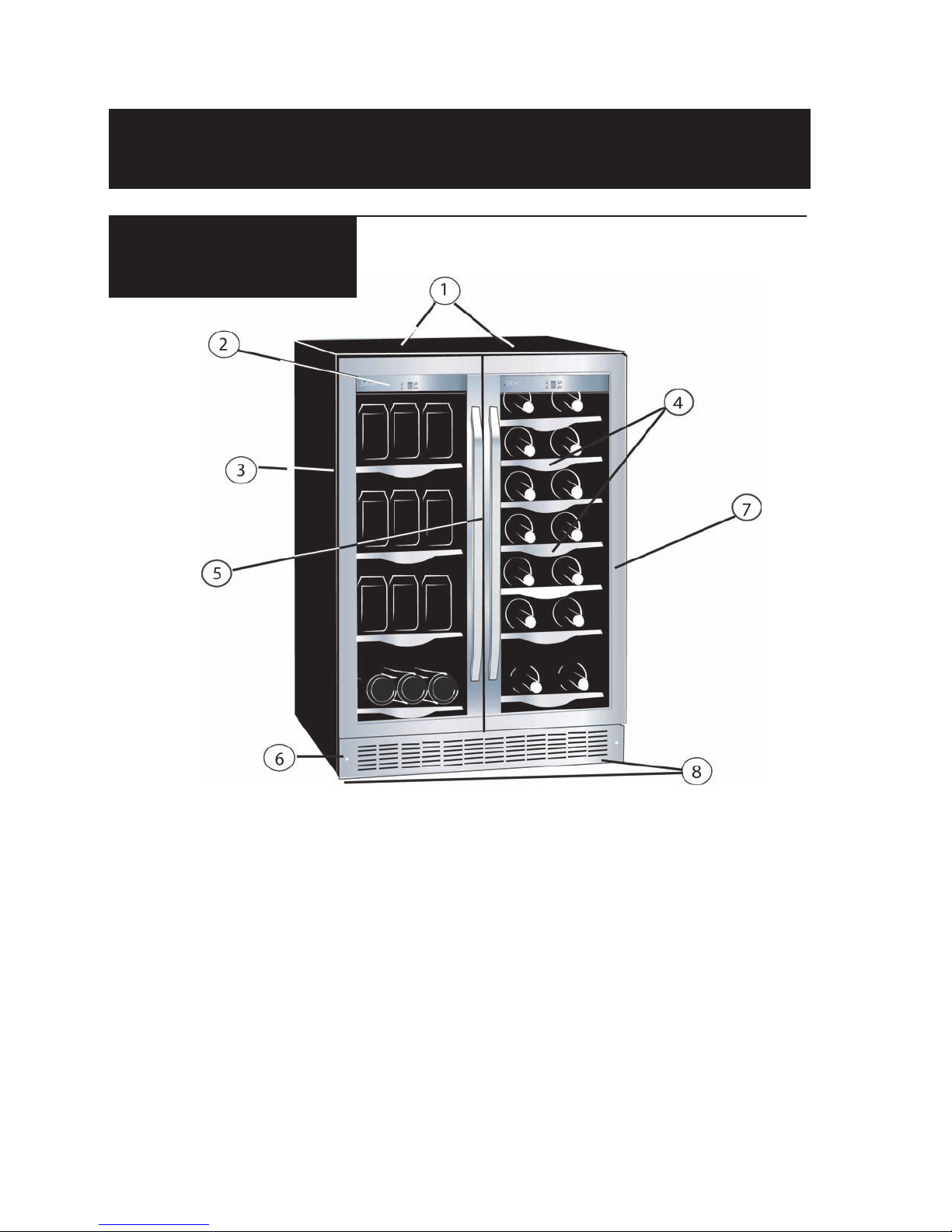

Features of your

Beverage Center

9. Interior Lights (not shown)

of the Beverage Center.

retains all the cooling power and

humidity levels.

of beverages.

7. Tempered Glass Doors:

Allows for

Low-E glass used to

reflect and absorb heat.

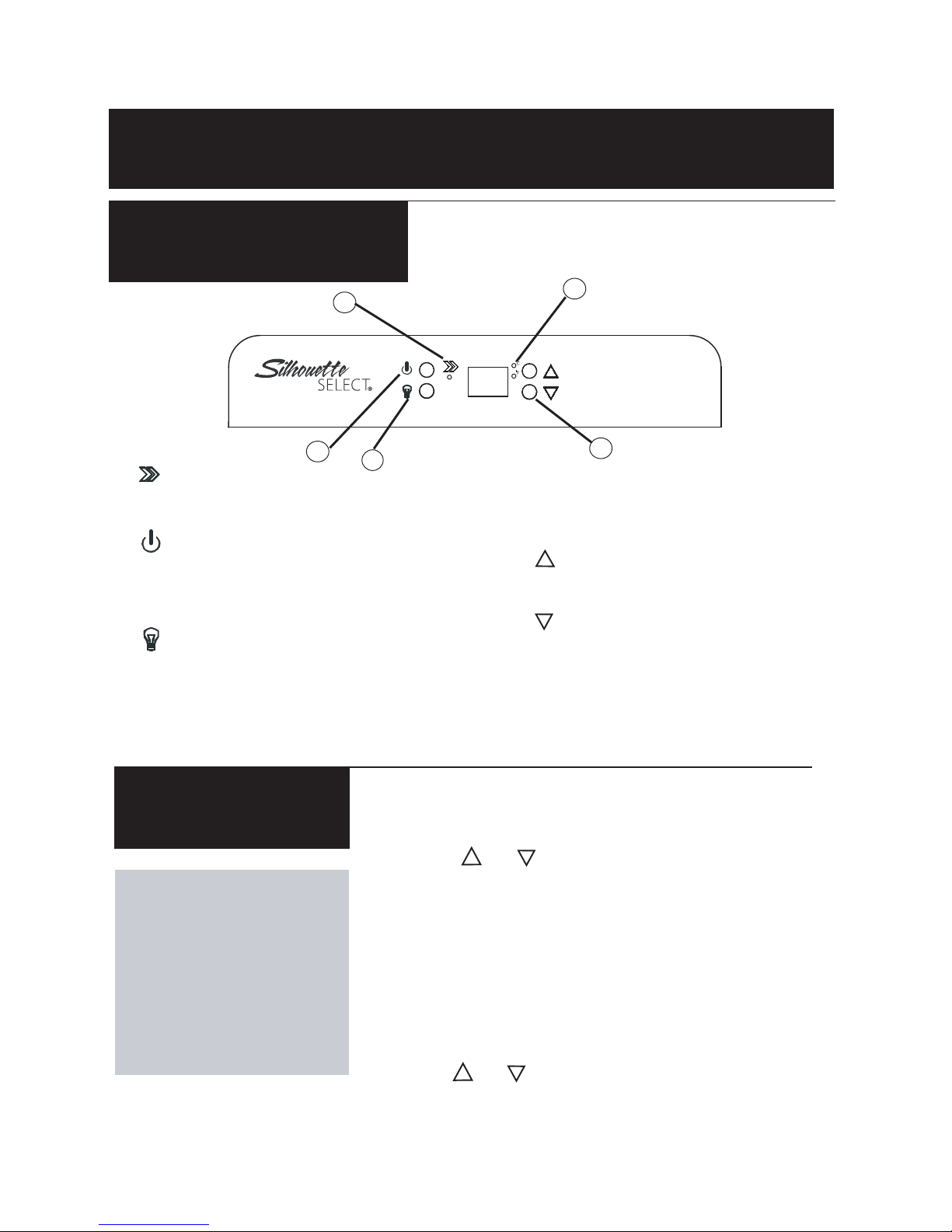

The Controls of

your Beverage Center

Operating Instructions

Indicator light illuminates to signify the

cooling mode is currently in operation.

2. ‘ ’ Button

To control this appliance turn ON/OFF

( press and hold this buttons for

approximately 3 seconds).

3. ‘ ’ Button

To control the inner light turn ON/OFF.

4. °C / °F

Adjacent indicator light denotes which

scale of temperature is displayed.

5. ‘ ’

Button

Used to raise (warmer) the temperature

in 1° degree increments.

‘’

Button

Used to decrease (cooler) the

temperature in 1° degree increments.

Setting the

Temperature

•To switch the display

between the Fahrenheit (°F)

and Celsius (°C) scale,

depress the and

control buttons simultaneously for

approximately five (5) sec-

onds

•The temperature range for

both compartments can be

set as low as 39°F(4°C) or

as high as 64°F (18°C) to suit

requirements. Each depres-

sion of the or but-

ton will allow you adjust the

temperature in 1°degree

increments within the afore-

mentioned range.

When you plug in your

Beverage Center for the first

time, the temperatures

will automatically be set

to 45°F (7°C) and 54°F

(12°C) in the left and right

compartments respectively

and will be displayed in

the Fahrenheit scale (°F).

your specific beverage storage

Operating Instructions

Wine

Storage

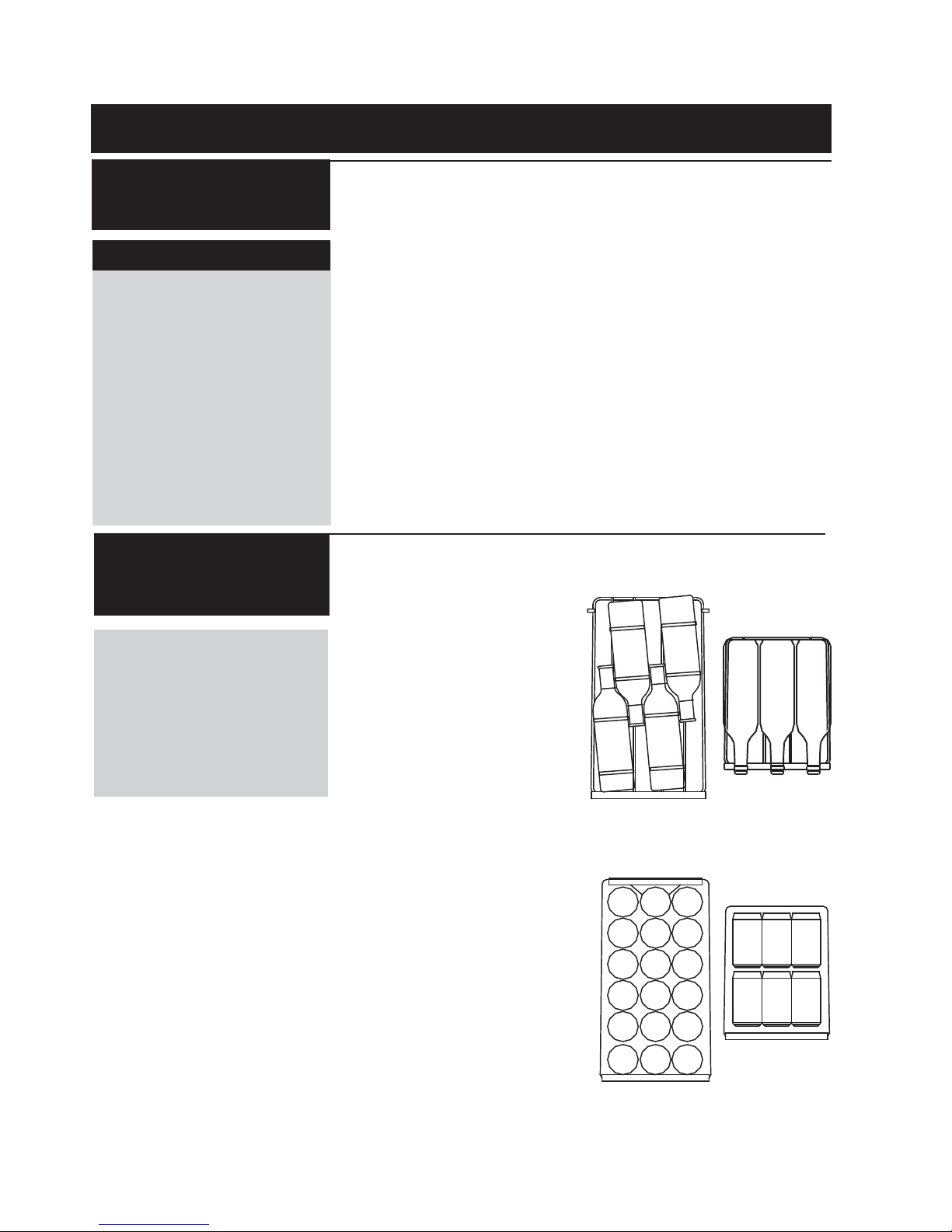

The *maximum capacity of

(750ml)

60(350ml) beverage cans.

wine bottles and

*When stocked as per

instructions

Fig

Function

instruction

NOTE

In order to achive the

maximum storage capacity

of 27 bottles and 60 beverage

cans.

It will be necessary to

position the bottles alternately

on the upper six shelves,as

shown in Fig A. This will allow

for the storage of four(4)

750ml bottles per rack in each

of the top six shelves,and

three(3) bottles on the bottom

shelf for a total storage capacity

of 27 wine bottles.

2) Left˖

It will be necessary to

on the upper three shelves,as

shown in Fig B. This will allow

for the storage of eighteen(18)

of the top three shelves,and

six (6) cans on the bottom

shelf for a total storage capacity

of 60 beverage cans.

Fig

If too many bottles/cans are put in at

once or the door has not been

closed tightly, the unit will display the

is normal please wait 5 minutes

after you close the door and

“HI” will disappear.

It is normal that the cabinet

shows “HI” or “LO” from time to time,

long time, you can restart the unit by

unplugging it. If the problem

occurs once again after restart,

previous temperature settings, and when the power is restored the

cabinet temperature will go back to the same setting temperature as

before.

If inner temperature is higher than 74°F(23°C), “HI” is shown

in the display panel, and the alarm will sound after one hour.

It informs you that the inner temperature is too high, please

check the reason. If inner temperature is lower than 34°F(1°C),

“LO” is shown in the display panel and the alarm will turn on.

position the cans alternately

350ml cans per shelf in each

the DBC7070BLSST is 27

In the event of a power interruption the beverage center can remember the

•• TTeemperature Memory Functionmperature Memory Function

•• TTeemperature Alarm Functionmperature Alarm Function

If the door is not closed completely the alarm will sound after

loss of cold energy.

• Door Ajar Alarm Function

1) Right˖

5 minutes. Please close the door completely to avoid the

please contact customer service.

If it occurs frequently or lasts for a

"HI" signal in the display panel. This

Operating Instructions

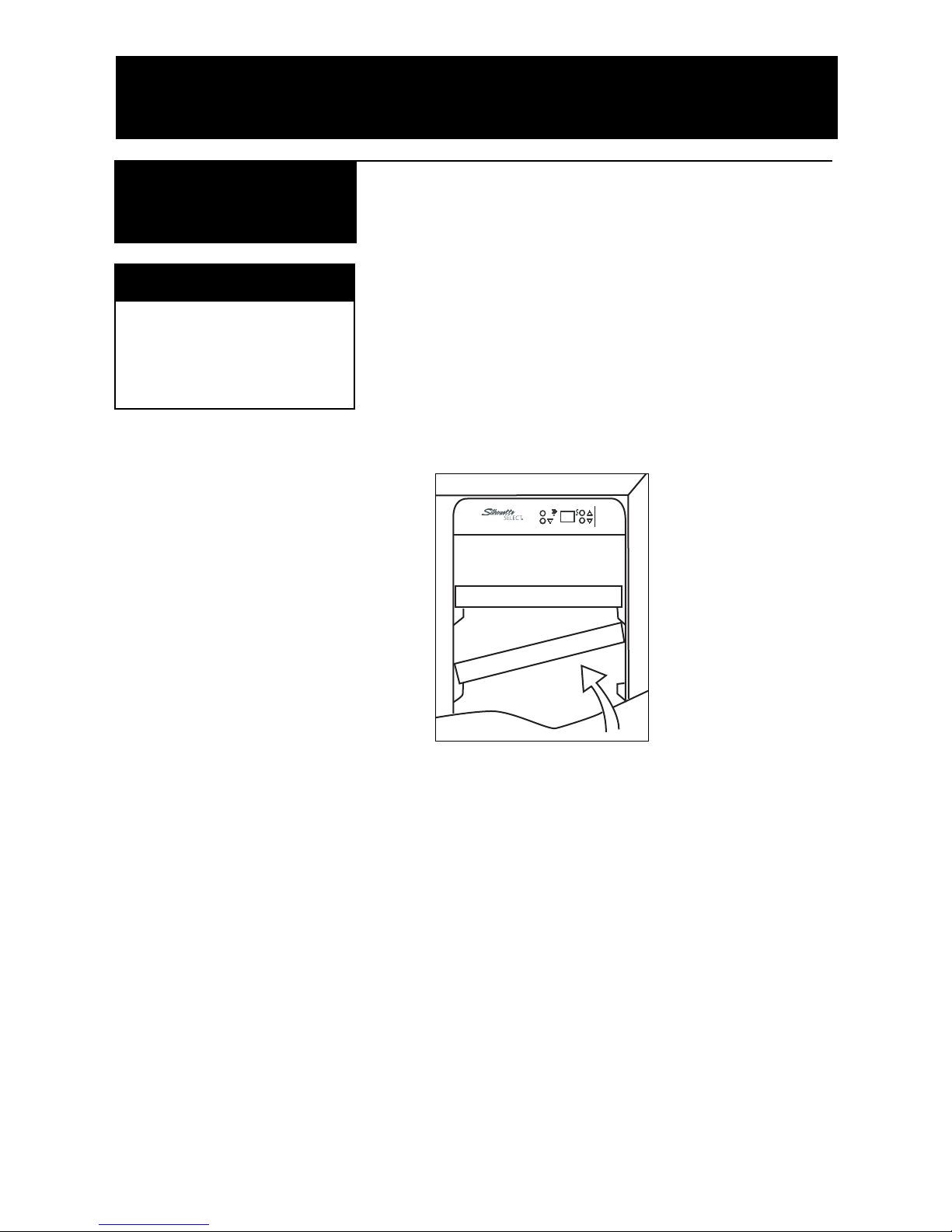

Shelf Instructions To remove a shelf from its

locked position, tilt the shelf as

shown in Fig C and pull out-

ward.

To re-install, ensure the shelf

is resting securely on the sup-

port brackets and push shelf

inward until it locks into place.

Please Note: The bottom

shelf in both cabinets are not

secured in place (locked). Do

not attempt to pull on the shelf

when it is stocked or when the

humidor is filled.

Fig C

IMPORTANT!

Do not cover shelves with

aluminum foil or any other

material that will prevent

adequate air circulation

within the cabinet.

Installation Instructions - Intergrated Application

Preparing the

Enclosure

FOR YOUR SAFETY:

While performing

installations described in

this section, gloves, safety

glasses or goggles should

be worn.

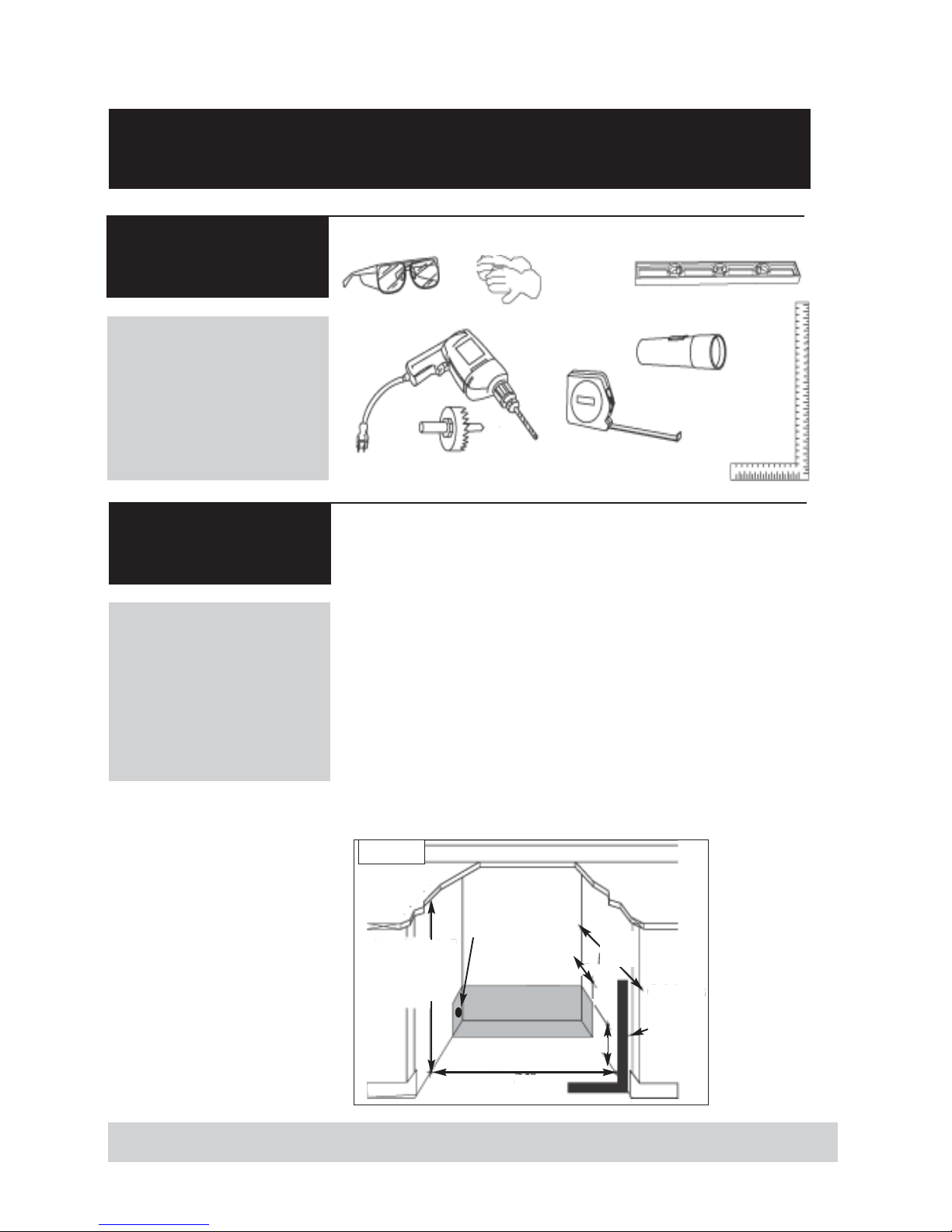

Tools You Will

Need

Carpenters

Square

Measuring

Tape

Level

Drill & Hole Saw set

Gloves

Safety Glasses

Flashlight

Electrical Requirements:

The appliance must be

connected to an individual

properly grounded electrical

outlet, protected by a 15 or

20 ampere circuit breaker or

time delay fuse.

•It is recommended that you do

not install the Beverage Center into a

corner (i.e. directly beside a

wall). This is to allow the door(s)

to have a greater then 90° open-

ing swing. A limited door swing

will prevent the shelves from

sliding out as intended, and may

lead to damaging the door gas-

ket(s).

•The rough cabinet opening

must be on a level floor area

wide. The opening should also

•The electrical outlet may be

positioned from within either

side of the adjacent cabinetry, or

the rear of the shaded area (as

shown in Fig C.).

Important: If the electrical out-

let is surface mounted (not flush)

within the enclosure, the depth

requirment for the installation be

affected.

•If the electrical outlet is located

inside the adjacent cabinetry, cut

a 1-1/2” diameter hole to admit

Electrical Access

Fig C

Cabinets

Square

and

Plumb

Underside of

Countertop to

Floor

24”

6”

2”Min*

1-1/2” dia. hole

*if electical outlet

is in adjacent

cabinetry

*The listed depth requirment for the installation is assuming that the electrical outlet is located in the adja-

cent cabinetry or is flush mounted in the rear wall, not surface mounted in the enclosure.

and at least 26” deep by 24”

have a height of at least 34-7/16"

34-7/16" From

the power cord. If the cabinet wall is

metal, the hole edge must be covered

with a bushing or grommet.

26”

Table des matières

Langues :

Autres manuels Danby Refroidisseur de vin

Danby

Danby DKC644BLS Manuel utilisateur

Danby

Danby Silhouette Select DWC153BLSST Manuel utilisateur

Danby

Danby DWC398KD1BSS Manuel utilisateur

Danby

Danby DWC106A1BPDD Instructions de montage

Danby

Danby DWC350DLP Manuel utilisateur

Danby

Danby DWC113BLSDB Manuel utilisateur

Danby

Danby Millenium DWC440BL Manuel utilisateur

Danby

Danby DWC518BLS Manuel utilisateur

Danby

Danby DWC044 Manuel utilisateur

Danby

Danby Millenium DWC172BL Manuel utilisateur

Danby

Danby Silhovette DWC656BLS Manuel utilisateur

Danby

Danby Silhouette Select DWC153BLSST Manuel utilisateur

Danby

Danby Silhouette DWC282BL Manuel utilisateur

Danby

Danby DWC375BLP Manuel utilisateur

Danby

Danby Silhouette DWC276BLS Manuel utilisateur

Danby

Danby Designer DWC610BL Manuel utilisateur

Danby

Danby DWC040A3BSSDD Manuel utilisateur

Danby

Danby Silhouette Select DBC162BLSST Manuel utilisateur

Danby

Danby Millenium DWC172BL Manuel utilisateur

Danby

Danby DWC1132BLSDB Instructions de montage

Danby

Danby DWC310 Manuel utilisateur

Danby

Danby Designer DWC286BLS Manuel utilisateur

Danby

Danby Millenium DWC450W Manuel utilisateur

Danby

Danby DWC310BLSDD Instructions de montage

Manuels Refroidisseur de vin populaires d'autres marques

U-Line

U-Line Echelon Wine Captain 2075WC Manuel du propriétaire

Haier

Haier WS50GA Manuel utilisateur

Cavist

Cavist 62 Manuel utilisateur

Kenmore

Kenmore 461.99130 Manuel utilisateur

Miele

Miele KWT 6422 iG Manuel utilisateur

Caple

Caple Wi6128 Manuel utilisateur

Avanti

Avanti WC1001 Manuel utilisateur

Frigidaire

Frigidaire FFWC38F6LS Manuel utilisateur

Titan

Titan TT-W2454SZ Manuel d'installation

Klarstein

Klarstein Botella 166 Uno Manuel utilisateur

Costway

Costway FP10130WL Manuel utilisateur

Lemair

Lemair LWC59 Manuel utilisateur

Haier

Haier JC-125GEA Manuel utilisateur

Caple

Caple WCi46B Manuel utilisateur

Climadiff

Climadiff CLI24 Guide rapide

Viking

Viking VCWB301LSS Manuel utilisateur

Caple

Caple WC6511 Manuel utilisateur

Vinvautz

Vinvautz VZ08BHK Manuel utilisateur
