Electric Wall Oven
Model: EB-67ERC-8BC54T
Dalxo User Instructions
Thank you for purchasing Dalxo Single Wall Oven, please read the instruction carefully
and obey all safety messages. If you have any questions, please do not hesitate to contact
our service team: support@dalxo.com
Table of Contents
Important Safety Instructions...........................................................................................1
Instructions..........................................................................................................................3
Parts List..............................................................................................................................4
Wall Oven Installation........................................................................................................7
How To Use..........................................................................................................................12
Cleaning & Maintenance....................................................................................................17
Troubleshooting...................................................................................................................19
Warranty..............................................................................................................................20
1
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical shock, injury to persons, or damage when
using the oven, follow basic precautions, including the following:
■ DO NOT TOUCH HEATING ELEMENTS OR
INTERIOR SURFACES OF OVEN –Heating
elements may be hot even though they are dark in
color. Interior surfaces of an oven become hot
enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials
contact heating elements or interior surfaces of oven
until they have had sufficient time to cool. Other
surfaces of the oven may become hot enough to
cause burns –among these surfaces are oven vent
openings and surfaces near these openings, oven
doors, and windows of oven doors.
For self-cleaning ovens:
■ Do Not Clean Gasket –The gasket is essential
for a good seal. Care should be taken not to rub,
damage, or move the gasket.
■ Do Not Use Oven Cleaners –No commercial
oven cleaner or oven liner protective coating of any
kind should be used in or around any part of the
oven.
■ Clean Only Parts Listed in Manual.
■ Before Self-Cleaning the Oven –Remove
broiler pan and other utensils.
■ Proper Installation – Be sure the oven is properly
installed and grounded by a qualified technician.
■ Never Use the Oven for Warming or Heating the Room.
■ Do Not Leave Children Alone – Children should not be
left alone or unattended in area where oven is in use. They
should never be allowed to sit or stand on any part of the
oven.
■ Wear Proper Apparel – Loose-fitting or hanging garments
should never be worn while using the oven.
■ User Servicing – Do not repair or replace any part of the
oven unless specifically recommended in the manual. All
other servicing should be referred to a qualified technician.
■ Storage in Oven – Flammable materials should not be
stored in an oven.
■ Do Not Use Water on Grease Fires – Smother fire or
flame or use dry chemical or foam-type extinguisher.
■ Use Only Dry Potholders – Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let
potholder touch hot heating elements. Do not use a towel or
other bulky cloth.
■ Use Care When Opening Door – Let hot air or steam
escape before removing or replacing food.
■ Do Not Heat Unopened Food Containers – Build-up of
pressure may cause container to burst and result in injury.
■ Keep Oven Vent Ducts Unobstructed.
■ Placement of Oven Racks –Always place oven racks
in desired location while oven is cool. If rack must be
moved while oven is hot, do not let potholder contact hot
heating element in oven.
When you first turn on the oven, you may notice a strong, unpleasant odor. This is caused by the adhesive used on the
insulation boards around the oven heating up for the first time, and it is a normal occurrence. If you experience this,
it's important to be patient and wait until the smoke dissipates before placing any food in the oven. Additionally, never
roast or bake anything directly on the oven base, as this could damage the appliance.
Good Habits of Safety Awareness
This device is designed for non-professional home use, and its functions should not be changed at will.
The electrical system of this equipment can only be used safely if it is properly connected to a standard
grounding.
The manufacturer is not responsible for any damage caused by incorrect installation or unreasonable use of the
equipment.
2
The following items are potentially dangerous and appropriate measures must be taken to
keep children and the disabled out of the reach:
Controls and general appliances;
Package, such as bags, polystyrene, nails, etc;
Electrical appliances when they are no longer in use, especially potentially hazardous
parts.
Warning: Accessible parts become hot during use. To avoid burns and scalds,
keep children away.The product will become hot in use, attention should be
taken to avoid touching the heating elements in the oven.
Avoid the Following Situations:
The wet body comes into contact with the appliance.
Using the appliance when barefoot.
Pull the appliance or power cord to unplug it from the power outlet.
Block ventilation or cooling slots.
Allow power supply cords of small appliances to contact with the hot parts of the unit.
Exposing the appliance to atmospheric agents , like rain or sun.
Use the oven as storage.
Use flammable liquids near the appliance.
Using adapters, multiple sockets or extension cords;
Attempt to install or repair equipment without the assistance of qualified personnel.
Important: Do not use harsh abrasive cleaners or sharp metal scrapers to
clean glass door, as they will scratch the surface to shatter.
3
Electric Wall Oven
Model: EB-67ERC-8BC54T
Parameter Specifications
The oven runs on a single-phase alternating current with a voltage of 220-240V and a frequency
of 50/60Hz. It is important to check the nameplate specifications affixed to the machine before
installing the equipment to ensure it is compatible with your power supply.
Dimensions Cut Out Voltage/
Frequency Material Capacity Rated
Power
Max
Temp Timer
23.4’’L*23.4”
W’’*21.5’’H
22.05’’L*23.19
W’’*21.65’’H
220V
50/60Hz
Stainless Steel
finish+Tempered
Glass door
2.6 cu. ft 2700-
3220W 440℉120
Mins
Introduction
4

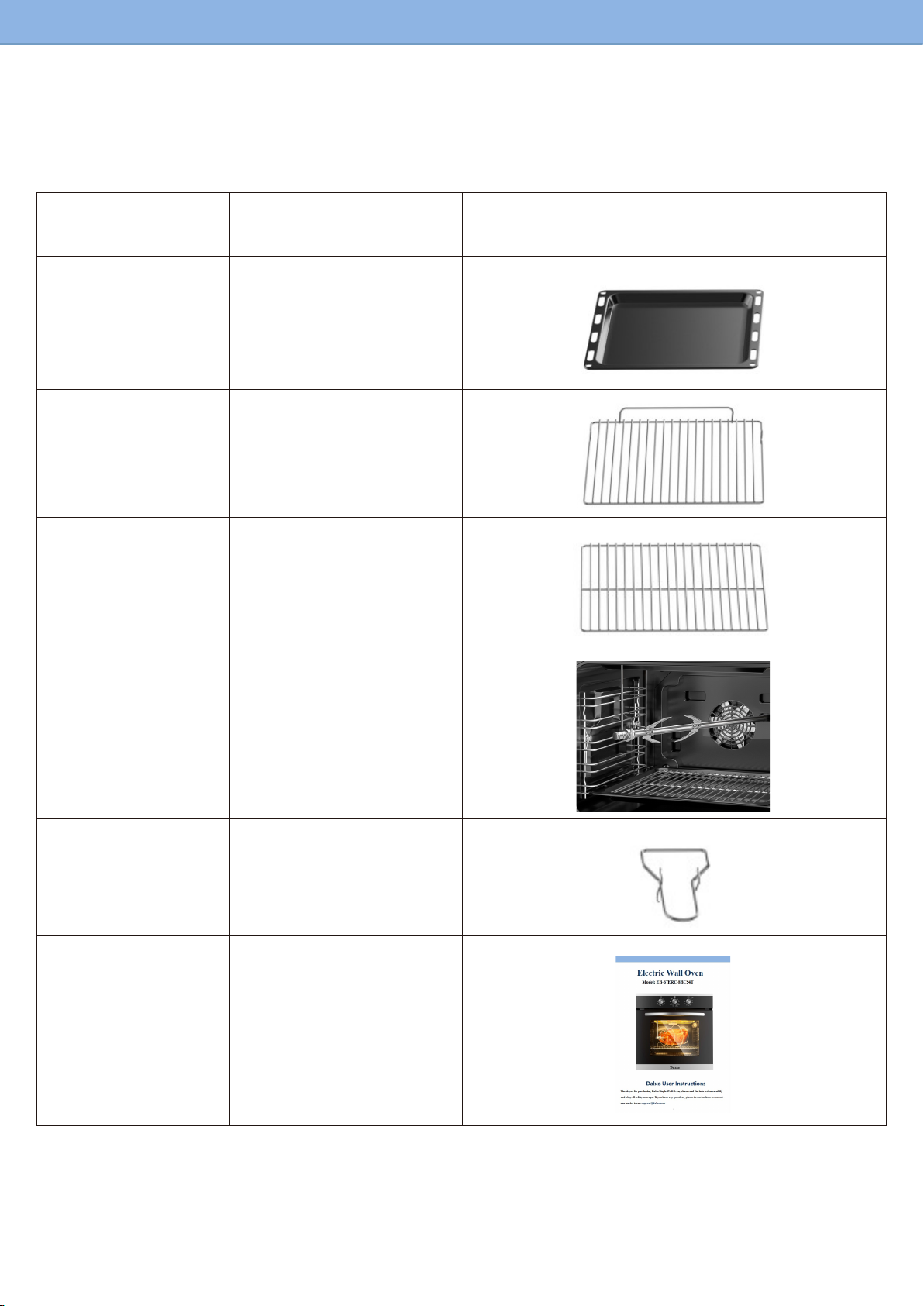

Parts List
Parts Number Picture
Tray 1pcs
Large Grill 1pcs
Small Grill 1pcs
Rotisserie Fork 1pcs
Pull Handle 1pcs
Manual 1pcs
5

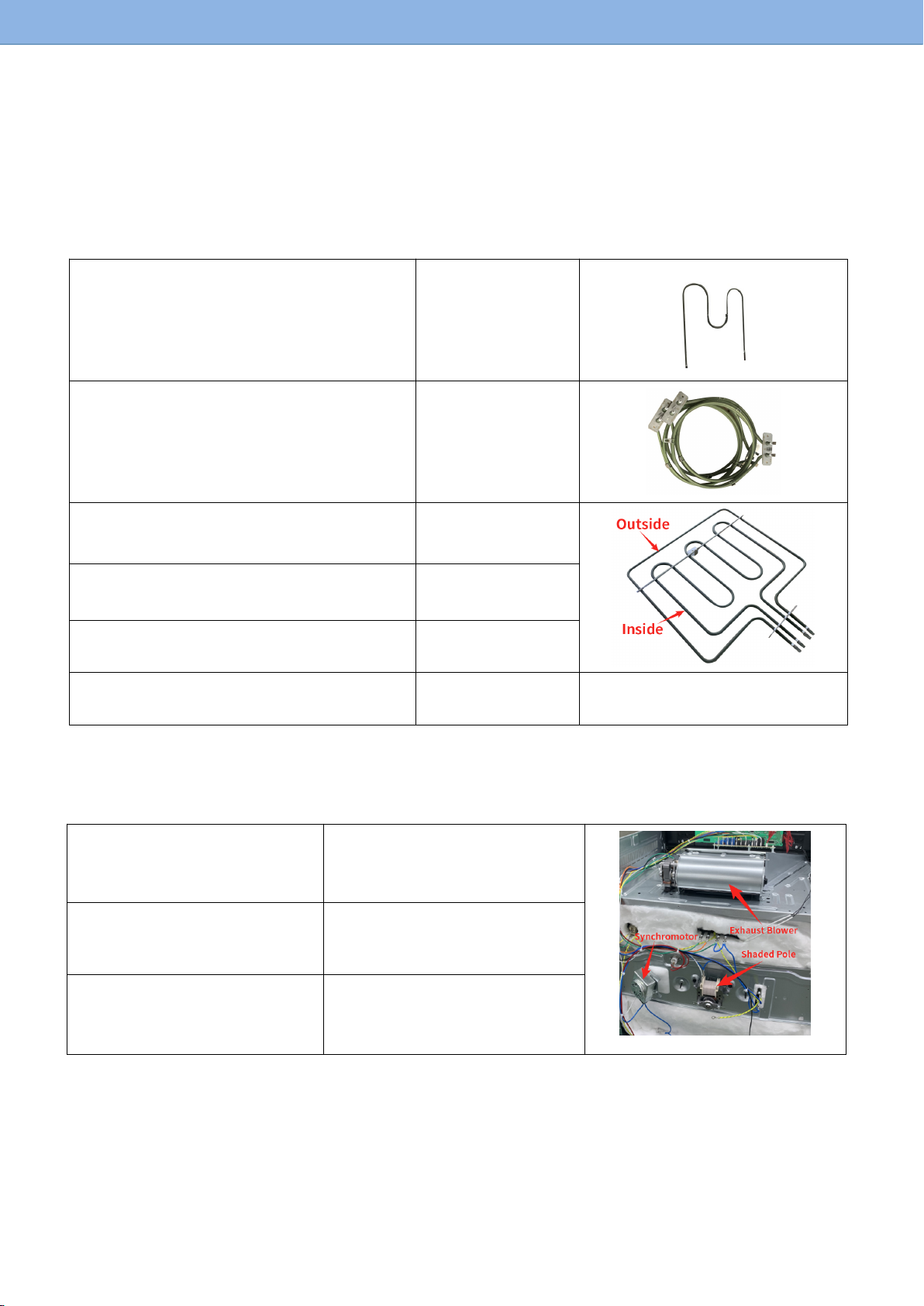

Power of the Heating Tube & Light
Lower Heating El. 1200W
Circle Heating El. 2100W
Total Upper Heating El. 1000W+1900W
Upper Inside Heating El. 1900W
Upper Outside Heating El. 1000W
Oven Light 15W /
Power of the Heating Motor
Synchronmotor 4W
Shaded Pole 25W
Exhaust Blower 15W
6
A qualified electrician must be contacted in the following cases:
Install according to the instructions;
When you are unsure about operating the equipment;
The power socket needs to be replaced when it is not compatible with the electrical plug.
Service Center authorized by the manufacturer must be contacted in the following:
If there is any doubt about the integrity of the device after it has been removed from the
packaging;
If the power cord is damaged or needs to be replaced;
If the equipment occurs to malfunctions or operates abnormally, you need to ask for
original spare parts.
Useful tips about using oven:
Only use the appliance to cook food instead other;
Check the condition of the appliance after it has been unpacked;
Before cleaning or performing maintenance, if the device is not operating properly, unplug
it from the power source;
Turn off and unplug oven when it’s not in use for a long time;
Remove the cookware from the oven by cooking pull handle or gloves;
Always grasp the oven door in the centre because the ends may be hot due to the escape of
hot air;
Make sure the control knob is at the "o" setting when the device is not in use;
7
Wall Oven Installation
IMPORTANT: Unplug your oven before performing installation or maintenance. Installation
should be performed by a qualified professional according to the instructions. Please note that the
manufacturer is not take responsible for any damage to persons, animals or objects resulting from
incorrect installation.
Opening Dimensions (General tolerance)
Width: 22.05 +/- 0.05”
Height: 23.19 +0-0.09”

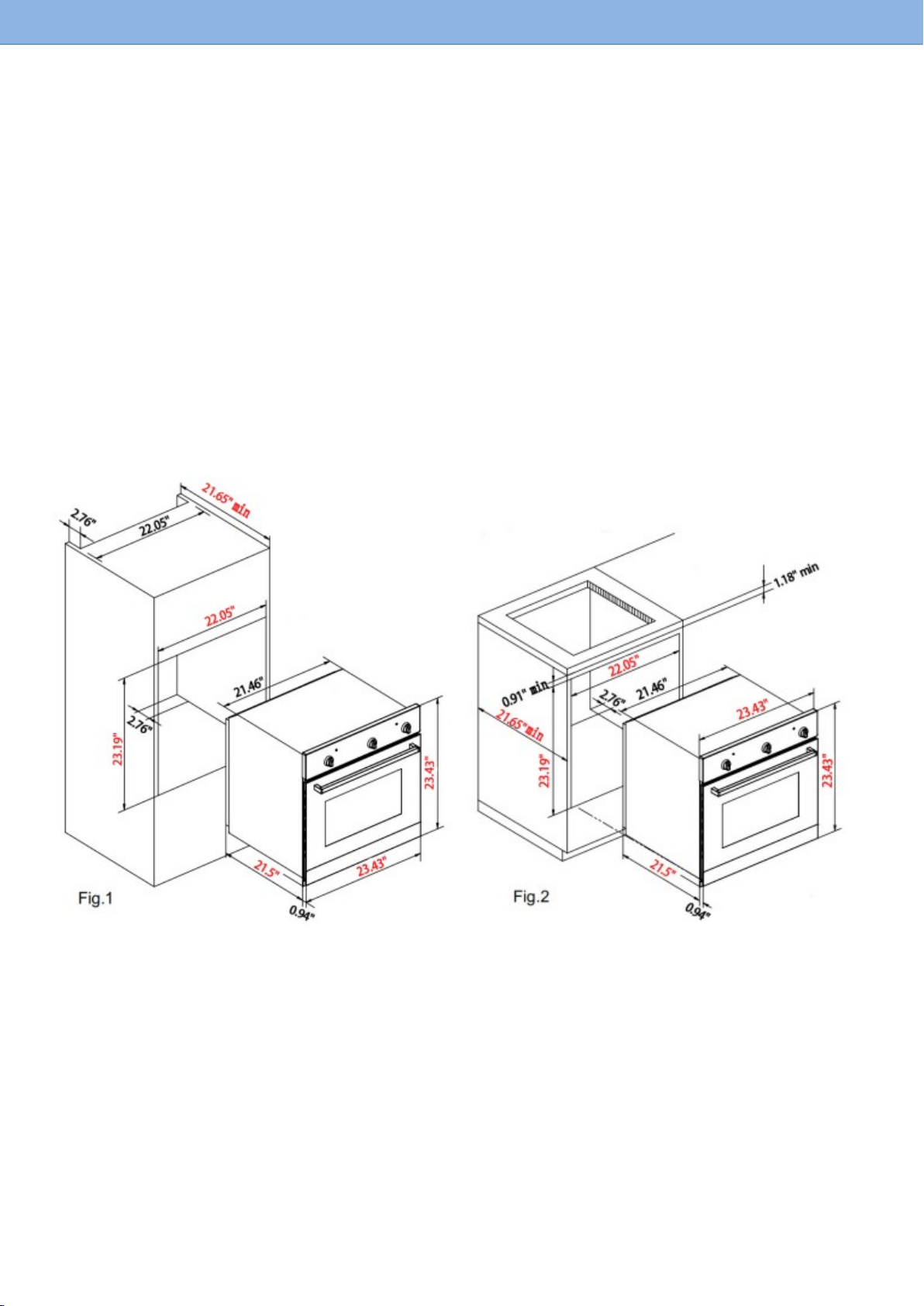

NOTE: When pairing the oven with a stovetop, it is important to carefully follow the instructions
provided in the booklet accompanying the other appliance. Additionally, for efficient air
circulation, the oven should be installed according to the recommended dimensions. (Fig. 1).
8

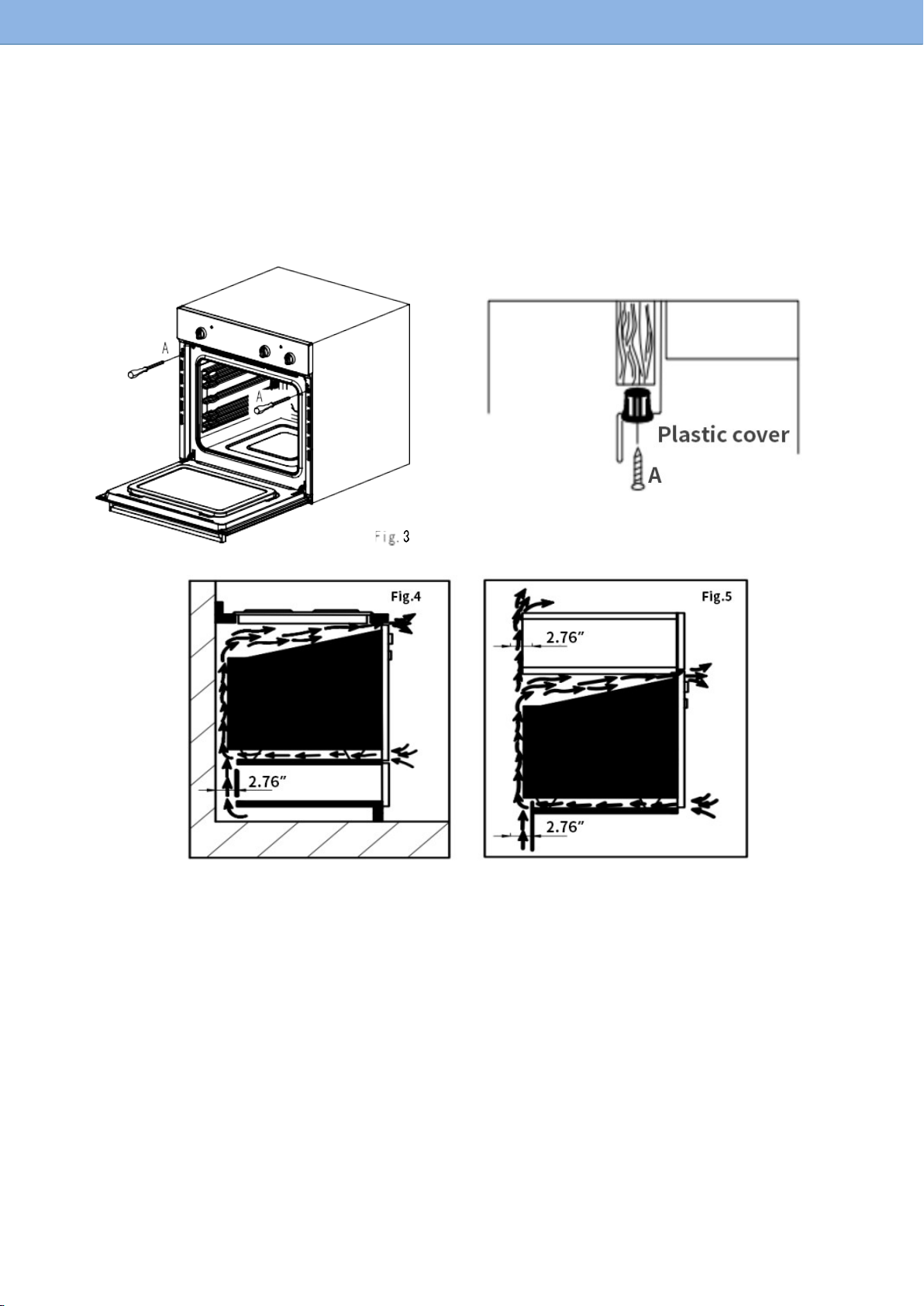

There are 2 holes in the door frame to mount the oven to other surroundings (under the bench or
above other machines) by screwing and inserting the plastic cover (Fig. 3).
The rear panel of the machine must be removed to allow free circulation of air. There should be
at least 2.76” (70 mm) of clearance behind the panel where the oven is installed (Fig.4-5).
To ensure proper functionality of a built-in oven, it's important to have the right type of
cabinets in place. The adjacent furniture panels must be heat-resistant, particularly if they
are made of wood veneers. The adhesive used should be able to withstand temperatures of
at least 250°F (120°C) to prevent deformation or detachment. By taking these precautions,
you can ensure your oven operates effectively and safely.
For your safety, do not touch electrical components once the device is installed.
All protective parts provided cannot be fixed in a non-removable way.
