Daktronics SW-2000 Series Manuel utilisateur

LED Aquatics/Track Displays

SW-2000 Series

10" Numeric Digit

Display Manual

ED-12156 Rev 14 –15 May 2015

331 32nd Ave PO Box 5128 Brookings SD 57006

Tel 605-697-4036 or 877-605-1115 Fax 605-697-4444

www.daktronics.com/support

ED-12156

P1153

Rev 14 –15 May 2015

DAKTRONICS, INC.

the publisher assumes no responsibility for errors or omissions. No part of this book covered

by the copyrights hereon may be reproduced or copied in any form or by any means –

graphic, electronic, or mechanical, including photocopying, taping, or information storage and

retrieval systems –without written permission of the publisher.

OmniSport®and All Sport® are registered trademarks of Daktronics, Inc. Omega®,

FinishLynx®, and Colorado Time System®are registered trademarks of their owners.

Please fill in the information below for your display; use it for reference

when calling Daktronics for assistance.

Display Serial No. ______________________________________

Display Model No. ______________________________________

Date Installed__________________________________________

Table of Contents i

Table of Contents

Section 1: Introduction........................................................................................ 1

1.1 How to Use This Manual...............................................................................1

1.2 Product Overview..........................................................................................2

1.3 Model Identification ......................................................................................3

1.4 System Layout ...............................................................................................4

Section 2: Mechanical Installation ....................................................................... 5

2.1 Installing Caption Modules............................................................................5

2.2 Mounting Digit Modules ...............................................................................6

Vertical Wall Mounting, Indoors or Outdoors........................................6

Horizontal Wall Mounting, Indoors Only...............................................7

Corner-Mounting Modules, Indoors Only..............................................7

Beam Mounting Digit Modules, Outdoors .............................................8

Section 3: Electrical Installation ........................................................................ 11

3.1 Grounding Indoor Displays .........................................................................11

3.2 Connecting Power and Signal, Indoor Displays...........................................11

3.3 Internal Cable Routing.................................................................................12

3.4 Grounding Outdoor Displays.......................................................................13

3.5 Installing Load Centers, Outdoor Displays..................................................13

3.6Setting Driver Addresses and Protocols ......................................................14

Address settings, LED Fixed-Digit Aquatics/Track Displays...............14

Section 4: Maintenance and Troubleshooting .................................................... 21

4.1 Cabinet Specifications .................................................................................21

4.2 LED Driver..................................................................................................21

4.3 Segmentation ...............................................................................................22

4.4 Component Location and Access.................................................................22

4.5 Schematic.....................................................................................................22

4.6 Troubleshooting...........................................................................................23

4.7 Replacement Parts List ................................................................................23

Appendix A: Reference Drawings .......................................................................... 25

Appendix B: Daktronics Warranty and Limitation of Liability .............................. 27

Introduction 1

Section 1: Introduction

This manual explains the installation and maintenance of Daktronics SW-2000 Series

Aquatics/Track Displays. The SW-2000 Series includes models in the 2000, 2100, and the

2200 lines.

1.1 How to Use This Manual

The manual is divided into four main sections:

Introduction offers basic explanations and provides a brief overview.

Mechanical Installation details techniques for proper mounting of the

scoreboards.

Electrical Installation shows the method for completing power and control

signal connections to the scoreboards.

Maintenance and Troubleshooting highlights some common problems

encountered with scoreboard operation.

If you have questions regarding the safety, installation, operation, or service of these

systems, contact Daktronics. Customer Service Help Desk telephone numbers are

listed on the cover page of this manual.

Important Safeguards

1. Read and understand these instructions before installing the display.

2. Do not drop the controller or allow it to get wet.

3. Disconnect power to the display when the unit is not in use.

4. Disconnect power when servicing the display.

5. Do not modify the scoreboard structure or attach any panels or coverings to

the scoreboard without the express written consent of Daktronics, Inc.

Figure 1 illustrates Daktronics drawing numbering system. Daktronics identifies

individual engineering drawings by the drawing number (7087-P08A-69945 in the

example), located in the lower right corner of the drawing. This manual refers to

drawings by the last set of numbers and the letter preceding them. An example would

be Drawing A-69945.

Reference drawings are grouped and inserted in alphanumeric order in Appendix A.

Figure 1: Daktronics Drawing Label

2 Introduction

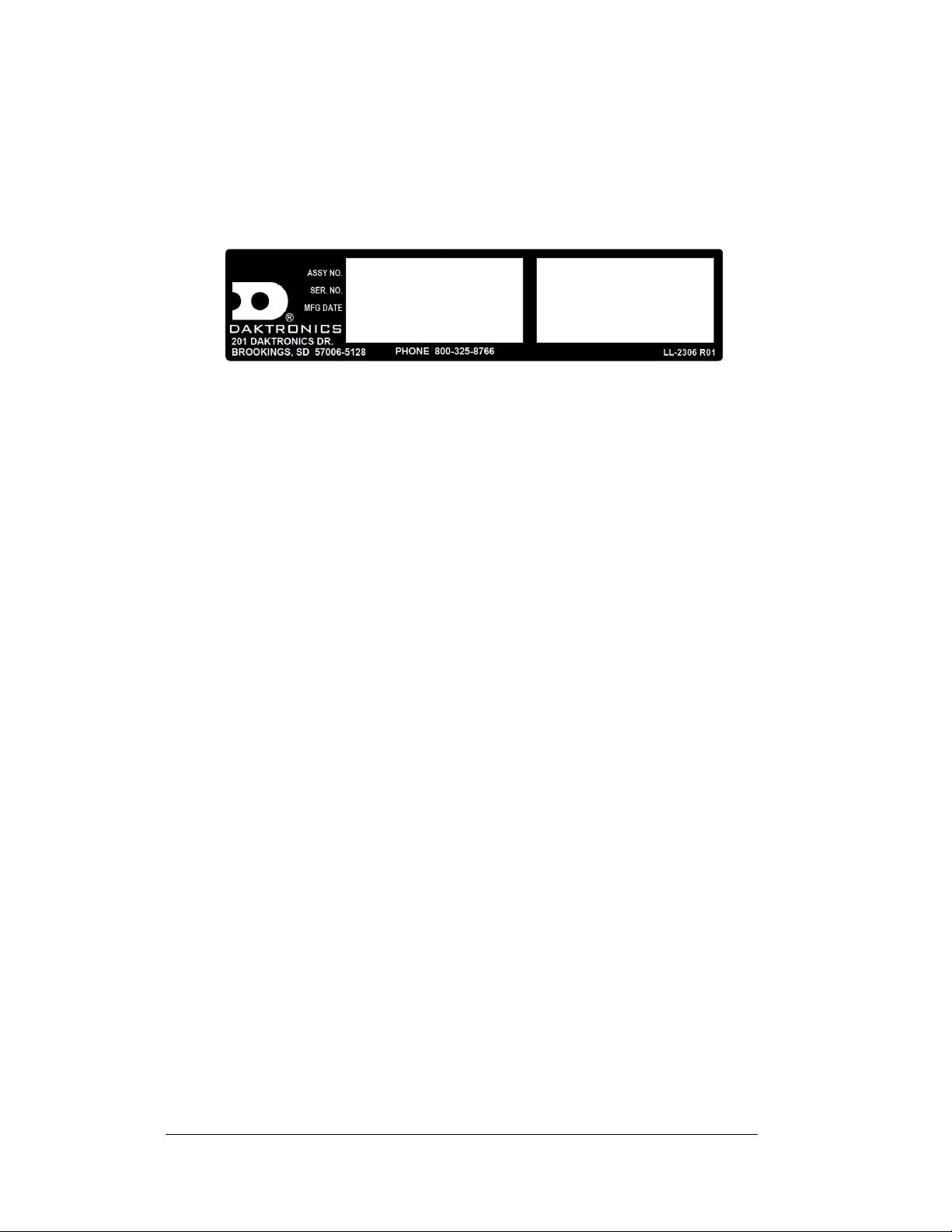

The serial and model number of a Daktronics scoreboard can be found on the ID

label, located on the display. This label will be similar to the one shown in Figure 2.

When calling Daktronics Customer Service, please have this information available to

ensure that your request is serviced as quickly as possible. For future reference, write

your scoreboard model number, serial number, and installation date on the front page

of this manual.

1.2 Product Overview

Daktronics SW-2000 aquatics and track scoreboards belong to a system of modular

scoring and timing displays designed to offer easy installation, readability, and

reliability. Microprocessor control assures consistent operation and accuracy.

Based on one- and two-line modules, the SW-2000 displays feature easy-to-read 10"

digits in red and amber. Light emitting diodes, or LEDs, illuminate the display.

(LEDs are tiny, solid-state components that use a semiconductor chip to transform

electrical current into light; they are high-intensity, low-energy lighting units.)

Outdoor displays use red LEDs. Indoor boards are available with all red digits or

with an amber and red digit combination.

Because the series is based on a modular design, several display combinations are

available. Some scoreboards utilize a single module, while others consist of multiple

modules arranged either vertically or horizontally. As noted previously, the

scoreboards are manufactured for both indoor and outdoor settings, with 120 V and

230 V versions to accommodate both American and European use.

Caption modules are units without power that attach to the top or bottom of a digit

module. They hold changeable captions for several events. The SW-2000 assemblies

may also contain optional ad panels, which can be attached to the board to display

team logos, sponsor names or other advertising messages.

The aluminum cabinets have a 1’2" display face and measure 6" deep by 9’0" long.

The front face of the two-line module cabinet is 2’4". The single-line and two-line

modular units have mounting weights of 45 and 80 pounds, respectively.

Figure 2: Scoreboard ID Label

Introduction 3

1.3 Model Identification

Reference Drawings:

Module Model Descriptions & LED

Aquatics/Track Displays .................................Drawing A-129639

Model Configurations, Swim/Track Timing ............Drawing A-130101

Model Configurations, Aquatics Multisport.............Drawing A-130102

SW-2000 Series scoreboards are differentiated by their model numbers. The digit

modules are the building blocks for each new system:

SW-2001 and SW-2002 are timing building blocks, featuring one- and two-

line LED displays showing lane, place and time information.

SW-2003 is the multisport timing module, incorporating an extra digit into

its display for judged events such as diving.

SW-2004 –2009 are auxiliary display modules.

SW-2004 and SW-2005 are one- and two-line scoring displays.

SW-2006 is a one-line event/heat display.

SW-2007 is a one-line record timer.

SW-2008 is a one-line lengths/record timer.

SW-2009 is an add-on module for additional scoring.

SW-21xx displays are the models created by using different combinations of

the SW-2001 and SW-2002 modules.

SW-22xx multisport displays are created by adding the SW-2003 and

additional caption panels to the SW-2001 and SW-2002 modules.

Daktronics scoreboards and timing displays are identified by model numbers: TN-

2007, for example, designates a specific tennis scoreboard. The two-letter prefix for

displays in this manual, SW-, identifies aquatics/track scoreboards.

Model numbers for both the SW-2100 and SW-2200 series typically reflect the

number of lanes –six, eight, or 10 –in swimming or track events served by that

display. For example, the SW-2106 refers to a six-lane aquatics display. Model SW-

2108 is a swimming/track timing display, used for events with up to eight lanes.

The last two numbers comprising SW-2100 and SW-2200 model names differentiate

between vertical and horizontal displays. Horizontal model numbers add 10 to the

number of lanes. For example, SW-2218 is a multisport, horizontal display used for

events with up to eight lanes. SW-2120 refers to a 10-lane horizontal aquatics display.

All displays also carry a two-number suffix, which refers to indoor/outdoor status and

power supply: -13 and -14 are indoor displays, 120 V and 230 V respectively; -11

and -12 are outdoor displays, 120 V and 230 V. To correctly identify your display,

refer to Drawings A-129639, A-130101 and A-130102.

4 Introduction

1.4 System Layout

Reference Drawings:

Track Scbd. w/ Finish LynxTM,

in Press Box....................................................Drawing A-104300

Equipment Layout, 50 M Swim,

Course #1, indeck...........................................Drawing A-121329

Riser Diagram with OmniSport®6000 ...................Drawing A-130977

Riser Diagram with OmniSport 1000.....................Drawing A-130978

Riser Diagram with CTS®Timer............................Drawing B-130979

Riser Diagram with Ares or OSM6 ........................Drawing A-131037

Riser Diagram with All Sport®4000.......................Drawing A-131226

System Riser; Track Scbd w/

Omni 2000, in field..........................................Drawing A-186548

The Daktronics SW-2000 Series LED displays can be interfaced with a variety of

timers. Identify your timer and refer to the appropriate layout diagram. The drawing

has information on how to connect your timer and any restrictions for your model

scoreboard and controller. Refer to the operator's controller manual for information

on setup, operation, and scoreboard output.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Daktronics Moniteur

Daktronics

Daktronics VF-2400 GEN 2 Series Manuel utilisateur

Daktronics

Daktronics VF-23 Series Manuel utilisateur

Daktronics

Daktronics LARGE MATRIX GALAXY GS6 Series Manuel utilisateur

Daktronics

Daktronics WP-2103 Manuel utilisateur

Daktronics

Daktronics VF-23 Series Manuel utilisateur

Daktronics

Daktronics Galaxy AF-3400 Series Manuel utilisateur

Daktronics

Daktronics Galaxy AF-3400 Series Manuel utilisateur

Daktronics

Daktronics 65 Series Manuel utilisateur

Daktronics

Daktronics Galaxy AF-3112 Primary Series Manuel utilisateur

Daktronics

Daktronics Large Matrix Galaxy GT6X Series Manuel utilisateur

Daktronics

Daktronics 6000 Series Manuel utilisateur

Daktronics

Daktronics Galaxy AF-3200 Series Manuel utilisateur

Daktronics

Daktronics FUELIGHT FL-3000 Series Guide de l'utilisateur

Daktronics

Daktronics Large Matrix Galaxy GT6X Series Guide de l'utilisateur

Daktronics

Daktronics 4203 Series Manuel utilisateur

Daktronics

Daktronics DF-2300 Series Manuel utilisateur

Daktronics

Daktronics COLORSMART BB-3102 Manuel utilisateur

Daktronics

Daktronics PPX-1050 Series Manuel utilisateur

Daktronics

Daktronics Galaxy AF-3400 Series Manuel utilisateur

Daktronics

Daktronics PC-2002 Manuel utilisateur

Daktronics

Daktronics DSF-600 Series Manuel utilisateur

Daktronics

Daktronics SLD 110 Manuel utilisateur

Daktronics

Daktronics VANGUARD VL-3500 Series Manuel utilisateur

Daktronics

Daktronics SMALL MATRIX GALAXY GS6 Series Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
