Installation Manual

SAFETY CONSIDERATIONS

Read these SAFETY CONSIDERATIONS for Installation carefully before installing the

Daikin ENVi thermostat kit. After completing the installation, make sure that the unit

operates properly.

Instruct the customer on how to operate and maintain the thermostat. Inform

customers that they should store this Installation Manual with the Operation

Manual for future reference.

Always use a licensed installer or contractor to install this product. Improper

installation can result in electric shock or re.

All electrical work must be carried out in accordance with local, state and national

regulations.

Safely dispose all packing materials in accordance with federal/state/local laws or

ordinances.

Only qualied personnel must carry out the installation work. Installation must be

done in accordance with this installation manual. Improper installation may result

in electric shock or re.

Use only specied accessories and parts for installation work. Failure to use

specied parts may result in electric shock, re or the unit failing.

Make sure that all wiring is secured, that specied wires are used, and that no

external forces act on the terminal connections or wires. Improper connections or

installation may result in re.

Before touching electrical parts, turn o the unit.

Do not touch the thermostat with wet ngers. Touching the thermostat with wet

ngers can cause electric shock.

Do not allow children to play with the unit to prevent injury.

Do not install the thermostat in the following locations:

- Where a mineral oil mist or oil spray or vapor is produced, for example, in a

kitchen.

- Where corrosive gas such as sulfurous acid gas is produced.

- Near machinery emitting electromagnetic waves. Electromagnetic waves may

disturb the operation of the control system and cause the unit to malfunction.

Disposal of the unit must be done in accordance with the relevant local, state and

national regulations.

CONTENTS

GETTING STARTED 1

Welcome 1

Contractor Thermostat Registration 1

Package Contents 2

Before You Begin 3

Daikin System Compatibility 4

Approvals 4

FCC Compliance Statement 4

Specications 6

Wiring Requirements 7

INSTALLING THE THERMOSTAT KIT 7

Step 1. Power O the Daikin Indoor Unit 7

Step 2. Position and Wire the DPCA 8

Step 3. Install the Daikin ENVi Thermostat 10

Step 4. Connect the Thermostat Wiring 12

Step 5. Mount the DPCA 13

Step 6. Power On Daikin Indoor Unit 13

NAVIGATING THE MENUS 14

Using the Navigation Buttons 14

CONFIGURING THE DAIKIN ENVi THERMOSTAT 16

Preferences 16

Installation Settings 17

Reset Equipment or User Settings 22

Rebooting the Daikin ENVi thermostat 23

Sensors 23

CONFIGURING REMINDERS AND ALERTS 24

List of Alerts 26

ONE-YEAR LIMITED WARRANTY 27

GETTING STARTED

Welcome

The Daikin ENVi thermostat kit has been

designed to ensure the installation process

is simple and ecient. This step-by-step

Installation Manual will walk you through all

aspects of the installation.

To ensure an on-going service relationship with

your customers, please register all of your Daikin

ENVi thermostats in your Contractor Portal.

Contractor Thermostat

Registration

Use the serial number sticker (included in

package) for Contractor Portal registration.

Package Contents

The Daikin ENVi thermostat kit includes the

following items.

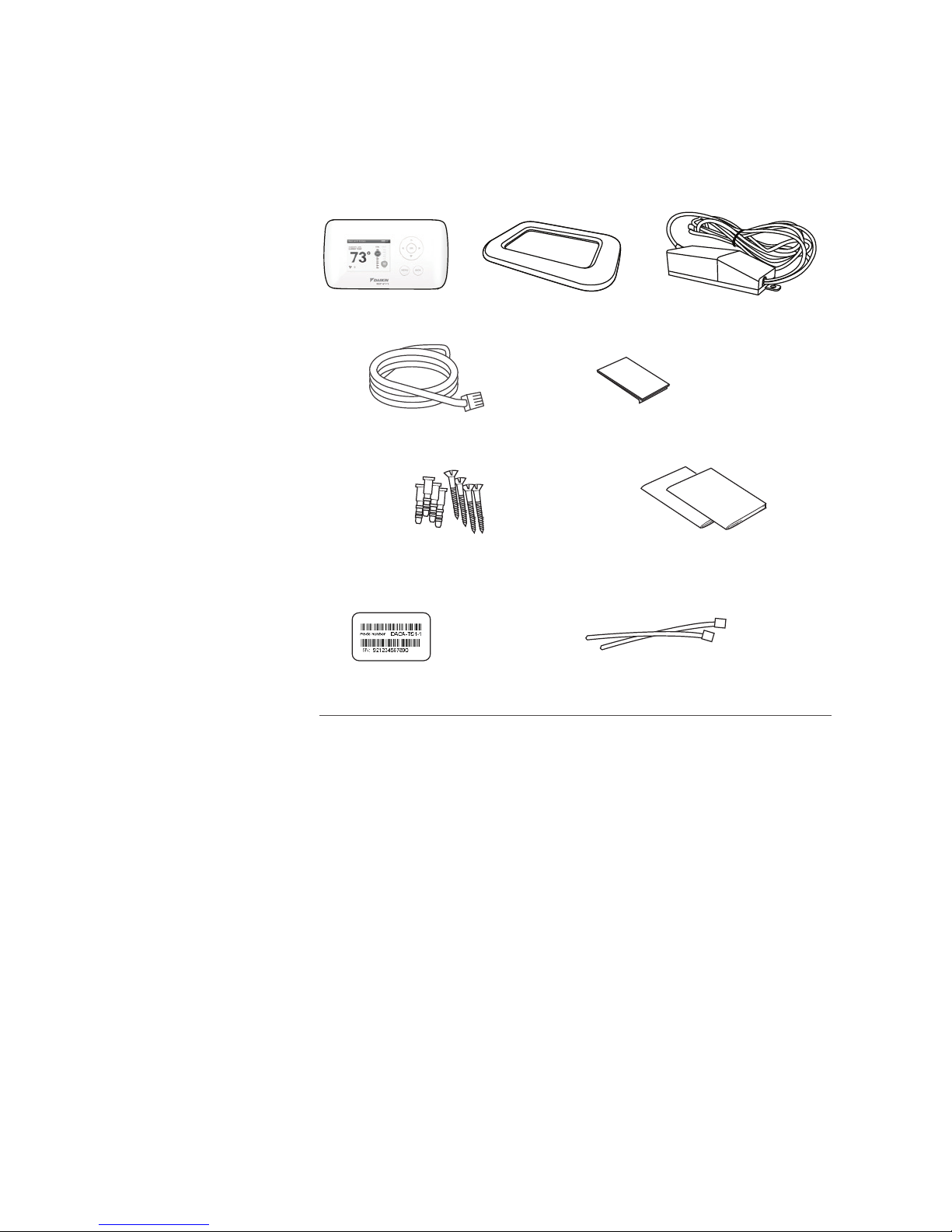

ENVi Thermostat Trim Plate DPCA with Power Cable

Double-Sided Adhesive

Screws (4) and

Drywall Anchors (4)

Serial Number

Sticker

Wire Ties (2)

Installation and User

Manuals

Wiring Harness

Daikin ENVi Thermostat Kit Contents

Before You Begin

This product is intended to be installed by

trained service professionals.

This manual explains the procedures for

installing the Daikin ENVi thermostat.

Please read it carefully before beginning the

installation.

For information on how to operate the Daikin

ENVi thermostat, please see the Daikin ENVi User

Manual.

The Daikin ENVi thermostat is designed to be

mounted on the homeowner’s wall in a

convenient location.

Caution: Disconnect electric power to the

Daikin Indoor Unit before installing this

product. Failure to do so could result in electric

shock and/or equipment damage.

All wiring must conform to your local electrical

code.

Mercury Notice: This product does not contain

mercury. If you are replacing a product that

does contain mercury, contact your local

waste-management authority for disposal

instructions. Do not discard the old product in

the regular trash.

Daikin System Compatibility

The Daikin ENVi thermostat is designed to

operate only with the Daikin Heat Pump and

Cooling Indoor Units where the BRC944 wired

remote controller is applicable.

The Daikin ENVi thermostat supports the

following systems:

Single-Split system

Multi-Split system (2 to 8 ports)

SkyAir FTXS Indoor Units

Applicable indoor unit models:

FTXS, FTXN (09/12 requires KRP980B1

interface adapter), CTXS, FDXS and CDXS

The Daikin ENVi thermostat can also support a

single-stage auxiliary heater.

Any auxiliary heater that requires air ow

from the Indoor Unit should be equipped

with an air ow switch for safety. The indoor

unit fan could stop during the defrost cycle

and other situations.

Approvals

This product was designed and built in

accordance to RoHS directive 2002/95/EC and

contains no hazardous substances as dened by

this directive.

FCC Compliance Statement

This equipment has been tested and found to

comply with the limits for Class B digital devices,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation. This equipment generates, uses,

and can radiate radio frequency energy and,

if not installed and used in accordance with

the instruction manual, may cause harmful

interference to radio communications. However,

there is no guarantee that interference will

not occur in a particular installation. If this

equipment does cause harmful interference

to radio or television reception, which can be

determined by turning the equipment o and

on, the user is encouraged to try to correct the

interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the

equipment and receiver.

Connect the equipment to an outlet on a

dierent circuit from the receiver.

Consult the dealer or an experienced radio/

TV contractor for help.

To satisfy FCC/IC RF exposure safety

requirements, a separation distance of 8 inches

(20 cm) or more should be maintained between

this device and persons. To ensure compliance,

operation at closer than this distance is not

allowed.

FCC ID: XF6-RS91-10N1102

IC: 8407A-91101102

Warning: Changes or modications not expressly

approved by Daikin AC (Americas) could void

the user’s authority to operate the equipment.

Specications

Thermostat Specications

Temperature

Heat Set Point Range 45 to 80 °F (7 to 26.5 °C)

Cool Set Point Range 65 to 95 °F (18.5 to 35 °C)

Display Range 40 to 100 °F (5 to 37 °C)

Sensitivity +/- 1 °F (0.5 °C)

Operating Range 32 to 130 °F (0 to 55 °C)

Humidity

Display Range 20 to 90% R.H.

Sensitivity +/- 5% R.H.

Operating Range 5 to 95% R.H.

(non-condensing)

Auxiliary Heater Relay

Electric Rating 30VAC, Max Current 3A

Dimensions

Width x Height x Depth 5.5 x 3.25 x 1 inches

(139.5 x 82.5 x 25 mm)

Power

24 VAC (3VA maximum) (provided from the DPCA)

DPCA Specications

Temperature

Operating Range 20 to 140 °F (–7 to 60 °C)

Humidity

Operating Range 5 to 95% R.H.

(non-condensing)

Dimensions

Width x Height x Depth 4.7 x 2.0 x 1.3 inches

(120 x 50 x 32.5 mm)

Power

208/230 VAC (provided from Indoor Unit)
