Dahua Technology DH-IPC-HUM8441-E1-L4 Manuel utilisateur

Pinhole Network Camera

Quick Start Guide

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.2

Quick Start Guide

Foreword

General

This manual introduces the installation and operation of the network camera. Read carefully before

using the device, and keep the manual safe for future reference.

Safety Instructions

The following signal words might appear in the manual.

Signal Words Meaning

Indicates a medium or low potential hazard which, if not avoided,

could result in slight or moderate injury.

Indicates a potential risk which, if not avoided, could result in

property damage, data loss, lower performance, or unpredictable

result.

Provides additional information as a supplement to the text.

Revision History

Version Revision Content Release Time

V1.0.2 Updated the information of dimensions. July 2022

V1.0.1 Updated the information of installation. June 2022

V1.0.0 First release. September 2021

Privacy Protection Notice

As the device user or data controller, you might collect the personal data of others such as their face,

fingerprints, and license plate number. You need to be in compliance with your local privacy

protection laws and regulations to protect the legitimate rights and interests of other people by

implementing measures which include but are not limited: Providing clear and visible identification

to inform people of the existence of the surveillance area and provide required contact information.

About the Manual

●The manual is for reference only. Slight differences might be found between the manual and the

product.

●We are not liable for losses incurred due to operating of the product in ways that are not in

compliance with the manual.

●The manual will be updated according to the latest laws and regulations of related jurisdictions.

For detailed information, see the paper User Manual, use our CD-ROM, scan the QR code or visit

our official website. The manual is for reference only. Slight differences might be found between

the electronic version and the paper version.

●All the designs and software are subject to change without prior written notice. Product updates

might result in some differences appearing between the actual product and the manual. Please

Quick Start Guide

contact customer service for the latest program and supplementary documentation.

●There might be deviations in the description of the technical data, functions and operations, or

errors in the print. If there is any doubt or dispute, we reserve the right of final explanation.

●Upgrade the reader software or try other mainstream reader software if the manual (in PDF

format) cannot be opened.

●All trademarks, registered trademarks and the company names in the manual are the properties

of their respective owners.

●Please visit our website, contact the supplier or customer service if any problems occur while

using the device.

●If there is any uncertainty or controversy, we reserve the right of final explanation.

Quick Start Guide

III

Important Safeguards and Warnings

This section introduces content covering the proper handling of the device, hazard prevention, and

prevention of property damage. Read carefully before using the device, and comply with the

guidelines when using it.

Transportation Requirements

●Transport the device under allowed humidity and temperature conditions.

●Pack the device with packaging provided by its manufacturer or packaging of the same quality

before transporting it.

●Do not place heavy stress on the device, violently vibrate or immerse it in liquid during

transportation.

Storage Requirements

●Store the device under allowed humidity and temperature conditions.

●Do not place the device in a humid, dusty, extremely hot or cold site that has strong

electromagnetic radiation or unstable illumination.

●Do not place heavy stress on the device, violently vibrate or immerse it in liquid during storage.

Installation Requirements

●Strictly comply with the local electrical safety code and standards, and check whether the power

supply is correct before operating the device.

●Please follow the electrical requirements to power the device.

◇When selecting the power adapter, the power supply must conform to the requirements of

ES1 in IEC 62368-1 standard and be no higher than PS2. Please note that the power supply

requirements are subject to the device label.

◇We recommend using the power adapter provided with the device.

●Do not connect the device to two or more kinds of power supplies, unless otherwise specified, to

avoid damage to the device.

●The device must be installed in a location that only professionals can access, to avoid the risk of

non-professionals becoming injured from accessing the area while the device is working.

Professionals must have full knowledge of the safeguards and warnings of using the device.

●Do not place heavy stress on the device, violently vibrate or immerse it in liquid during

installation.

●An emergency disconnect device must be installed during installation and wiring at a readily

accessible location for emergency power cut-off.

●We recommend you use the device with a lightning protection device for stronger protection

Quick Start Guide

against lightning. For outdoor scenarios, strictly comply with the lightning protection

regulations.

●Ground the function earthing portion of the device to improve its reliability (certain models

are not equipped with earthing holes). The device is a class I electrical appliance. Make sure that

the power supply of the device is connected to a power socket with protective earthing.

●The dome cover is an optical component. Do not directly touch or wipe the surface of the cover

during installation.

Operation Requirements

●The cover must not be opened while the device is powered on.

●Do not touch the heat dissipation component of the device to avoid the risk of getting burnt.

●Use the device under allowed humidity and temperature conditions.

●Do not aim the device at strong light sources (such as lamplight, and sunlight) when focusing it,

to avoid reducing the lifespan of the CMOS sensor, and causing overbrightness and flickering.

●When using a laser beam device, avoid exposing the device surface to laser beam radiation.

●Prevent liquid from flowing into the device to avoid damage to its internal components.

●Protect indoor devices from rain and dampness to avoid electric shocks and fires breaking out.

●Do not block the ventilation opening near the device to avoid heat accumulation.

●Protect the line cord and wires from being walked on or squeezed particularly at plugs, power

sockets, and the point where they exit from the device.

●Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the

lens.

●The dome cover is an optical component. Do not directly touch or wipe the surface of the cover

when using it.

●There might be a risk of electrostatic discharge on the dome cover. Power off the device when

installing the cover after the camera finishes adjustment. Do not directly touch the cover and

make sure the cover is not exposed to other equipment or human bodies

●Strengthen the protection of the network, device data and personal information. All necessary

safety measures to ensure the network security of the device must be taken, such as using strong

passwords, regularly changing your password, updating firmware to the latest version, and

isolating computer networks. For the IPC firmware of some previous versions, the ONVIF

password will not be automatically synchronized after the main password of the system has been

changed. You need to update the firmware or change the password manually.

Maintenance Requirements

●Strictly follow the instructions to disassemble the device. Non-professionals dismantling the

device can result in it leaking water or producing poor quality images. For a device that is

required to be disassembled before use, make sure the seal ring is flat and in the seal groove

when putting the cover back on. When you find condensed water forming on the lens or the

desiccant becomes green after you disassembled the device, contact after-sales service to

replace the desiccant. Desiccants might not be provided depending on the actual model.

Quick Start Guide

●Use the accessories suggested by the manufacturer. Installation and maintenance must be

performed by qualified professionals.

●Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the

lens. When it is necessary to clean the device, slightly wet a soft cloth with alcohol, and gently

wipe away the dirt.

●Clean the device body with a soft dry cloth. If there are any stubborn stains, clean them away

with a soft cloth dipped in a neutral detergent, and then wipe the surface dry. Do not use volatile

solvents such as ethyl alcohol, benzene, diluent, or abrasive detergents on the device to avoid

damaging the coating and degrading the performance of the device.

●The dome cover is an optical component. When it is contaminated with dust, grease, or

fingerprints, use degreasing cotton moistened with a little ether or a clean soft cloth dipped in

water to gently wipe it clean. An air gun is useful for blowing dust away.

●It is normal for a camera made of stainless steel to develop rust on its surface after being used in

a strong corrosive environment (such as the seaside, and chemical plants). Use an abrasive soft

cloth moistened with a little acid solution (vinegar is recommended) to gently wipe it away.

Afterwards, wipe it dry.

Quick Start Guide

Table of Contents

Foreword ........................................................................................................................................................................................................I

Important Safeguards and Warnings............................................................................................................................................ III

1 Introduction ............................................................................................................................................................................................ 1

1.1 Cable ................................................................................................................................................................................................ 1

1.2 Connecting Alarm Input/Output........................................................................................................................................ 3

2 Network Configuration...................................................................................................................................................................... 5

2.1 Initializing the Camera............................................................................................................................................................ 5

2.2 Changing the Device IP Address ........................................................................................................................................ 6

2.3 Logging in to Web Page ......................................................................................................................................................... 6

3 Installation............................................................................................................................................................................................... 7

3.1 Packing List................................................................................................................................................................................... 7

3.2 Dimensions ................................................................................................................................................................................... 7

3.3 Installing the Camera............................................................................................................................................................... 9

Quick Start Guide

1 Introduction

1.1 Cable

Waterproof all the cable joints with insulating tape and waterproof tape to avoid water damage and

prevent short circuits from occurring. For details, see the FAQ manual.

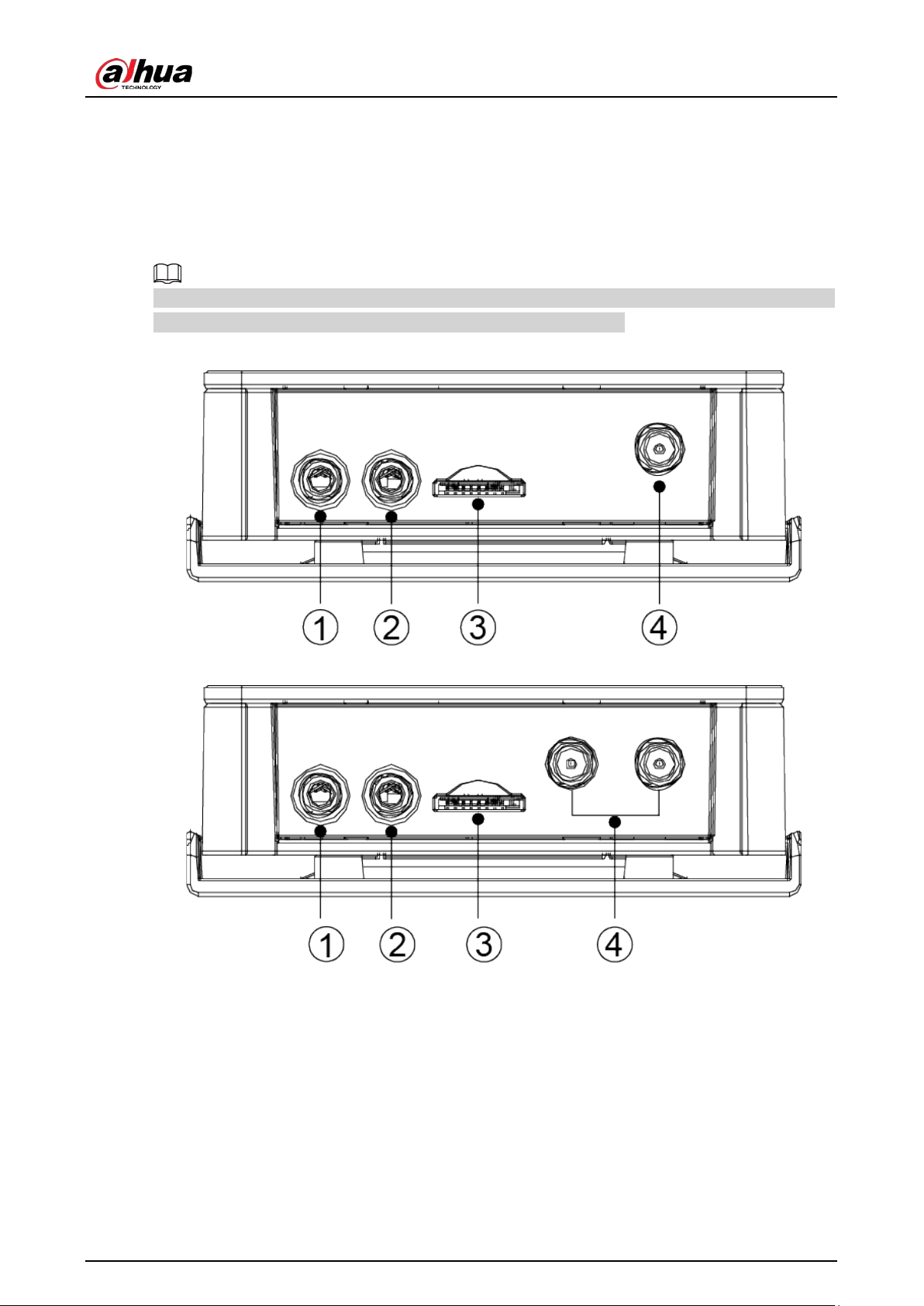

Figure 1-1 Front panel (1-channel)

Figure 1-2 Front panel (2-channel)

Quick Start Guide

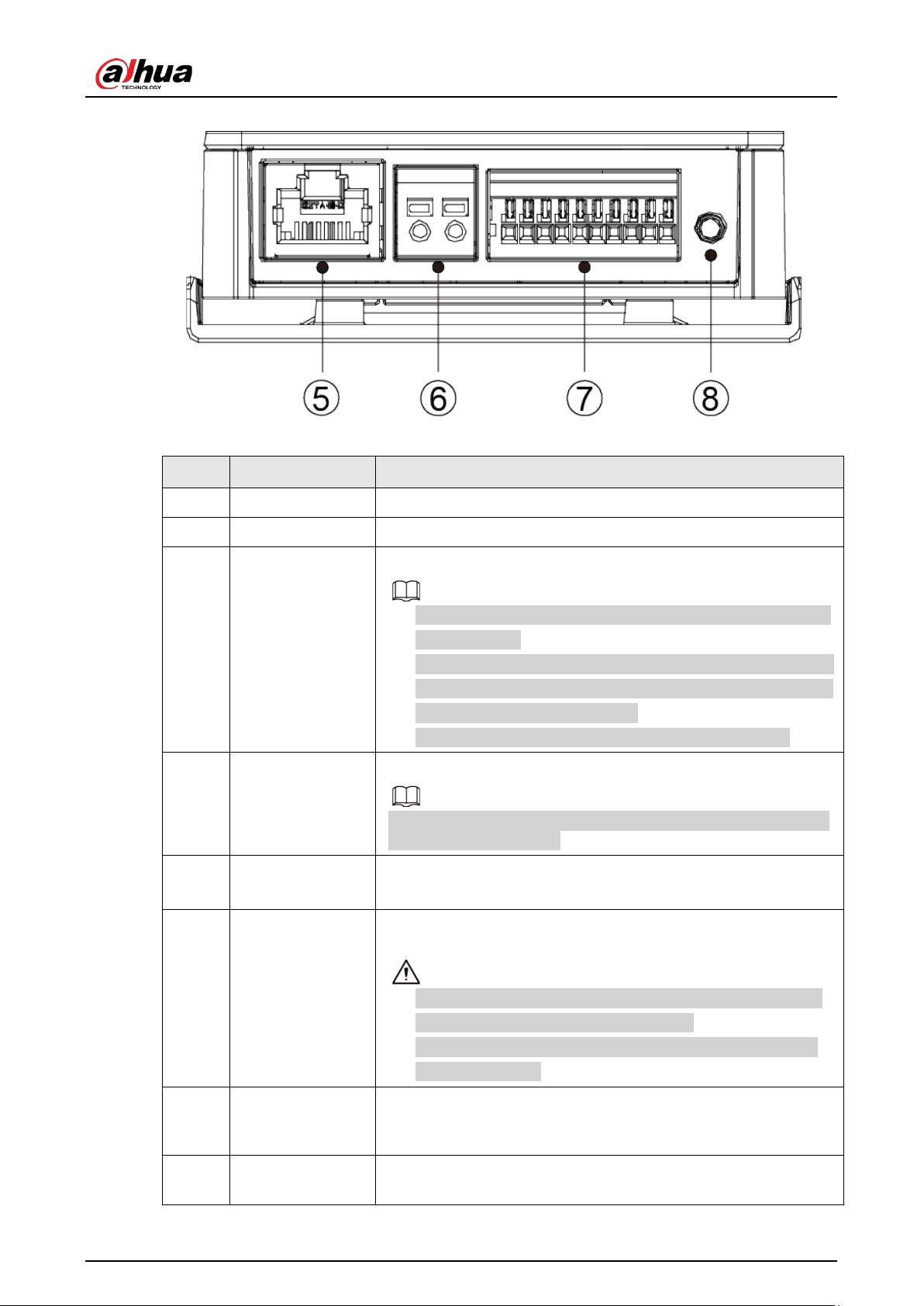

Figure 1-3 Back panel

Table 1-1 Port information

No. Port Name Description

1 Audio output Connects to speakers to output audio signal.

2 Audio input Connects to sound pickups to receive audio signal.

3 SD card slot

Install SD card for data storage.

●When installing SD card, make sure that the SD card is not in

read-only state.

●When removing SD card, make sure that the SD card is not in

read-write state; otherwise the data in SD card might be lost,

and the card might be damaged.

●Before hot swapping the SD card, stop recording video.

4 Video input

Connect to the lens to get the image data.

1-channel lens is available on select models, and the lens should

be purchased separately..

5 Ethernet port

●Connects to network with network cable.

●Provides power to the device with PoE.

6 12 VDC Power

Inputs 12 VDC power. Be sure to supply power as instructed in the

manual.

●Power on after connecting the lens to the back-end device;

otherwise the device might be damaged.

●Device abnormality or damage might occur if power is not

supplied correctly.

7 Alarm I/O

Includes alarm signal input and output ports, and the number of

I/O ports might vary on different devices. For detailed

information, see Table 1-2.

8 Reset button Press the button for 10 s, the configuration can be restored to

factory default settings.

Quick Start Guide

Table 1-2 Alarm information

Port Port Name Description

I/O Port

G (adjacent to TX)/TX/RX

G is the ground terminal of RS-232 serial port; TX is

the sending terminal of RS-232 serial port; RX is the

receiving terminal of RS-232 serial port.

IN1/IN2 Alarm input port, receives on-off signal of external

alarm source.

Different alarm input devices connect to the same

ground terminal, which is G (adjacent to IN2).

G (adjacent to IN2)

N1/C1/N2/C2

Alarm output port, outputs alarm signal to alarm

device.

N1 and C1 with the same number should be used

together when connecting to alarm output device.

N2 and C2 are reserved ports.

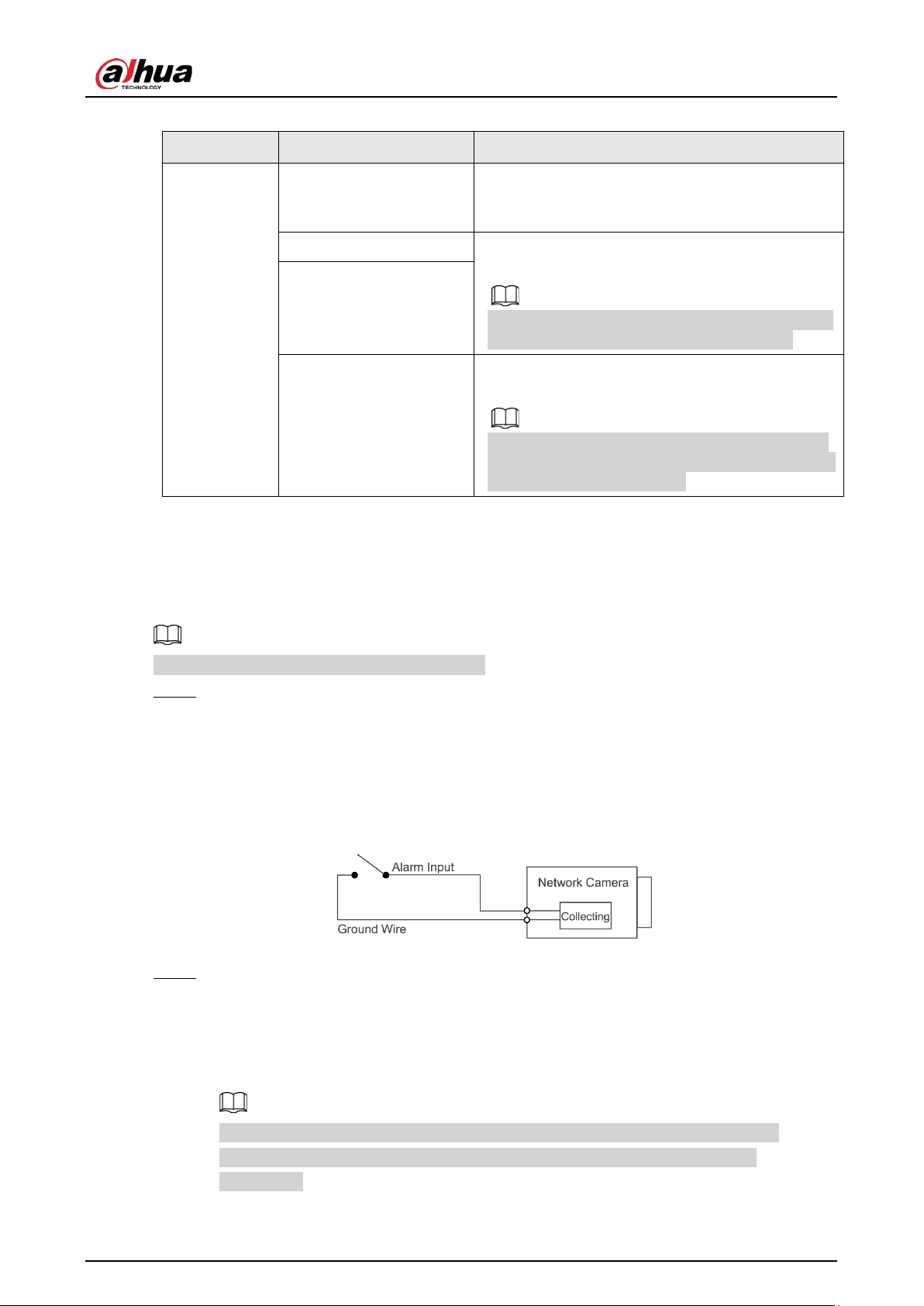

1.2 Connecting Alarm Input/Output

The camera can connect to external alarm input/output devices through digital input/output.

Alarm input/output is available on select models.

Step 1 Connect the alarm input device to the alarm input end of the I/O port.

Device collects different status of alarm input port while the input signal is idling and

being grounded.

●Device collects logic "1" when the input signal is connected to +3 V to +5 V or idling.

●Device collects logic "0" when the input signal is grounded.

Figure 1-4 Alarm input

Step 2 Connect the alarm output device to the alarm output end of the I/O port. The alarm output

is a relay switch output, which can only connect to OUT_GND alarm devices.

ALARM_OUT(ALARM_COM) and ALARM_OUT_GND(ALARM_NO) constitute a switch that

provides the alarm output.

The switch is open normally and closed when there is an alarm output.

ALARM_COM might represent ALARM_C or C; ALARM_NO might represent N. The

following figure is for reference only, please refer to the actual device for more

information.

Table des matières

Autres manuels Dahua Technology Caméra de sécurité

Dahua Technology

Dahua Technology HDW2831TM-AS-S2 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-PDW5849-A180-E2-ASTE Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HUM4231S-L4-0280B-S3 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW3841E-AS-0280B-S2 Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-HFW3849T1P-AS-PV-S3-BLK Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW5449T1-ASE-D2-0360B Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW1230S1-0280B-S5 Manuel utilisateur

Dahua Technology

Dahua Technology 50230UNI Manuel utilisateur

Dahua Technology

Dahua Technology WizMind IPC-PDBW82041-B360 Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-HDBW3466FP-AS-AUS Manuel utilisateur

Dahua Technology

Dahua Technology ANPR Manuel utilisateur

Dahua Technology

Dahua Technology 50430IC Manuel utilisateur

Dahua Technology

Dahua Technology 52C230UNI Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-HDBW3541FP-AS-M-0280B Manuel utilisateur

Dahua Technology

Dahua Technology PC-EBW81242 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW2431DG-4G Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDW2249TM-S-IL-0280B Manuel utilisateur

Dahua Technology

Dahua Technology HAC-HDBW2401RP-Z Manuel utilisateur

Dahua Technology

Dahua Technology HFW5241E-ZE Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HDBW3441F-AS-M-0360B Manuel utilisateur

Dahua Technology

Dahua Technology NAVIGATOR X1550 Manuel utilisateur

Dahua Technology

Dahua Technology 50430UN Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW81230E-Z Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDBW1531E-S-0280B Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
