FREESTANDING OVEN ELECTRIC SERVICE MANUAL
FREESTANDING OVEN ELECTRIC SERVICE MANUAL CONTENTS
1. Side Panels 1
2. Rear Panels 5
3. Cooktop 6
4. Oven Light Button / Ignitor Button 8
5. Oven Light 12
6. Function Selector Switch 14
7. Hotplates 18
8. Heating Elements 26
9. Inner Glass 30
10. Fan Motor 31
11. Hot Surface Indicator Lights 32
12. Digital Timer 35
13. Mechanical Timer 37
14. Thermostat / Capillary Thermostat 38
15. Handles / Knobs 41
16. Electric Exhaust 43
17. Anti Tip Bracket 44
18. Induction Moduls 46
19. Touch Control Unit / Heating Element 48
20. Terminal Connection 51
FREESTANDING OVEN ELECTRIC SERVICE MANUAL
CHANGING SIDE PANELS
Before changing the side panel ;
Take off all components possible to move/fall or defect:
Grids and pan supports, knobs, burner caps & heads, trays, warmer drawers etc

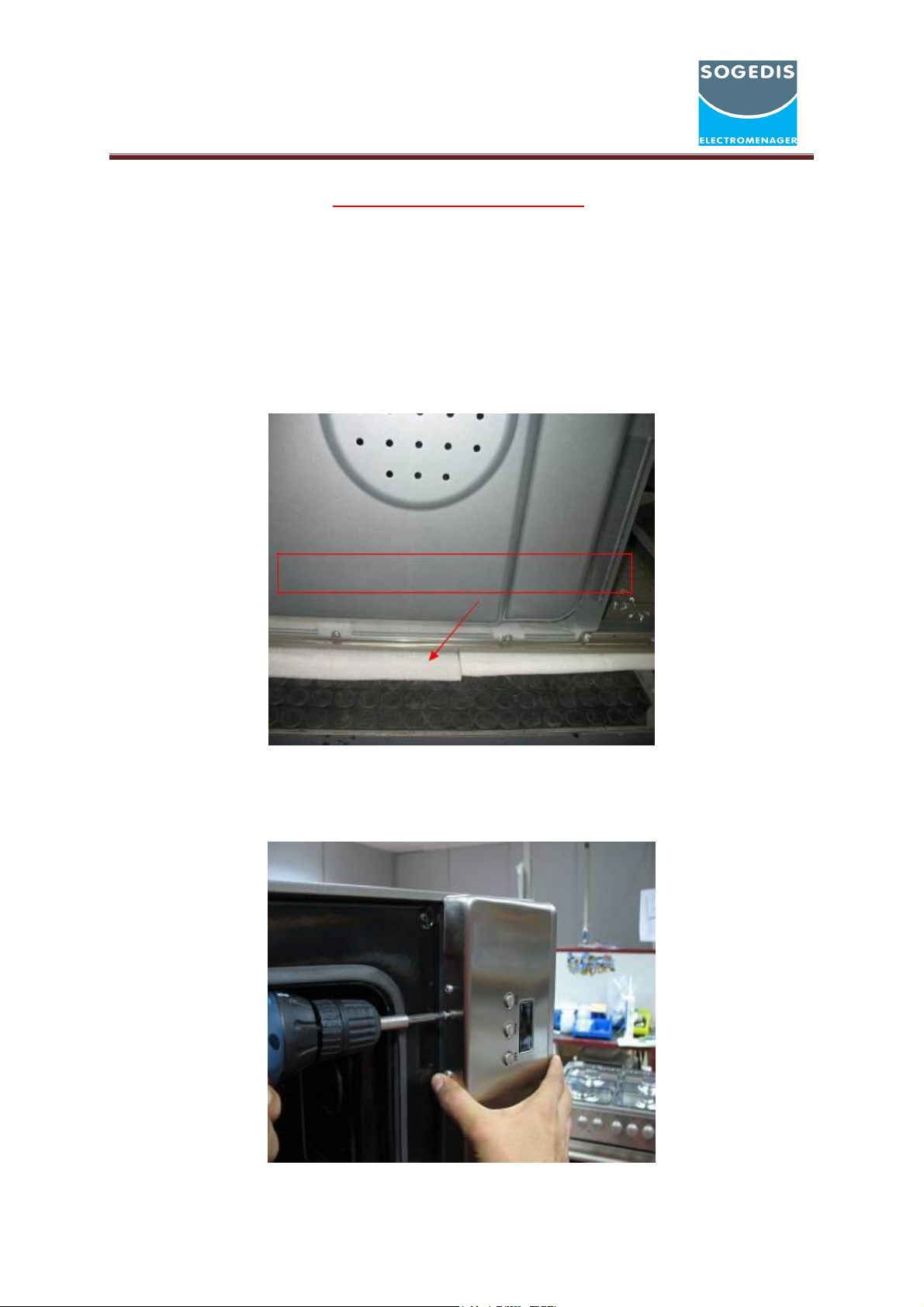

1-Lay down the oven.
Pay attention to put sytrofoam on the ground
before you lay down the oven.
FREESTANDING OVEN ELECTRIC SERVICE MANUAL

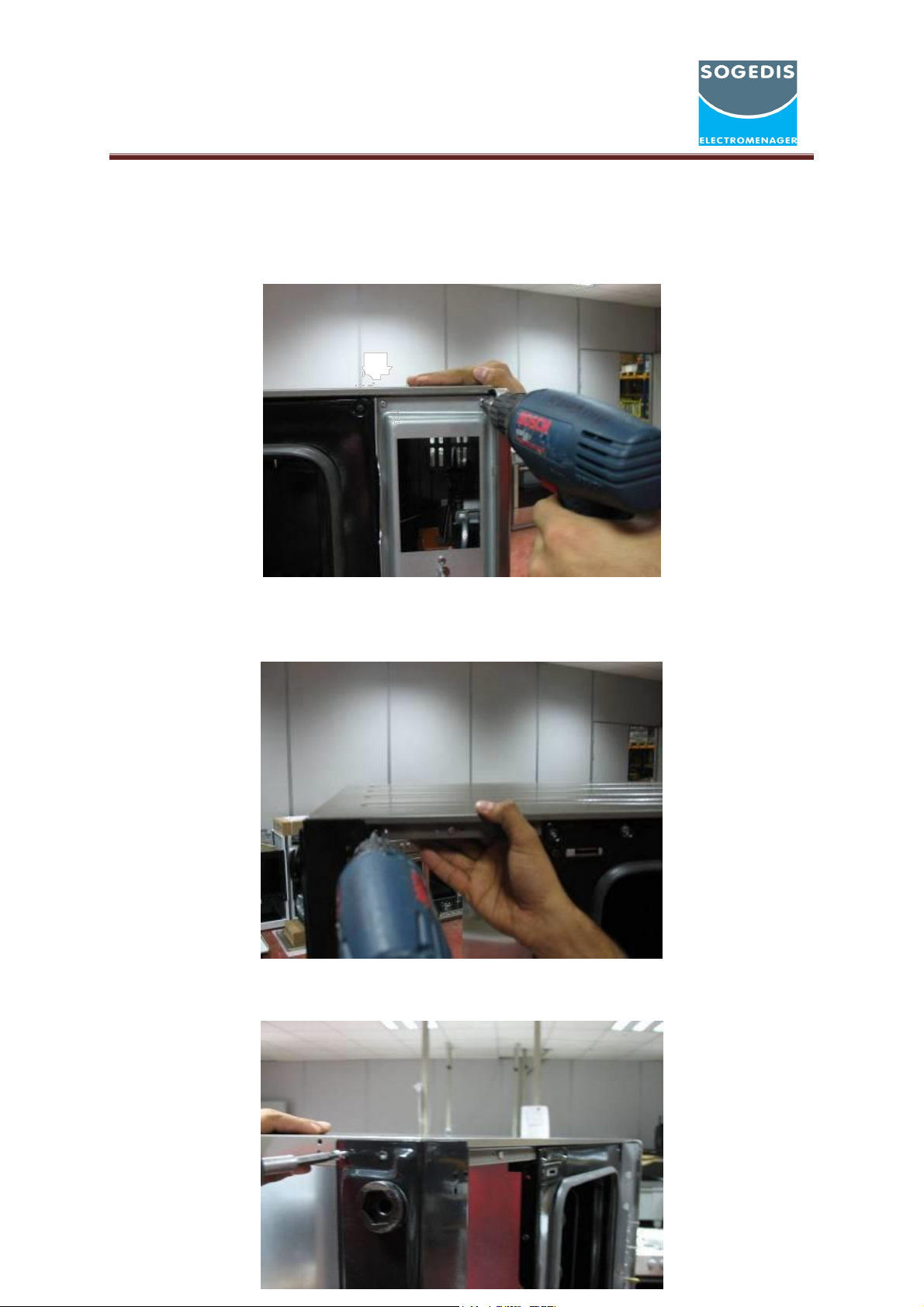

2-Unscrew the inner panel and side panel connections.
( apply this procedure for one panel. Do not try to remove both side panels at once. )
3-Unscrew all surrounding screws on the side panel.
4-Unscrew the front and rear plinth
FREESTANDING OVEN ELECTRIC SERVICE MANUAL
5-Unscrew the rear panel
FREESTANDING OVEN ELECTRIC SERVICE MANUAL
6-The side panel sets free - you may remove and change it.
Repeat the same procedure backwards when assemblying the new side panel
FREESTANDING OVEN ELECTRIC SERVICE MANUAL
CHANGING REAR PANELS
1-You have to remove bottom panel first.
Detach all screws on bottom rear panel to remove
2-Remove exhaust protection cover to take off rear top panel
FREESTANDING OVEN ELECTRIC SERVICE MANUAL
CHANGING COOKTOP
1-Unscrew the back angle irons at the rear bottom of the plate.
2-Hold up the cooktop slightly from backwards. Take off the earthing cable
FREESTANDING OVEN ELECTRIC SERVICE MANUAL
3-Hold the cooktop vertical, then take off all regler connections.
( While reassembling, the wirings must be appropriate with mentioned on the labels )
4-Then the cooktop is free to change.
FREESTANDING OVEN ELECTRIC SERVICE MANUAL
CHANGING OVEN LIGHT BUTTON / IGNITOR BUTTON
1-Take out the front panel first.
oven light button
Attention : Do not push back the front panel hardly and fast ; this may cause the button
wirings get harmed. Please hold it until you take off the terminal contacts.
2-Remove the plastic contacts of wiring terminals ( with a nipper )
FREESTANDING OVEN ELECTRIC SERVICE MANUAL
3-Then push the hooks surrounding and push forward the button to remove.
