Dacor Preference Renaissance RGC304 Manuel technique

PLANNING

GUIDE

www.Dacor.com

Phone: (800) 793-0093

Specifications are subject to change without notice.

See installation instructions for additional details. CI.11

Stiffener

Cabinet face

Countertop

Floor

5/8” Min. (16 mm) space

behind raised vent

chassis to clear stiffener

5/8” Min. (16 mm)

flat countertop overhang

required behind cutout

RV series raised vent:

Check raised vent

dimensions/specifications

to determine proper fit

SGM Series Cooktop

RGC/SGM Series Drop-In Gas Cooktop

with RV Series Raised Vent

COMBINATION INSTALLATIONS

Document # PGCI-007 Revised 05/07/09 Page 1/2

WARNING

Observe all governing codes and ordinances during◊

planning and installation. Contact your local building

department for further information.

All appliances must be installed in accordance with the◊

accompanying installation instructions.

All tolerances +1/16” -0 (+1.6 mm, 0) unless otherwise noted

Countertop Dimensions

Installation Type Cutout

Diagram C (Min.) D E F G H

RGC/SGM304

with RV30

Figure 1

(Square)

5/8”

(16 mm)

22 1/4” *

(565 mm)

27 3/4”

(686 mm) NA NA NA

RGC/SGM365

with RV36

Figure 1

(Square)

5/8”

(16 mm)

22 1/4” *

(565 mm)

33 5/8”

(854 mm) NA NA NA

SGM466 with

RV46

Figure 2

(Notched)

5/8”

(16 mm)

22 1/4” *

(565 mm)

44 3/4”

(1137 mm)

43 1/2”

(1105 mm)

5/8”

(16 mm)

2 5/8” **

(67 mm)

Cutout Dimensions

Side View - RGC/SGM Series Cooktop with

RV Series Raised Vent

IMPORTANT: Be careful to use the correct cutout diagram (on page 2/2) to determine the countertop dimensions. Carefully double check

all dimensions against the table below and the correct diagram before cutting the countertop.

* Total cutout depth, accommodates both the cooktop and raised vent

** IMPORTANT: Notch depth is included in total cutout depth (D). DO NOT add notch depth to total cutout depth (D).

RGC or SGM series cooktop

PLANNING

GUIDE

www.Dacor.com

Phone: (800) 793-0093

Specifications are subject to change without notice.

See installation instructions for additional details. CI.12

RGC/SGM Series Drop-In Gas Cooktop

with RV Series Raised Vent

COMBINATION INSTALLATIONS

All tolerances: +1/16”, -0, (+1.6mm, -0) unless otherwise stated

Document # PGCI-007 Revised 05/07/09 Page 2/2

4 1/4" (108 mm) Min.

from mounting surface to

combustibles below

cooktop chassis

7 1/2" (191 mm) Min.

to combustible

side wall above

countertop

(both sides)

Vertical

combustible

surface

Rear

wall

1 7/8" Min.

(48 mm)

7 1/2" (191 mm) Min.

to combustible

side wall above

countertop

(both sides)

Vertical

combustible

surface

Rear

wall

1 7/8" Min.

(48 mm)

4 1/4" (108 mm) Min. from

mounting surface to combustibles

below cooktop chassis

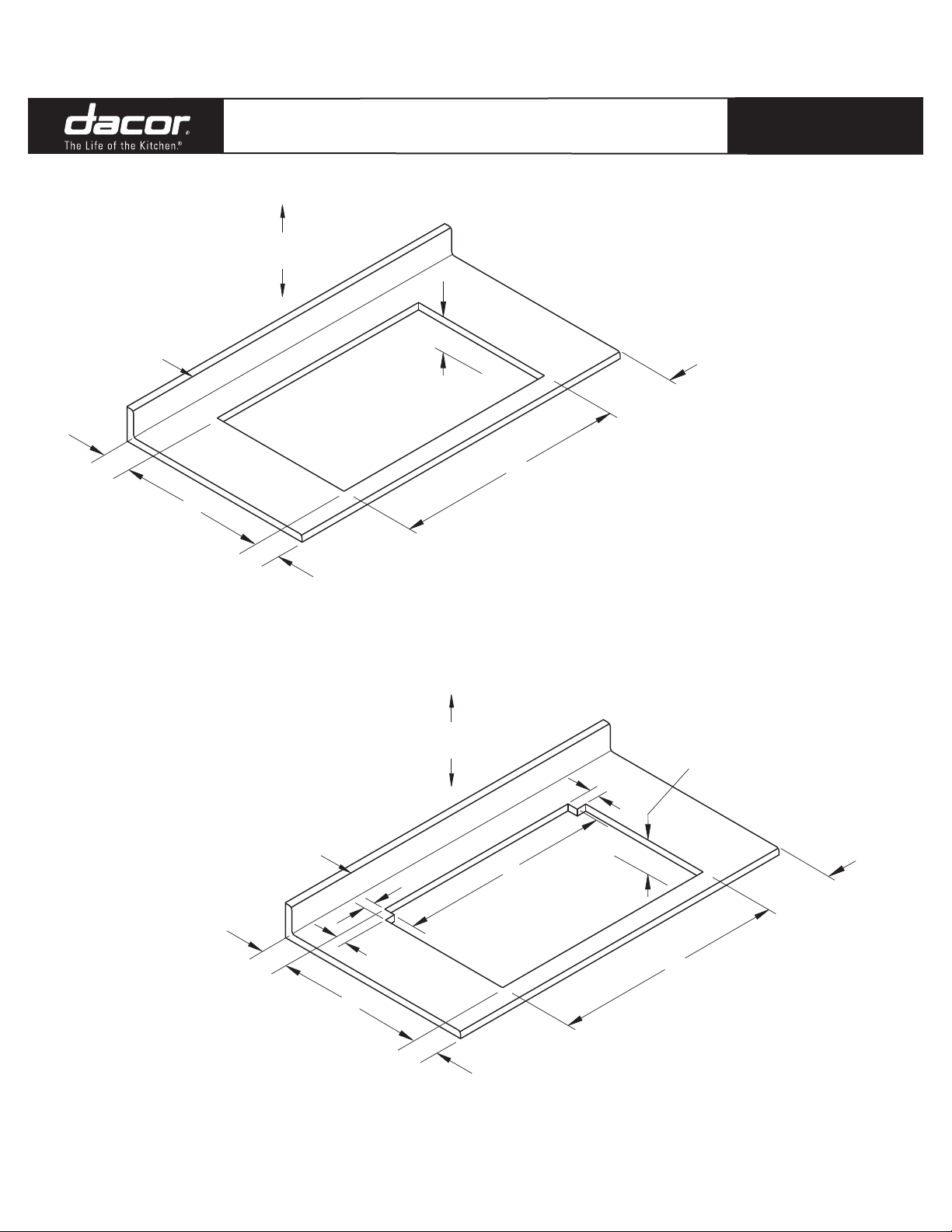

Figure 1 - Square Countertop Cutout Diagram

Figure 2 - Notched Countertop Cutout Diagram

(SGM466 only)
