STEP 1: Disconnect the power cord to the range. Turn off the gas at the gas supply

valve.

STEP 2: Slide the range out from the cabinet.

STEP 3: Remove the grates.

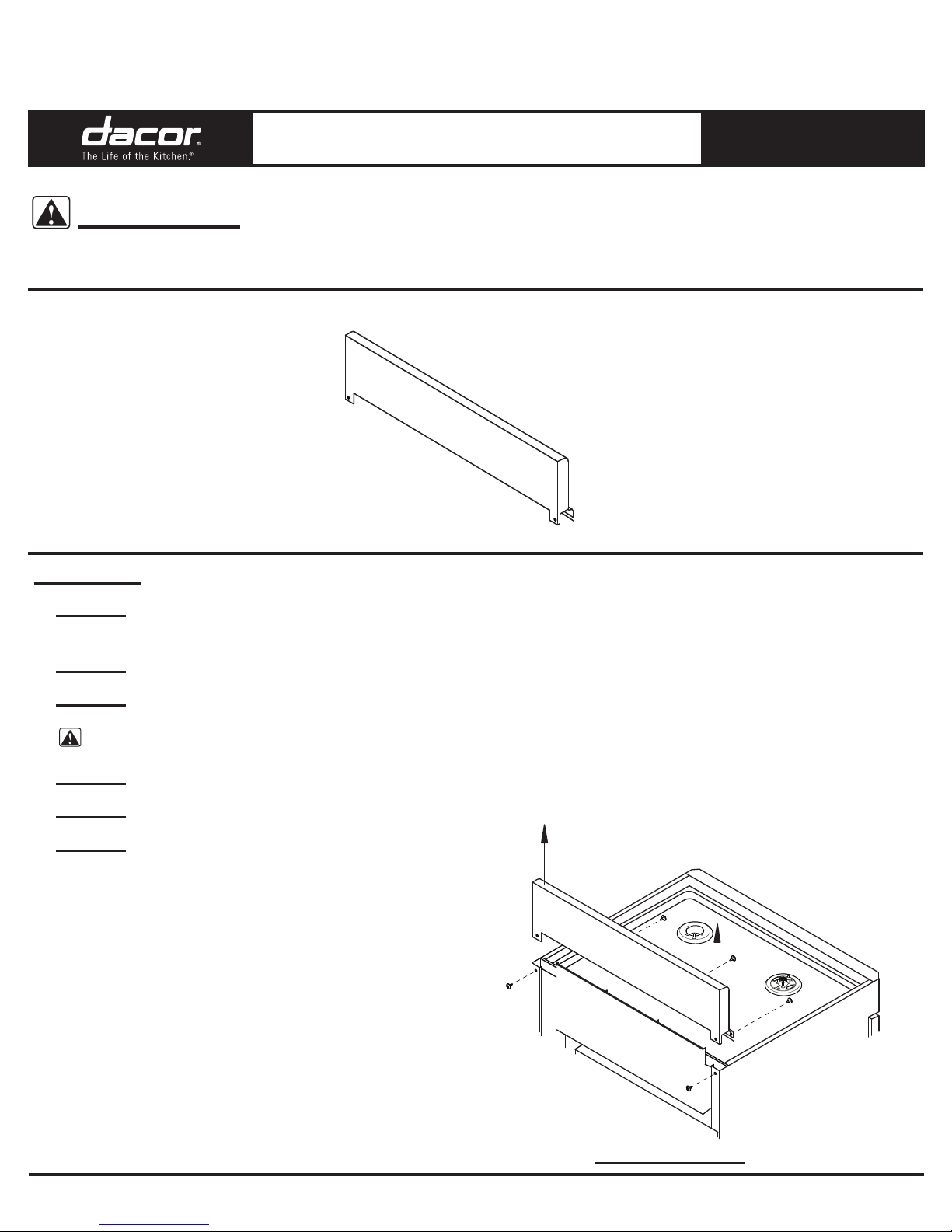

STEP 4: Remove and retain the three (3) screws on the front of the existing backguard.

STEP 5: Remove the two (2) top screws on the back of the side panels.

STEP 6: Remove the existing backguard.

Continued on back...

DANGER: Electric shock and explosion hazard! Before installation,

disconnect the power cord and shut off the gas supply

valve.

Instructions:

Backguard Kits

AERB30G03, AERB30G06, AERB30G09

INSTALLATION

INSTRUCTIONS

RANGE MODEL: ER30G

Part No. 106191 Rev. B

WARNING: Do not disassemble the range until it has cooled.

Backguard Removal

Backguard height varies with kit

Dacor ● 1440 Bridge Gate Drive, Diamond Bar, CA 91765 ● Tel: (800) 793-0093 ● FAX: (626) 403-3130 ● www.Dacor.com

STEP 7: Remove the protective plastic cover

from the new backguard.

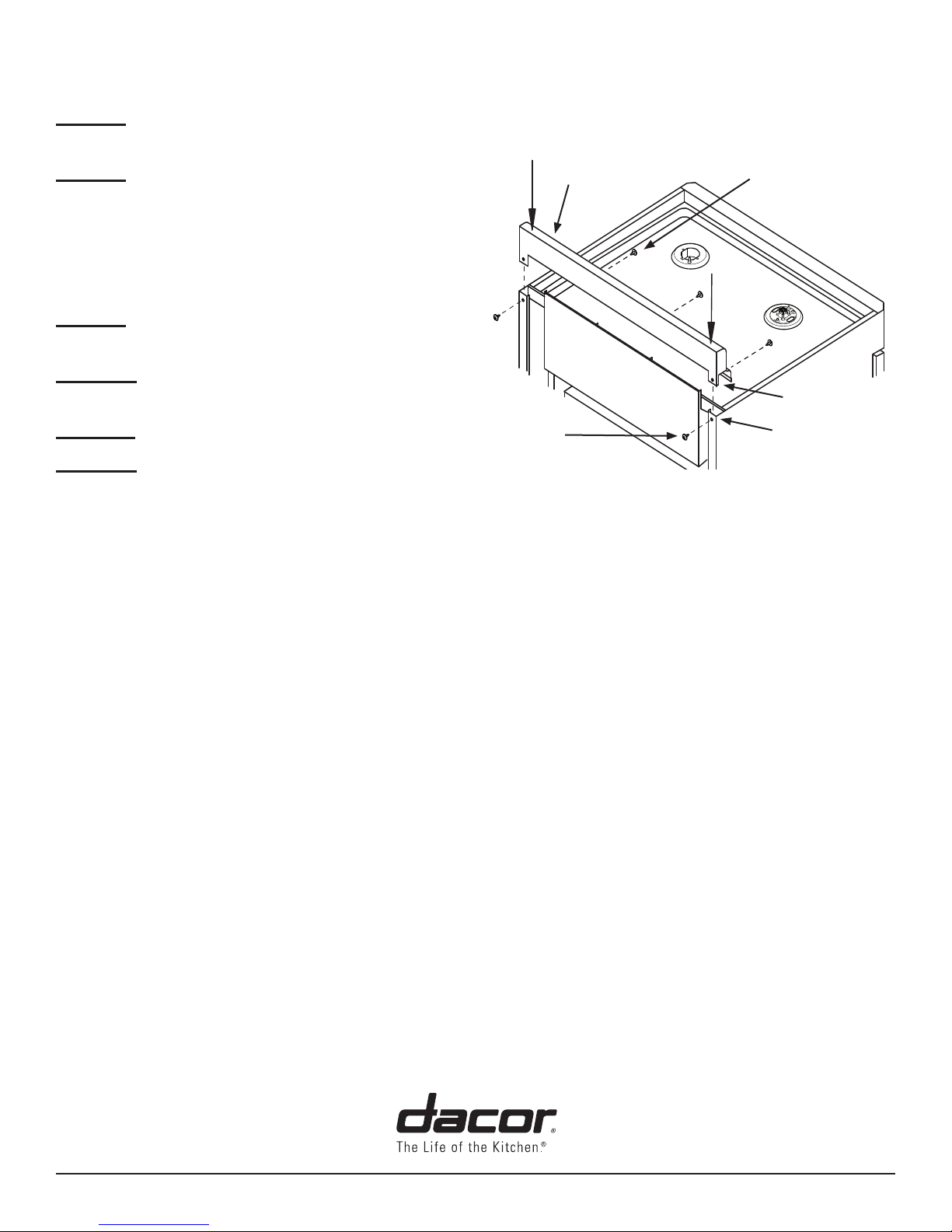

STEP 8: Place the new backguard over the back

of the range. The backguard ts over

the exhaust duct sticking up on the

back of the unit. Be sure to slide the

tabs on the back of the backguard in-

side the anges on the back of the unit.

STEP 9: Fasten the backguard in place with the

three (3) existing chrome plated screws.

STEP 10: Tighten the two (2) top screws on the

back of the side panels.

STEP 11: Reinstall the grates.

STEP 12: Turn on the gas at the gas supply valve.

Connect the power cord to the electrical outlet.

Backguard

Exhaust

Duct

Chrome Plated

Screw, 3 Places

Screw,

2 Places

Tab

Flange
