INSTRUCTION BOOK FOR

Tensioned Conference Electrol

NOTE: Unit is not to be installed in air handling spaces.

1. The case brackets provide multiple attachment points for bolts,

cables, or threaded rod. The following page shows two locations

for typical threaded rod installations with the external case

mounting brackets (Figure 1a) and without them (Figure 1b). The

internal case brackets can be accessed through the hand holes

(Figure 1c).

2. The case has a self-trimming lange around the bottom. Ceiling

tiles or drywall may be placed on top of this lange to provide a

inished appearance.

3. After securing the case in the ceiling, check that the case is level

and plumb.

4. Use supplied 1/8” nex key and a 1/4” wrench to remove silver

shipping brackets attached to slat and screen case.

5. Install electrical connections that apply to your unit. Refer to the

electrical diagram on page 4. The electrical connections are

accessible by removing the two screws on the primary junction

box cover and the two screws on the secondary low voltage

cover (Figure 2). You can remove the access door if needed to

allow for greater access to the electrical wiring. To remove the

access door; remove the screw from each end of the door while

holding the door and slide the door of the langes (Figure 3).

NOTE: Must be installed in accordance with the requirements of

the Local Building Codes, the Canadian Electrical Code (CEC),

CAN/CSA C22.1 and the National Electric Code (NEC), NFPA 70.

Installation

Important Safety Instructions

When using your video equipment, basic safety precautions

should always be followed, including the following:

1. Read and understand all instructions before using.

2. To reduce the risk of electric shock, do not disassemble this

appliance. Contact an authorized service dealer when repair

work is required. Incorrect reassembly can cause electric shock

when the appliance is used subsequently.

3. The use of an accessory attachment not recommended by the

manufacturer may cause a risk of ire, electric shock, or injury to

persons.

4. Do NOT lift or push up on the camera arm mechanism at any

time. This may cause improper operation and/or component

failure or injury to persons.

Pre-Installation

1. Carefully unpack screen and remove outer wrapping from case.

2. Make sure to recheck measurements of screen location

before installation.

Hand Hole

Internal

Bracket

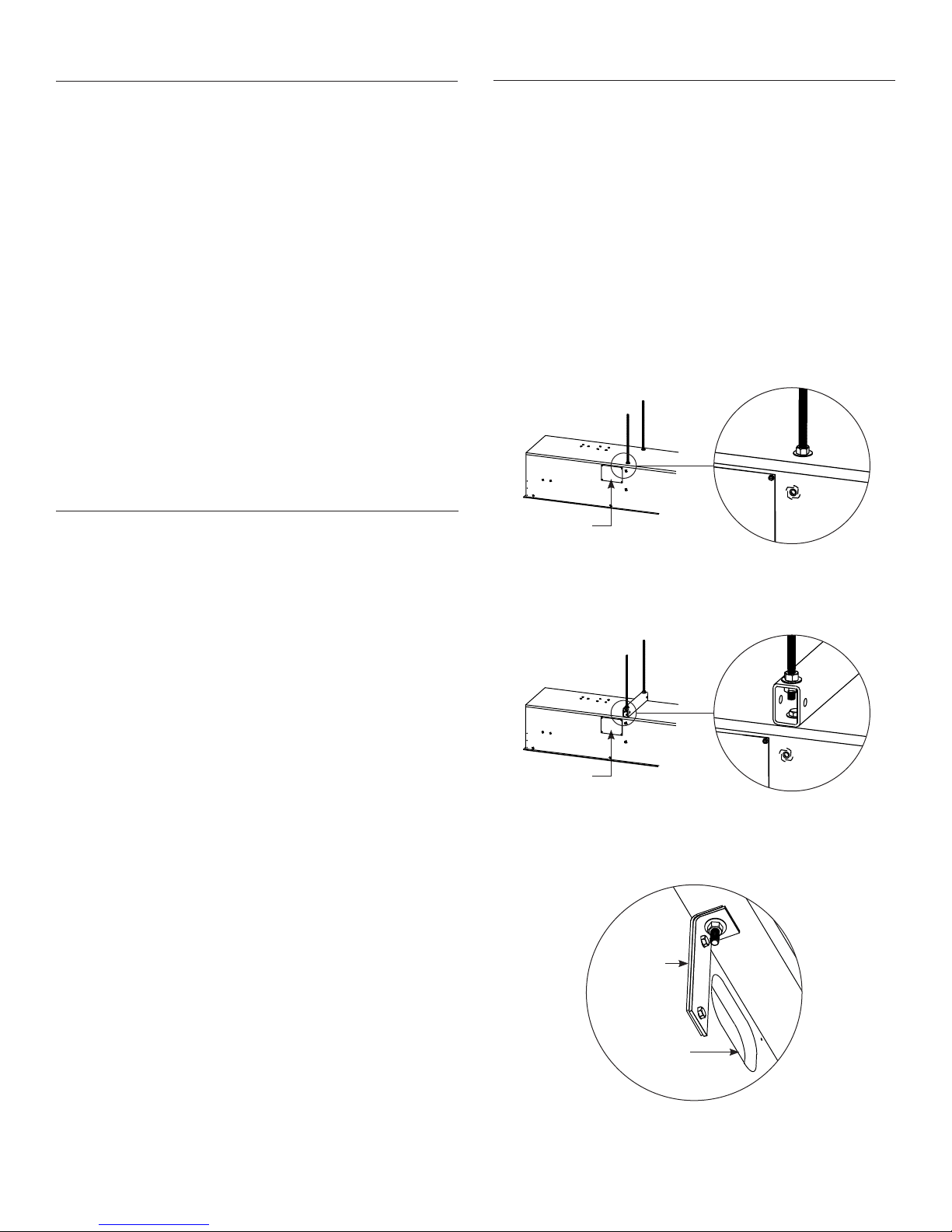

Figure 1a – Threaded Rod with Internal Bracket

Figure 1b – Threaded Rod with Internal and External Bracket

Figure 1c – Internal Bracket

Hand Hole

6. Remove shipping brackets by removing the hex head screws

from aluminum slat and case. Slat should move freely (Figure 2).

(Only if the roller assembly is pre installed.)

7. Test installation by operating the screen several times. Be

prepared to stop the screen. Standard Duty Cycle: 1MIN. ON/3

MIN. OFF. The fabric door (rear door) will not close until the wall

switch is placed in the up position and when the screen motor

stops at its limit switch in the up direction.

NOTE: Excessive continuous operation may cause the motor to

overheat. If this happens the motor will shut of until it cools to a

normal operating temperature.

8. Run the screen down enough to open the fabric door. Insert

the access door on the langes and reinstall the screws to

secure the door.

Installation (continued

Figure 2 – Bottom of Case Figure 3 – Bottom of Case

Shipping Bracket

Secondary Low

Voltage Cover

Primary Junction Box Cover

Access Door

Door Screw Door Screw

Camera Installation

NOTE: Unit is to be used with a camera weighing no more than 8 pounds. Camera and camera cables NOT included.

1. Run the camera arm down and then disconnect the power to

the unit.

2. Install the camera cables through the cable loops. See Figure 4.

Start from the camera shelf and then up the arms through the

camera cable exit in the end of the case.

NOTE: The camera cables must not interfere with the arm or

door mechanisms. Leave enough cable to allow for a natural

bend at the pivot points (Figure 4). Use cable ties if needed to

secure the camera cables through the loops. Do NOT go around

the camera arm tubes with wire ties.

3. Connect camera to the cable(s) and secure the camera to the

camera shelf. The camera shelf is perforated for easy camera

attachment (Figure 4).

4. Check the camera cable path and ensure there will not be

interference with the arm or door mechanism operation.

5. Reconnect power to the unit and test operation.

Cable Loops

Cable

Loop

Cable

Camera Shelf

Figure 4

QEYE

QEYE QAUX

QEYE

NOTE: 2024AWG wire recommended for dry contact wiring.

120V Wiring Diagram

SCREEN

AND

CAMERA

SCREEN

CAMERA

STOP

Front of Wall KeypadBack of Wall Keypad

Camera

Arm Motor

Power

Wire

RJ45 Jack

Data

Cable

Green (Ground)

White (Common)

Black (Hot)

White (Common)

Red (Down)

Black (up)

White (Common)

Red (Down)

Black (up)

White (Common)

Red (Down)

Black (up)

Green (Ground)

Screen Motor

Door Motor

Down

Common

RJ14 cable

(supplied)

RJ14 cable

(pre-installed)

White (Common)

Black (Hot)

Green (Ground)

Power Input

120VAC/60Hz

NOTE: Ground Must

be Connected to

Building Ground

Dry Contacts

for Camera

Arm

Dry Contacts for

Camera Arm

Bus

RJ45

Receptacle

RJ25 Pin-Outs (Tab Is Facing Up)

Standard RJ25 can be used in place of RJ14 cable

Bus (RP Data)

+12V

RQ Clock

RQ Data

+5V

Ground

Yellow

Green

Red

Black

White

Blue

RJ45 Pin-Outs (Tab Is Facing Up)

+12V

Manual 2

Ground

Manual 1

RQ Clock

Bus (RP Data)

RQ Data

+5V

Blue

Green

Yellow

Red

Black

Orange

Purple

Brown

RJ14 Pin-Outs (Tab Is Facing Up)

Supplied RJ14 cable

Bus (RP Data)

RQ Data

+5V

Ground

White

Green

Red

Black

Blue (Common)

Brown (Hot)

Green/Yellow

(Ground)

Blue (Common)

Brown (Hot)

Blue (Common)

Brown (Down)

Black (Up)

Green/Yellow

(Ground)

QEYE

QAUX

QEYE

NOTE: 2024AWG wire recommended for dry contact wiring.

220V Wiring Diagram

SCREEN

AND

CAMERA

SCREEN

CAMERA

STOP

Front of Wall Keypad Back of Wall Keypad

Camera

Arm Motor

Black (Up)

Brown (Down)

Blue (Common)

Green/Yellow (Ground

Black (Up)

Brown (Down)

Blue (Common)

Screen Motor

Screen Controller

Board

Camera Arm

Controller Board

Splitter

Door Motor

NOTE:

Ground Must

Be Connected

to Building

Ground

Dry Contacts

for Camera Arm

Power Input

220VAC/50Hz

White (Common)

Red (Down)

Black (Up)

Black (Down)

White (Common)

Red (Up)

Green/Yellow (Ground

RJ25 Pin-Outs (Tab Is Facing Up)

Standard RJ25 can be used in place of RJ14 cable

Bus (RP Data)

+12V

RQ Clock

RQ Data

+5V

Ground

Yellow

Green

Red

Black

White

Blue

RJ45 Pin-Outs (Tab Is Facing Up)

+12V

Manual 2

Ground

Manual 1

RQ Clock

Bus (RP Data)

RQ Data

+5V

Blue

Green

Yellow

Red

Black

Orange

Purple

Brown

RJ14 Pin-Outs (Tab Is Facing Up)

Supplied RJ14 cable

Bus (RP Data)

RQ Data

+5V

Ground

White

Green

Red

Black

RJ14 cable

(supplied)

RJ14 cable

(pre-installed)

RJ14 cable

(pre-installed)

Troubleshooting

Screen Adjustment

Visit www.da-lite.com/products/tutorials.php to ind installation

and troubleshooting tutorials. You will also ind a link to Live Chat

for interactive support.

CONTACT DALITE AT 8006223737 OR 5742678101 IF SCREEN, DOOR MOTOR NEEDS ADJUSTMENT.

You can contact us by email at info@da-lite.com or by phone at

800.622.3737 or 574.267.8101 with any additional troubleshooting

questions.

Symptom Cause Solution

Screen or camera arm will not

operate or will not go UP or DOWN

and the MOTOR DOES NOT HUM.

There is no

power at the

junction box

Incorrect line voltage. Verify 115125V (or 220240V). If insuicient

voltage, rewire incoming electric line.

Blown facility fuse. Replace fuse.

Tripped facility circuit breaker. Reset circuit breaker.

No power to operating switch

or junction.

Check above. Tighten all loose wire

connections. Correct any improper

connections.

If the Screen is stuck in the DOWN

POSITION:

Check for power across black and white leads.

If the Screen is stuck in the UP POSITION:

Check for power across red and white leads.

There is power at

the junction box

Thermal overload tripped. Let motor cool down for 15 minutes. Try again.

Broken wire in the “down” or “up” position. Check for continuity. Cut o old splice and

reconnect.

Defective motor, limit switch or capacitor. Replace motor assembly. NOTE: Motor is a

sealed assembly.

Screen or camera arm will not

operate or will not go UP or DOWN

and the MOTOR DOES HUM.

There is power at

the junction box Capacitor burned out. Replace motor assembly.

Screen or camera arm will not move upward. Motor does

not hum. Limit switch out of adjustment. See Screen Adjustment section.

Door will not open.

Hinge is bound or has a foreign substance

on it which does not allow it to open by

gravity.

Check installation to free door. Clear any

foreign substance; i.e., paint or plaster from

hinge.

No power. See Above

Door does not close. No power from screen motor. Replace screen motor.

DOWN limit switch incorrect. Down” limit switch out of adjustment. Contact Da-Lite.

Screen produces excessive noise. (The screen will

naturally operate with a low-pitched hum.) Gear noise. Replace motor assembly.

Coasting. Defective brake. Replace motor assembly.

Roller displaced from mounting bracket. Pin end slipped out of nylon bearing. Realign pin end bracket.

Fabric hangs crooked.

Screen not installed properly. Check for level and plumb.

Fabric is damaged. Replace fabric.

Door closes before screen is all the way up. Screen “up” limit out of adjustment. Adjust “up” limit (call factory for instructions).

Door opens but screen does not operate. Loose wire. Check all wiring and connections.

22146

A Milestone AV Technologies Brand

3100 North Detroit Street

Warsaw, Indiana 46582

P: 574.267.8101 or 800.622.3737

F: 574.267.7804 or 877.325.4832

E: inf[email protected]

www.da-lite.com

DL–0169 09.13

LIMITED ONE YEAR WARRANTY ON DALITE PRESENTATION PRODUCTS

Milestone AV Technologies LLC warrants certain Da-Lite branded products to the original purchaser only, to be free from defects

in materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser; provided they are

properly operated according to Da-Lite’s instructions and are not damaged due to improper handling or treatment after shipment

from the factory.

This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or which has been tampered

with or repaired by a person other than authorized Da-Lite personnel.

Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise.

Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite,

transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.

To protect yourself against damage or loss in transit, insure the product and prepay all transportation expenses.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,

EXPRESS OR IMPLIED, INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANTABILITY. Any implied warranties of

itness for use, or merchantability, that may be mandated by statute or rule of law are limited to the one (1) year warranty period.

This warranty gives you speciic legal rights, and you may also have other rights, which vary from state-to-state. TO THE MAXIMUM

EXTENT PERMITTED BY APPLICABLE LAW, NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM

INTERRUPTION IN OPERATION OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE.

In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137,

Warsaw, IN 465810137, (574) 2678101, (800) 6223737.

IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DALITE BRANDED PRODUCTS SHALL NOT BE BOUND BY THIS

WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH THE DALITE WRITTEN INSTRUCTIONS.

Keep your sales receipt to prove the date of purchase and your original ownership.

Table des matières

Autres manuels Da-Lite Écran de projection

Da-Lite

Da-Lite Theater-lite Manuel utilisateur

Da-Lite

Da-Lite DIRECTOR ELECTROL Manuel utilisateur

Da-Lite

Da-Lite LARGE ADVANTAGE DELUXE ELECTROL Manuel utilisateur

Da-Lite

Da-Lite TILT-LOCK Manuel

Da-Lite

Da-Lite TENSIONED PROFESSIONAL ELECTROL Manuel utilisateur

Da-Lite

Da-Lite Tensioned Advantage Deluxe Electrol Manuel utilisateur

Da-Lite

Da-Lite TENSIONED EXECUTIVE ELECTROL Manuel utilisateur

Da-Lite

Da-Lite TENSIONED EXECUTIVE ELECTROL Manuel utilisateur

Da-Lite

Da-Lite TENSIONED LARGE COSMOPOLITAN ELECTROL Manuel utilisateur

Da-Lite

Da-Lite Picture King Manuel utilisateur

Da-Lite

Da-Lite Cosmopolitan Electrol Manuel utilisateur

Da-Lite

Da-Lite ADVANTAGE DELUXE ELECTROL Manuel utilisateur

Da-Lite

Da-Lite Viewshare tensioned Advantage Electrol Manuel utilisateur

Da-Lite

Da-Lite Da-Snap Wrap Around Screen Manuel utilisateur

Da-Lite

Da-Lite ADVANTAGE DELUXE ELECTROL Manuel utilisateur

Da-Lite

Da-Lite Designer Da-Tab Electrol Manuel utilisateur

Da-Lite

Da-Lite Da-Snap 79982 Manuel utilisateur

Da-Lite

Da-Lite Tensioned Conference Electrol Manuel utilisateur

Da-Lite

Da-Lite DESIGNER DA-TAB ELECTROL Manuel utilisateur

Da-Lite

Da-Lite ASCENDER ELECTROL Manuel utilisateur

Da-Lite

Da-Lite Designer Contour® Manuel utilisateur

Da-Lite

Da-Lite Cosmopolitan Electrol Manuel utilisateur

Da-Lite

Da-Lite TENSIONED ADVANTAGE ELECTROL Manuel utilisateur

Da-Lite

Da-Lite EXECUTIVE ELECTROL Manuel utilisateur

Manuels Écran de projection populaires d'autres marques

FART PRODUKT

FART PRODUKT Standard SCREEN Manuel utilisateur

Draper

Draper E Series Manuel

Elite Screens

Elite Screens Elite Tripod Series Manuel utilisateur

Laarhoven

Laarhoven Companion II Manuel utilisateur

Renogy

Renogy RMS-LFPS-US Manuel utilisateur

Samsung

Samsung S*H65* Manuel utilisateur

FONESTAR

FONESTAR PPTR-43100-FA Manuel utilisateur

Slide Clear

Slide Clear Varro XL Manuel utilisateur

Elite Screens

Elite Screens M85XWS1-SRM Manuel utilisateur

OS РХ-090Н Manuel utilisateur

Niko

Niko 10-845 Manuel utilisateur

Speaka Professional

Speaka Professional 2357532 Manuel d'utilisation

Sima

Sima XL-72 Manuel utilisateur

Jasic

Jasic EVO 2.0 ET-200P Manuel utilisateur

Elite Screens

Elite Screens Starling 2 Series Manuel utilisateur

InFocus

InFocus SC-WALL GRY-92H Manuel

Barco

Barco OverView MVL-615 Manuel utilisateur

Draper

Draper Envoy Manuel
