Instruction Book for

TENSIONED PROFESSIONAL ELECTROL®

The Da-Lite Difference.

IMPORTANT SAFETY INSTRUCTIONS

When using your video equipment, basic safety precautions should

always be followed, including the following:

1. Read and understand all instructions before using.

2. Position the cord so that it will not be tripped over, pulled, or

contact hot surfaces.

3. If an extension cord is necessary, a cord with a current rating at

least equal to that of the appliance should be used. Cords rated

for less amperage than the appliance may overheat.

4. To reduce the risk of electric shock, do not disassemble this

appliance. Contact an authorized service dealer when repair

work is required. Incorrect reassembly can cause electric shock

when the appliance is used subsequently.

5. The use of an accessory attachment not recommended by the

manufacturer may cause a risk of fire, electric shock, or injury to

persons.

SAVE THESE INSTRUCTIONS

PRE-INSTALLATION

1. Carefully unpack screen.

2. Make sure to recheck measurements of screen location before installation.

3. Remove instruction cover plate (Fig. 1). Do not remove wrapping paper until screen is installed.

4. Remove the retainer screws from the slat bar before the case has been installed (Fig. 2).

INSTALLATION

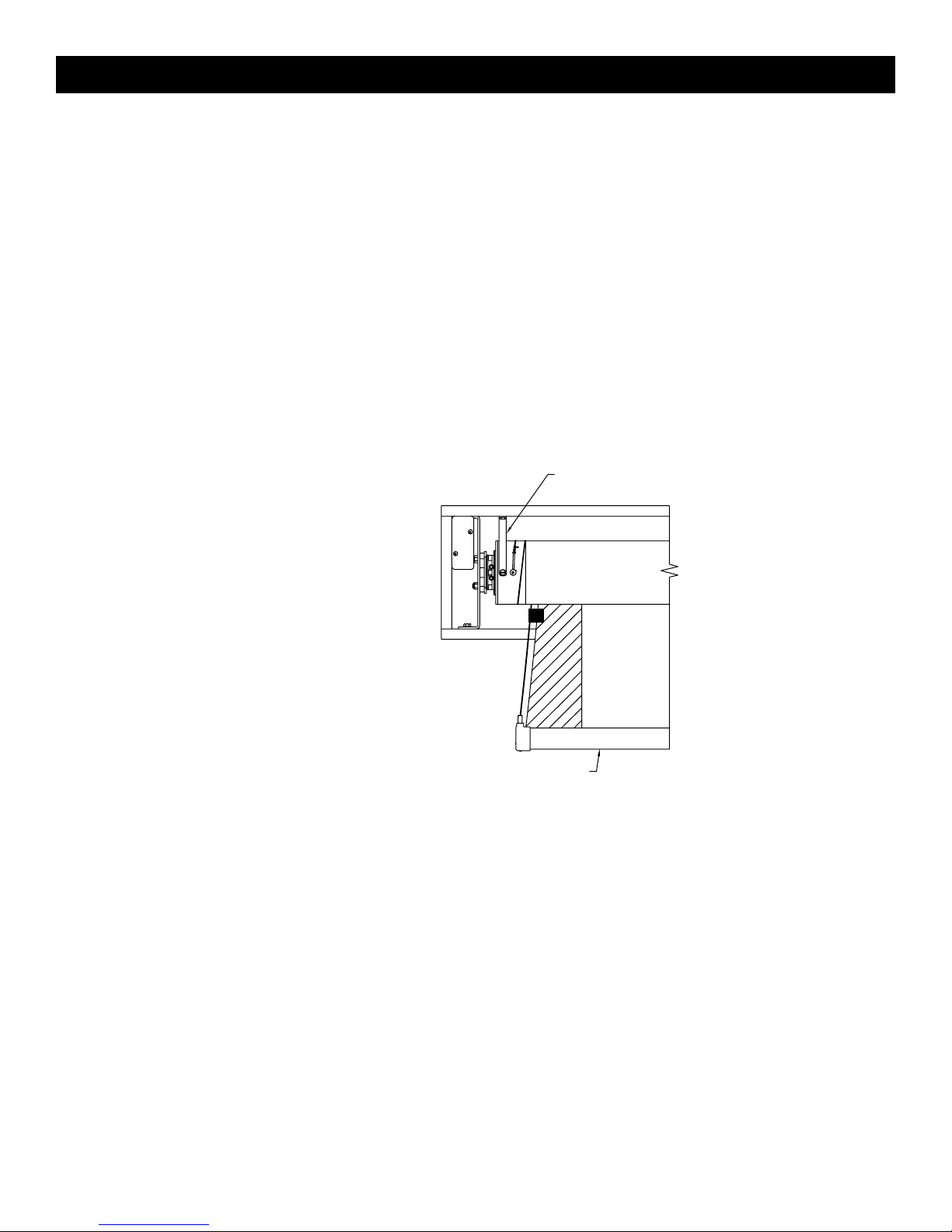

FIGURE 1

CASE

INSTRUCTION COVER

FIGURE 2

SLAT RETAINER BRACKET

(3 SCREWS)

1 ON BOTTOM OF SLAT

2 ON INSIDE OF CASE

111⁄2"

CASE LENGTH ÷ 2

111⁄2"

(CASE LENGTH - 23") ÷ 3

CASE LENGTH ÷ 2

SCREENS 22' WIDE AND UNDER

SCREENS OVER 22' WIDE

FIGURE 3

Hangers (If required)

1. See Figure 3 for hanger placement.

2. Make sure hangers are placed to fit into notches of ironing board.

INSTALLATION

1. Level unit lengthwise with a carpenter

’

s plum level.

CAUTION! DO NOT COMPLETELY SEAL IN UNIT. ACCESS ROOM MUST BE ALLOWED FOR MOTOR REPAIR OR FABRIC

REPLACEMENT.

2. Remove shipping brace by removing 2 hex head screws (Figure 4).

3. Use supplied 1/8” nex key and a 5/16” wrench to remove silver shipping brackets attached to slat and screen case.

4. Remove wrapping paper.

CAUTION! DO NOT CUT WRAPPING PAPER WITH KNIFE OR ANY SHARP TOOL. REMOVE BY HAND.

5. Install electrical hook up that applies to your unit. Make sure to review your Electrical Installation Checklists and

wiring diagrams (included) for either 110 volt switch, 220/240 volt switch, or DRC low voltage control.

6. Test installation by carefully running surface up and down several times. Be prepared to stop screen.

NOTE: The picture surface, when rolled down, should have at least a full wrap and a half around the roller. Do not allow any

part of the roller to become exposed.

SLAT

FIGURE 4

SHIPPING BRACE

(NOT ON 4-1/2" ROLLER)

TENSIONED PROFESSIONAL ELECTROL®INSTALLATION

CEILING TYPE HANGER


SURFACE


SURFACE

1" x 3" CLEAT

2" MOULDING

CEILING MOUNT

WITHOUT HANGERS

Screen case is placed flush with

the wall and ceiling and held in

position by moulding securely

attached to the wall.

RECESSED ABOVE CEILING

Other methods of installation

will suggest themselves in new

buildings where it would be an

easy matter to provide a recess

for the screen to conceal it when

not in use.

Do not seal in—allow access.


SURFACE

RAFTERS

WALL OR CEILING MOUNT

WITH HANGERS

Wall type hangers and ceiling type

hangers are standard equipment. One

set is supplied with each screen. Useful

for recessed installations.

WALL TYPE HANGER

FOR EXPOSED INSTALLATION

If the screen is to be mounted in an exposed

position, it may be covered with finished

plywood, veneer, paneling, plastic wall covering

or a valance.


SURFACE

SUGGESTED METHODS OF INSTALLATION

Electrical

Outlet Box

9-1/2"

11-5/16"

Reinforced

Top

Motor End

TENSIONED PROFESSIONAL ELECTROL®INSTALLATION

TO JUNCTION BOX MOUNTED IN

SCREEN CASE, IN WHICH INTERNAL

WIRING TERMINATES IN WHITE,

BLACK, AND RED LEADS.

IN MULTIPLE CONTROL

INSTALLATIONS THE SWITCH IS

REPLACED BY THE LOW

VOLTAGE

CONTROL,

OPERATED

FROM PUSH

BUTTON

STATIONS.

OPERATING SWITCH,

SWITCH BOX, AND

PLATE FURNISHED

WITH SCREEN. (SPDT

WITH CENTER OFF)

BLACK (DOWN)

WHITE (COMMON)

RED (UP)

BLACK

(DOWN)

OFF

DOWN

RED

(UP)

SIDE VIEW OF

SWITCH & BOX

BLACK (DOWN)

RED (UP)

WHITE (COMMON)

AC COMMON

BLACK WITH

YELLOW

AC HOT

115V. AC 60HZ

1 AMP. MAX.

NOTE: A SINGLE SWITCH CANNOT BE USED TO OPERATE MORE THAN

ONE SCREEN. CONTACT THE FACTORY FOR FURTHER INFORMATION.

THIS SWITCH CANNOT BE USED WITH L.V.C.

120V WIRING DIAGRAM

MOTOR

GREEN (GROUND)

GREEN

(GROUND)

GREEN

(GROUND)

240 VOLT WIRING DIAGRAM FOR STANDARD WALL SWITCH:

Da-Lite offers two styles of 240 volt wall switches for

standard operation. Please see wiring diagram in wall

switch box included with screen.

SCREEN ADJUSTMENT

Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly

adjusted at Da-Lite.

CONTACT DA-LITE AT 800-622-3737 OR 574-267-8101 IF SCREEN MOTOR NEEDS ADJUSTMENT.

TROUBLESHOOTING

SYMPTOM

1. Screen will not operate.

Motor does not hum.

2. Incorrect stopping position in

downward direction.

3. Incorrect stopping position in

upward direction.

4. Noise.

NOTE: Screen will operate with a

low pitched hum.

5. Coasting.

CAUSE

(a) Blown fuse.

(b) Tripped circuit breaker.

or junction.

Power at junction box

(d) Thermal overload tripped.

(e) Broken wire in the “down” or “up”

position.

(f) Defective motor, limit switch or

capacitor.

(g) Capacitor burned out.

(a) Lost roller wrap.

(b) “Down” limit switch out of

adjustment

(a) Lost roller wrap.

(b) “Up” limit switch out of

adjustment

(a) Gear Noise.

(a) Defective brake.

RESTORING LOST ROLLER WRAP

1. Tape a strap to the bottom of the

screen surface.

2. Push strap over back of roller.

3. Feed fabric as you pull strap to

draw fabric over top of roller.

4. Remove tape and strap.

SOLUTION

(a) Replace fuse.

(b) Reset circuit breaker.

wire connections. Correct any

improper connections.

“Down” Position

Check for power across black

and white leads.

“Up” Position

Check for power across red

and white leads.

(d) Let motor cool down for 15

minutes. Try again.

(e) Check for continuity. Cut off old

splice and reconnect.

(f) Replace motor assembly.

NOTE: Motor is a sealed assembly.

(g) Replace motor assembly.

(a) See instructions below.

(b) Contact Da-Lite at 800-622-3737

or 574-267-8101

(a) See instructions below.

(b) Contact Da-Lite at 800-622-3737

or 574-267-8101

(a) Replace motor assembly.

Visit www.da-lite.com/products/tutorials.php to find installation and troubleshooting tutorials. You will also

find a link to Live Chat for interactive support and you can contact us by email at [email protected] or by phone

at (800) 622-3737 or (574) 267-8101 with any troubleshooting questions.

7Printed in U.S.A. 33871 3/13
