D-Link DWR-923 Manuel utilisateur

DWR-923

4G Integrated Access Device

User Manual

TABLE OF CONTENTS

1. GETTING TO KNOW THE DWR-923 ...............................2

1.1 Introduction ............................................................................ 2

1.2 Package Contents.................................................................... 3

1.3 System Requirements ............................................................. 3

1.4 Hardware Overview - Front Panel & LEDs............................... 4

1.5 Hardware Overview - Rear Panel ............................................ 5

1.6 Hardware Overview - Side Panel............................................. 5

2. INSTALLATION ..............................................................6

3. USER CONFIGURATION INTERFACE...............................7

3.1 Accessing the User Configuration Interface............................ 7

3.2 Interface Layout ...................................................................... 8

3.3 Using the User Configuration Interface .................................. 9

3.3.1 Home......................................................................................................9

3.3.2 Internet ................................................................................................11

3.3.3 Wi-Fi .....................................................................................................17

3.3.4 LAN.......................................................................................................26

3.3.5 Advanced..............................................................................................30

3.3.6 System..................................................................................................53

4. APPENDIX ..................................................................62

4.1 Connected PC IP Address Configuration ............................... 62

1. Getting to know the DWR-923

1.1 Introduction

The DWR-923 is a 4G Integrated Access Device (IAD) that integrates a

range of methods for connecting to the Internet, allowing users to

access 4G mobile network services via a single device. Once connected,

you can easily share your network utilizing wireless Wi-Fi and wired

Ethernet interfaces. The advanced 4G technology provides much better

performance than traditional 3G networks.

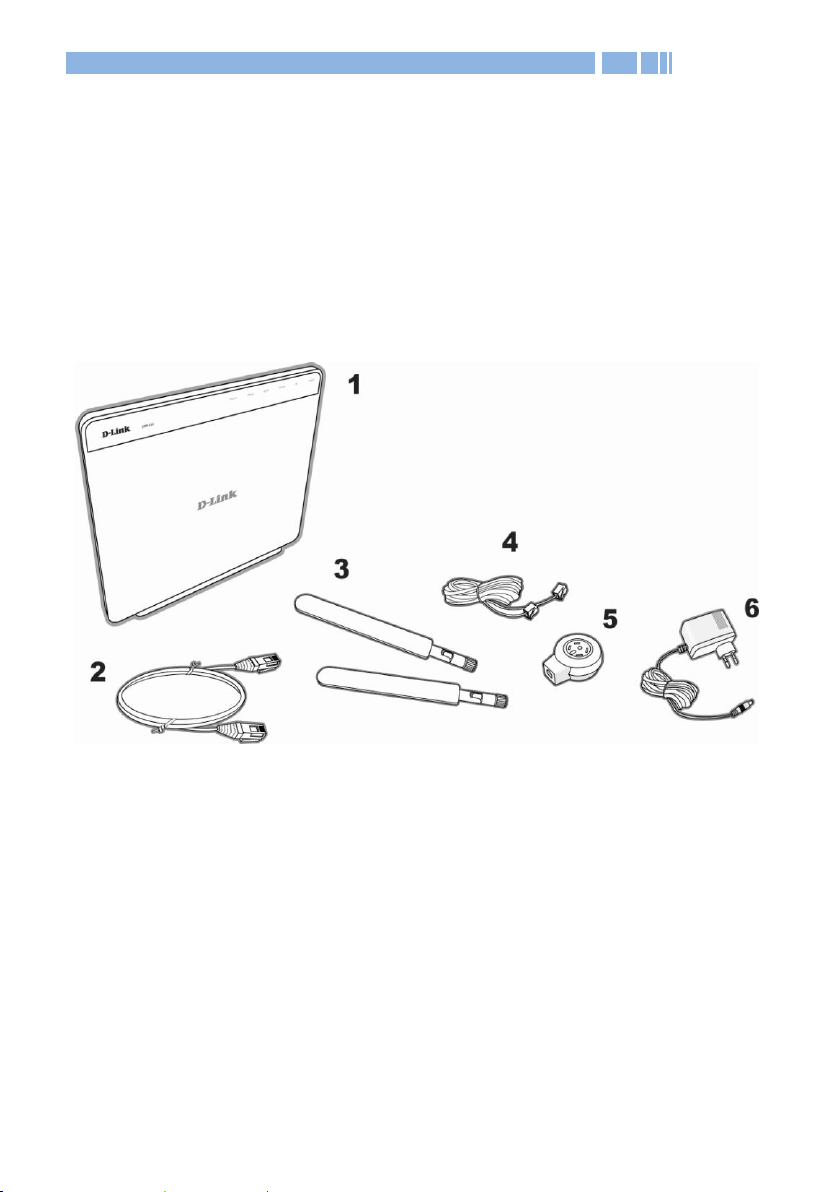

1.2 Package Contents

Thank you for purchasing the DWR-923. Before using the DWR-923,

please confirm that the packaging includes the following items and

accessories:

1. DWR-923 unit x 1

2. Ethernet cable x 1

3. Antenna x 2

4. RJ-11 cable

5. Swedish phone plug x1

6. Power adapter x 1

1.3 System Requirements

4G SIM card, with valid Internet service

A computer with a Windows®, Macintosh®, or Linux-based

operating system with an installed Ethernet adapter

Internet Explorer Version 6.0 or above for configuration usage

1.4 Hardware Overview - Front Panel & LEDs

LED

Status

Description

Power

Green

System on

Blinking Green

System booting

Blinking Yellow

Firmware upgrading

Red

Firmware upgrade error

Off

No 4G signal received

Red

Low 4G signal strength

Yellow

Medium 4G signal strength

Green

High 4G signal strength

Internet

Red

Invalid Internet connection

Green

Valid Internet connection

Phone1/2

Red

Invalid VoIP server login

Green

Successful VoIP server login

Blinking Green

Off hook with successful VoIP server login

Off

VoIP service is not subscribed

Off

No 3G signal received

Red

Low 3G signal strength

Yellow

Medium 3G signal strength

Green

High 3G signal strength

WLAN

Green

Local wireless network ready

Blinking Green

Data transmission over local wireless

network

1.5 Hardware Overview - Rear Panel

Item

Name

Description

Phone ports

Connects to your phones for SIP VoIP

services

WAN port

N/A

LAN ports

Connects to your local network devices

such as PC and laptop

USB port

Optional external device connections

Power input port

Connects to the power adapter

Power button

Turns device on

1.6 Hardware Overview - Side Panel

Item

Name

Description

WPS button

Quick wireless connection with

other WPS supported devices

SIM card slot

4G or 3G SIM card connection

USB port

Optional external device

connection

2. Installation

1. Insert the SIM card provided by your 4G mobile network operator.

2. Insert the antennas into the antenna

connectors on the DWR-923. Rotate the

connector end of the antenna to fasten it.

3. Insert the Ethernet cable into one of the LAN ports on the rear

panel of the DWR-923. Insert the other end of this Ethernet cable

into the port of

the computer

that you will

use to

configure the

DWR-923.

3. User Configuration Interface

3.1 Accessing the User Configuration Interface

The User Configuration Interface allows you to configure the DWR-923

using your web browser. Follow the procedures below to log in and

configure the settings:

1. Ensure that the computer you use for configuring the DWR-923

has the proper IP address settings for communicating with the

DWR-923. The default LAN network settings and IP address of the

DWR-923 are shown below:

IP address: 192.168.0.1

Subnet mask: 255.255.255.0.

Note: Set the IP address of this computer to obtain an IP

address automatically or assign an IP address from 192.168.0.100

to 192.168.0.254. The IP address range can be modified through

the User Configuration Interface, the default setting starts from

100. See Appendix - Connected PC IP Address Configuration for

detailed procedures for setting your IP address.

2. Open your web browser and type 192.168.0.1 in the address field:

3. An authentication screen appears. See the default username and

password below:

Username: admin

Password: (blank)

Note: There is no default

password. Please leave the

password field blank.

3.2 Interface Layout

After logging in, the Home Screen appears. The User Configuration

Interface consists of three parts:

This part is the displayed content. In the Home page, basic system

status is displayed.

The menu bar of the User Configuration Interface. Click tabs to

access configuration pages of each function. Additional selections

will appear on the left hand side as you click the main tabs.

This part displays your Login status and provides links to refresh

the page and open the Help page.

3.3 Using the User Configuration Interface

3.3.1 Home

The status page displays basic system Information including a summary

of the Internet, system, Wi-Fi, Local Area Network (LAN) and connected

VoIP phones.

Internet:

Network: Provides the current status of the interface used to access

the Internet.

Carrier: Provider name of your mobile network service.

Connection Time: Elapsed time the DWR-923 has been connected to

the Internet.

IP Address: The DWR-923’s Internet IP address.

Subnet Mask: The DWR-923’s Internet subnet mask.

DNS Server: IP address of the DNS server that the DWR-923 uses.

Gateway: The Internet gateway IP address.
