D-Link DWL-3500AP Manuel utilisateur

D-Link Corporation 1

DWL-3500AP/8500AP Installation Guide

System Requirements

If any of the adove items are missing,please contact your reseller.

Minimum System Requirements:

System Requirements

DWL-3500AP/8500AP

Wireless Switch Access Point

Power over Ethernet base

unit

Mounting Plate

Ethernet Cable

(CAT5 UTP/Straight Through)

Power Cord Power Adapter-DC 48V, 0.4A

Using a power supply with

a different voltage rating will

damage and void the warranty of

this product.

About this product:

The D-Link Wireless Switch Access Point is part of a comprehensive wireless network

solution. The device works in conjunction with a Wireless Switch and provides the following

capabilities:

• IEEE 802.11b/g (DWL-3500AP) or IEEE 802.11a/b/g (DWL-8500AP) operation as a

wireless access point

• Compatible with IEEE 802.3af Power Over Ethernet (PoE)

• Must work with D-Link DWS-3024/3026 Wireless Switch,and all conguration,

management and rmware upgrade must be done on the Wireless Switch.

Package Contents

System Requirements:

• CD-ROM Drive

• Computers with Windows, Macintosh, or Linux-based operating systems

• Installed Ethernet Adapter Internet Explorer version 6.0 or Netscape Navigator version 7.0

and above.

2 D-Link Corporation

DWL-3500AP/8500AP Installation Guide

Installing the Hardware

Power Cord socket

LAN (PoE)

Antennas

Reset (Reserved)

D-Link Corporation 3

DWL-3500AP/8500AP Installation Guide

Floor 2

Floor 1

Data Center

Server

Farm

DWS-3024

Wireless Switch

Floor 2

Floor 1

Data Center

Server

Farm

DWS-3024

Wireless Switch

DWS-3024

Wireless Switch

D-Link Uniﬁed Access System Deployment

•

Overlay T

opology

Deploy into the existing infrastructure

without affecting the wired network.

The AP can be indirectly connected to

D-Link wireless switch.

•

Edge Switch T

opology

Deploy at the network edge for maximum

scalability.

The AP can be directly connected to and

4 D-Link Corporation

DWL-3500AP/8500AP Installation Guide

Installing the Hardware

Connecting the Ethernet and Power Cables

The access point receives power through the Ethernet cable or an external power

adapter. And also, this product intended only for installation in Environment A as

dened in IEEE 802.3af, Power over Ethernet (PoE).

Option 1:

Connect with a D-Link DWS-3024/3026 wireless switch or other 802.3af

PoE compliant switch.

Option 2:

Use the PoE Base Unit to connect to a switch that lacks PoE capabilities.

Option 3:

Connect to available power using the included power adapter .

Note:Thisproductandallinterconnectedequipmentmustbeinstalledindoors,including

all associated LAN connections.

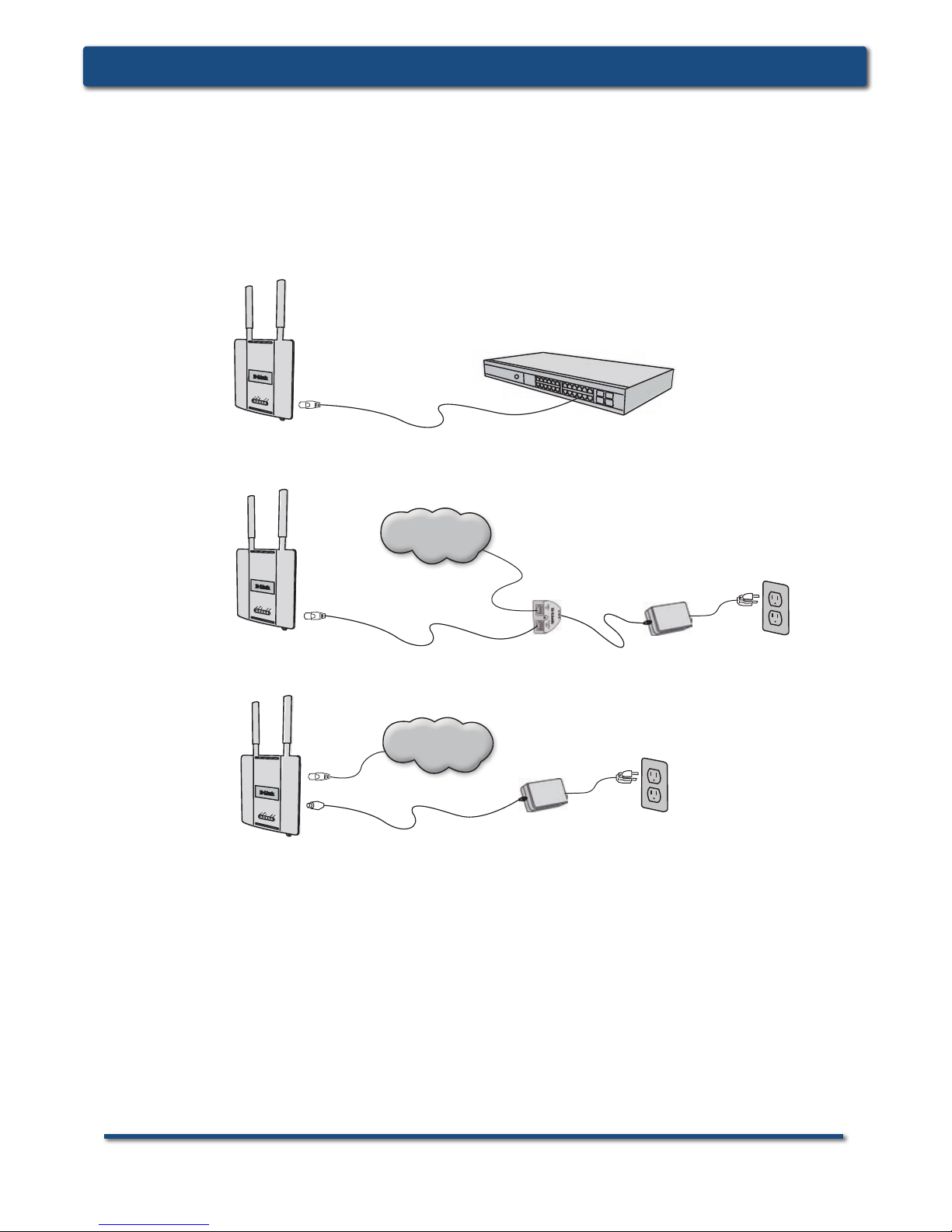

The access point power options:

Access Point

PoE Base Unit

Universal

power supply

Power cord

PoE Switch

(DWS-3024)

OPTION 1

OPTION 2

Access Point

Universal

power supply

Power cord

OPTION 3

LAN

Access Point

PoE Base Unit

Universal

power supply

Power cord

PoE Switch

(DWS-3024)

OPTION 1

OPTION 2

Access Point

Universal

power supply

Power cord

OPTION 3

LAN

Access Point

PoE Base Unit

Universal

power supply

Power cord

PoE Switch

(DWS-3024)

OPTION 1

OPTION 2

Access Point

Universal

power supply

Power cord

OPTION 3

LAN

D-Link Corporation 5

DWL-3500AP/8500AP Installation Guide

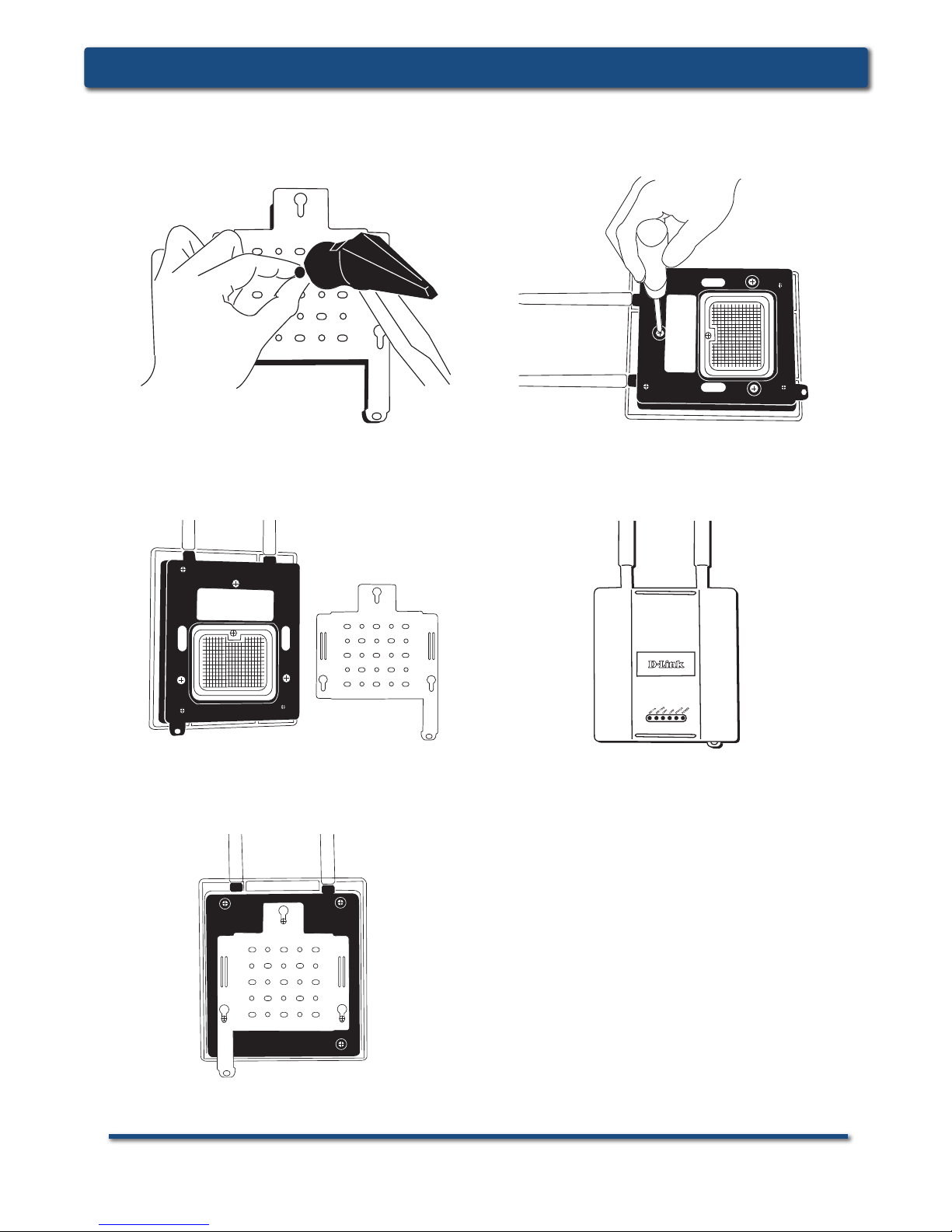

Physical Installation for Your Access Point:(optional)

Step 1:

Mount the bracket on the

appropriate position on the wall.

Step 2:

Install the screws on the back

of the access point.

(Back view)

Step 3:

Mount the AP to the bracket

on the wall.

Step 4:

A mounted AP should look like

this (front view).

6 D-Link Corporation

DWL-3500AP/8500AP Installation Guide

Setup as a Managed AP:

• After correctly connecting the Ethernet cable and power, you need to login to the

D-Link wireless switch web GUI to recognize and activate the Access Point (AP).

• Follow the steps under "Basic Setup" in the web GUI to allow for discovery and

management of the AP.

• For details, please refer to the DWS-3000 Series User Manual.

Technical Support

You can nd software updates and user documentation on the D-Link website.

D-Link provides free technical support for customers within the United States and

within Canada for the duration of the warranty period on this product.

U.S. and Canadian customers can contact D-Link Technical Support through our

website or by phone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

(877) 453-5465

Monday to Friday 8:00am to 5:00pm PST

D-Link Technical Support over the Internet:

http://support.dlink.com

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

(800) 361-5265

Monday to Friday 7:30am to 12:00am EST

D-Link Technical Support over the Internet:

http://support.dlink.ca

Technical Support

You can nd software updates and user documentation on the D-Link websites.

If you require product support, we encourage you to browse our FAQ section on

the Web Site before contacting the Support line. We have many FAQ’s which

we hope will provide you a speedy resolution for your problem.

For Customers within

The United Kingdom & Ireland:

D-Link UK & Ireland Technical Support over the Internet:

http://www.dlink.co.uk

ftp://ftp.dlink.co.uk

D-Link UK & Ireland Technical Support over the Telephone:

08456 12 0003 (United Kingdom)

+1890 886 899 (Ireland)

Lines Open

8.00am-10.00pm Mon-Fri

10.00am-7.00pm Sat & Sun

For Customers within Canada:

D-Link Canada Technical Support over the Telephone:

1-800-361-5265 (Canada)

Mon. to Fri. 7:30AM to 9:00PM EST

D-Link Canada Technical Support over the Internet:

http://support.dlink.ca

email: [email protected]

Technische Unterstützung

Aktualisierte Versionen von Software und Benutzerhandbuch nden Sie

auf der Website von D-Link.

D-Link bietet kostenfreie technische Unterstützung für Kunden innerhalb

Deutschlands, Österreichs, der Schweiz und Osteuropas.

Unsere Kunden können technische Unterstützung über unsere Website,

per E-Mail oder telefonisch anfordern.

Web: http://www.dlink.de

E-Mail: support@dlink.de

Telefon: +49 (1805)2787

0,12€/Min aus dem Festnetz der Deutschen Telekom.

Telefonische technische Unterstützung erhalten Sie Montags bis Freitags

von 09.00 bis 17.30 Uhr.

Unterstützung erhalten Sie auch bei der Premiumhotline für D-Link

Produkte unter der Rufnummer 09001-475767

Montag bis Freitag von 6-22 Uhr und am Wochenende von 11-18 Uhr.

1,75€/Min aus dem Festnetz der Deutschen Telekom.

Wenn Sie Kunde von D-Link außerhalb Deutschlands, Österreichs, der

Schweiz und Osteuropas sind, wenden Sie sich bitte an die zuständige

Niederlassung aus der Liste im Benutzerhandbuch.

Assistance technique

Vous trouverez la documentation et les logiciels les plus récents sur le site web

D-Link.

Vous pouvez contacter le service technique de

D-Link par notre site internet ou par téléphone.

Support technique destiné aux clients établis en France:

Assistance technique D-Link par téléphone :

0820 0803 03

N° INDIGO - 0,12€ TTC/min*

*Prix en France Métropolitaine au 3 mars 2005

Du lundi au samedi – de 9h00 à 19h00

Assistance technique D-Link sur internet :

http://www.dlink.fr

e-mail : [email protected]

Support technique destiné aux clients établis au Canada :

Assistance technique D-Link par téléphone :

(800) 361-5265

Lun.-Ven. 7h30 à 21h00 HNE.

Assistance technique D-Link sur internet :

http ://support.dlink.ca

e-mail : [email protected]
