D-Link DWL-3500AP Manuel utilisateur

D-Link Corporation 1

DWL-3500AP/8500AP Installation Guide

System Requirements

If any of the adove items are missing,please contact your reseller.

Minimum System Requirements:

System Requirements

DWL-3500AP/8500AP

Wireless Switch Access Point

Power over Ethernet base

unit

Mounting Plate

Ethernet Cable

(CAT5 UTP/Straight Through)

Power Cord Power Adapter-DC 48V, 0.4A

Using a power supply with

a different voltage rating will

damage and void the warranty of

this product.

About this product:

The D-Link Wireless Switch Access Point is part of a comprehensive wireless network

solution. The device works in conjunction with a Wireless Switch and provides the following

capabilities:

• IEEE 802.11b/g (DWL-3500AP) or IEEE 802.11a/b/g (DWL-8500AP) operation as a

wireless access point

• Compatible with IEEE 802.3af Power Over Ethernet (PoE)

• Must work with D-Link DWS-3024/3026 Wireless Switch,and all conguration,

management and rmware upgrade must be done on the Wireless Switch.

Package Contents

System Requirements:

• CD-ROM Drive

• Computers with Windows, Macintosh, or Linux-based operating systems

• Installed Ethernet Adapter Internet Explorer version 6.0 or Netscape Navigator version 7.0

and above.

All manuals and user guides at all-guides.com

all-guides.com

2 D-Link Corporation

DWL-3500AP/8500AP Installation Guide

Installing the Hardware

Power Cord socket

LAN (PoE)

Antennas

Reset (Reserved)

All manuals and user guides at all-guides.com

D-Link Corporation 3

DWL-3500AP/8500AP Installation Guide

Floor 2

Floor 1

Data Center

Server

Fa r m

DWS-3024

Wireless Switch

Floor 2

Floor 1

Data Center

Server

Fa r m

DWS-3024

Wireless Switch

DWS-3024

Wireless Switch

D-Link Unied Access System Deployment

•

Overlay T

opology

Deploy into the existing infrastructure

without affecting the wired network.

The AP can be indirectly connected to

D-Link wireless switch.

•

Edge Switch T

opology

Deploy at the network edge for maximum

scalability.

The AP can be directly connected to and

All manuals and user guides at all-guides.com

4 D-Link Corporation

DWL-3500AP/8500AP Installation Guide

Installing the Hardware

Connecting the Ethernet and Power Cables

The access point receives power through the Ethernet cable or an external power

adapter. And also, this product intended only for installation in Environment A as

dened in IEEE 802.3af, Power over Ethernet (PoE).

Option 1:

Connect with a D-Link DWS-3024/3026 wireless switch or other 802.3af

PoE compliant switch.

Option 2:

Use the PoE Base Unit to connect to a switch that lacks PoE capabilities.

Option 3:

Connect to available power using the included power adapter .

Note: This product and all interconnected equipment must be installed indoors, including

all associated LAN connections.

The access point power options:

Access Point

PoE Base Unit

Universal

power supply

Power cord

PoE Switch

(DWS-3024)

OPTION 1

OPTION 2

Access Point

Universal

power supply

Power cord

OPTION 3

LAN

Access Point

PoE Base Unit

Universal

power supply

Power cord

PoE Switch

(DWS-3024)

OPTION 1

OPTION 2

Access Point

Universal

power supply

Power cord

OPTION 3

LAN

Access Point

PoE Base Unit

Universal

power supply

Power cord

PoE Switch

(DWS-3024)

OPTION 1

OPTION 2

Access Point

Universal

power supply

Power cord

OPTION 3

LAN

All manuals and user guides at all-guides.com

D-Link Corporation 5

DWL-3500AP/8500AP Installation Guide

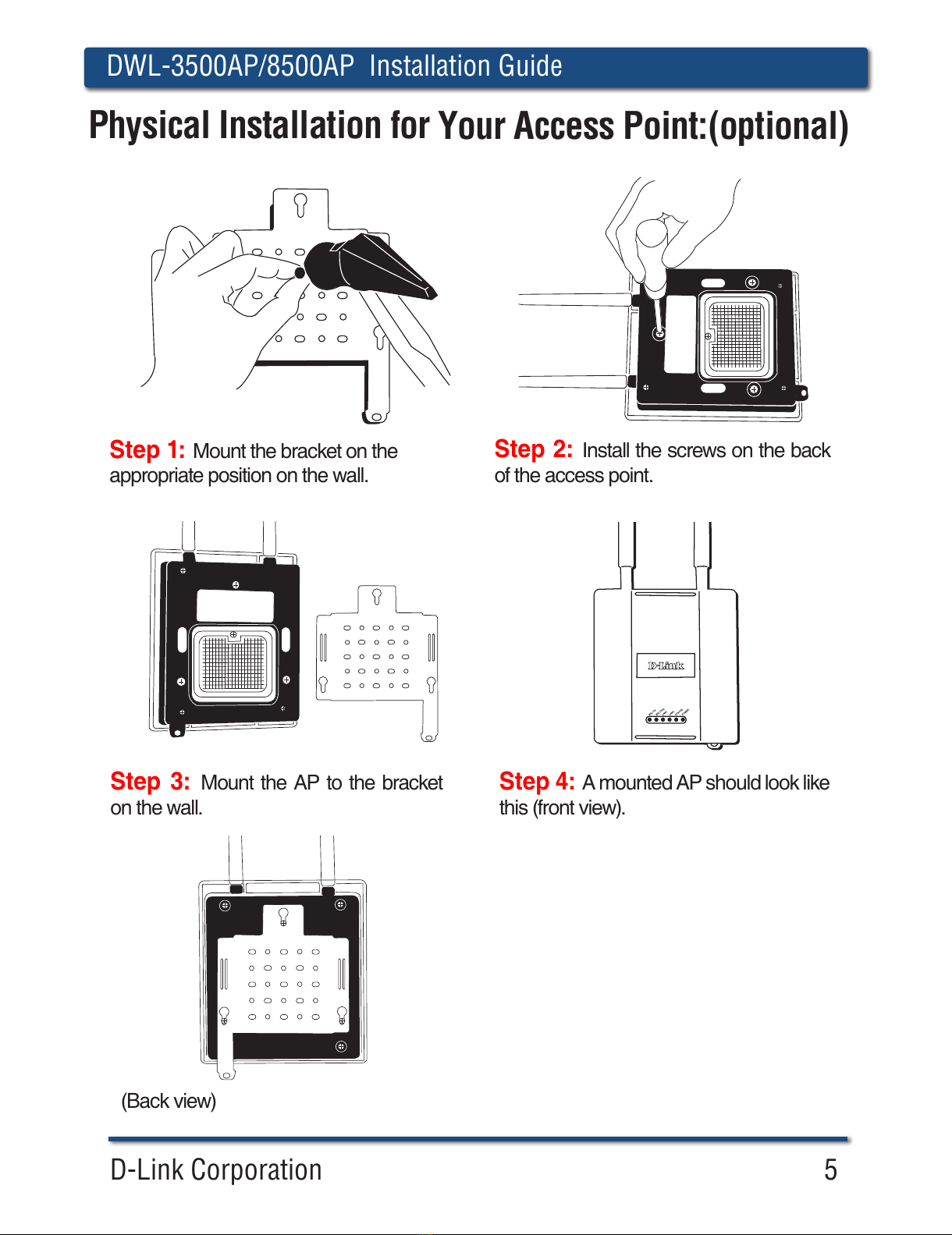

Physical Installation for Your Access Point:(optional)

Step 1:

Mount the bracket on the

appropriate position on the wall.

Step 2:

Install the screws on the back

of the access point.

(Back view)

Step 3:

Mount the AP to the bracket

on the wall.

Step 4:

A mounted AP should look like

this (front view).

All manuals and user guides at all-guides.com

6 D-Link Corporation

DWL-3500AP/8500AP Installation Guide

Setup as a Managed AP:

• After correctly connecting the Ethernet cable and power, you need to login to the

D-Link wireless switch web GUI to recognize and activate the Access Point (AP).

• Follow the steps under "Basic Setup" in the web GUI to allow for discovery and

management of the AP.

• For details, please refer to the DWS-3000 Series User Manual.

All manuals and user guides at all-guides.com

all-guides.com

Technical Support

D-Link’s website contains the latest user documentation and

software updates for D-Link products.

U.S. and Canadian customers can contact D-Link Technical

Support through our website or by phone.

United States

Telephone

(877) 354-6555

World Wide Web

http://support.dlink.com

Canada

Telephone

(877) 354-6560

World Wide Web

http://support.dlink.com

trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other

trademarks are the property of their respective owners. All references to speed are for comparison purposes only. Product

specications, size, and shape are subject to change without notice, and actual product appearance may differ from that

depicted herein. Visit www.dlink.com for more details.
