D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

5V 2.0A DC Power Adapter

Software and specications subject to change without notice. DWL-2100AP. 12152004

Before You Begin

Check Your Package Contents

DWL-2100AP 802.11g/108Mbps Wireless

Access Point

CD-ROM (containing Manual and

Warranty)

Ethernet (CAT5 UTP) Cable

If any of the above items are missing, please contact your reseller.

It’s best to use a computer (with an Ethernet adapter) that is connected to a switch for

conguring the DWL-2100AP. The default IP address for the DWL-2100AP is 192.168.0.50

with a Subnet Mask of 255.255.255.0. You will need to assign your

computer a Static IP address within the same range as the DWL-2100AP’s IP address

for the purpose of conguring the DWL-2100AP. See the Appendix if you need

assistance in assigning a Static IP address for your network adapter.

Using a power supply

with a different voltage

rating will damage and void

the warranty of this product.

DWL-2100AP

D-Link

AirPlus

XtremeGTM

802.11g/108Mbps

Wireless Access Point

This product can be set up using

any current web browser, i.e.,

Internet Explorer 6 or Netscape

Navigator 6.2.3.

A. First, connect the power adapter to the receptor at the back panel of the

DWL-2100AP and then plug the other end of the power adapter to a wall outlet or

power strip. The Power LED will turn ON to indicate proper operation.

B. Insert one end of the cable to the Ethernet port on the back panel of the

DWL-2100AP and the other end of the cable to an Ethernet Broadband Router

(i.e., D-Link DI-604) or Switch (i.e., D-Link DES-1005D). Note: You also have the

option of connecting the DWL-2100AP directly to the computer that will be used for

conguration. The Link LED light will illuminate to indicate a proper Ethernet

connection. (Note: The Ethernet Port on the DWL-2100AP is Auto-MDI/MDIX.

Meaning you can use a straight-through or crossover-Ethernet cable to connect to

the Ethernet port on the DWL-2100AP.)

C. The DWL-G650 AirPlus Xtreme G Wireless Cardbus Adapter and the DWL-G520

AirPlus Xtreme G Wireless PCI Adapter will connect, out of the box , with the

DWL-2100AP, using their default wireless settings. Computers with 802.11b/g

wireless adapters can also connect to the DWL-2100AP.

Connecting the DWL-2100AP Wireless

Access Point to Your Network

C. Antennas Used to

wirelessly connect to

802.11b/g adapters.

B. LAN PORT for

connecting the access

point to a switch on the

local network with an

ethernet cable

Reset Button

Pressing this button restores

the Access Point to its original

factory default settings.

A. Receptor for

Power Adapter.

Using the Setup Wizard

Open your Web

browser and type

“http://192.168.0.50”

into the URL address

box. Then press the

Enter or Return key.

The logon pop-up

screen will appear.

Type “admin” for the

username and leave

the password eld

blank.

Click OK

When you have

completed the steps in

this Quick Installation

Guide, your connected

network should look

similar to this:

Once you have

logged in, the Home

screen will appear.

You will see the following

screens.

Click Run Wizard

Click Next

Using The Setup Wizard (continued)

Click Next

Step 1 - Set up your new

password. You have the op-

tion to establish a password.

Step 2 - Wireless Setup

The default wireless

settings are:

SSID = dlink

Channel = 6

You can change these

settings to match an

existing wireless network.

Click Next

Using The Setup Wizard (continued)

Step 3 - Encryption

The DWL-2100AP is capable

of two levels of wireless

encryption 64-bit and 128-bit.

By default the encryption is

disabled. You can change the

encryption settings for more

secure wireless communication.

Your Setup is Complete!

Using The Setup Wizard (continued)

Click Next

Click Restart

Click Close

You will be returned to the Home tab.

Click to Exit

For additional settings or information, refer to the Advanced, Tools, or Status tabs on

the web-management interface; or to the manual located on the CD-ROM.

Appendix

To assign a Static IP Address to the laptop or computer that you are using to congure

the DWL-2100AP, please do the following:

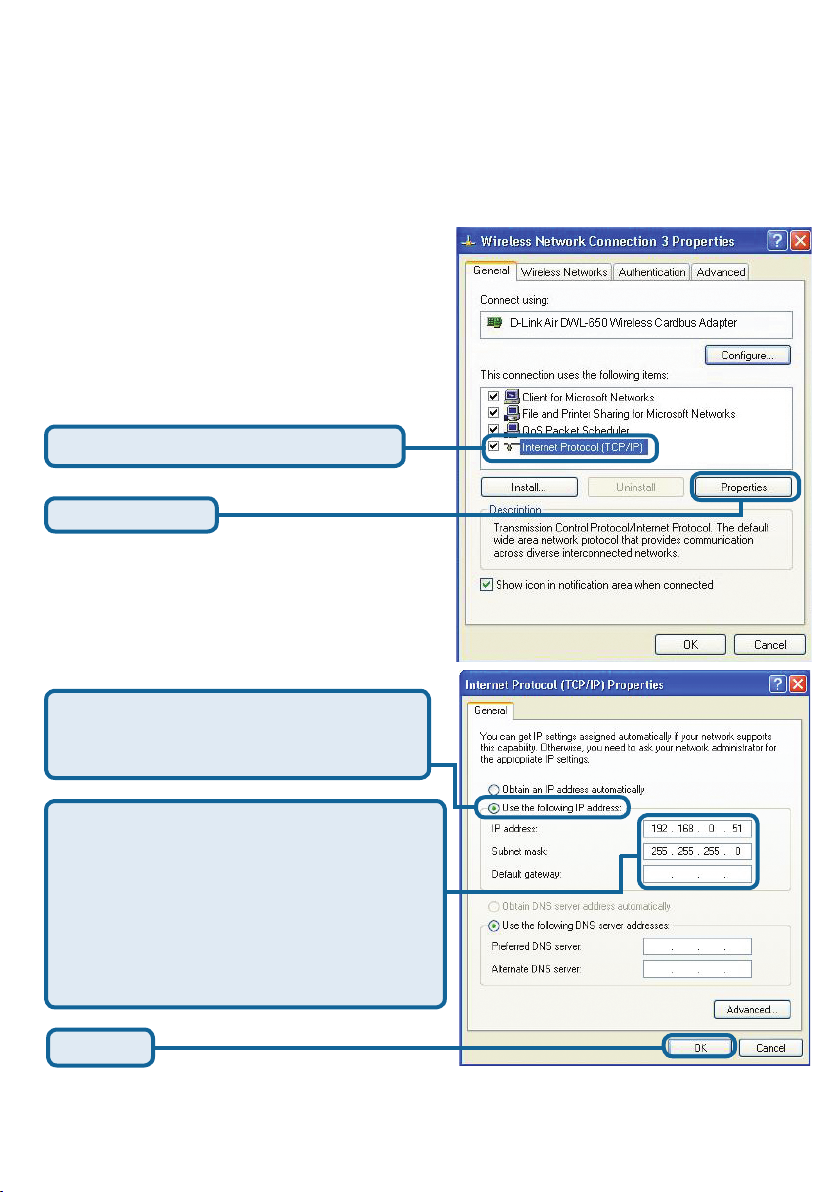

Assigning a Static IP Address in Windows

Go to Start > Double- click on Control

Panel > Double-click on Network

Connections > Right-click on Local

Area Connections > Click Properties

Click Properties

Select Use the following IP address in

the Internet Protocol (TCP/IP) Properties

window

Input your IP address and subnet mask.

(The IP Address must be within the same

range as the DWL-2100AP. The IP Address

of the DWL-2100AP is 192.168.0.50. You

can assign 192.168.0.51 for your computer.

No two computers can have the same

IP Address. Assign a subnet mask of

255.255.255.0.)

Highlight Internet Protocol (TCP/IP)

Click OK

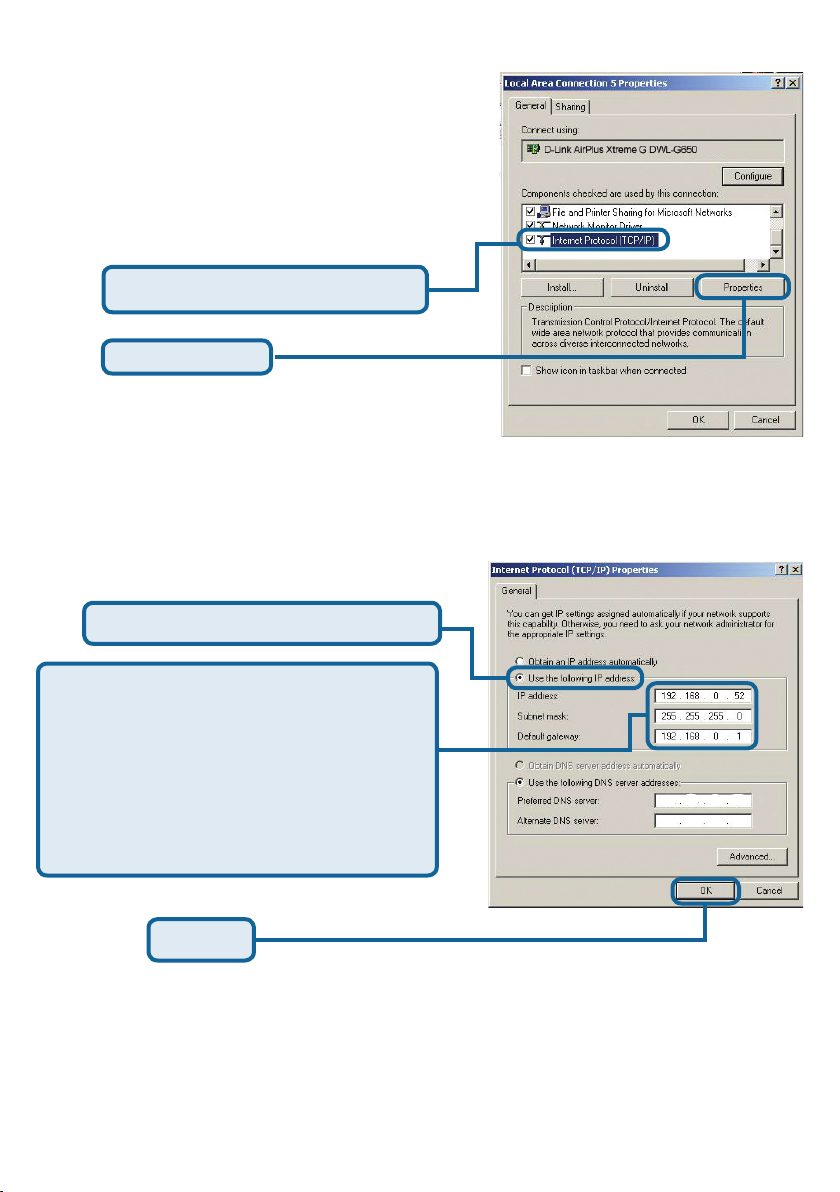

For Windows 2000 users:

Go to Start > Settings > Network and

Dial-up Connections > Double-click on

the Local Area Connection associated

with the Network Adapter installed on your

system> select Properties

Click Internet Protocol (TCP/IP)

Select Use the following IP address

Input your IP address and subnet mask.

(The IP Address must be within the same

range as the DWL-2100AP. The IP Address

of the DWL-2100AP is 192.168.0.50. You

can assign 192.168.0.52 for your computer.

No two computers can have the same

IP Address. Assign a subnet mask of

255.255.255.0.)

Click OK

Click Properties

Click Internet Protocol (TCP/IP)

Go to Start > Settings > Control Panel >

Double-click on the Local Area Connection

associated with the Network Adapter installed

on your system > select Properties

For Windows Me and 98se users:

Click Properties

Click Internet Protocol (TCP/IP)

Select Specify IP Address

Input your IP address and subnet mask.

(The IP Address must be within the same

range as the DWL-2100AP. The IP Address

of the DWL-2100AP is 192.168.0.50. You

can assign 192.168.0.52 for your computer.

No two computers can have the same

IP Address. Assign a subnet mask of

255.255.255.0.)

Click OK
