D-Link Air Premier DAP-2695 Manuel utilisateur
2DAP-2695 Install Guide
Minimum System Requirements:
• CD-ROM Drive
• Computers with Windows®, Macintosh®, or Linux-based
operating systems
• Installed Ethernet adapter or wireless adapter
• Internet Explorer 7, Chrome, Firefox, or Safari 4 or higher
System Requirements
Package Contents
Note: Using a power supply with a dierent voltage than the one included with the DAP-2695 will cause damage and
void the warranty for this product. If any of the above items are missing, please contact your reseller.
• DAP-2695 Access Point
• Six Detachable Antennas
• Power Adapter
• Power Cord
• PoE Base Unit
• Mounting Plate and Hardware
• Ethernet Cable
• Console Cable
• CD (with software and user manual)
* Maximum Wireless signal rate derived from IEEE 802.11ac (draft), 802.11n, 802.11a, and 802.11g specications. Actual data
throughput will vary. Network conditions and environmental factors, including volume of network trac, building materi-
als and construction, and network overhead lower actual data throughput rate.
DAP-2695 Install Guide 3
Hardware Overview

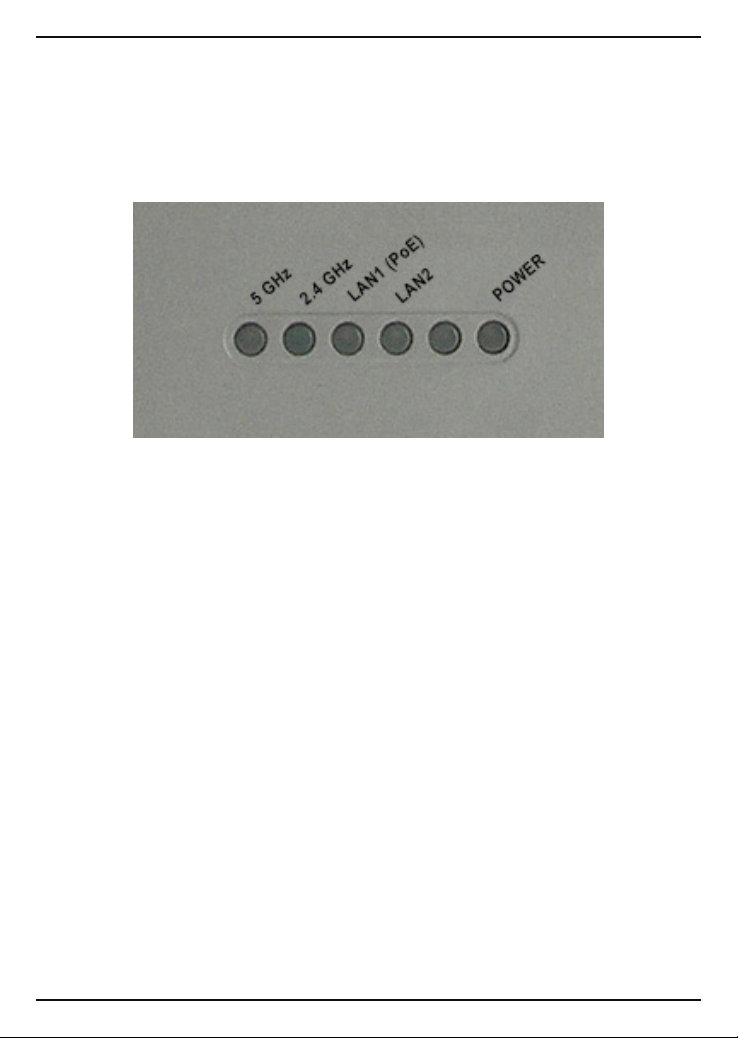

LEDs
5 GHz - When lit, the access point is operating at 5GHz. This light will
blink when there is wireless trac.
2.4 GHz - When lit, the access point is operating at 2.4GHz. This light
will blink when there is wireless trac.
LAN1 (PoE) - Solid light when the Ethernet port is connected to a
power over Ethernet (PoE) port, such as a router or switch. The light will
blink when there is trac through LAN port.
LAN2 - Solid light when the Ethernet port is connected to a working
port, such as a router or switch. The light will blink when there is trac
through LAN port.
POWER - The light will blink during boot up. Once solid, the access
point is ready.
4DAP-2695 Install Guide
1Reset Button Press and hold for six seconds to reset the access
point to the factory default settings.
2Console Port Connect the supplied console cable to congure
using a command line interface.
3LAN2 Port Connect to your network with an Ethernet cable.
4LAN1 (PoE) Port Connect to a Power over Ethernet (PoE) switch or
router.
5Power Receptor Connect the supplied power adapter.
1 2 3 4 5
Connections
DAP-2695 Install Guide 5
To power the access point, you can use one of the following 3 methods:
Method 1 - Use if you have a PoE switch or router.
Method 2 - Use if you do not have a PoE switch or router and do not
have a power outlet near the location of the access point.
Method 3 - Use if you do not have a PoE switch or router and have a
power outlet near the location of the access point.

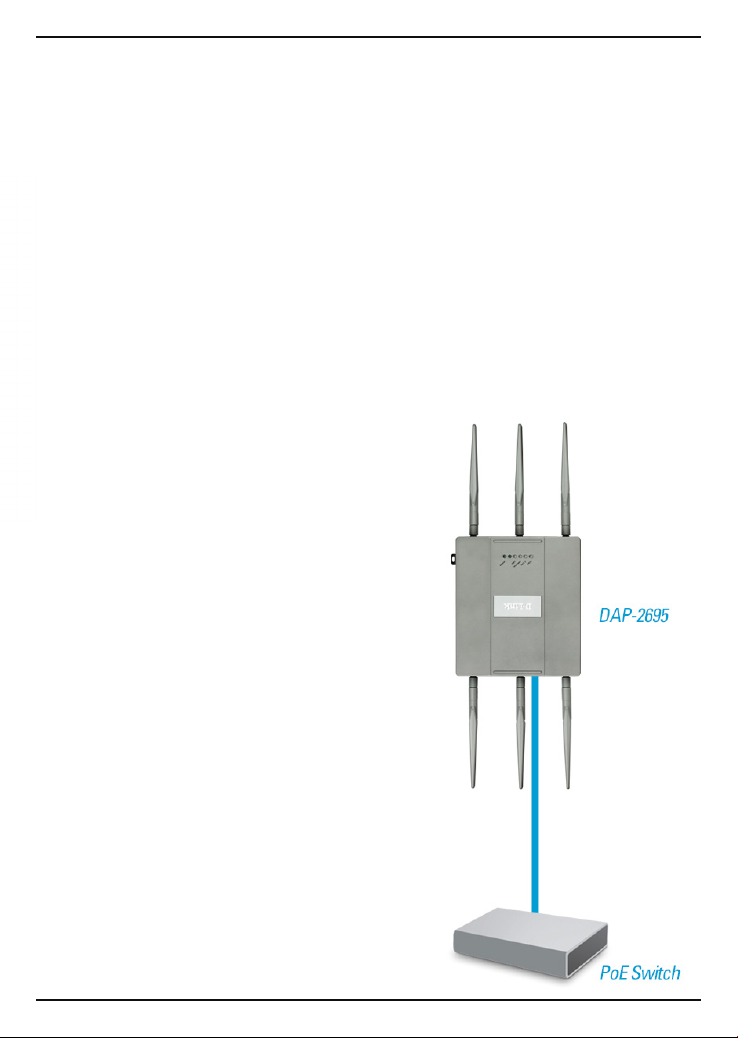

Method 1
1. Connect one end of your Ethernet cable to the LAN1 (PoE) port on the access
point.
2. Connect the other end into one port on a PoE switch or router.
Installation
6DAP-2695 Install Guide

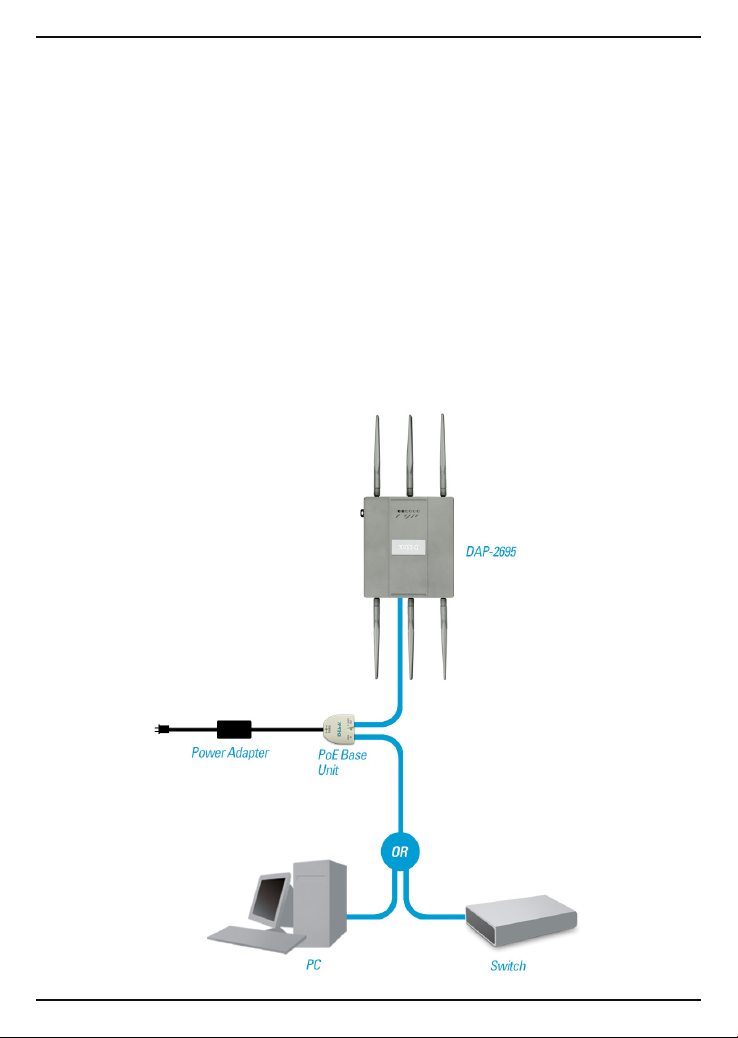

Method 2
1. Connect one end of an Ethernet cable into the Data In port on the PoE base
unit and the other end into one port on your switch, router, or computer.
2. Connect one end of an Ethernet cable into the P+Data Out port on
the PoE base unit and the other end into the LAN1 (PoE) port on the
Access Point.
3. Use the supplied power adapter. Connect the power adapter to the Power In
receptor on the PoE adapter.
4. Connect the power cable to the power adapter and then connect the other end
into a power outlet.
DAP-2695 Install Guide 7

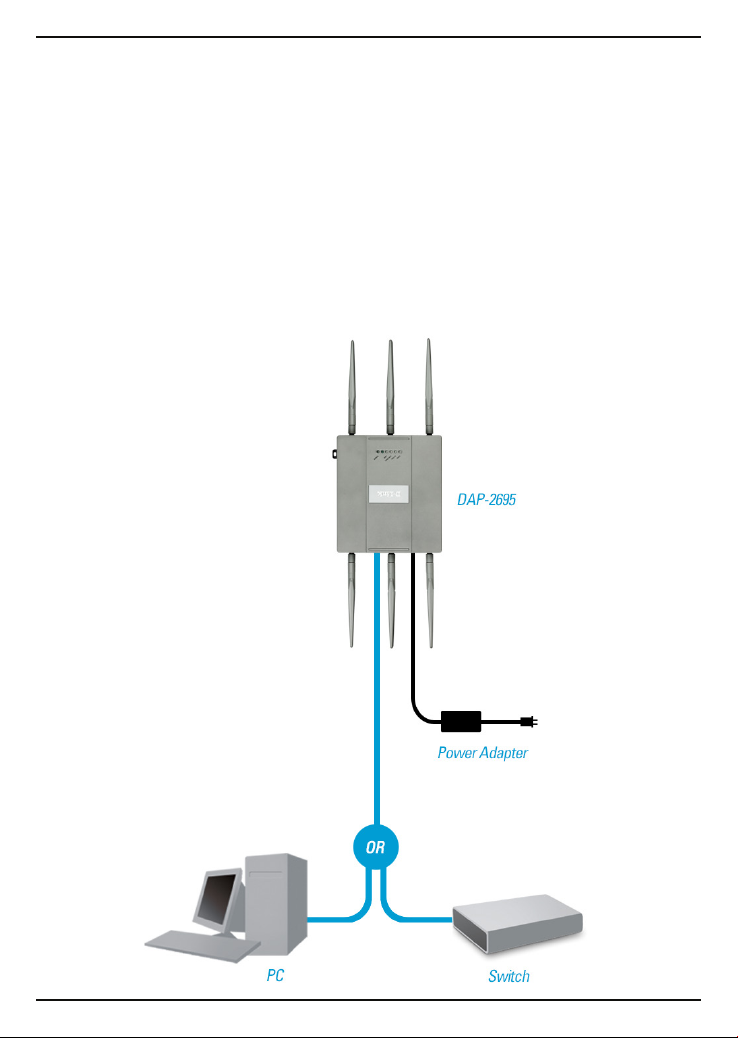

Method 3
1. Connect one end of your Ethernet cable into the LAN2 port on the Access Point
and then connect the other end to a switch, router, or computer.
2. Use the supplied power adapter. Connect the power adapter to the Power
receptor on the Access Point.
3. Connect the power cable to the power adapter and then connect the other end
into a power outlet.
8DAP-2695 Install Guide
Conguration
Note: It is recommended to congure your DAP-2695 before mounting. The easiest way
is to connect to the Access Point directly to a computer using an Ethernet cable. Statically
assign theIP address ofyourcomputer to192.168.0.2 witha subnetmask of255.255.255.0.

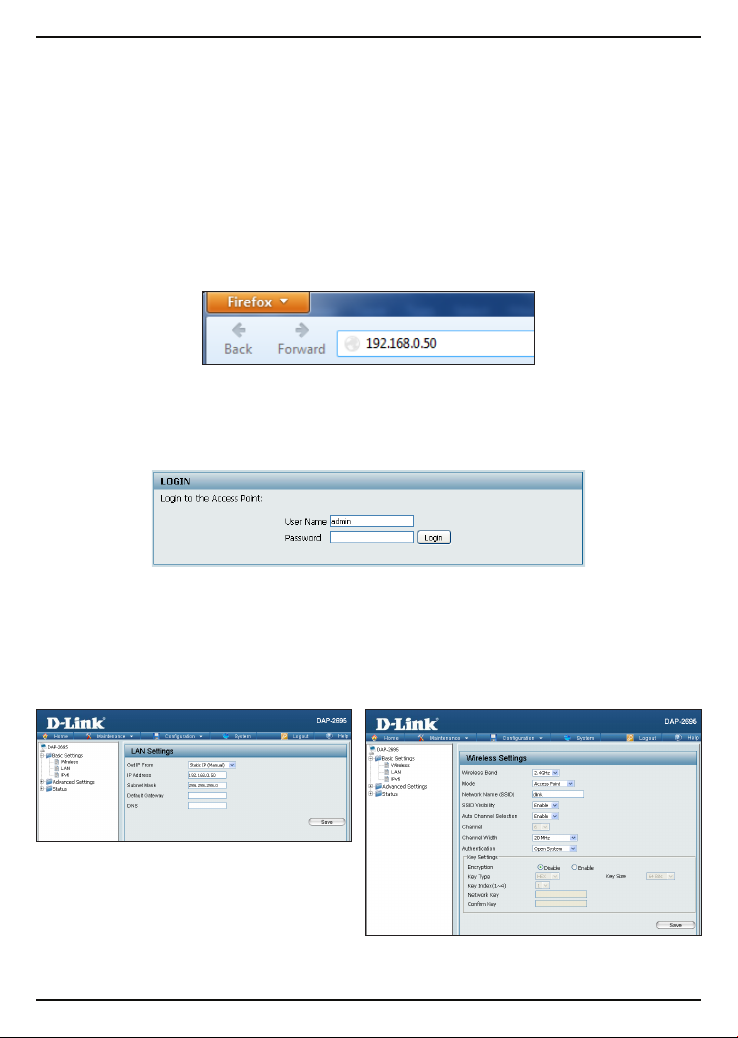

Step 1: Open a web browser (e.g., Internet Explorer, Chrome, Firefox , or Safari) and
enter http://192.168.0.50.
Step 2: At the login screen, enter admin for the user name and leave the password
blanks. Click Login to continue.
Step 3: After the home page appears, go to Basic Settings > LAN to change the IP
settings of the DAP-2695. Go to Basic Settings > Wireless to congure your wireless
settings.
Note: Make sure you click on Conguration > Save and Activate to save your settings.
DAP-2695 Install Guide 9
Step 1: Insert the provided wall anchors in the wall where the mounting plate will
be attached.
Mounting
Step 2: Use the provided screws to secure the mounting plate on the wall.
10 DAP-2695 Install Guide

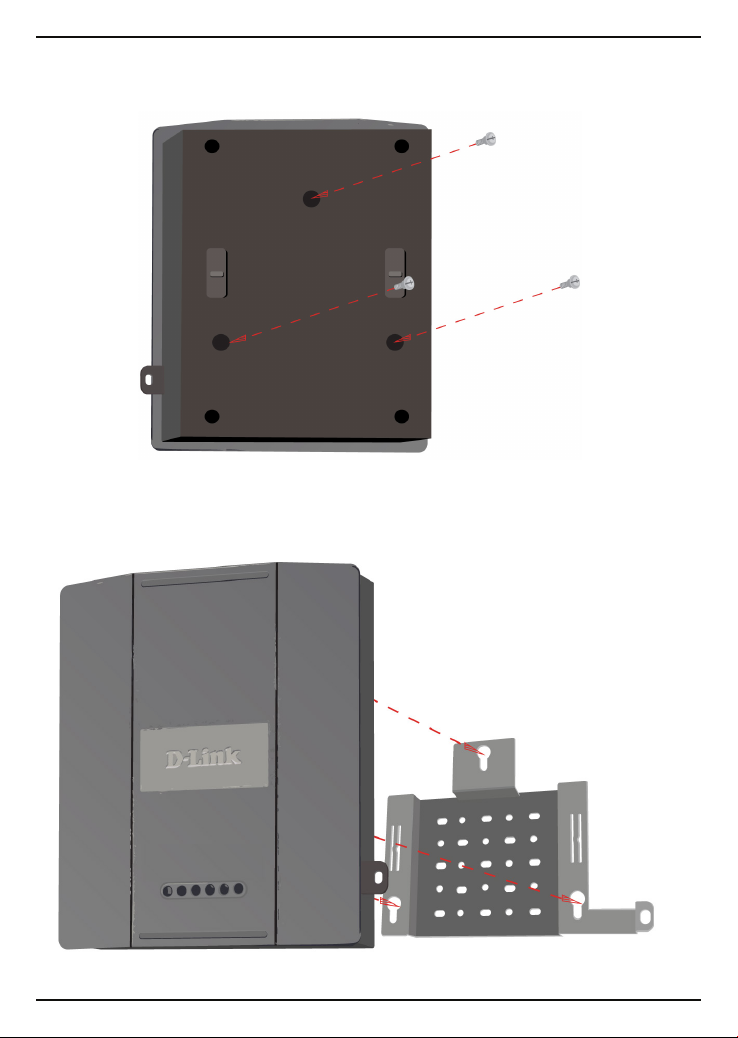

Step 3: Attach the remaining screws securely to the back of the DAP-2695.
Step 4: Attach the DAP-2695 to the mounting plate.
