D-Link AirPremier DWL-7700AP Manuel utilisateur

2

• 30m Ethernet cable

• Power Adapter

• Grounding Wire

• Power Cord

• RF Jumper Cable

• 8 Screws and Rubber Ring

Package Contents

• PoE Base Unit

• Two Dipole Antennas

• DWL-7700AP 802.11A/G Outdoor Wireless AP/ Bridge

• CD-ROM (with Product Documentation)

• Surge Arrestor

System Requirements

• Computer with Windows, Macintosh, or Linux-based operating

system with an Ethernet adapter installed

• Internet Explorer version 6.0 or Netscape version 7.0 and

above

• 2 Mounting Kits

• Console Cable

3

This product should ONLY be installed by an experienced installer

who is familliar with local building and safety codes and where ever

applicable, is licensed by the appropriate authorities. Failure to do so

may void the D-Link product warranty and may expose the end user

or the service provider to legal and ﬁnancial liabilities. D-Link and its

resellers or distributors are not liable for injury, damage, or violation of

regulations associated with the installation of outdoor units or antennas.

A safety grounding system is necessary to protect your outdoor installation

from lightning strikes and the build-up of static electricity. Direct grounding

of the antenna mast, Outdoor AP, and Surge Arrester is very important.

When mounting the Outdoor AP on the antenna mast, you have to connect

the Outdoor AP to the same grounding system with the AC wall outlet. The

grounding system must comply with the National Electrical Code and safety

standards that apply in your country. Always check with a qualiﬁed electrician

if you are in doubt as to whether your outdoor installation is properly grounded.

Important Information

It’s best to use a computer (with an Ethernet adapter) connected to a switch

to conﬁgure the DWL-7700AP.The default IP address for the DWL-7700AP

is 192.168.0.50 with a subnet mask of 255.255.255.0 on the wired Ethernet

side.You will need to assign your computer a static IP address within the

same range as the DWL-7700AP’s IP address for the purpose of conﬁguring

the DWL-7700AP. If you need assistance assigning a static IP address

to your network adapter, please refer to the manual on the CD-ROM.

Before You Begin

4

Step 1: Connect the

supplied Ethernet cable with

the waterproof enclosure

to the Ethernet port on the

DWL-7700AP and attach the

grounding wire.

Physical Installation

5

Step 2: Install the two dipole

antennas to the antenna

connector and attach the

grounding wires.

Physical Installation (continued)

6

Physical Installation (continued)

7

Step 3: Install the mounting

kits. You can select between

two mounting options.

Physical Installation (continued)

Mounting Option A:

8

Physical Installation (continued)

A complete DWL-7700AP with

Mounting Option A should look

like this.

9

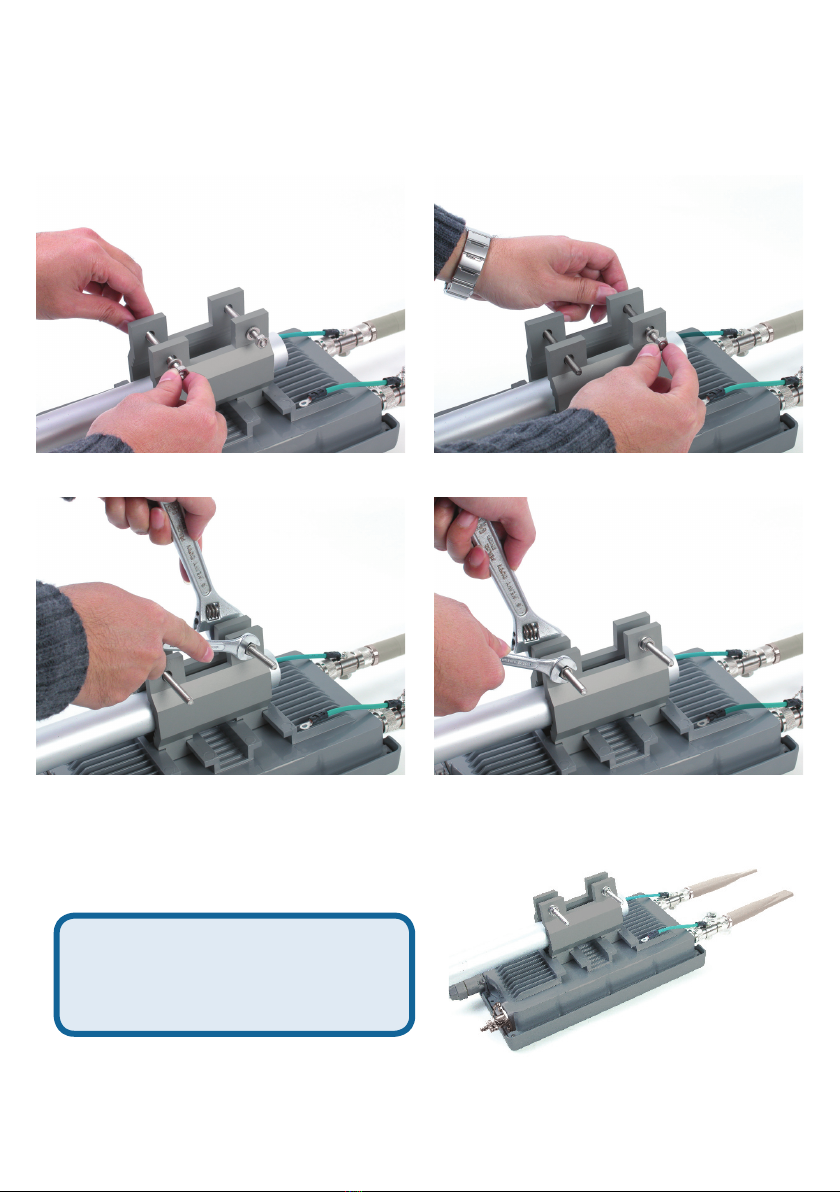

Mounting Option B:

A complete DWL-7700AP with

Mounting Option B should look

like this.

Physical Installation (continued)

10

Step 1: Complete the Physical Installation ﬁrst.

Step 2: Connect the remaining end of the supplied Ethernet cable (connected to

the DWL-7700AP in Step 1 on page 4) to the P+ DATA OUT port on the PoE base

unit.

Step 3: Connect an Ethernet cable from a router/switch or PC to the DATA IN port

on the PoE base unit.

Step 4: Attach the power adapter to the connector labeled POWER IN on the PoE

base unit. Attach the power cord to the power adapter and into an electrical outlet.

Connecting the DWL-7700AP Wireless Access

Point to Your Network

Hardware Installation Overview
