Quick Installation Guide

Nuclias Connect AC1200 Wave 2

Outdoor Access Point

2D-Link DAP-3666 Quick Install Guide

Before You Begin

This chapter describes safety precautions and product information you have to know

and check before installing DAP-3666.

Professional Installation Required

1. Please seek assistance from a professional installer who is well trained in the RF

installation and knowledgeable in the local regulations.

2. The DAP-3666 is distributed through distributor and system installer with professional

technicians and will not be sold directly through retail store.To keep you safe and install

the hardware properly, please read and follow these safety precautions.

Safety Precautions

To keep you safe and install the hardware properly, please read and follow these safety

precautions.

1. Ifyouareinstallinganaccesspointforthersttime,foryoursafetyaswellas

others’, please seek assistance from a professional installer who has received safety

training on the hazards involved.

2. Keep safety as well as performance in mind when selecting your installation site,

especially where there are electric power and phone lines.

3. When installing your antenna, note the following:

• Do not use a metal ladder;

• Do not work on a wet or windy day;

• Wear shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.

4. When the system is operational, avoid standing directly in front of the antenna.

StrongRFeldsarepresentwhenthetransmitterison.

5. A safety grounding system is necessary to protect your outdoor installation from

lightning strikes and the build-up of static electricity. When mounting the Outdoor AP

on the antenna mast, you have to connect the Outdoor AP to the same grounding

system* with the AC wall outlet.

6. Alwayscheckwithaqualiedelectricianifyouareindoubtastowhetheryouroutdoor

installation is properly grounded.

* The grounding system must comply with the National Electrical Code and safety standards that apply in your

country.

ENGLISH

Quick Install Guide

This installation guide provides basic

instructions for installing the DAP-3666

Nuclias Connect AC1200 Wave 2 Outdoor

Access Point on your network. For additional

information about how to use the Access

Point, please see the datasheet and user

manual from the D-Link support website.

Minimum System

Requirements

Computer with Windows, MAC OS, or Linux-

based operating system, and an Ethernet

adapter installed

-Mozilla Firefox 52.0 or higher, Internet

Explorer 11 or higher, Safari 10.1 or

higher, Google Chrome 59 or higher.

Package Contents

-DAP-3666 Nuclias Connect AC1200 Wave

2 Outdoor Access Point

-Quick Installation Guide

-Mounting kit (Wall/Pole Mount)

-Stainless steel mount base x 1

-Stainless tie back straps x 2

-Wall screw x 4

-Wall plug x4

-Stainless mount screw (hexagonal hole)

-Hexagon Socket Spanner

-Two LAN Port Waterproof Enclosure

-Grounding Wire

If any of the above items are missing, please

contact your reseller.

NOTE no PSU supplied. To power the units use an

D-Link PoE switch, DPE-311GI or 802.3af PoE adapter.

Physical Installation

STEP 1: Connect an Ethernet

Cable to the LAN1 (PoE) Port on

the AP.

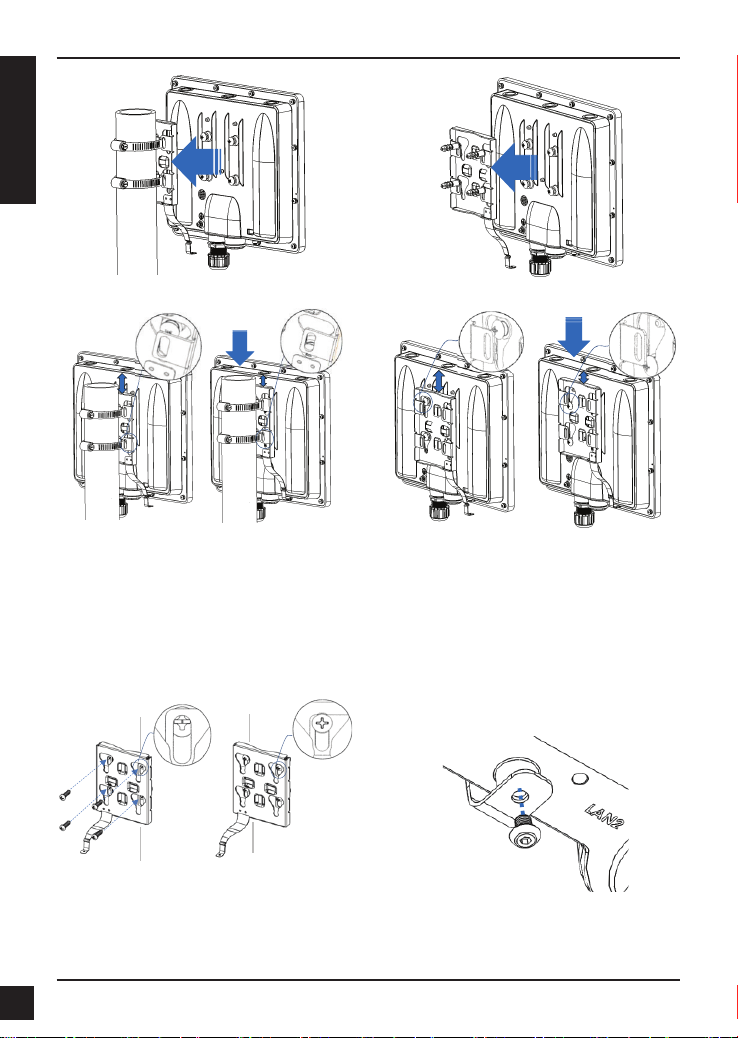

STEP 2: Mount the AP to a Pole

or Wall

2A: Mounting The DAP-3666 On

A Pole

Secure mount base to the pole with two

stainless tie back strap sets. Ensure that the

tie back is locked securely.

Pole Mount

D-Link DAP-3666 Quick Install Guide

ENGLISH

Align the DAP-3666 with the mounting plate

Once aligned, slide the device down so

that the mounting plate securely locks

into the DAP-3666

2B: Mounting The DAP-3666 On

A Wall

Securely mount the base to the wall using

wall plug and wall screw.

Align the DAP-3666 with the mounting plate

Once aligned, slide the device down so

that the mounting plate securely locks

into the DAP-3666

STEP 3: Install Mount Screw to Fix

DAP-3666 On A Mounting (Pole/

Wall Mount base)

Use the included mount screw (hexagonal

hole) to lock the DAP-3666 to the pole/wall

mount

Wall Mount

4D-Link DAP-3666 Quick Install Guide

ENGLISH

With the included hexagon socket spanner,

tighten the mount screw until the DAP-3666

is secured.

STEP 4: Connect Grounding Wire

A grounding wire is recommended to

protect your device from lightning strikes

and the buildup of static electricity.

Attach the grounding wire to the DAP-3666

using the included screw.

Tighten the grounding wire to the DAP-3666

until it is securely attached.

Attach the other end of the grounding wire to

either the wall or pole mount. Ensure that the

wall or pole mount is connected to an electrical

ground.

STEP 5: Conguring the Access

Point

Note:D-Linkrecommendsconguringthe

device before mounting it.

Using D-Link Nuclias Connect

The DAP-3666 is designed to be managed

through D-Link Nuclias Connect. Refer to

the D-Link Nuclias Connect Manual for

detailedcongurationinstructions.

Figure 4: Connecting through D-Link

Nuclias Connect

1. Download the free Nuclias Connect

PoE Switch Computer

LAN1 (PoE)

Wall Mount Pole Mount

D-Link DAP-3666 Quick Install Guide

ENGLISH

app from the App Store or Google Play

by searching for Nuclias Connect or by

scanning the QR code below.

2. Open the Nuclias Connect app and

follow the onscreen instructions to

discover and set up your device.

Manual Conguration

If you are not using Nuclias Connect,

you may manually congure the DAP-

3666 using its web user interface (UI).

Refer to the DAP-3666 User Manual for

detailed conguration instructions. Use

the following methods to access the web

user interface:

Note: The management computer must

be in the same subnet as the DAP-3666.

1. Use an Ethernet cable to connect the

management computer to the PoE switch

or to the PoE Injector the DAP-3666 is

connected to.

2. Open a web browser on the management

computer and type in dap3666.local in

theaddresseldandpress Enter.

3. When prompted, enter the default login

credentials:

User name: admin

Password: admin

TECHNICAL SUPPORT dlink.com/support

6D-Link DAP-3666 Quick Install Guide

ENGLISH

D-Link DAP-3666 Quick Install Guide

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radioortelevisionreception,whichcanbedeterminedbyturningtheequipmento󰀨

and on, the user is encouraged to try to correct the interference by one of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connecttheequipmentintoanoutletonacircuitdi󰀨erentfromthat

• to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

• Anychangesormodicationsnotexpresslyapprovedbythepartyresponsiblefor

compliance could void the user's authority to operate this equipment.

• This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

Note: The country code selection is for non-US model only and is not available to

allUSmodel.PerFCCregulation,allWiFiproductmarketedinUSmustxedtoUS

operation channels only.

ENGLISH
