D-Link KVM-121 Manuel utilisateur

Wireless G USB 2.0 Adapter

Wireless Internet Camera

with 3G Mobile Video

2D-Link KVM-121 Quick Install Guide

System Requirements

• PS/2 keyboard

• PS/2 Mouse

• Speakers or Headphones

• VGA or Higher Monitor

2 Sets of KVM Cables

Package Contents

D-Link KVM-121

KVM Switch

System Requirements

If any of the above items are missing, please contact your reseller.

Quick Install Guide

3 D-Link KVM-121 Quick Install Guide

Hardware Overview

Audio Jack

VGA Port

Keyboard Port

Mouse Port

KVM Cables

Plug the cables from your keyboard, monitor, sound card, and mouse into the KVM

switch, and plug the supplied cables from your KVM switch into your computers.

Select Button

Press the select button to switch quickly and easily between both computers.

4D-Link KVM-121 Quick Install Guide

Hardware Overview

The KVM-121 is assembled with the supplied KVM cables fastened

to the PC 1 and PC 2 ports. Plug the cable from PC 1 into your ﬁrst

computer (Computer 1), and plug the cable from PC 2 into your second

computer (Computer 2).

PC1

Connect the audio and VGA cable to your ﬁrst

computer (Computer 1).

PC2

Connect your audio or VGA cable to your second

computer (Computer 2).

5 D-Link KVM-121 Quick Install Guide

Hardware Installation

Attach your headphone or speakers

to the green audio jack located on

the KVM-121.

Attach your monitor’s 15-pin VGA

connector to the blue VGA port

located on the KVM-121.

Attach your computer’s 6-pin PS/2

male keyboard connector to the

purple keyboard port located on the

KVM-121.

6D-Link KVM-121 Quick Install Guide

Hardware Installation

Attach your computer’s 6-pin PS/2

male mouse connector to the green

mouse port located on the KVM-121.

Note: Make sure that all your computers are turned OFF before

installing the KVM-121 to avoid mouse and keyboard errors when

booting up your computers.

7 D-Link KVM-121 Quick Install Guide

Hardware Installation

The following steps apply to both computers that will be used with

the KVM-121. Start by attaching the cables connected from the PC

1 port of the KVM-121 to Computer 1.

Connect the KVM-121’s included

monitor cable (blue coated) to the

VGA port located on the back of your

computer case.

Plug the KVM-121’s included

keyboard cable (purple coated) to

the PS/2 keyboard port located on

the back of your computer case.

Plug the KVM-121’s included mouse

cable (green coated) to the PS/2

mouse port located on the back of

your computer case.

8D-Link KVM-121 Quick Install Guide

Hardware Installation

Plug the KVM-121’s included audio

cable to the audio jack located on the

back of your computer case.

Note: Repeat these steps to attach

the cables connected from the PC 2

port of the KVM-121 to Computer 2.

Power ON both of your attached computers after you have completed

the KVM-121 installation.

Once you’ve completed your KVM-121 installation, your connections

may appear similar to the diagram below.

9 D-Link KVM-121 Quick Install Guide

Switching the KVM-121

You can use your keyboard to switch between your computers. Press

and hold the Scroll Lock key twice to enter the Hot Key switching mode.

A beep conﬁrms that the Hot Key switching mode is activated.

Switching the KVM-121

Hot Key Menu

Scroll Lock + Scroll Lock + 1 : Switches to PC1 only.

Scroll Lock + Scroll Lock + 2 : Switches to PC2 only.

Scroll Lock + Scroll Lock + F1 : Switches to PC1 with audio

signal synchronously.

Scroll Lock + Scroll Lock + F2 : Switches to PC2 with audio

signal synchronously.

Scroll Lock + Scroll Lock +  : Switches to the next PC

with audio signal synchronously.

Scroll Lock + Scroll Lock +  : Switches to the previous PC

with audio signal synchronously.

Scroll Lock + Scroll Lock + B : Enable/Disable Beep.

Scroll Lock + Scroll Lock + M : Resets the mouse and keyboard.

Scroll Lock + Scroll Lock + S : Auto-Scan Mode automatically

switches between computers

every 10 seconds (Monitor Only).

Spacebar : Exits Auto Scan Mode.

10D-Link KVM-121 Quick Install Guide

Troubleshooting

Keyboard

If your keyboard is not functional, not detected, or there is a keyboard

error on boot-up, check the following:

• Make sure that the keyboard is properly connected to the

KVM-121. Check that the purple coated keyboard cable is securely

plugged into the correct PS/2 keyboard port (purple colored) and

not the PS/2 mouse port (green colored).

• Verify that the keyboard works when plugged into the computer

directly. You will have to shut down your computer ﬁrst to do this.

• Read your motherboard documentation and make sure that

the PS/2 keyboard’s IRQ is enabled. This can be set for most

computers in the BIOS setup.

• Try using a different keyboard.

Mouse

If your mouse is not functional, not detected, or there is a mouse error

on boot-up, check the following:

• Make sure that the mouse is properly connected to the KVM-121.

Check that the green coated mouse cable is plugged into the

correct PS/2 mouse port (green colored) and not the PS/2

keyboard port (purple colored).

• Verify that the mouse works when plugged into the computer

directly. You will have to shut down your computer ﬁrst to do this.

• Read your motherboard documentation and make sure that the

PS/2 mouse’s IRQ is enabled. This can be set for most computers

in the BIOS setup.

• Try using a different mouse.

• If mouse movement is random when switching between computers,

try shutting down your computer and rebooting.

• Verify that your computers do not have more than one mouse

driver installed (check your conﬁg.sys and autoexec.bat ﬁles for

Windows) and that you are using the latest mouse driver.

Troubleshooting

Autres manuels pour KVM-121

Table des matières

Autres manuels D-Link Changer

D-Link

D-Link DES-3326S - Switch - Stackable Manuel utilisateur

D-Link

D-Link DGS-1250-52XMP Manuel utilisateur

D-Link

D-Link DUB-H4 - Hub - USB Manuel utilisateur

D-Link

D-Link DES-6000 Series Instructions de montage

D-Link

D-Link EasySmart DGS-1100-08 Manuel utilisateur

D-Link

D-Link DSH-8 - 10/100Mbps Dual Speed SOHO Hub Manuel utilisateur

D-Link

D-Link DGS-1224TP - Web Smart Switch Manuel utilisateur

D-Link

D-Link DES-3326 Manuel utilisateur

D-Link

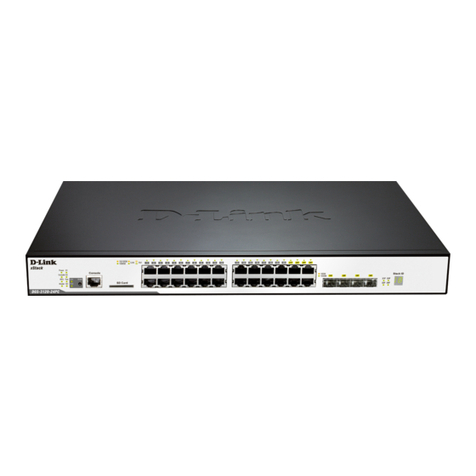

D-Link xStack DGS-3120-24TC Manuel utilisateur
