D-Link DGS-3130-54TS Manuel utilisateur

D-Link

DGS-3130-54TS

48 10/100/1000Base-T ports + 2 10GBase-T ports + 4 10 GbE SFP+ ports

L3 Sta kable Managed Swit h

Управляемый L3 стекируемый коммутатор с 48 портами 10/100/1000Base-T,

2 портами 10GBase-T и 4 портами 10GBase-X SFP+

Quick Installation Guide

Краткое руководство по установке

Infor ation in this docu ent is subject to change without notice.

Pa kage Contents

Open the shipping carton of the Switch and carefully unpack its contents. The carton

should contain the following items:

One DGS-313 -54TS switch

One AC power cord

One console cable (RJ-45 to RS-232)

One rack mounting kit (two brackets and screws)

Four rubber feet with adhesive backing

One power cord retainer set

One Quick Installation Guide

LEDs

LED Status Description

Power Solid green Device power on.

Light off Device power off.

Console Solid green Console on.

Light off Console off.

MGMT Solid green Link presents but not sending or receiving data.

Blinking Port is sending or receiving data.

Light off No link or port was administratively shutdown.

USB Solid green USB disk is connected.

Blinking Data is transmitting.

Light off No device is connected.

RPS Solid green RPS in using.

Light off RPS off.

Fan Error Solid yellow The fan has run time failure and is brought offline.

Light off All fans work normally.

Stack ID Capable 1-8 The Box ID is assigned in the stack.

When the box becomes stacking master, the box ID and «H»

will be shown by turn. That is boxID -> H -> boxID -> H … off.

Link/Activity/Speed

(per 1 /1 /1 Base-T

port)

Solid green When there is a secure 1 Mbps connection at the port.

Blinking green When there is reception or transmission occuring at the port.

Solid amber When there is a secure 1 /1 Mbps connection at the port.

Blinking amber When there is reception or transmission occuring at the port.

Light off No link.

Link/Activity/Speed

(per 1 GBase-T port)

Solid green When there is a secure 1 Gbps connection at the port.

Blinking green When there is reception or transmission occuring at the port.



Solid amber When there is a secure 1 /1 Mbps connection at the

port.

Blinking amber When there is reception or transmission occuring at the port.

Light off No link.

Link/Activity/Speed

(per 1 GBase-X SFP+

port)

Solid green When there is a secure 1 Gbps connection at the port.

Blinking green When there is reception or transmission occuring at the port.

Solid amber When there is a secure 1 Mbps connection at the port.

Blinking amber When there is reception or transmission occuring at the port.

Light off No link.

Installation Guidelines

This section will discuss the hardware installation guidelines that the user must follow in

order to properly and safely install this switch into the appropriate environment.

Visually inspect the power cord and see that it is fully secured to both the power

connector, on the Switch, and the electrical outlet that supplies power.

Install the Switch in a fairly cool and dry place within the acceptable operating

temperature and humidity ranges.

Install the Switch in a site free from strong electromagnetic field generators such as

motors, vibration, dust, and direct exposure to sunlight.

Installing the Switch without a Rack

This section is used to guide the user through installing the Switch in an area other than a

switch rack. Attach the included rubber feet to the bottom of the Switch. Take note that

there should be marked blocks on the bottom of the Switch to indicate where to attach the

rubber feet. These markings are usually found in each corner on the bottom of the device.

The rubber feet cushion the Switch, protecting the casing from scratches and preventing it

from scratching other surfaces.

Figure 1 — Attaching rubber feet to the Switch

Install the Switch on a sturdy, level surface that can support the weight of the Switch. Do

not place any heavy objects on the Switch. The power outlet should be within 1.82 meters

(6 feet) of the Switch. Make sure that there is proper heat dissipation from and adequate

ventilation around the Switch. Leave at least 1 cm (4 inches) of space at the front, sides,

and rear of the Switch for ventilation.

Installing the Switch in a Standard 19'' Rack

This section is used to guide the user through installing the Switch into a switch rack. The



Switch can be mounted in a standard 19"(1U) rack using the provided mounting brackets.

Fasten the mounting brackets to the sides of the Switch using the screws provided.

Figure 2 — Attaching rack- ount brackets to the Switch

Fasten the mounting brackets in any available open space in the rack using the screws

provided.

Figure 3 — Installing the Switch in a Rack

Installing Trans eivers into the Trans eiver Ports

The Switch is equipped with Small Form-factor Pluggable (SFP) and Enhanced Small

Form-factor Pluggable (SFP+) ports that can be used to connect various other networking

devices to this switch that do not support the standard RJ-45 wiring connection. These

ports are generally used to connect this switch to optical fiber connections and can be

used to connect devices to the Switch over great distances. The maximum distance that

the RJ-45 wiring connection can reach is 1 meters. Fiber optic connections can span

several kilometers.



Figure 4 — Inserting transceivers into the transceiver ports

Power On (AC Power)

Plug one end of the AC power cord into the power socket of the Switch and the other end

into the local power source outlet. After the system is powered on, the LED will blink green

to indicate that the system is booting up.

Power Failure (AC Power)

In the event of a power failure, just as a precaution, unplug the power cord from the

Switch. After the power returns, plug the power cord back into the power socket of the

Switch.

Installing Power Cord Retainer

To prevent accidental removal of the AC power cord, it is recommended to install the

power cord retainer together with the power cord.

With the rough side facing down, insert the tie wrap into the hole below the power socket.

Figure 5 — Insert Tie Wrap into the Switch

Plug the AC power cord into the power socket of the Switch.



Figure 6 — Connect the power cord to the Switch

Slide the retainer through the tie wrap until the end of the cord.

Figure 7 — Slide the Retainer through the Tie Wrap

Circle the tie of the retainer around the power cord and into the locker of the retainer.

Figure 8 — Circle around the power cord



Fasten the tie of the retainer until the power cord is secured.

Figure 9 — Secure the power cord

Installing the Redundant Power Supply (RPS)

The Redundant Power Supply (RPS) is designed to conform to the wattage requirements

of D-Link’s Ethernet and Gigabit switches. It is an external RPS unit enclosed in solid

metal case with sockets to connect AC or DC power sources on one end, and to connect

to a switch’s internal power supply on the other end. The RPS provides a low-cost, simple

solution to the problem of an inadvertent failure of the internal power supply of an Ethernet

switch, which can result in the shutdown of that switch, the devices attached to its ports, or

an entire network.

CAUTION: Do not connect the RPS to AC power before the DC power cable is

connected. This might damage the internal power supply.

CAUTION: Leave at least 15 cm (6 inches) of space at the rear of the Switch when

an RPS is installed to prevent cable damage.

DPS-500A Redundant Power Supply

This RPS (DPS-5 A) can be connected to the Switch’s RPS port using a 14-pin DC

power cable. A standard, three-pronged AC power cable connects the RPS to the main

power source.



Figure 10 — Connecting a DGS-3130 Series Switch to the DPS-500A

Installing the RPS into a Ra k-mount Chassis

DPS-800

The DPS-8 is a standard-size (1 standard unit in height) rack-mountable unit designed

to hold up to two RPS units.

NOTE: This rack-mount chassis supports the following RPS units: DPS-5 A and

DPS-5 DC.

Figure 11 — Install the DPS-500A in the DPS-800



Figure 12 — Install the DPS-800 in an Equip ent Rack

Management Options

This switch provides multiple access platforms that can be used to configure, manage, and

monitor networking features available on this switch. Currently there are three

management platforms available which are described below.

Co and Line Interface (CLI)

This switch can be managed, out-of-band, by using the console port or the MGMT port on

the rear panel of the Switch. Alternatively, the Switch can also be managed, in-band, by

using a Telnet connection to any of the LAN ports on the Switch. The command line

interface provides complete access to all switch management features.

SNMP-based Manage ent

The Switch can be managed with an SNMP-compatible console program. The Switch

supports SNMP v1, SNMPv2c and SNMPv3.

Web User Interface (Web UI)

The Web UI can be accessed from any computer running web browsing software from its

MGMT port, or LAN port when it is connected to any of the RJ-45 or SFP/SFP+ ports. The

Web UI on the Switch can also be accessed using an HTTPS (SSL) connection. This

management interface is a more graphical representation of the features that can be

viewed and configured on this Switch. Most of the features available through the CLI can

be accessed through the Web UI. Web browsers like Microsoft’s Internet Explorer, Mozilla

Firefox, or Google Chrome can be used.



Conne ting to the Console Port

The rear panel of the Switch provides an RJ-45 console port to connect a remote system

for monitoring and configuring the Switch.

To use the RJ-45 console port, the following equipment is needed:

A terminal or a computer with both an RS-232 serial port and terminal emulation

software

A console cable with a male DB9 connector on one end and an RJ-45 connection

on the other

To connect the RJ-45 console port on the Switch to the computer:

Connect the male DB9 connector on the console cable (shipped with the Switch) to

the RS-232 serial port on the computer running terminal emulation software then

insert the RJ-45 connector into the RJ-45 console port on the rear of the Switch.

To configure the terminal emulation software as follows:

Select the appropriate serial port (COM1 or COM2).

Set the data rate to 1152 baud.

Set the data format to 8 data bits, 1 stop bit, and no parity.

Set flow control to none.

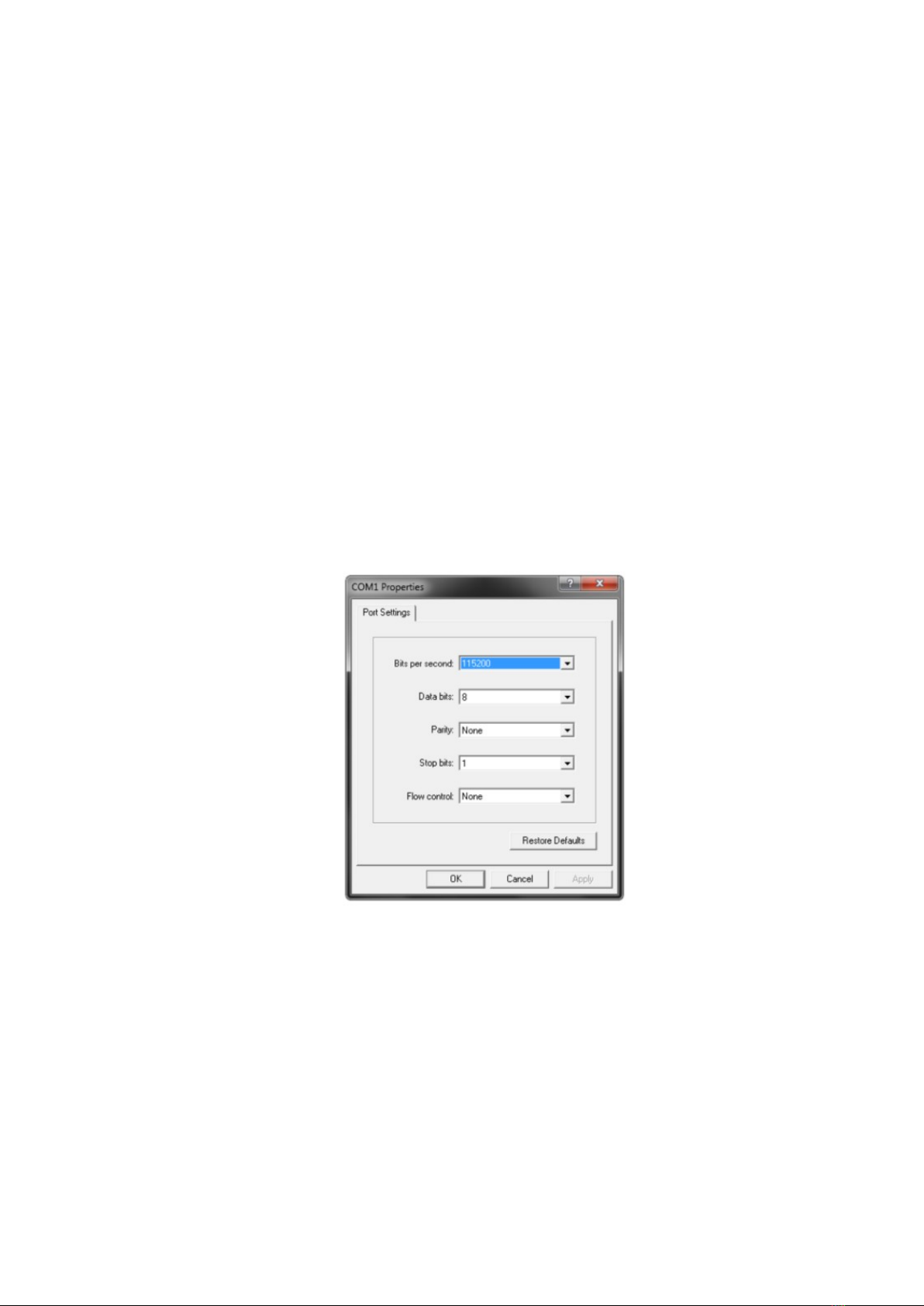

Figure 13 — COM Port Configuration

To be able to view the boot procedure, the Switch needs to be rebooted. The simplest way,

at this stage, to reboot the Switch is to unplug and re-insert the power cable from and into

the power receptacle on the back of the Switch. After correctly configuring the terminal

settings and re-inserting the power cable, the boot procedure will appear in the terminal.


