D-Link DCH-G601W Manuel utilisateur

DCH-G601W/DCH-G601WA1 D-Link Corporation

Page 1

DCH-G601W/DCH-G601WA1

User’s Manual

Version 1.0

March 23th, 2018

DCH-G601W D-Link Corporation

Page 2

Table of Contents

1. PRODUCT DESCRIPTION..................................................................................3

2. APPEARANCE .....................................................................................................3

3. APPLICATIONS...................................................................................................4

4. INSTALLATIONS ................................................................................................5

5. SYSTEM REQUIREMENT…...………………………………………………..13

DCH-G601W/DCH-G601WA1 D-Link Corporation

Page 3

1. PRODUCT DESCRIPTION

The DCH-G601W/DCH-G601WA1 Wi-Fi Bluetooth Hub is a high-performance

and secure Connected Home Bluetooth gateway used the latest Bluetooth

technology combined withAfero security chip, the Bluetooth Hub allows your

devices to communicate with one another. The Hub built in with most secured

Afero encryption chipset. You can pair with Afero’s Bluetooth equipped smart

home devices to the hub to manage, operate, and enjoy the convenience of smart

home. The hub has backup battery which keep you smart home devices online

all the time.

2. APPEARANCE

DCH-G601W Hub

DCH-G601W/DCH-G601WA1 D-Link Corporation

Page 4

Front

LED: Status indicator

Rear

Micro USB: Power jack, Vdc 5V/2A, Cable length: 1.5 meters

Micro SD card: microSD slot, support SD/SDHC/SDXC, up to 128G

Reset button: [1]Reset[2] Reset to factory default (>=press 10 seconds)

WPS button: TBD

Tripod: for external stand. (TBD)

3. APPLICATIONS

DCH-G601W/DCH-G601WA1 D-Link Corporation

Page 5

4. INSTALLATIONS

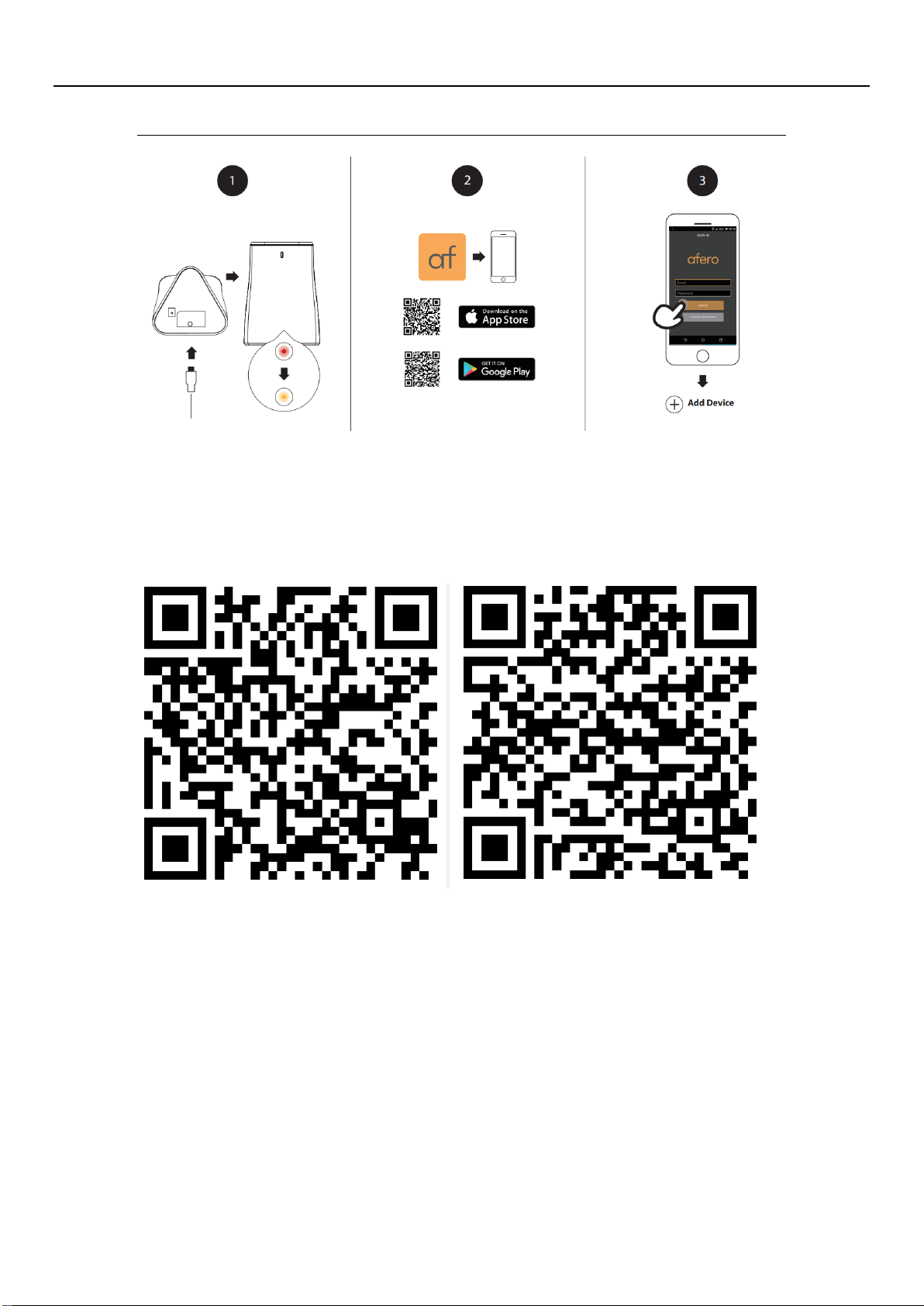

Step 1 Plug the included Power Adapter into the back of the hub.

Red LED: user ca binding, go to step 2.

Step 2. Download afero App to your smart phone and register an account to login.

or scan the QR code for your iOS or Android phone.

iOS Android

Step 3 New users: Tap New users, sign up here to install your Hub.

Existing users: Sign in to your afero account and tap Add a Device on the next

screen.

Step 4 Adding the Hub to your account

Note: The QR code on the bottom of the device is unique to the device itself.

Please be sure to scan each device individually during set up.

DCH-G601W/DCH-G601WA1 D-Link Corporation

Page 6

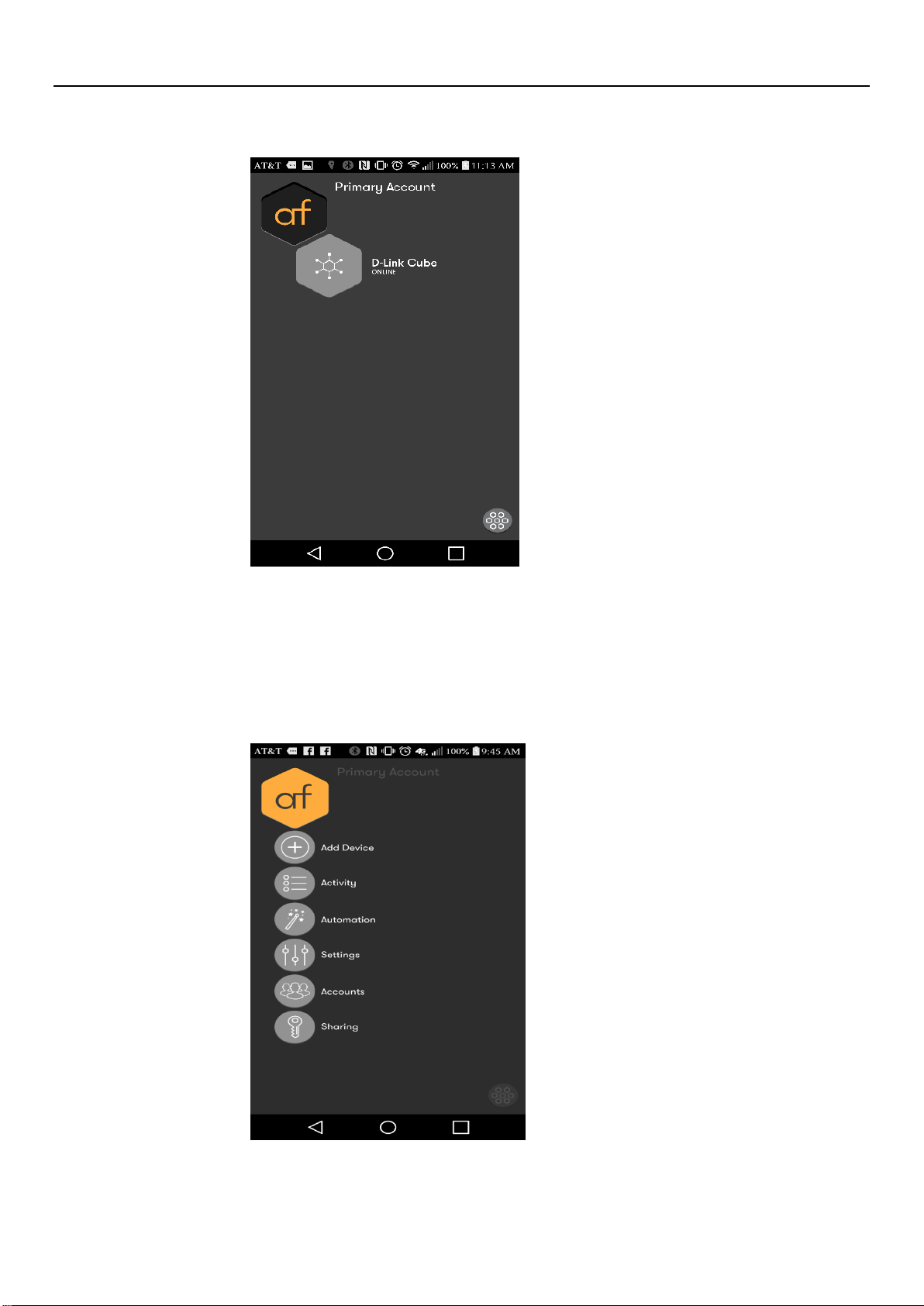

I. Click on the (af) icon and then click onAdd Device.

(Android) (iOS)

II. Apply power to the Hub and Scan QR code located on the bottom of

the device.

DCH-G601W/DCH-G601WA1 D-Link Corporation

Page 7

III. Give the device a name and click Save.

IV. Select WiFi network from list.

DCH-G601W/DCH-G601WA1 D-Link Corporation

Page 8

V. Type in password of WiFi network and click connect.

VI. Your device is now connected.

DCH-G601W/DCH-G601WA1 D-Link Corporation

Page 9

VII. Click continue to see Hub is Online.

Step 5 add sensor into your account

1. Adding Smart plug to account.

I. Click on Add Device.

DCH-G601W/DCH-G601WA1 D-Link Corporation

Page 10

II. Scan QR code on bottom of Smart Plug and plug into outlet.

III. Give your device a name.
