D-Link DCS-7413 Manuel utilisateur

This document will guide you through the

basic installation process for your new

D-Link Network Camera.

DCS-7413

Quick Installation Guide

Full HD Day & Night Outdoor Network Camera

Quick Installation Guide

Installationsanleitung

Guide dinstallation

Guía de instalación

Guida di Installazione

Documentation also available on

CD and via the D-Link Website

D-Link DCS-7413 Quick Install Guide

ENGLISH

Quick Install Guide

This installation guide provides basic instructions for installing the Network Camera on

your network. For additional information about how to use the camera, please see the

Users Manual which is available on the CD included in this package or from the D-Link

support website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview

3. SD Card Installation

4. Hardware Installation

5. Conguration with Wizard

1. Package Contents

DCS-7413 Network Camera

Manual and Software on CD-ROM

Quick Install Guide

Power Adapter

AV & Power Cables

CAT-5 Ethernet Cable

Extension Adapter

Mounting Bracket and Screws

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certied technicians so as to conform to all

local codes and prevent voiding your warranty.

2D-Link DCS-7413 Quick Install Guide

ENGLISH

2. Hardware Overview

Install the SD Card

Push the SD card into

the camera with the gold

contacts oriented towards

the base of the camera. To

eject the SD card, push the

SD card into the slot.

3. SD Card Installation

Disassemble the Camera

Open the camera by loosen

the 2 screws.

Power Connector

Connects to 12 V DC power

24 V Power Connector

Connects to 24 V AC power

BNC

Analog video output

Ethernet Jack

RJ-45 connector for Ethernet

which can also be used to power

the camera using Power over

Ethernet (PoE)

Audio In

Connects to a microphone

DI/DO Wiring, 12V DC output

I/O connectors for external devices

Audio Out

Connects to speakers

3 4

Reset

Press and hold this button for 10

seconds to reset the camera

D-Link DCS-7413 Quick Install Guide

ENGLISH

4. Mounting Instructions

Mounting Installation

Please see the User Manual for detailed instructions regarding installation and mounting

of the camera using a mounting bracket.

Figure 2.1

Figure 2.3

Figure 2.2

Figure 2.4

4D-Link DCS-7413 Quick Install Guide

ENGLISH

Connection with a PoE Hub

If you are using a PoE hub, connect the IP camera to the hub via an Ethernet cable,

which will provide transmission of both power and data over a single cable.

General Connection Using 24 V AC Power Wiring

1. Connect the network camera to a hub via an Ethernet cable.

2. Connect the supplied power cable from the camera to a power source such as your

building's emergency power.

General Connection Using 12 V DC Power Adapter

1. Connect the network camera to a hub via an Ethernet cable.

2. Connect the supplied power cable from the camera to a power outlet.

D-Link DCS-7413 Quick Install Guide

ENGLISH

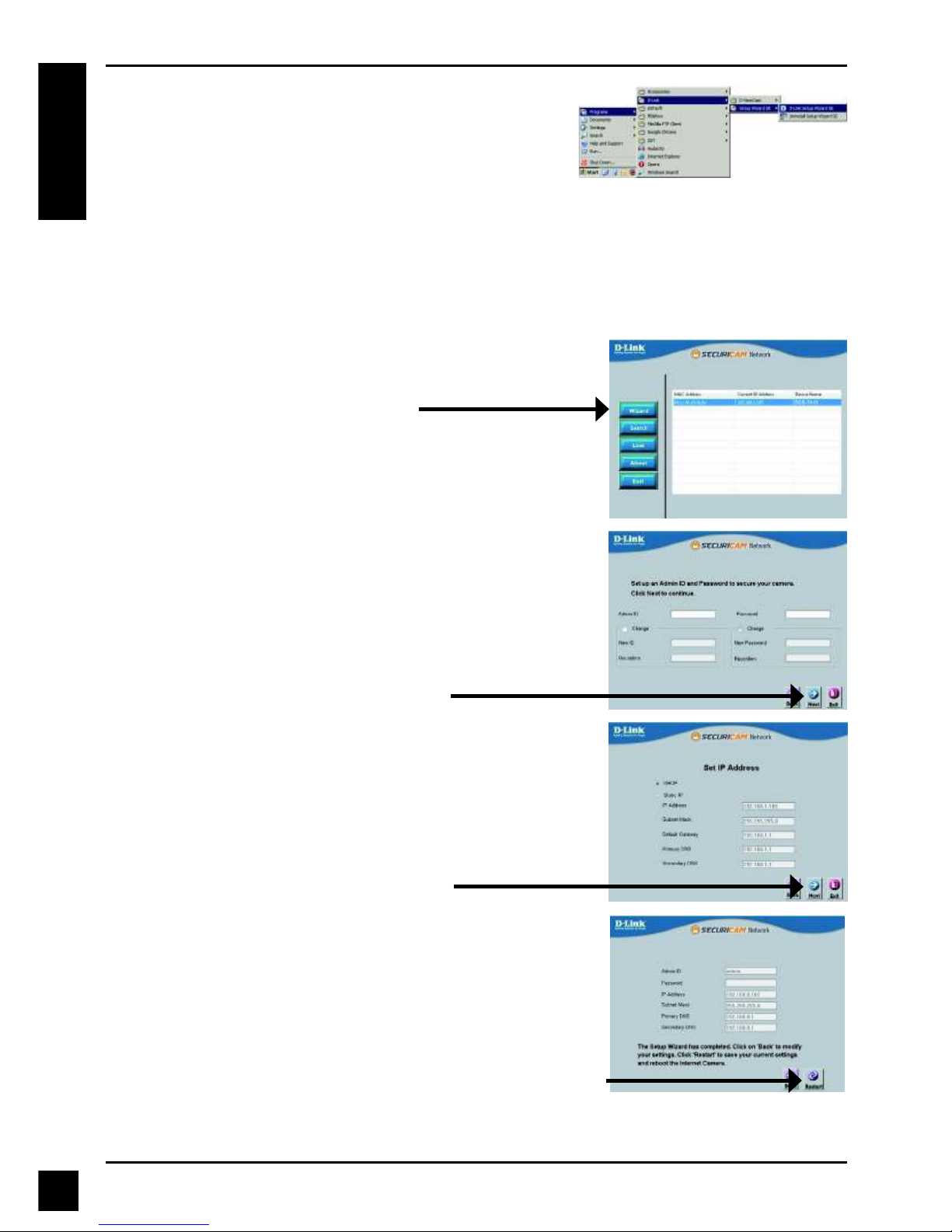

5. Conguration with Wizard

Click Setup Wizard to begin the installation.

Insert the DCS-7413 CD into your computer's CD-ROM drive to begin the installation. If

the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start

automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive

letter of your CD-ROM drive.

After clicking Setup Wizard, the following window will open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes to

nish.

6D-Link DCS-7413 Quick Install Guide

ENGLISH

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Take a moment to conrm your settings and click Restart.

Select DHCP if your camera obtains an IP address

automatically when it boots up. Select static IP if the

camera will use the same IP address each time it is

started.

Click Next, to proceed to the next page.

Enter the Admin ID and password. When logging in for

the rst time, the default Admin ID is admin with the

password left blank.

Click Next, to proceed to the next page.

The Setup Wizard will appear and display the MAC

address and IP address of your camera(s). If you have

a DHCP server on your network, a valid IP Address

will be displayed. If your network does not use a

DHCP server, the network camera's default static IP

192.168.0.20 will be displayed.

Click the Wizard button to continue.

D-Link DCS-7413 Quick Install Guide

ENGLISH

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Viewing Camera via Web Browser

This section shows your cameras live video. You

can select your video prole and view or operate

the camera. For additional information about web

conguration, please refer to the user manual included

on the CD-ROM or the D-Link website.

Enter admin as the default username and leave the

password blank. Click OK to continue.

Select the camera and click the button labeled "Link"

to access the web conguration.

The Setup Wizard will automatically open your web

browser to the IP address of the camera.

8D-Link DCS-7413 Quick Install Guide

ENGLISH

TECHNICAL SUPPORT

United Kingdom (Mon-Fri) website: http://www.dlink.co.uk FTP: ftp://ftp.dlink.co.uk

Home Wireless/Broadband 0871 873 3000 (9.00am–06.00pm, Sat 10.00am-02.00pm)

Managed, Smart, & Wireless Switches, or Firewalls 0871 873 0909 (09.00am- 05.30pm)

(BT 10ppm, other carriers may vary.)

Ireland (Mon-Fri)

All Products 1890 886 899 (09.00am-06.00pm, Sat 10.00am-02.00pm)

Phone rates: €0.05ppm peak, €0.045ppm off peak times
