D-Link DCS-6212L Manuel utilisateur

Full HD OutDOOr POE Mini DOME CaMEra

DCS-6212l

QUICK

INSTALLATION

GUIDE

КРАТКОЕ РУКОВОДСТВО ПО УСТАНОВКЕ

GUÍA DE INSTALACIÓN RÁPIDA

GUIA DE INSTALAÇÃO RÁPIDA

快速安裝指南

PETUNJUK PEMASANGAN CEPAT

DCS-6212l 1

ENGLISH

CONTENTS OF PACKAGING

FULL HD OUTDOOR POE MINI DOME CAMERA

DCS-6212L

POWER ADAPTER

COMES PREATTACHED TO CAMERA

MOUNTING KIT

INCLUDES SCREWS, WALL ANCHORS, WRENCH, EXTENSION

ADAPTOR, AND POWER CABLE PLUG

ETHERNET CABLE

COMES PREATTACHED TO CAMERA

If any of these items are missing from your packaging, contact your

reseller.

INSTALLATION CD

INCLUDES SETUP WIZARD & TECHNICAL MANUALS

DCS-6212l

ENGLISH

SYSTEM REQUIREMENTS

• Wired Ethernet network or PoE network

• A broadband Internet connection

• Computer with:

• Microsoft Windows®8/7/Vista/XP, or Mac with OS X 10.6 or higher

• Internet Explorer 7, Firefox 12, Safari 6, or higher version with Java installed and enabled

• iPhone, iPad, Android, or Windows smartphone or tablet (Please refer to the mobile app's store

page to check whether your device is compatible.)

If you have a D-Link Cloud Router, you can take advantage of Zero Conguration Setup. This

feature automatically congures your camera’s settings for you and adds it to your mydlink account

automatically.

If you do not have a D-Link Cloud Router, you can use the mydlink Lite app or the downloadable

Setup Wizard to install and congure your camera, as described in the following section.

Step 1:

Connect the preattached Ethernet cable to your D-Link Cloud Router

and connect the preattached power adapter to a power outlet.

Step 2:

From any computer, open a web browser, go to

http://www.mydlink.com and log in to your account.

Click on the device name when the new device notication appears

to add the camera to your account.

DCS-6212L

PRODUCT SETUP

ZErO COnFiGuratiOn SEtuP

DCS-6212l 3

ENGLISH

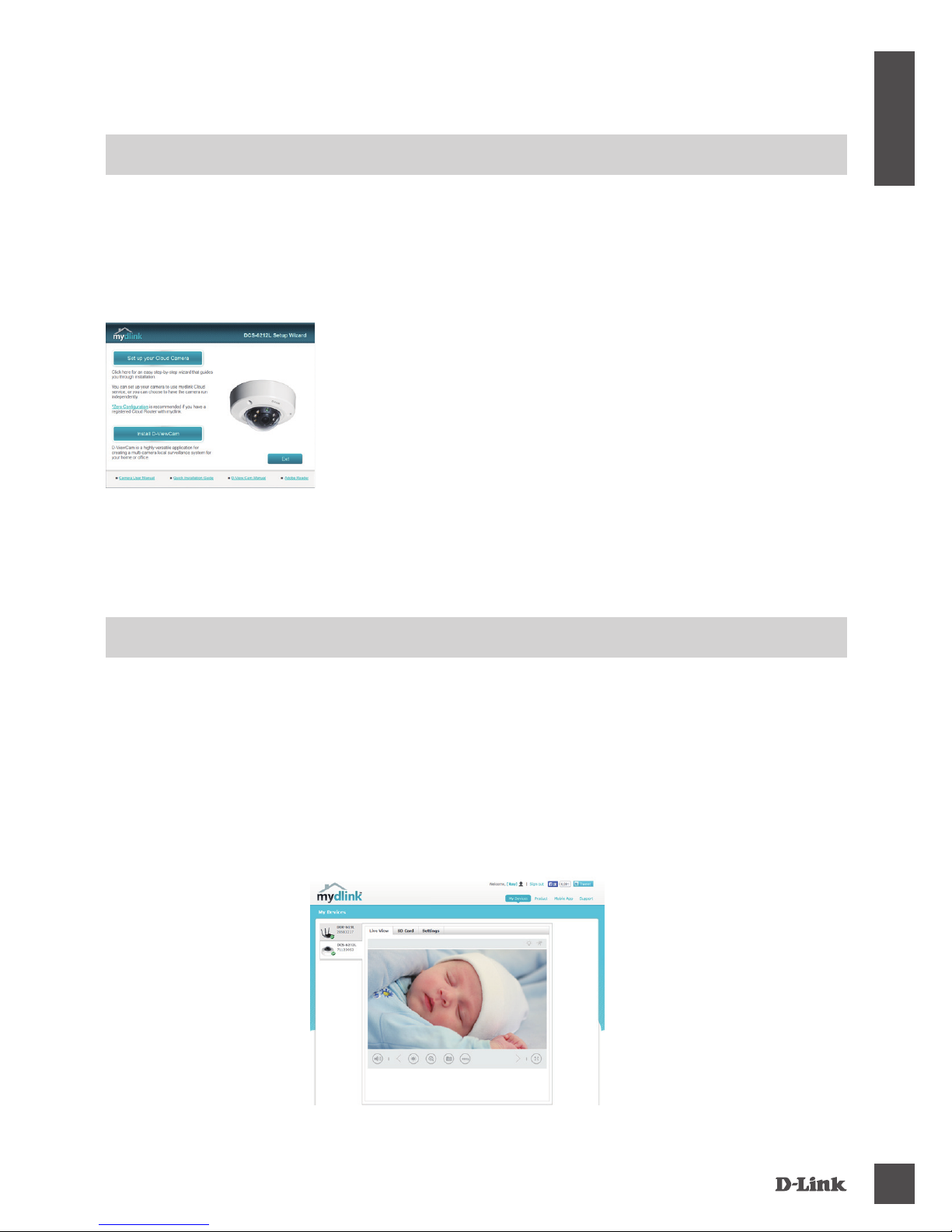

PRODUCT SETUP

mydlink PORTAL

After registering your DCS-6212L camera with a mydlink account, you will be able to remotely

access your camera from the www.mydlink.com website. After signing in to your mydlink account,

you will see a screen similar to the following:

Step 1:

Open Internet Explorer and go to http://www.mydlink.com, then sign into mydlink.

Step 2:

Select your camera from the device list, and your camera’s Live View will appear.

uSinG tHE SEtuP WiZarD

If you do not have a D-Link Cloud Router, you can simply use any Windows or Mac computer to

go through the Setup Wizard from the CD, which will guide you through the installation process from

connecting your hardware to conguring your camera.

If you do not have a CD-ROM drive, or the CD is missing, please download the Setup Wizard from

http://www.mydlink.com/support

• Windows Users: Insert the CD. If the Setup Wizard program does

not automatically start on your computer, click the Start button and

type D:\autorun.exe (where D: represents the drive letter of your

CD-ROM drive) and press Enter.

• Mac Users: Insert the CD. On the desktop, open your CD drive,

and double-click on the SetupWizard le. Wait about 20-30

seconds, and follow the instructions on screen.

DCS-6212l

ENGLISH

INSERTING A MICROSD CARD

If you wish to use a microSD card with the DCS-6212L, follow these steps.

Step 1:

Use the included wrench to loosen the 3 screws on the top of the

camera, then lift the camera cover off.

Step 2:

Lift the rubber ap on the side of the camera to expose the microSD

card slot. Insert the microSD card, then close the rubber ap and

make sure it is sealed properly.

DCS-6212l 5

ENGLISH

MOUNTING THE CAMERA

Please refer to the steps below to assist you with mounting the camera. We suggest that you

congure the camera and insert a microSD card(if desired) before mounting.

Step 1:

Use the included wrench to loosen the 3 screws on the top of the

camera, then lift the camera cover off.

Step 2:

Place the camera in the position you want and use a pencil to mark

the holes. Ensure the camera is oriented correctly with adequate

space for the necessary cables to be routed.

Step 3:

Depending on the material of the wall or ceiling, use proper tools to

drill two holes 25mm deep with a 6mm drill bit where you marked.

After drilling the holes, insert the plastic anchors to support the

screws.

If you are running the camera cables through the wall, drill a

hole in the center and pull the cables through the hole.

Step 4:

If you are using PoE to power the camera, use a small Philips

screwdriver to remove the screws for the power connector cover,

then disconnect the power cable.

Place the power cable plug into the gap, then reattach the cover with

the screws.

DCS-6212l

ENGLISH

TROUBLESHOOTING

SEtuP anD COnFiGuratiOn PrOBlEMS

1. WHY IS THE CAMERA VIEW HAZY OR BRIGHT WHEN USING NIGHT VISION MODE?

The IR night vision lights on the camera may be reecting off of a nearby surface or window. Try

repositioning your camera to avoid reections or glare.

Step 5:

Mount the camera on the wall or ceiling using the screws provided.

Step 6:

Tilt and rotate the camera to your desired position. It may be helpful

to do this while the camera is connected to your network so you can

view its live video for reference.

Step 7:

Reattach the camera cover with the screws and included wrench.

If you are running the camera cables out the side of the camera,

remove the cable channel cover and guide the camera cables

through the cable channel before reattaching the cover.

DCS-6212l 7

ENGLISH

tECHniCal SuPPOrt

Australia:

Tel: 1300-766-868

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

India:

Tel: +91-832-2856000

Toll Free 1800-233-0000

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam:

Singapore - www.dlink.com.sg

Thailand - www.dlink.co.th

Indonesia - www.dlink.co.id

Malaysia - www.dlink.com.my

Philippines - www.dlink.com.ph

Vietnam - www.dlink.com.vn

Korea:

Tel : +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web : http://d-link.co.kr

E-mail : [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

South Africa and Sub Sahara

Region:

Tel: +27 12 661 2025

08600 DLINK (for South Africa only)

Monday to Friday 8:30am to 9:00pm South

Africa Time

Web: http://www.d-link.co.za

E-mail: [email protected]

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: [email protected]

Tech Support: [email protected]

Egypt

1, Makram Ebeid Street -

City Light Building - oor 5

Nasrcity - Cairo, Egypt

Tel.: +2 02 23521593 - +2 02 23520852

Technical Support: +2 02 26738470

General Inquiries: [email protected]

Tech Support: [email protected]

Kingdom of Saudi Arabia

Ofce # 84 ,

Al Khaleej Building ( Mujamathu Al-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1121 70008

Technical Support:

+966 1121 70009

General Inquiries: info.sa@ dlinkmea.com

Tech Support: support.sa@ dlinkmea.com

Pakistan

Islamabad Ofce:

61-A, Jinnah Avenue, Blue Area,

Suite # 11, EBC, Saudi Pak Tower,

Islamabad - Pakistan

Tel.: +92-51-2800397, 2800398

Fax: +92-51-2800399

Karachi Ofce:

D-147/1, KDA Scheme # 1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Phone: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: [email protected]

Tech Support: [email protected]

You can nd software updates and user documentation on the D-Link website.

Tech Support for customers in

DCS-6212l

ENGLISH

tECHniCal SuPPOrt

Iran

Unit 5, 5th Floor, No. 20, 17th Alley , Bokharest

St. , Argentine Sq. ,

Tehran IRAN

Postal Code : 1513833817

Tel: +98-21-88880918,19

+98-21-88706653,54

General Inquiries: [email protected]

Tech Support: [email protected]

Morocco

M.I.T.C

Route de Nouaceur angle RS et CT 1029

Bureau N° 312 ET 337

Casablanca , Maroc

Phone : +212 663 72 73 24

Email: [email protected]

Lebanon RMA center

Dbayeh/Lebanon

PO Box:901589

Tel: +961 4 54 49 71 Ext:14

Fax: +961 4 54 49 71 Ext:12

Email: [email protected]

Bahrain

Technical Support: +973 1 3332904

Kuwait:

Technical Support: + 965 22453939 / +965

22453949

Türkiye

Büyükdere Cad. Ferro Plaza No:155

D: 1 K: 1 Zincirlikuyu / Istanbul

Tel: +90 (212) 289-56-59

Email: [email protected]

לארשי

רטנס ןולטמ

20 םימישגמה 'חר

7060 ד"ת ,49348 ת"פ ,ןולטמ תירק

03-9215173 :לט

073-7962797 :לט

[email protected] :יללכ ל"אוד

[email protected] :הכימת ל"אוד
