D-Link DCS-2670L Manuel utilisateur

DCS-2670L

Quick Install Guide

Full HD 180-Degree Outdoor Wi-Fi Cam

If any of the above items are missing, please contact your reseller.

DCS-2670L Full HD

180-Degree Outdoor

Wi-Fi Cam

Power Adapter

Ethernet Cable

Package Contents

Mounting Hardware

Waterproof Cable Connector

Minimum Requirements

Mobile Device (to use mydlink Lite app)

• iPhone, iPad, or Android smartphone or tablet

(Refer to the mobile app’s store page to see if your device is compatible)

Network Device and Service

• A wireless router (802.11n/ac) with Internet service

• An e-mail account (required to create a mydlink® account)

Quick Install Guide

For warranty and regulatory information, please visit:

http://support.dlink.com/warranty.aspx (U.S.)

or http://support.dlink.ca/DCS-2670L (Canada)

ENGLISH

Product Overview

Front

Bottom

* Supports microSD/SDXC up to 128GB

Light Sensor Infrared LEDs

Camera Base

Camera Lens

Power LED

Microphone

Baseplate

Reset Button microSD Card Slot*

ENGLISH

Setting Up Your Camera

System Requirements: Refer to the mydlink Lite app page on the Apple App Store or Google Play.

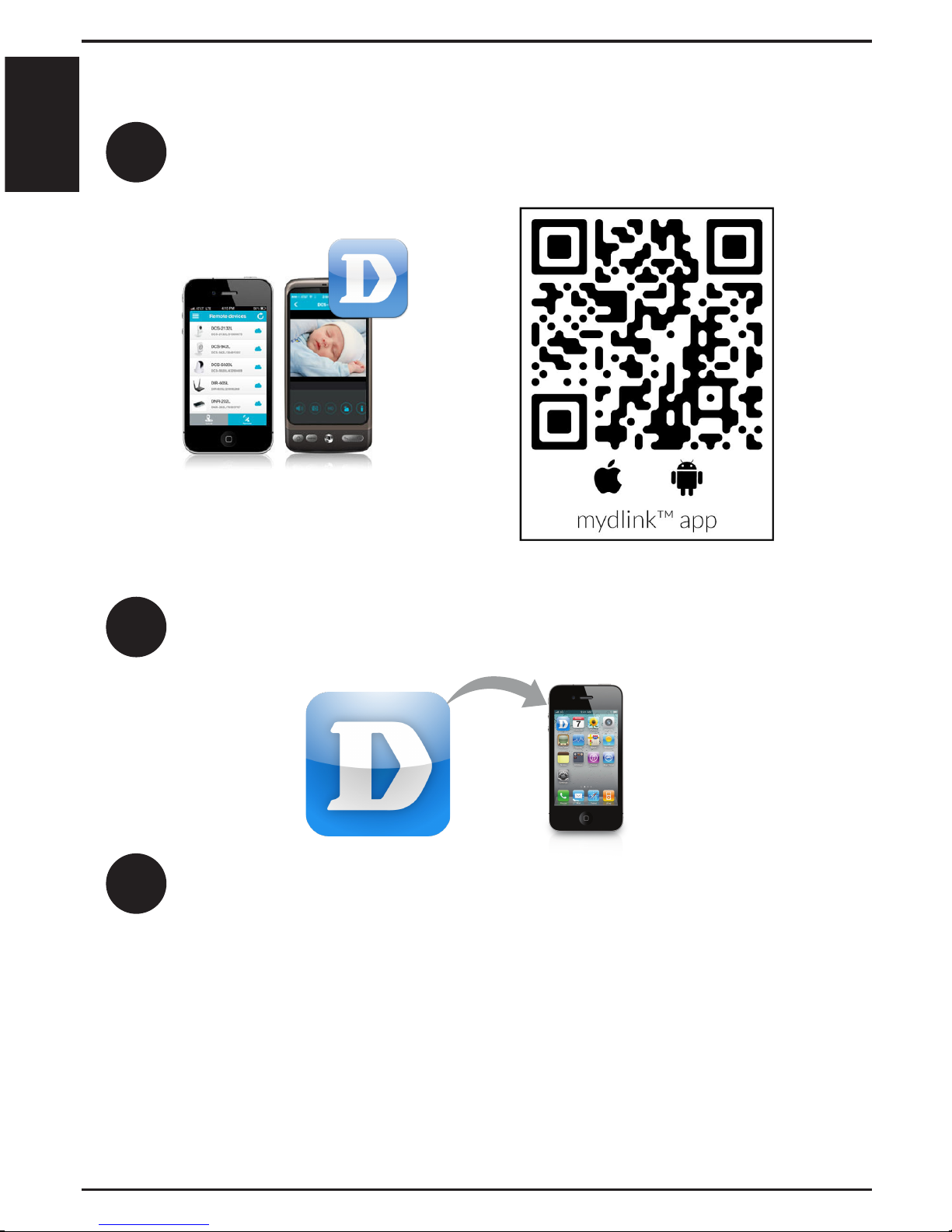

Launch the mydlink Lite app, then create a new account or log in to your

existing account.

Download the free mydlink Lite app on your smartphone or tablet by

scanning the QR code below, or by searching for mydlink Lite in the app

store for your device.

3The app will guide you through the rest of the set up process.

ENGLISH

Wireless Setup

Once your camera is set up, select your camera and tap the Settings button.

Select“Wi-Fi Setting”and“Enable Wi-Fi connection”.

To connect your camera to your network wirelessly,

follow the instructions below.

The app will guide you through the rest of the set up process.

Select your wireless network and enter your password, then tap Apply.

You can now disconnect the Ethernet cable and move the camera to your

preferred location.

ENGLISH

Mount the Camera

Please refer to the steps below to assist you with mounting the camera.

We suggest that you congure the camera before mounting.

2. Depending on the material of the wall or ceiling,

use proper tools to drill holes 25 mm deep with a 6

mm drill bit where you marked. If the wall is made

out of concrete, drill the holes rst, then insert the

plastic anchors to support the screws.

3. Place the baseplate over the holes that are in the

wall. Make sure to align the baseplate holes with the

holes in the wall. Use the supplied screws to attach

the baseplate to the surface of the wall.

4. Place the camera over the baseplate and align the

nub with the hole on the camera. Attach the camera

by sliding it in the direction of the arrow.

1. Place the baseplate where you want to position the

camera and use a pencil to mark the holes. You can

use the large holes for a removable installation, or

the small holes for a xed one. Make sure the lock

arrow on the plate is pointing down.

5. Once the camera is secured to the baseplate, use a

screwdriver to fasten the screw next to the hole at

the back of the camera body.

6. Adjust the angles via the camera body and rotate

the silver base until you achieve your desired

viewing angle.

ENGLISH

Waterproong the Camera

After conguring your camera, follow the instructions below to prevent

water from entering the camera's Ethernet and Power Cable connections.

If you are using an Ethernet connection, follow the instructions below to

prevent water from entering the camera's Ethernet cable connector.

Waterproong Your Connectors When Using Wi-Fi

Waterproong Your Ethernet Connector

Using Waterproof Tape

1. Plug the power adapter into the dongle.

Wind waterproof tape, such as butyl rubber or vinyl

tape, around the individual cables and connectors

in a half-overlapping manner then wrap all the

connectors together. Be sure to cover all of the

connectors and any unsheathed cables.

Note: Butyl rubber tape should be wrapped by stretching the

tape to about twice its length, and wrapping it around the cable.

Failure to stretch the tape suciently will result in insucient

waterproong performance.

Caution: Due to its IP65 rating we recommend that you install your device under a roof or a shelter to

protect the Power and Ethernet connections from water seepage.The cables and connections need to

be located away from all potential water hazards.

1. Connect the power and Ethernet cables.

2. To waterproof the Ethernet socket, align the cap

according to the thread and twist it clockwise to

seal it.

ENGLISH

1. What can I do if my DCS-2670L is not working correctly?

• Reset the camera (see next step) and run the setup steps starting

on page 4 again.

• To make sure your hardware is installed correctly, make sure that:

- the power LED is green

- your Internet connection is working

- your router’s LAN & WAN connections are working

- your router supports UPnP®

- your camera is on the same network as your mobile device

- both your mobile device and camera have a working Internet connection

• If your camera is still not working, check your router and make sure it

has the latest rmware.

FAQs

2. What can I do if I forget my password?

If you forget your password, you must reset the

camera. Unfortunately, this process will change

your settings back to factory default.To reset the

camera, locate the reset button underneath the

camera. With the camera powered on, use an

unfolded paper clip to hold the button down for

10 seconds. Run the setup procedure located on

page 4 once the camera restarts.

3. Why is there a white haze when viewing in night vision mode?

When viewing in night vision mode, the IR lights on the camera may be

reecting o a nearby surface. Try repositioning the camera in order to

avoid glare from IR LEDs.

Reset

Button

ENGLISH

Notes

ENGLISH

Notes

ENGLISH
