D-Link DPR-1061 Manuel utilisateur

This product can be set

up using any current web

browser,i.e., InternetExplorer

6 or Netscape Navigator 7.0

DPR-1061

Wired Multi-Function

Print Server

5V DC, 2.5A Power Adapter

Before You Begin

Check Your Package Contents

DPR-1061 Wired Multi-Function Print Server

CD-ROM (Software, Manual and Warranty)

Ethernet (CAT5 UTP) Cable

If any of the above items are missing, please contact your reseller.

Using a power supply

with a different voltage

rating will damage this

product and void its

warranty.

Software and specications subject to change without notice.

The Quick Installation Guide provides you with the step-by-step instructions to set up your

MFP Server, and lets you start your printing tasks. The model you have purchased may be

slightly different from those described in the illustrations. For more detailed information on the

MFP Server, its components, making network connections and technical specications, please

refer to the User’s Guide that is included in your MFP Server’s Installation CD.

NOTE: The illustrations or setting values in this manual are FOR YOUR REFERENCE ONLY.

The actual settings and values depend on your MFP Server, system and network.

EXTERNAL FEATURES

Port Connectors

The DPR-1061’s three printer ports are located on its rear panel. Two USB and one

parallel ports are labeled USB1, USB2, and LPT. These printer ports can be independently

congured using the Web Conguration Interface. The Print Server’s Web conguration

permits users to congure settings through the web browser.

Default IP Address of DPR-1061 is set as automatically getting from DHCP server or

Router which build-in DHCP server.

NOTE : The PC’s IPAddress must be in the same subnet as the Print Server’s IPAddress

for the two devices to communicate. (For example, if MFP server’s IP Address

is 192.168.0.10, with a subnet mask of 255.255.255.0, then your computer’s IP

Address should be 192.168.0.x, where x is a value between 1-254, excluding

10.)

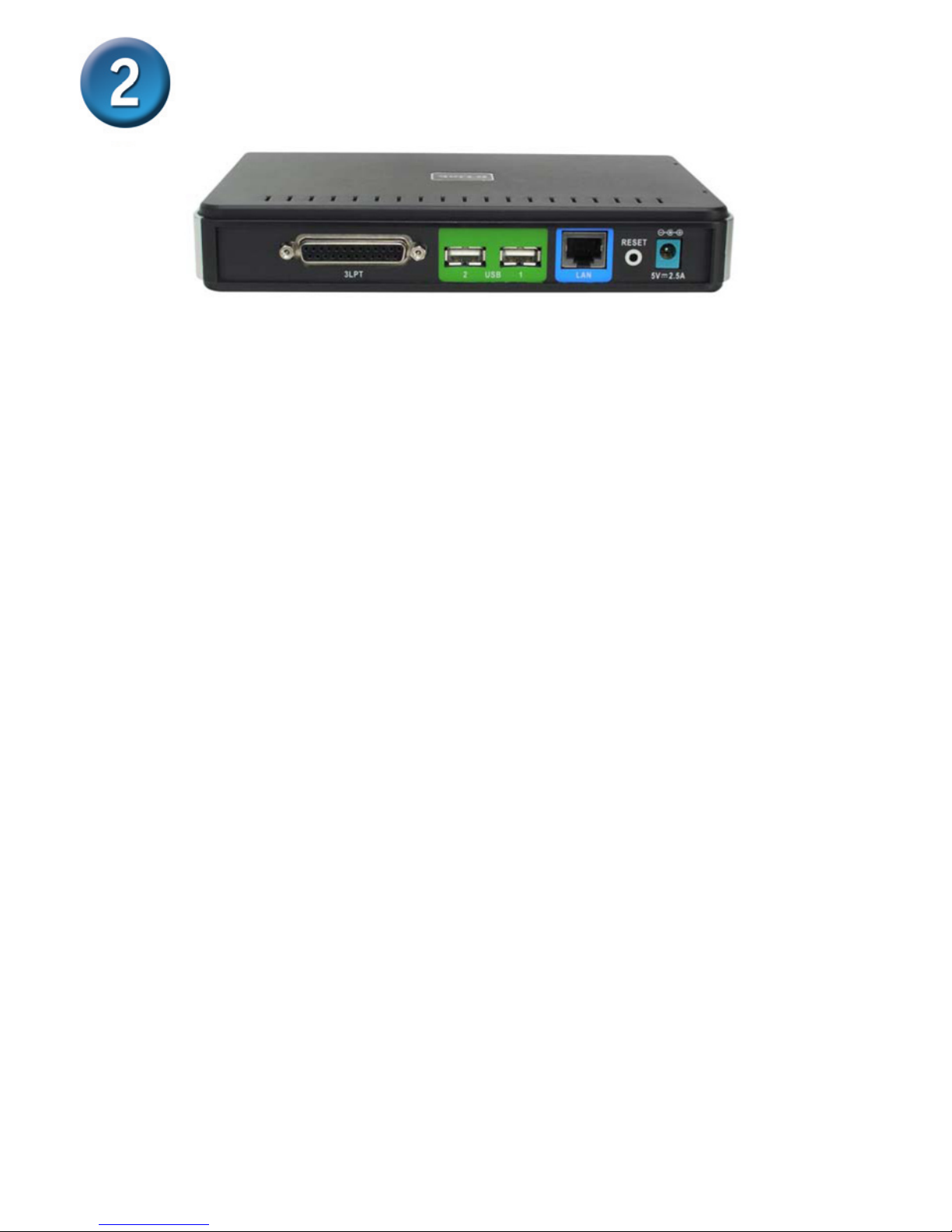

Rear Panel Connectors

Network Cable Connector

The Print Server’s rear panel feature an RJ-45 connector for connection to 10Base-T

Ethernet cabling or 100Base-TX Fast Ethernet cabling (which should be Category 5

twisted-pair cable). The port supports the NWay protocol, allowing the Print Server to

automatically detect or negotiate the transmission speed of the network.

Reset Button

Press and release this button to reset the MFP Server; or press and hold this button for

three seconds until the USB1, USB2, and LPT LEDs on the front panel light up and then

release the button, The MFP Server will then resume the default factory settings.

DC Power Connector

The DC power input connector is located on the Print Server’s rear panel and is labeled

DC 5V.

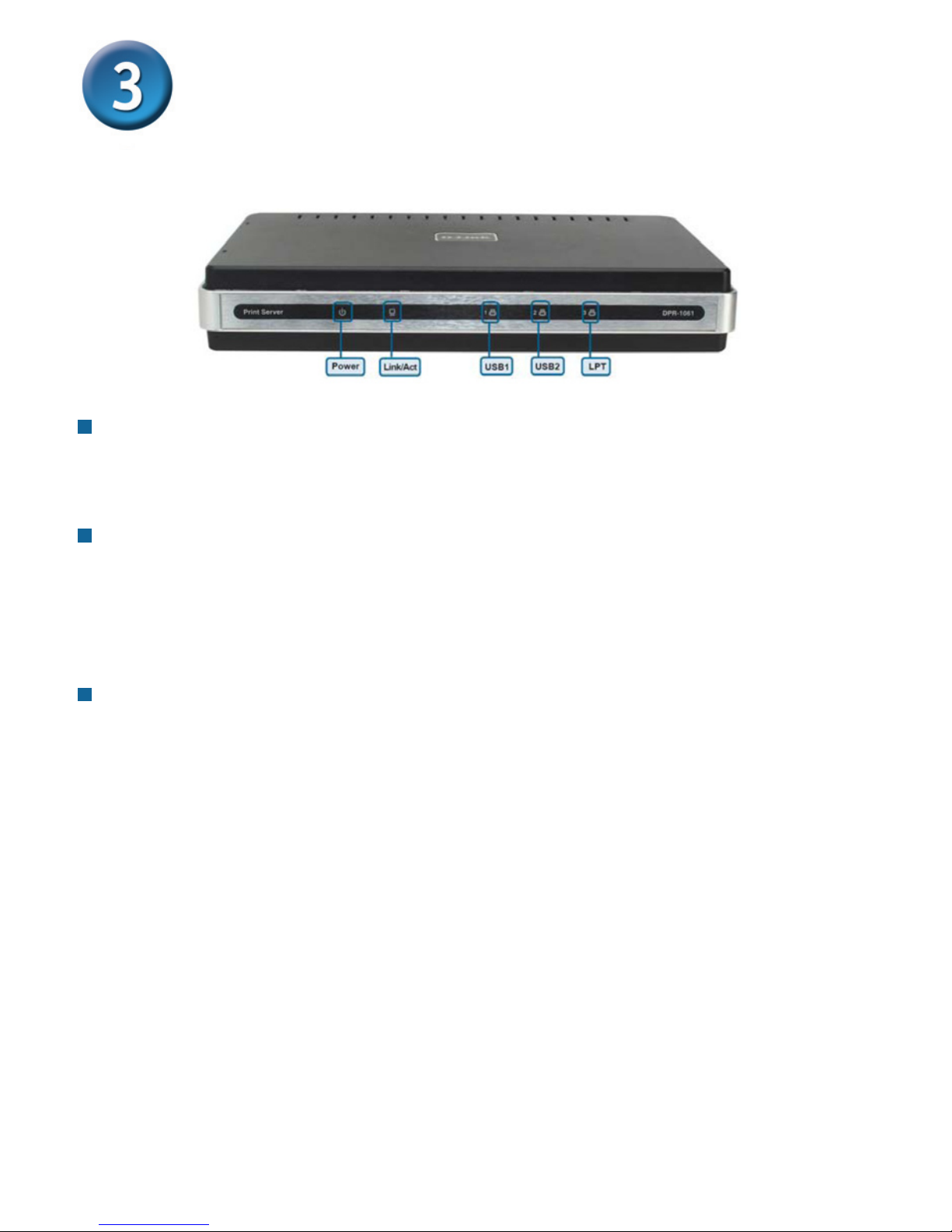

LED Indicators

The front panel of the Print Server features ve LED indicators:

Power

Steady green conrms that the Print Server is powered ON.

Link/Act

Steady green conrms that the Print Server has a good connection to the Ethernet or

Fast Ethernet network. The indicator blinks off briey to indicate that the Print Server is

receiving or transmitting from the network.

USB1, USB2, LPT

When the LEDs light in steady green, it indicates the print’s status as currently online.If

the LEDs light in blinking green, it indicates that data is being transferred between print

server and printer.

These three indicators are also used by the Print Server’s Power-ON Self Test (POST)

to indicate any hardware failures.

HARDWARE INSTALLATION

Follow these steps for a trouble-free start of MFP Server operations with your MFP

Server.

1. Conrm proper operation of each of the printers to be connected to the DPR-

1061.

2. When you have conrmed proper operation of each printer, switch its power OFF.

3. Conrm that your network is operating normally.

4. Connect the DPR-1061 RJ-45 Connector to the network, using an Ethernet CAT5

cable.

WARNING: Conguration problems may result if the MFP Server is powered up

without rst establishing its network connection. Please follow this procedure to avoid

complications at the conguration stage.

5. While each printer is powered OFF, install the corresponding parallel or USB printer

cable to connect the printer’s parallel port or USB port to the printer port of the Print

Server.

6. Switch on each connected printer.

7. Plug the AC power adapter’s DC output plug into the DC 5V power socket on the

rear panel of the Print Server.

8. Plug the power adapter into a power outlet. This will supply power to the Print Server,

as it has no external power switch. The green Power LED on the Print Server’s front

panel should illuminate steadily, and the Print Server’s Self-Test will proceed.

NOTE: Default IP Address of DPR-1061 is set as automatically getting from DHCP

server or Router which build-in DHCP server.

PS SOFTWARE INSTALLATION

PS Software contains these useful programs: PS-Link and PS-Wizard. Installing

the PS Software is quite simple - To do so, insert the Installation CD-ROM into your

computer’s CD-ROM drive to initiate the Auto-Run program.

Auto-Run Installation

The content of the Installation CD-ROM includes:

• Acrobat Reader – click to launch Acrobat Reader for the viewing and printing of

PDF les in the Installation CD-ROM.

• Install PS Software – click to install PS Software, which contains PS-Link and PS-

Wizard, to complete further settings for the MFP Server, such as:

- Changing IP address

- Supporting multi-function tasks (Print/Scan/Fax) of a MFP printer, printing of GDI

printer, and even other multimedia software of any MFP/GDI printer.

- To easily add new or additional printers on your computer.

For the detail operation, please refer to the user’s guide.

• View Quick Installation Guide - click to preview the Quick Installation Guide in PDF

format for step-by-step instructions of the MFP Server Installation.

• View Manual – click to preview the User's Guide in PDF format for detailed information

of the MFP Server.

• Install Acrobat Reader – click to launch Acrobat Reader for the viewing and printing

of PDF les in the Installation CD-ROM.

• Exit – click to close the Auto-Run program.

Technical Support

You can nd software updates and user documentation on the D-Link website.

D-Link provides free technical support for customers within the United States and

within Canada for the duration of the warranty period on this product.

U.S. and Canadian customers can contact D-Link technical support through our

website, or by phone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

(877) 453-5465

24 hours a day, seven days a week.

D-Link Technical Support over the Internet:

http://support.dlink.com

email:[email protected]

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

(800) 361-5265

Monday to Friday 7:30AM to 9:00PM EST

D-Link Technical Support over the Internet:

http://support.dlink.ca

email:[email protected]

Ver. 1.00(WW)

2007/12/21
