Before You Begin
DP-300U Multi-Port Print Server
Check Your Package Contents
DP-300U
D-Link Fast Ethernet
Print Server
5V DC 2.5A Power Adapter
Using a power
supply with a
different voltage rating
will damage this
product and void its
warranty.
This product can be setup using
any current web browser, i.e.,
Internet Explorer 6 or Netscape
Navigator 7.0
You will need an Ethernet-enabled device, such as a laptop or desktop computer
and a USB or parallel-port printer that will connect to the DP-300U.
Important: TURN OFF the power to the printer before installing
the DP-300U.
2
First, insert one end of a straight-through CAT5 Ethernet RJ-45 cable
into the “Network Port” (shown below.) Connect the other end of the
cable to the LAN port of the gateway or switch. Note: Do not connect
the power cord to the DP-300U until you are advised to do so
Next, make sure that the Printer is turned OFF.
Using the USB cable or printer cable, connect one end of the cable to
the USB or parallel port of the DP-300U (shown below) and the other
end to the USB or parallel port of the printer.
Turn ON the printer.
Then, plug one end of the power adapter into the DP-300U and the
other end into your electric outlet.
The DP-300U will turn on and begin a self-test.

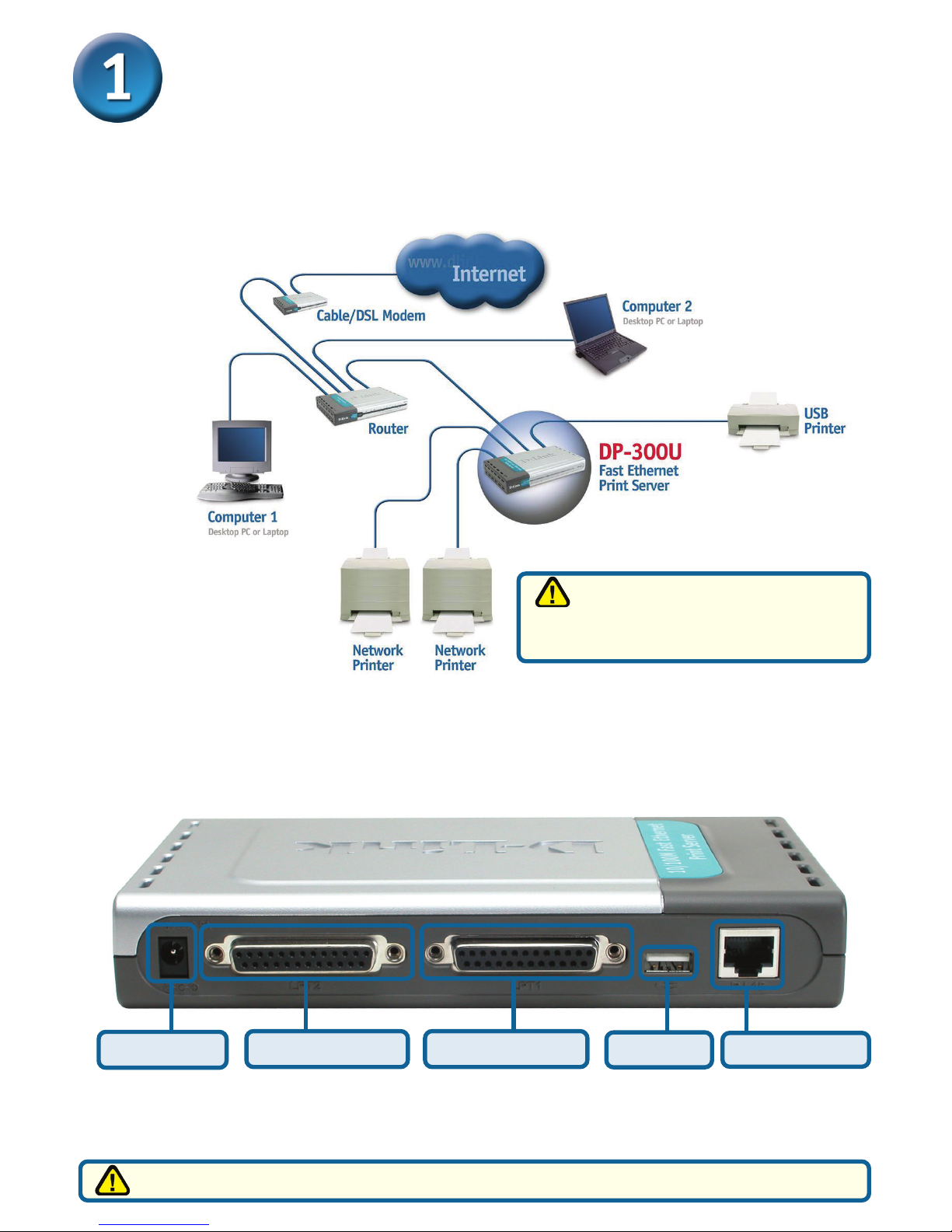

Connecting The DP-300U To Your Network
Parrallel Port 1 Parrallel Port 2 USB Port Network Port
Power Plug
The USB Port is designed only for
direct connection to USB Printer. No
other USB devices will be recognized.
For Mac OS printing, please refer to users manual located on CD-ROM.
3
Setting up your DP-300U for network
printing in Windows XP
The factory default IP address of the DP-300U is 192.168.0.10. In order to
print to the printer(s) through the DP-300U, the DP-300U must have the
same IP network settings as your network. IP address can be assigned
manually or automatically by DHCP, BOOTP or RARP. To access the
print server’s web configuration, manually assign an IP address on one of
the PC’s on your network to the same subnet as the print server.
For additional Windows operating system setup or information
on the web-management interface, refer to the manual located
on the CD-ROM.
Go to Start > right click on
My Network Places >
select Properties > Double-click on
the Network Connection associated
with your Network Adapter.
Input a static IP address in the
same range as the print server.
Click OK
Click Internet Protocol (TCP/IP)
Click Properties
Select Use the following IP address
IP address: 192.168.0.52
Subnet mask: 255.255.255.0
4
Setting up your DP-300U for network
printing in Windows XP (continued)
Using your web browser enter
the IP address of the DP-300U.
By default the IP address is set
to 192.168.0.10
The IP address of the DP-300U can
be modified on the Network tab of
the web configuration menu.
The following instructions use the
print server’s default IP address as
an example. Make the appropriate
changes if you modify the DP-300Us
IP address.
Click OK
Click OK to apply IP address
settings.
5
Setting up your DP-300U for network
printing in Windows XP (continued)
Click Next
Write down on a piece of paper
the Port name that you wish to use.
For Windows XP:
Go to Start>Printers and Faxes>Add
a Printer or Go to Start>Control
Panel> Printers and Faxes
Double-click on the
“Add Printer” icon
Click on the Configure tab to view
the current Port Settings.
6
Setting up your DP-300U for network
printing in Windows XP (continued)
Select “Create a new port.”
At the pull-down menu, high-
light “Standard TCP/IP Port.”
Click Next
Click Next
Select “Local Printer.”
Click Next
Please make sure to
deselect Automatically
detect and install my
Plug an Play printer.
7
Setting up your DP-300U for network
printing in Windows XP (continued)
Click OK
Input the port name of
the port being used by
the printer
Select “LPR”
Type in the IP address of the
print server. (i.e. 192.168.0.10)
Select “Custom”
Then click on Settings.
Click Next
Click Settings
This may take a few seconds
Input the port name of
the port being used by
the printer
8
Setting up your DP-300U for network
printing in Windows XP (continued)
In this window, scroll down to find
your printer. (If it is not listed, insert
the driver CD or diskette that came
with your printer.)
Click on “Have Disk.”
Then, scroll down and highlight the
printer.
Click Next
Click Finish
Click Next
9
Your Setup is Complete!
The printer is now ready for printing
with Windows XP, on your network.
Click Finish
Setting up your DP-300U for network
printing in Windows XP (continued)
Select “Yes” to print a test page
At this screen, you can input a
name for this printer.
Click Next
Click Next
10
