D-Link DI-804 Manuel utilisateur

DI-804

Broadband Router

Quick Install GuideQuick Install Guide

11 Connecting the DI-804 Broadband RouterConnecting the DI-804 Broadband Router

to your networkto your network

When you have completed the steps in this installation guide, your connected

network may look someting like this:

DI-804..03.08.01

First,

Plug in the power supply as shown.

The Power LED will turn on

to indicate proper operation.

Internet

Cable/DSL

Modem

DFE-530TX+

Analog Modem

DI-804

DFE-670TXD

LAN ports WAN port

Connecting the DI-804 Broadband RouterConnecting the DI-804 Broadband Router

to your networkto your network continuedcontinued

Installing the DI-804 using the SetupInstalling the DI-804 using the Setup

WizardWizard

Checking the IP Address of the computer being

used to configure the DI-804 Broadband Router

Next, connect the WAN port to the

Cable/DSL modem. The WAN LED

will indicate connection.

Finally, connect the computer to one

of the LAN ports on the DI-804.

Go to Start>Run

Type in “WINIPCFG”.

The IP address of the computer must

be between 192.168.0.2 and

192.168.0.254 in order to configure

the router.

Note: If you are manually assigning a

static IP, please refer to Appendix A.

Click on the “Release All” and then

on the “Renew All” button to obtain

an IP address from the broadband

router between 192.168.0.100. and

192.168.0.199.

22 Installing the DI-804 using the SetupInstalling the DI-804 using the Setup

WizardWizard continuedcontinued

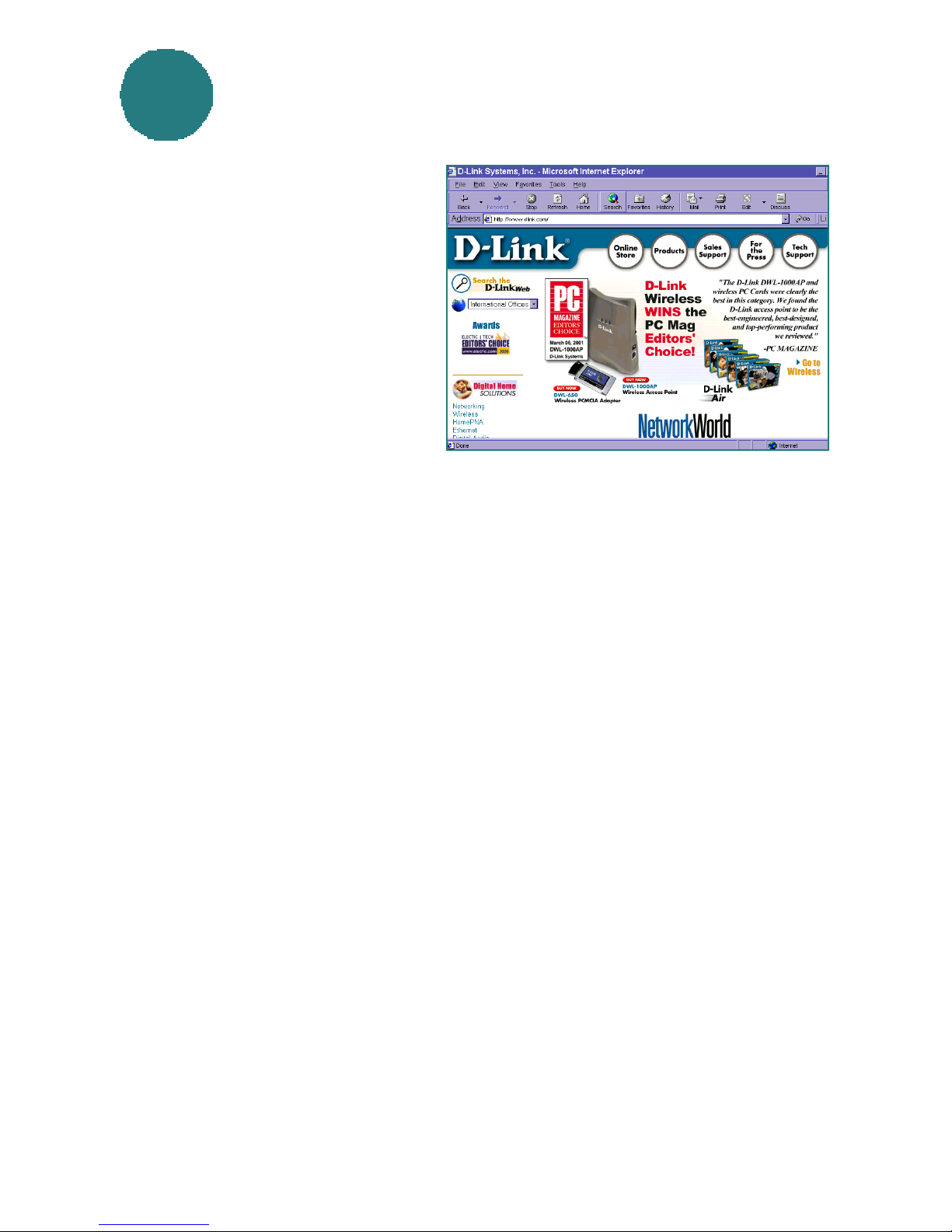

Open the web browser, and type

192.168.0.1 into the URL address box.

Note: Please disable any proxy server

setting for the web browser.

Click on “Start the Setup Wizard”

at the bottom of the Main Menu.

When the login screen appears, type

“admin” in the User Name box, and

leave the Password field blank.

Click OK.

At this window, select the local time

zone.

Click Next, to continue.

22 Installing the DI-804 using the SetupInstalling the DI-804 using the Setup

WizardWizard continuedcontinued

DSL users:

If you are using a PPPoE client to

connect to your DSL provider,

then place a checkmark on the first

box, and enter the user name and

password in the appropriate box.

Cable modem users:

If you are using a cable modem,

then place a checkmark on the sec-

ond box and enter the host and

domain name given by your cable

provider.

Click Next.

By default, the WAN port is set to

automatically obtain an IP address

from the ISP.

To assign a static IP for the WAN

port, remove the checkmark and

enter the settings.

Click Next.

The default IP address of the LAN

port is set to 192.168.0.1.

Click Next to accept the default set-

tings.

Installing the DI-804 using the SetupInstalling the DI-804 using the Setup

WizardWizard continuedcontinued

If you are using a backup dial-up

modem with the broadband router,

place a checkmark in the box and

enter the settings for the dial-up

connection.

Click Next.

At this window,

Click “Save and Restart,” to fin-

ish the Setup Wizard.

After the DI-804 has restarted, the

installation is complete!

33 Checking the connection to the InternetChecking the connection to the Internet

To check the connection, open

the web browser and go to your

favorite website.

If you are unable to browse,

please do the following:

1. Refer to Appendix B to

check your connection to the

wireless router.

2. Use “Help” on the Main

Menu.

3. Refer to the troubleshooting

section in the user’s manual.

If the network adapter is unable to obtain an

IP address automatically from the Broadband

Router,

then go to START>SETTINGS>CONTROL

PANEL>NETWORK

then highlight “TCP/IP” and

Click on “Properties.”

Select the “Gateway” tab and enter the

Gateway IP Address of 192.168.0.1

Next, select the “IP Address” tab, and

Click on “Specify an IP Address.”

Assigning a Static IP Address

Use “Ping” to check your network

connections.

Go to START>RUN

Type “command” in the box.

Click OK.

Type “ping 192.168.0.1”, which is

the IP address of the LAN port of the

Broadband Router.

Hit the “Enter” key.

A successful connection will show

four replies, as shown at left.

Checking Your Network Connections

BBAPPENDIXAPPENDIX
