D-Link DWR-112 Manuel

-1-

FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

Technical Support Setup Procedure

FAQ : How to Configure the Wi-Fi Mode on DWR-112 as

Static IP

Release date : 5/01/2012

Model Support : DWR-112

H/W:A1

S/W:1.00

-2-

FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

Technical Support Setup Procedure

Wi-Fi Static IP

 DWR-112 

1: DWR-112 WI-FI 

-3-

FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

2: 2 , 3 4 DWR-112 Cable/ADS

1 DWR-112 

DWR-112 

3: Internet Explorer, Mozilla Firefox Safari

address http://192.168.0.1 

Enter 

-4-

FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

4:(username) 

“admin” “password” 

Login

5: SETUP  INTERNET 

6: MANUAL INTERNET CONNECTION OPTION 

MANUAL INTERNET CONNECTION SETUP

-5-

FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

7: INTERNET CONNECTION TYPE My

Internet ConnectionStatic IP

8:  STATIC IP ADDRESS INTERNET CONNECTION Type



-6-

FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

9: Save Settings

-7-

FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

Technical Support Setup Procedure

How to Configure the Wi-Fi Mode on DWR-112 as Static IP

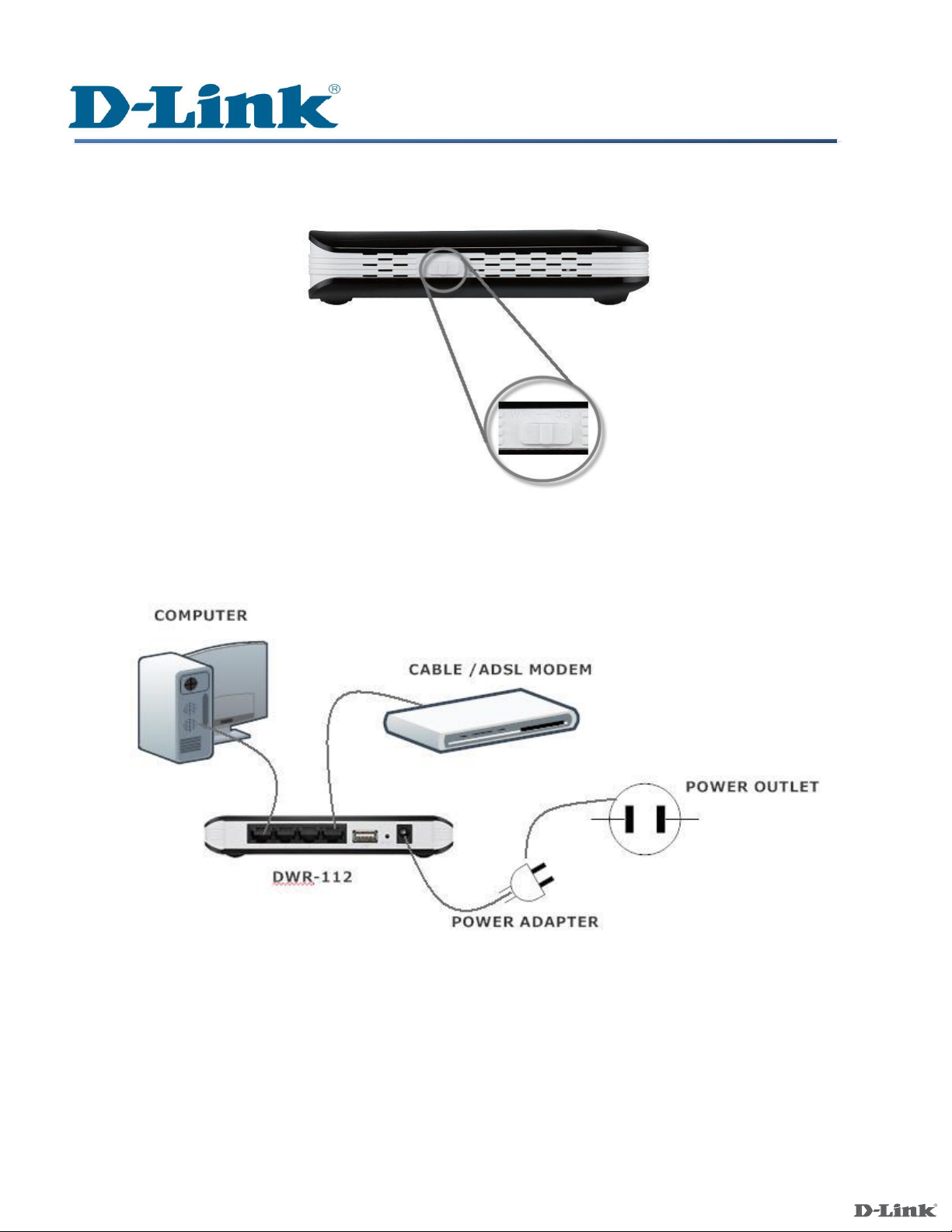

Step 1: Slide the toggle switch to Wi-Fi beside the DWR-112 router.

Step 2: Connect the computer to either port 2, 3 or 4 of the DWR-112, Connect the Cable/ADSL

modem to port 1 of the DWR-112. Plug-in the power adapter to the power receptacle of the DWR-

112 and to the power outlet.

-8-

FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

Step 3: Open a web browser such as Internet Explorer, Mozilla Firefox, Safari and etc. On the Address

bar type in the LAN IP Address of the DWR-112 which is 192.168.0.1 and then press on the Enter

key on your keyboard.

Step 4: A login screen will appear, type in the User Name as “admin” and leave the password field

blank and then click on the Login button.

Step 5: Click on the SETUP tab and then select on INTERNET button on the left hand side.

Step 6: Under the MANUAL INTERNET CONNECTION OPTION section, click on the button,

Manual Internet Connection Setup.

-9-

FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

Step 7: Under the INTERNET CONNECTION TYPE section, On the drop down menu for My

Internet Connection is, select on Static IP.

Step 8: Under the SATIC IP ADDRESS INTERNET CONNECTION TYPE section, enter the sets of

IP Addresses provided by your Internet Service Provider (ISP).

Step 9: Click on the Save Settings button.

-10-

FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

 

Call Center  02-6617997

: 9.00 –18.00 

Thai: Mon –Fri : Time 9.00 –18.00.

: 18.00 

English : Sat –Sun , Public Holiday and after 18.00 weekday.

Website : www.dlink.co.th

email: support@dlink.com.sg

Facebook : http://www.facebook.com/DLinkThailandFans
