Quick Installation Guide

DVG-5402SP

VoIP Router

Package Contents

Using a power adapter with a

different voltage rating will damage

this product and void the warranty.

DVG-5402SP

VoIP Router

CD-ROM

which

includes

the User

Manual

Phone Cord

X 2

Ether

(CAT5

UTP)

Cable

Power

Adapter

Front Panel

Power Solid indicates a connection to a good power source.

Prov./Alm A blinking light indicates DVG-5402SP is attempting to

connect with the Provisioning server. Once the service

connects, the LED will turn off. The LED will light solid red

if the self-test or boot-up fails.

connected to a VoIP service provider. The LED will turn

off if not connected to a service provider.

WAN When a connection is established the 10 or 100 LED will

light up solid. The LED will blink to indicate activity. If the

10 or 100 LED does not light up when a cable is

connected, verify the cable connections and make sure

your devices are powered on.

LAN When a connection is established the 10 or 100 LED will

light up solid on the appropriate port. The LEDs will blink

to indicate activity. If the 10 or 100 LED does not light up

when a cable is connected, verify the cable connections

and make sure your devices are powered on.

Phone This LED displays the VoIP status and Hook activity on

the phone port that is used to connect your normal

telephone(s). If a phone connected to a phone port is off

hook or in use, this LED will light solid. When a phone is

ringing, the indicator will blink.

Line Light on means the line is in use (off-hook).

Hardware Overview

Rear Panel

1. Line: Connect to your original telephone line on the wall jack with

RJ-11 cable.

2. Phone Port (1-2): Connect to your phones using standard phone

cabling (RJ-11).

3. LAN: Connect to your Ethernet enabled computers using Ethernet

cabling.

4. WAN: Connect to your broadband modem using an Ethernet cable.

5. Power Receptor: Receptor for the provided power adapter.

6. Ground: A conducting connection with the earth. Connect with the

ground so as to make the earth a part of an electrical circuit using

metal wire.

Hardware Overview (continued)

A. Insert one end of the Ethernet cable into the Ethernet (LAN) port on

the back panel of the DVG-5402SP and the other end of the cable to

an Ethernet Adapter or available Ethernet port on your computer.

B. Insert one end of the Ethernet cable into the WAN port on the back of

the DVG-5402SP and the other into your cable/DSL modem or the

LAN port of your router.

C. Insert a telephone cable into the Phone port, and then connect the

cable to your telephone.

Installing the Hardware

D. Insert your original telephone line on the wall jack (PSTN) into the

Line port.

E. Connect the power adapter to the power input at the back panel of

the DVG-5402SP and then plug the other end of the power adapter

to a wall outlet or power strip. On the front of the device, the Power

LED will turn On to indicate proper operation.

F. Check the LED display on the front of the VoIP Router to confirm that

the connections have been made.

Installing the Hardware (continued)

After the installations are completed, your network should look similar to

the diagram below.

Hardware configuration is complete! If your VoIP service is already activated, you

can make phone calls now.

Installing the Hardware (continued)

Configuration

To access the web-based configuration utility, open a web browser such

as Internet Explorer and enter the IP address of the DVG-5402SP.

Open your Web browser and

type http://192.168.8.254 into

the URL address box. Press

the Enter or Return Key.

Click Login to enter Web Site.

Click Setup Wizard.

Configuration (continued)

The username of ADMIN and USER

have been defined and locked by

default. It is highly recommended to

create a login password to keep

your router secure.

Enter a NTP server or use the

default server.

Click Next.

Configuration (continued)

Select your Internet connection type:

DHCP – Most Cable ISPs or if you

are connecting the DVG-5402SP

behind a router.

Static IP – Select if your ISP

supplied you with your IP settings.

PPPoE – Most DSL ISPs.

PPTP – Select if required by your

ISP.

BigPond – For Australia only.

Select Manual to manually enter IP

address of DNS or select Auto if

DNS is assigned by ISP.

Click Next.

by clicking Enable support of SIP

Proxy Server. Enter Proxy

Server IP/Domain and Port.

The Outbound Proxy Support is

optional. To register, please click

on the Outbound Proxy Support

check box and enter Outbound

Proxy IP/Domain and Port in it.

Registration by phone line: enter

Number, User ID/Account and

Password supplied by your ITSP.

Click on the Register check box to

Configuration (continued)

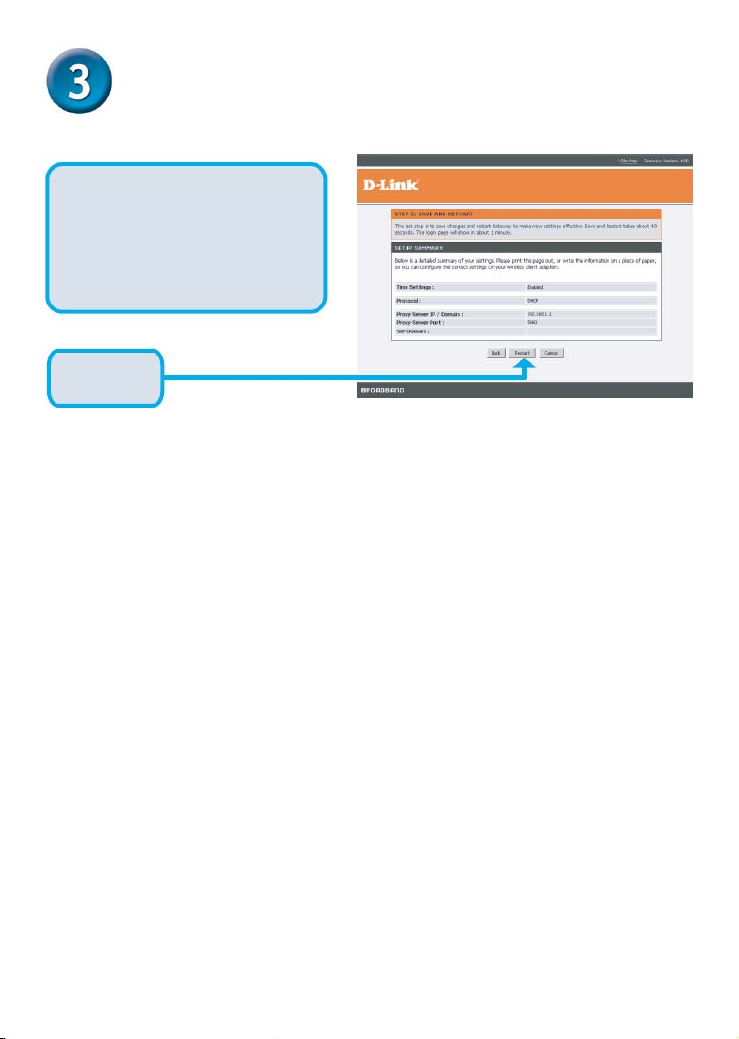

Setup is finished. Check the

summary of your settings. To

make new settings effective, you

must click on the Restart button

to reboot the DVG-5402SP.

Click Restart.
